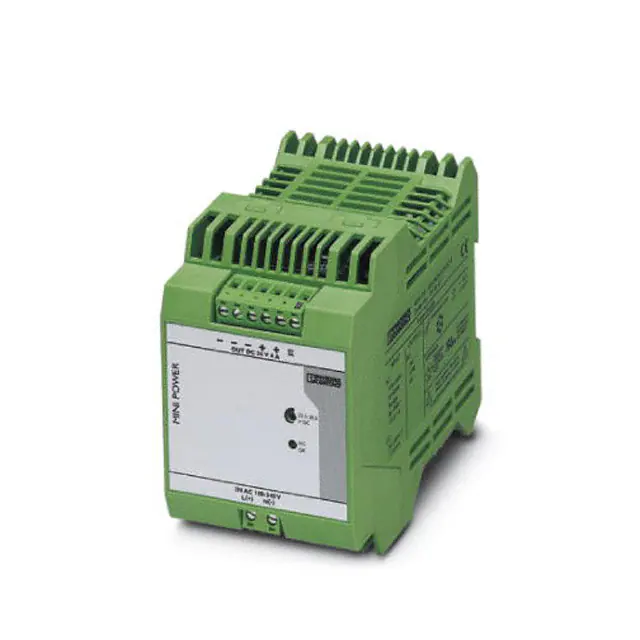

https://www.phoenixcontact.com/us/products/2938837 Power supply unit - MINI-PS-100-240AC/24DC/4 - 2938837 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Primary-switched MINI POWER power supply for DIN rail mounting, input: 1-phase, output: 24 V DC/4 A Product Description MINI POWER power supplies for MCR technology In measurement and control technology (MCR), modular electronics housing has become the industry standard. MINI POWER is the power supply unit to go with it. The devices are flexible, thanks to special voltages and special versions. Product Features ■ ■ Easy-maintenance connection technology thanks to keyed COMBICON connectors Remote monitoring of output voltage via switching output Key Commercial Data Packing unit 1 pc Weight per Piece (excluding packing) 500.0 g Custom tariff number 85044030 Country of origin China Technical data Dimensions Width 67.5 mm Height 99 mm Depth 107 mm Ambient conditions Degree of protection IP20 Ambient temperature (operation) -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) Ambient temperature (storage/transport) -40 °C ... 85 °C Max. permissible relative humidity (operation) ≤ 95 % (at 25 °C, non-condensing) 03/13/2016   Page 1 / 7 https://www.phoenixcontact.com/us/products/2938837 Power supply unit - MINI-PS-100-240AC/24DC/4 - 2938837 Technical data Ambient conditions Noise immunity EN 61000-6-2:2005 Input data Nominal input voltage range 100 V AC ... 240 V AC Input voltage range 85 V AC ... 264 V AC 90 V DC ... 350 V DC AC frequency range 45 Hz ... 65 Hz Inrush surge current < 15 A (typical) Power failure bypass > 20 ms (120 V AC) > 100 ms (230 V AC) Input fuse 3.15 A (slow-blow, internal) Choice of suitable circuit breakers 6 A ... 16 A (Characteristics B, C, D, K) Type of protection Transient surge protection Protective circuit/component Varistor Output data Nominal output voltage 24 V DC ±1 % Setting range of the output voltage (USet) 22.5 V DC ... 28.5 V DC (> 24 V DC, constant capacity restricted) Nominal output current (IN) 4 A (-25 °C ... 60 °C) POWER BOOST (IBoost) 5 A (-25°C ... 40°C permanent ) Derating 60 °C ... 70 °C (2.5%/K) Connection in parallel Yes, for redundancy and increased capacity Connection in series Yes Starting delay with capacitive load Unrestricted Max. capacitive load Unlimited Active current limitation Approx 9 A (in the event of a short-circuit) Control deviation change in load, static 10 % ... 90 % < 3 % (change in load, dynamic 10 % ... 90 %) < 0.1 % (change in input voltage ±10 %) Residual ripple < 20 mVPP (20 MHz) Output power 96 W Typical response time < 0.4 s Peak switching voltages nominal load < 100 mVPP (20 MHz) Maximum power dissipation in no-load condition 2.5 W Power loss nominal load max. 12 W General Net weight 0.4 kg Operating voltage display Green LED 03/13/2016   Page 2 / 7 https://www.phoenixcontact.com/us/products/2938837 Power supply unit - MINI-PS-100-240AC/24DC/4 - 2938837 Technical data General Efficiency > 88 % (for 230 V AC and nominal values) Insulation voltage input/output 3 kV (type test) 3 kV (Routine test) Protection class II (in closed control cabinet) MTTF/ MTBF (IEC 61709, SN 29500) > 815000 h (40°C) Mounting position horizontal DIN rail NS 35, EN 60715 Assembly instructions Can be aligned: Horizontally 0 mm, vertically 50 mm Connection data, input Connection method Pluggable screw connection Conductor cross section solid min. 0.2 mm² Conductor cross section solid max. 2.5 mm² Conductor cross section flexible min. 0.2 mm² Conductor cross section flexible max. 2.5 mm² Conductor cross section AWG min. 24 Conductor cross section AWG max. 12 Stripping length 7 mm Screw thread M3 Connection data, output Connection method Pluggable screw connection Conductor cross section solid min. 0.2 mm² Conductor cross section solid max. 2.5 mm² Conductor cross section flexible min. 0.2 mm² Conductor cross section flexible max. 2.5 mm² Conductor cross section AWG min. 24 Conductor cross section AWG max. 12 Stripping length 7 mm Screw thread M3 Connection data for signaling Conductor cross section solid min. 0.2 mm² Conductor cross section solid max. 2.5 mm² Conductor cross section flexible min. 0.2 mm² Conductor cross section flexible max. 2.5 mm² Conductor cross section AWG min. 24 Conductor cross section AWG max. 12 Screw thread M3 03/13/2016   Page 3 / 7 https://www.phoenixcontact.com/us/products/2938837 Power supply unit - MINI-PS-100-240AC/24DC/4 - 2938837 Technical data Standards and Regulations Electromagnetic compatibility Conformance with EMC Directive 2004/108/EC Shock 30g in each direction, according to IEC 60068-2-27 Noise emission EN 55011 (EN 55022) Noise immunity EN 61000-6-2:2005 Connection in acc. with standard CUL Standards/regulations EN 61000-4-3 EN 61000-4-4 EN 61000-4-6 Standard – Electrical equipment of machines EN 60204-1 Standard - Electrical safety EN 60950-1/VDE 0805 (SELV) Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installations EN 50178/VDE 0160 (PELV) Standard – Safety extra-low voltage EN 60950-1 (SELV) EN 60204 (PELV) Standard - Safe isolation DIN VDE 0100-410 Standard – Limitation of mains harmonic currents EN 61000-3-2 UL approvals UL/C-UL listed UL 508 UL/C-UL Recognized UL 60950 UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D (Hazardous Location) Vibration (operation) < 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6) Low Voltage Directive Conformance with LV directive 2006/95/EC Rail applications EN 50121-4 Classifications eCl@ss eCl@ss 4.0 27040702 eCl@ss 4.1 27040702 eCl@ss 5.0 27049002 eCl@ss 5.1 27049002 eCl@ss 6.0 27049002 eCl@ss 7.0 27049002 eCl@ss 8.0 27049002 eCl@ss 9.0 27040701 ETIM ETIM 2.0 EC001039 03/13/2016   Page 4 / 7 https://www.phoenixcontact.com/us/products/2938837 Power supply unit - MINI-PS-100-240AC/24DC/4 - 2938837 Classifications ETIM ETIM 3.0 EC001039 ETIM 4.0 EC000599 ETIM 5.0 EC002540 UNSPSC UNSPSC 6.01 30211502 UNSPSC 7.0901 39121004 UNSPSC 11 39121004 UNSPSC 12.01 39121004 UNSPSC 13.2 39121004 Approvals Approvals Approvals UL Recognized / UL Listed / cUL Recognized / cUL Listed / EAC / EAC / cULus Recognized / cULus Listed Ex Approvals UL Listed / cUL Listed / cULus Listed Approvals submitted Approval details UL Recognized  UL Listed  cUL Recognized  03/13/2016   Page 5 / 7 https://www.phoenixcontact.com/us/products/2938837 Power supply unit - MINI-PS-100-240AC/24DC/4 - 2938837 Approvals cUL Listed  EAC  EAC  cULus Recognized  cULus Listed  Drawings Block diagram L (+) N (-) DC OK 03/13/2016   Page 6 / 7 https://www.phoenixcontact.com/us/products/2938837 Power supply unit - MINI-PS-100-240AC/24DC/4 - 2938837 Diagram POWER BOOST Phoenix Contact 2016 © - all rights reserved http://www.phoenixcontact.com 03/13/2016   Page 7 / 7
