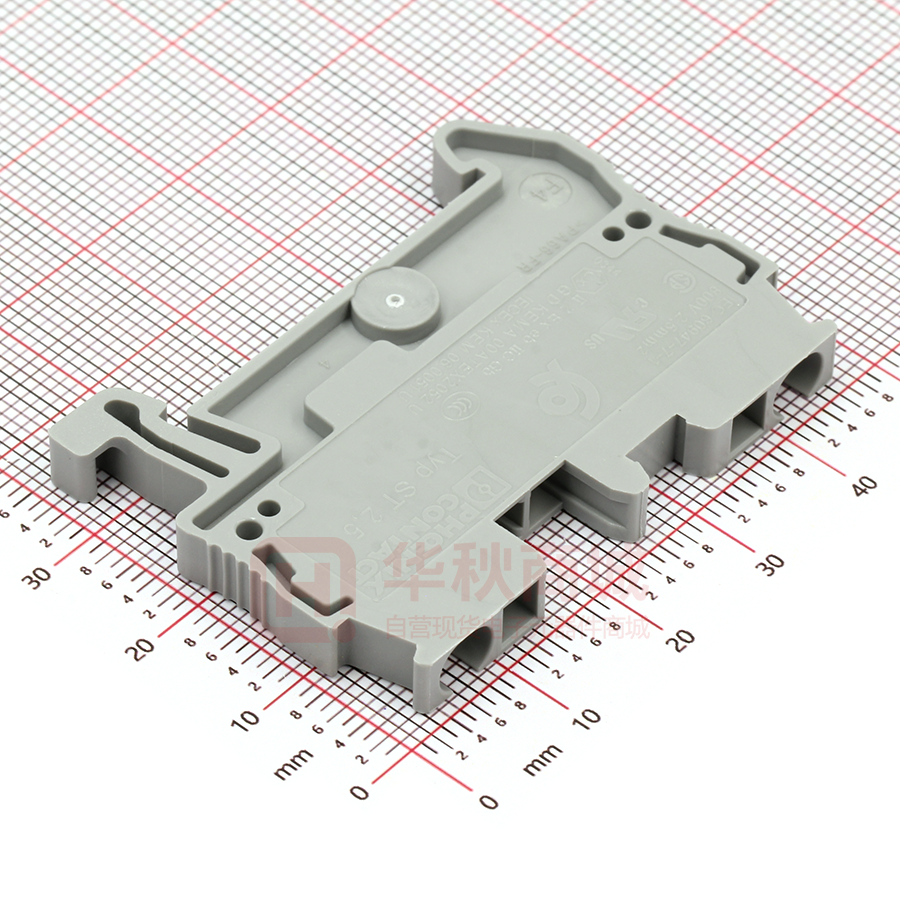

Feed-through terminal block - ST 2,5 - 3031212
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Feed-through terminal block, Connection method: Spring-cage connection, Cross section: 0.08 mm² - 4 mm²,
AWG: 28 - 12, Width: 5.2 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15
Why buy this product
The consistent double function shaft offers every opportunity for time-saving potential distribution and accommodating test accessories
As well as saving space, the compact design and front connection enable user-friendly wiring in a small amount of space
The large wiring space enables the use of conductors with ferrules and plastic collars within the nominal cross section
Tested for railway applications
Key Commercial Data
Packing unit
50 STK
Minimum order quantity
50 STK
GTIN
GTIN
4017918186722
Weight per Piece (excluding packing)
6.050 g
Custom tariff number
85369010
Country of origin
Germany
Technical data
General
Number of levels
1
Number of connections
2
Potentials
1
Nominal cross section
2.5 mm²
Color
gray
Insulating material
PA
Flammability rating according to UL 94
V0
Area of application
Railway industry
12/28/2016 Page 1 / 27
https://www.phoenixcontact.com/gb/products/3031212
Feed-through terminal block - ST 2,5 - 3031212
Technical data
General
Machine building
Plant engineering
Process industry
Rated surge voltage
8 kV
Degree of pollution
3
Overvoltage category
III
Insulating material group
I
Maximum load current
31 A (with 4 mm² conductor cross section)
Nominal current IN
24 A (at 2.5 mm²)
Nominal voltage UN
800 V
Open side panel
Yes
Shock protection test specification
DIN EN 50274 (VDE 0660-514):2002-11
Back of the hand protection
guaranteed
Finger protection
guaranteed
Result of surge voltage test
Test passed
Surge voltage test setpoint
9.8 kV
Result of power-frequency withstand voltage test
Test passed
Power frequency withstand voltage setpoint
2 kV
Result of the test for mechanical stability of terminal points (5 x
conductor connection)
Test passed
Result of bending test
Test passed
Bending test rotation speed
10 rpm
Bending test turns
135
Bending test conductor cross section/weight
0.08 mm² / 0.1 kg
2.5 mm² / 0.7 kg
4 mm² / 0.9 kg
Tensile test result
Test passed
Conductor cross section tensile test
0.08 mm²
Tractive force setpoint
5N
Conductor cross section tensile test
2.5 mm²
Tractive force setpoint
50 N
Conductor cross section tensile test
4 mm²
Tractive force setpoint
60 N
Result of tight fit on support
Test passed
Tight fit on carrier
NS 35
Setpoint
1N
Result of voltage-drop test
Test passed
Requirements, voltage drop
≤ 3.2 mV
Result of temperature-rise test
Test passed
Short circuit stability result
Test passed
Conductor cross section short circuit testing
2.5 mm²
12/28/2016 Page 2 / 27
https://www.phoenixcontact.com/gb/products/3031212
Feed-through terminal block - ST 2,5 - 3031212
Technical data
General
Short-time current
0.3 kA
Conductor cross section short circuit testing
4 mm²
Short-time current
0.48 kA
Result of aging test
Test passed
Ageing test for screwless modular terminal block temperature cycles
192
Result of thermal test
Test passed
Proof of thermal characteristics (needle flame) effective duration
30 s
Oscillation, broadband noise test result
Test passed
Test specification, oscillation, broadband noise
DIN EN 50155 (VDE 0115-200):2008-03
Test spectrum
Service life test category 2, bogie mounted
Test frequency
f1 = 5 Hz to f2 = 250 Hz
ASD level
0.964 (m/s ) /Hz
Acceleration
4.25 g
Test duration per axis
5h
Test directions
X-, Y- and Z-axis
Shock test result
Test passed
Test specification, shock test
DIN EN 50155 (VDE 0115-200):2008-03
Shock form
Half-sine
Acceleration
30g
Shock duration
18 ms
Number of shocks per direction
3
Test directions
X-, Y- and Z-axis (pos. and neg.)
Relative insulation material temperature index (Elec., UL 746 B)
130 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
125 °C
Static insulating material application in cold
-60 °C
Behavior in fire for rail vehicles (DIN 5510-2)
Test passed
Flame test method (DIN EN 60695-11-10)
V0
Oxygen index (DIN EN ISO 4589-2)
>32 %
NF F16-101, NF F10-102 Class I
2
NF F16-101, NF F10-102 Class F
2
Surface flammability NFPA 130 (ASTM E 162)
passed
Specific optical density of smoke NFPA 130 (ASTM E 662)
passed
Smoke gas toxicity NFPA 130 (SMP 800C)
passed
Calorimetric heat release NFPA 130 (ASTM E 1354)
27,5 MJ/kg
Fire protection for rail vehicles (DIN EN 45545-2) R22
HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23
HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24
HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26
HL 1 - HL 3
2 2
Dimensions
12/28/2016 Page 3 / 27
https://www.phoenixcontact.com/gb/products/3031212
Feed-through terminal block - ST 2,5 - 3031212
Technical data
Dimensions
Width
5.2 mm
End cover width
2.2 mm
Length
48.5 mm
Height NS 35/7,5
36.5 mm
Height NS 35/15
44 mm
Connection data
Connection method
Spring-cage connection
Connection in acc. with standard
IEC 60947-7-1
Conductor cross section solid min.
0.08 mm²
Conductor cross section solid max.
4 mm²
Conductor cross section AWG min.
28
Conductor cross section AWG max.
12
Conductor cross section flexible min.
0.08 mm²
Conductor cross section flexible max.
2.5 mm²
Min. AWG conductor cross section, flexible
28
Max. AWG conductor cross section, flexible
14
Conductor cross section flexible, with ferrule without plastic sleeve min.
0.14 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max. 2.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.
0.14 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.
2.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
0.5 mm²
Connection in acc. with standard
IEC/EN 60079-7
Conductor cross section solid min.
0.08 mm²
Conductor cross section solid max.
4 mm²
Conductor cross section AWG min.
28
Conductor cross section AWG max.
12
Conductor cross section flexible min.
0.08 mm²
Conductor cross section flexible max.
2.5 mm²
Stripping length
8 mm ... 10 mm
Internal cylindrical gage
A3
Standards and Regulations
Connection in acc. with standard
CSA
IEC 60947-7-1
Flammability rating according to UL 94
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
12/28/2016 Page 4 / 27
https://www.phoenixcontact.com/gb/products/3031212
Feed-through terminal block - ST 2,5 - 3031212
Circuit diagram
Classifications
eCl@ss
eCl@ss 4.0
27141121
eCl@ss 4.1
27141121
eCl@ss 5.0
27141120
eCl@ss 5.1
27141120
eCl@ss 6.0
27141120
eCl@ss 7.0
27141120
eCl@ss 8.0
27141120
eCl@ss 9.0
27141120
ETIM
ETIM 2.0
EC000897
ETIM 3.0
EC000897
ETIM 4.0
EC000897
ETIM 5.0
EC000897
ETIM 6.0
EC000897
UNSPSC
UNSPSC 6.01
30211811
UNSPSC 7.0901
39121410
UNSPSC 11
39121410
UNSPSC 12.01
39121410
UNSPSC 13.2
39121410
Approvals
Approvals
Approvals
UL Recognized / VDE Gutachten mit Fertigungsüberwachung / cUL Recognized / LR / BV / RS / KR / NK / IECEE CB Scheme / CSA / EAC / EAC /
DNV GL / DNV GL / cULus Recognized
Ex Approvals
IECEx / ATEX / EAC Ex
Approval details
12/28/2016 Page 5 / 27
https://www.phoenixcontact.com/gb/products/3031212
Feed-through terminal block - ST 2,5 - 3031212
Approvals
UL Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
B
C
mm²/AWG/kcmil
28-12
28-12
Nominal current IN
20 A
20 A
Nominal voltage UN
600 V
600 V
VDE Gutachten mit
Fertigungsüberwachung
http://www.vde.com/en/Institute/OnlineService/
VDE-approved-products/Pages/Online-Search.aspx
mm²/AWG/kcmil
0.2-2.5
Nominal current IN
24 A
Nominal voltage UN
800 V
cUL Recognized
40009033
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
B
C
mm²/AWG/kcmil
28-12
28-12
Nominal current IN
20 A
20 A
Nominal voltage UN
600 V
600 V
FILE E 60425
FILE E 60425
LR
http://www.lr.org/en
04/20034
BV
http://www.veristar.com/portal/veristarinfo/generalinfo/
approved/approvedProducts/equipmentAndMaterials
13403/B0 BV
RS
http://www.rs-head.spb.ru/en/index.php
11.04057.250
KR
http://www.krs.co.kr/eng/main/main.aspx
HMB17372-EL002
12/28/2016 Page 6 / 27
https://www.phoenixcontact.com/gb/products/3031212
Feed-through terminal block - ST 2,5 - 3031212
Approvals
NK
http://www.classnk.or.jp/hp/en/
09 ME 140
IECEE CB Scheme
http://www.iecee.org/
DE1-51366
mm²/AWG/kcmil
2.5
Nominal voltage UN
800 V
CSA
http://www.csagroup.org/services/testingand-certification/certified-product-listing/
B
C
mm²/AWG/kcmil
28-12
28-12
Nominal current IN
20 A
20 A
Nominal voltage UN
600 V
600 V
13631
EAC
EAC-Zulassung
EAC
7500651.22.01.00246
DNV GL
https://www.dnvgl.com/
E-13345 (E-9232)
DNV GL
https://www.dnvgl.com/
TAE00001CS
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
cULus Recognized
Accessories
Accessories
DIN rail
12/28/2016 Page 7 / 27
https://www.phoenixcontact.com/gb/products/3031212
Feed-through terminal block - ST 2,5 - 3031212
Accessories
DIN rail perforated - NS 35/ 7,5 PERF 2000MM - 0801733
DIN rail, material: steel galvanized and passivated with a thick layer, perforated, height 7.5 mm, width 35 mm, length:
2000 mm
DIN rail, unperforated - NS 35/ 7,5 UNPERF 2000MM - 0801681
DIN rail, material: Steel, unperforated, height 7.5 mm, width 35 mm, length: 2 m
DIN rail perforated - NS 35/ 7,5 WH PERF 2000MM - 1204119
DIN rail 35 mm (NS 35)
DIN rail - NS 35/ 7,5 WH UNPERF 2000MM - 1204122
DIN rail 35 mm (NS 35)
DIN rail, unperforated - NS 35/ 7,5 AL UNPERF 2000MM - 0801704
DIN rail, unperforated, Width: 35 mm, Height: 7.5 mm, Length: 2000 mm, Color: silver
12/28/2016 Page 8 / 27
https://www.phoenixcontact.com/gb/products/3031212
Feed-through terminal block - ST 2,5 - 3031212
Accessories
DIN rail perforated - NS 35/ 7,5 ZN PERF 2000MM - 1206421
DIN rail, material: Galvanized, perforated, height 7.5 mm, width 35 mm, length: 2 m
DIN rail, unperforated - NS 35/ 7,5 ZN UNPERF 2000MM - 1206434
DIN rail, material: Galvanized, unperforated, height 7.5 mm, width 35 mm, length: 2 m
DIN rail, unperforated - NS 35/ 7,5 CU UNPERF 2000MM - 0801762
DIN rail, material: Copper, unperforated, height 7.5 mm, width 35 mm, length: 2 m
End cap - NS 35/ 7,5 CAP - 1206560
DIN rail end piece, for DIN rail NS 35/7.5
DIN rail perforated - NS 35/15 PERF 2000MM - 1201730
DIN rail, material: steel galvanized and passivated with a thick layer, perforated, height 15 mm, width 35 mm, length:
2000 mm
12/28/2016 Page 9 / 27
https://www.phoenixcontact.com/gb/products/3031212
Feed-through terminal block - ST 2,5 - 3031212
Accessories
DIN rail, unperforated - NS 35/15 UNPERF 2000MM - 1201714
DIN rail, material: Steel, unperforated, height 15 mm, width 35 mm, length: 2 m
DIN rail perforated - NS 35/15 WH PERF 2000MM - 0806602
DIN rail 35 mm (NS 35)
DIN rail - NS 35/15 WH UNPERF 2000MM - 1204135
DIN rail 35 mm (NS 35)
DIN rail, unperforated - NS 35/15 AL UNPERF 2000MM - 1201756
DIN rail, deep drawn, high profile, unperforated, 1.5 mm thick, material: aluminum, height 15 mm, width 35 mm,
length 2000 mm
DIN rail perforated - NS 35/15 ZN PERF 2000MM - 1206599
DIN rail, material: Galvanized, perforated, height 15 mm, width 35 mm, length: 2 m
12/28/2016 Page 10 / 27
https://www.phoenixcontact.com/gb/products/3031212
Feed-through terminal block - ST 2,5 - 3031212
Accessories
DIN rail, unperforated - NS 35/15 ZN UNPERF 2000MM - 1206586
DIN rail, material: Galvanized, unperforated, height 15 mm, width 35 mm, length: 2 m
DIN rail, unperforated - NS 35/15 CU UNPERF 2000MM - 1201895
DIN rail, material: Copper, unperforated, 1.5 mm thick, height 15 mm, width 35 mm, length: 2 m
End cap - NS 35/15 CAP - 1206573
DIN rail end piece, for DIN rail NS 35/15
DIN rail, unperforated - NS 35/15-2,3 UNPERF 2000MM - 1201798
DIN rail, unperforated, Width: 35 mm, Height: 15 mm, Length: 2000 mm, Color: silver
Documentation
Mounting material - ST-IL - 3039900
Operating decal for the ST terminal block
End block
12/28/2016 Page 11 / 27
https://www.phoenixcontact.com/gb/products/3031212
Feed-through terminal block - ST 2,5 - 3031212
Accessories
End clamp - CLIPFIX 35 - 3022218
Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, width: 9.5 mm, color:
gray
End clamp - CLIPFIX 35-5 - 3022276
Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, with parking option for
FBS...5, FBS...6, KSS 5, KSS 6, width: 5.15 mm, color: gray
End clamp - E/NS 35 N - 0800886
End clamp, width: 9.5 mm, color: gray
End clamp - E/UK - 1201442
End clamp, Width: 9.5 mm, Height: 35.3 mm, Length: 50.5 mm, Color: gray
End clamp - E/UK 1 - 1201413
End clamps, for supporting the ends of double-level and three-level terminal blocks, width: 10 mm, color: gray
End cover
12/28/2016 Page 12 / 27
https://www.phoenixcontact.com/gb/products/3031212
Feed-through terminal block - ST 2,5 - 3031212
Accessories
End cover - D-ST 2,5 - 3030417
End cover, Length: 48.6 mm, Width: 2.2 mm, Height: 29.1 mm, Color: gray
End cover - D-ST 2,5-0,8 OG - 3030511
End cover, Length: 48.6 mm, Width: 0.8 mm, Height: 29 mm, Color: orange
Front adapter
Front adapters - VIP-PA-PWR/20XOE/ 1,0M/S7 - 2904724
VIP power cabling, universal front adapter for connection to all popular 20-pos. SIMATIC S7-300 I/O modules, via 20
individual wires in rope structure, not assembled (field connection, e.g., via 20 modular terminal blocks), Cable length:
1m
Front adapters - VIP-PA-PWR/20XOE/ 2,0M/S7 - 2904725
VIP power cabling, universal front adapter for connection to all popular 20-pos. SIMATIC S7-300 I/O modules, via 20
individual wires in rope structure, not assembled (field connection, e.g., via 20 modular terminal blocks), Cable length:
2m
Front adapters - VIP-PA-PWR/20XOE/ 3,0M/S7 - 2904726
VIP power cabling, universal front adapter for connection to all popular 20-pos. SIMATIC S7-300 I/O modules, via 20
individual wires in rope structure, not assembled (field connection, e.g., via 20 modular terminal blocks), Cable length:
3m
12/28/2016 Page 13 / 27
https://www.phoenixcontact.com/gb/products/3031212
Feed-through terminal block - ST 2,5 - 3031212
Accessories
Front adapters - VIP-PA-PWR/20XOE/10,0M/S7 - 2904730
VIP power cabling, universal front adapter for connection to all popular 20-pos. SIMATIC S7-300 I/O modules, via 20
individual wires in rope structure, not assembled (field connection, e.g., via 20 modular terminal blocks), Cable length:
10 m
Front adapters - VIP-PA-PWR/40XOE/ 1,0M/S7 - 2904731
VIP power cabling, universal front adapter for connection to all popular 40-pos. SIMATIC S7-300 I/O modules, via 40
individual wires in rope structure, not assembled (field connection, e.g., via 40 modular terminal blocks), Cable length:
1m
Front adapters - VIP-PA-PWR/40XOE/ 2,0M/S7 - 2904732
VIP power cabling, universal front adapter for connection to all popular 40-pos. SIMATIC S7-300 I/O modules, via 40
individual wires in rope structure, not assembled (field connection, e.g., via 40 modular terminal blocks), Cable length:
2m
Front adapters - VIP-PA-PWR/40XOE/ 3,0M/S7 - 2904733
VIP power cabling, universal front adapter for connection to all popular 40-pos. SIMATIC S7-300 I/O modules, via 40
individual wires in rope structure, not assembled (field connection, e.g., via 40 modular terminal blocks), Cable length:
3m
Front adapters - VIP-PA-PWR/40XOE/10,0M/S7 - 2904737
VIP power cabling, universal front adapter for connection to all popular 40-pos. SIMATIC S7-300 I/O modules, via 40
individual wires in rope structure, not assembled (field connection, e.g., via 40 modular terminal blocks), Cable length:
10 m
Insulating sleeve
12/28/2016 Page 14 / 27
https://www.phoenixcontact.com/gb/products/3031212
Feed-through terminal block - ST 2,5 - 3031212
Accessories
Insulating sleeve - MPS-IH WH - 0201663
Insulating sleeve, Color: white
Insulating sleeve - MPS-IH RD - 0201676
Insulating sleeve, Color: red
Insulating sleeve - MPS-IH BU - 0201689
Insulating sleeve, Color: blue
Insulating sleeve - MPS-IH YE - 0201692
Insulating sleeve, Color: yellow
Insulating sleeve - MPS-IH GN - 0201702
Insulating sleeve, Color: green
12/28/2016 Page 15 / 27
https://www.phoenixcontact.com/gb/products/3031212
Feed-through terminal block - ST 2,5 - 3031212
Accessories
Insulating sleeve - MPS-IH GY - 0201728
Insulating sleeve, Color: gray
Insulating sleeve - MPS-IH BK - 0201731
Insulating sleeve, Color: black
Insulating sleeve - ISH 2,5/0,2 - 3002843
Insulating sleeve, Color: white
Insulating sleeve - ISH 2,5/0,5 - 3002856
Insulating sleeve, Color: gray
Insulating sleeve - ISH 2,5/1,0 - 3002869
Insulating sleeve, Color: black
Jumper
12/28/2016 Page 16 / 27
https://www.phoenixcontact.com/gb/products/3031212
Feed-through terminal block - ST 2,5 - 3031212
Accessories
Plug-in bridge - FBS 2-5 - 3030161
Plug-in bridge, Pitch: 5.2 mm, Length: 22.7 mm, Width: 9 mm, Number of positions: 2, Color: red
Plug-in bridge - FBS 3-5 - 3030174
Plug-in bridge, Pitch: 5.2 mm, Length: 22.7 mm, Width: 14.2 mm, Number of positions: 3, Color: red
Plug-in bridge - FBS 4-5 - 3030187
Plug-in bridge, Pitch: 5.2 mm, Length: 22.7 mm, Width: 19.4 mm, Number of positions: 4, Color: red
Plug-in bridge - FBS 5-5 - 3030190
Plug-in bridge, Pitch: 5.2 mm, Length: 22.7 mm, Width: 24.6 mm, Number of positions: 5, Color: red
Plug-in bridge - FBS 10-5 - 3030213
Plug-in bridge, Pitch: 5.2 mm, Length: 22.7 mm, Width: 50.6 mm, Number of positions: 10, Color: red
12/28/2016 Page 17 / 27
https://www.phoenixcontact.com/gb/products/3031212
Feed-through terminal block - ST 2,5 - 3031212
Accessories
Plug-in bridge - FBS 20-5 - 3030226
Plug-in bridge, Pitch: 5.2 mm, Number of positions: 20, Color: red
Plug-in bridge - FBSR 2-5 - 3033702
Plug-in bridge, Pitch: 5.2 mm, Number of positions: 2, Color: red
Plug-in bridge - FBSR 3-5 - 3001591
Plug-in bridge, Pitch: 5.2 mm, Number of positions: 3, Color: red
Plug-in bridge - FBSR 4-5 - 3001592
Plug-in bridge, Pitch: 5.2 mm, Number of positions: 4, Color: red
Plug-in bridge - FBSR 5-5 - 3001593
Plug-in bridge, Pitch: 5.2 mm, Number of positions: 5, Color: red
12/28/2016 Page 18 / 27
https://www.phoenixcontact.com/gb/products/3031212
Feed-through terminal block - ST 2,5 - 3031212
Accessories
Plug-in bridge - FBSR 10-5 - 3033710
Plug-in bridge, Pitch: 5.2 mm, Number of positions: 10, Color: red
Labeled terminal marker
Warning cover - WST 2,5 - 3030941
Warning cover, 5-pos., for terminal width: 5.2 mm
Zack marker strip - ZB 5 CUS - 0824962
Zack marker strip, can be ordered: Strip, white, labeled according to customer specifications, Mounting type: Snap
into tall marker groove, for terminal block width: 5.2 mm, Lettering field: 5.15 x 10.5 mm
Zack marker strip - ZB 5,LGS:FORTL.ZAHLEN - 1050017
Zack marker strip, Strip, white, labeled, Printed horizontally: Consecutive numbers 1 - 10, 11 - 20, etc. up to 491 500, Mounting type: Snap into tall marker groove, for terminal block width: 5.2 mm, Lettering field: 5.15 x 10.5 mm
Zack marker strip - ZB 5,QR:FORTL.ZAHLEN - 1050020
Zack marker strip, Strip, white, labeled, can be labeled with: Plotter, Printed vertically: Consecutive numbers 1 - 10,
11 - 20, etc. up to 491 - 500, Mounting type: Snap into tall marker groove, for terminal block width: 5.2 mm, Lettering
field: 5.15 x 10.5 mm
12/28/2016 Page 19 / 27
https://www.phoenixcontact.com/gb/products/3031212
Feed-through terminal block - ST 2,5 - 3031212
Accessories
Zack marker strip - ZB 5,LGS:GLEICHE ZAHLEN - 1050033
Zack marker strip, Strip, white, labeled, can be labeled with: Plotter, Printed horizontally: Identical numbers 1 or 2,
etc. up to 100, Mounting type: Snap into tall marker groove, for terminal block width: 5.2 mm, Lettering field: 5.15 x
10.5 mm
Marker for terminal blocks - ZB 5,LGS:L1-N,PE - 1050415
Marker for terminal blocks, Strip, white, labeled, Horizontal: L1, L2, L3, N, PE, L1, L2, L3, N, PE, Mounting type: Snap
into tall marker groove, for terminal block width: 5.2 mm, Lettering field: 5.15 x 10.5 mm
Marker for terminal blocks - UC-TM 5 CUS - 0824581
Marker for terminal blocks, can be ordered: by sheet, white, labeled according to customer specifications, Mounting
type: Snap into tall marker groove, for terminal block width: 5.2 mm, Lettering field: 10.5 x 4.6 mm
Marker for terminal blocks - UCT-TM 5 CUS - 0829595
Marker for terminal blocks, can be ordered: by sheet, white, labeled according to customer specifications, Mounting
type: Snap into tall marker groove, Lettering field: 4.6 x 10.5 mm
Zack Marker strip, flat - ZBF 5 CUS - 0825025
Zack Marker strip, flat, can be ordered: Strip, white, labeled according to customer specifications, Mounting type:
Snap into flat marker groove, for terminal block width: 5 mm, Lettering field: 5.15 x 5.15 mm
12/28/2016 Page 20 / 27
https://www.phoenixcontact.com/gb/products/3031212
Feed-through terminal block - ST 2,5 - 3031212
Accessories
Zack Marker strip, flat - ZBF 5,LGS:FORTL.ZAHLEN - 0808671
Zack Marker strip, flat, Strip, white, labeled, Printed horizontally: Consecutive numbers 1 - 10, 11 - 20, etc. up to 491 500, Mounting type: Snap into flat marker groove, for terminal block width: 5 mm, Lettering field: 5.15 x 5.15 mm
Zack Marker strip, flat - ZBF 5,QR:FORTL.ZAHLEN - 0808697
Zack Marker strip, flat, Strip, white, labeled, Printed vertically: Consecutive numbers 1 - 10, 11 - 20, etc. up to 91 100, Mounting type: Snap into flat marker groove, for terminal block width: 5 mm, Lettering field: 5.15 x 5.15 mm
Zack Marker strip, flat - ZBF 5,LGS:GERADE ZAHLEN - 0810821
Zack Marker strip, flat, Strip, white, labeled, Printed horizontally: Consecutive numbers 2 - 20, 22 - 40, etc. up to 82 100, Mounting type: Snap into flat marker groove, for terminal block width: 5 mm, Lettering field: 5.15 x 5.15 mm
Zack Marker strip, flat - ZBF 5,LGS:UNGERADE ZAHLEN - 0810863
Zack Marker strip, flat, Strip, white, labeled, Printed horizontally: Odd numbers 1 - 19, 21 - 39, etc. up to 81 - 99,
Mounting type: Snap into flat marker groove, for terminal block width: 5 mm, Lettering field: 5.15 x 5.15 mm
Marker for terminal blocks - UC-TMF 5 CUS - 0824638
Marker for terminal blocks, can be ordered: by sheet, white, labeled according to customer specifications, Mounting
type: Snap into flat marker groove, for terminal block width: 5.2 mm, Lettering field: 4.6 x 5.1 mm
12/28/2016 Page 21 / 27
https://www.phoenixcontact.com/gb/products/3031212
Feed-through terminal block - ST 2,5 - 3031212
Accessories
Marker for terminal blocks - UCT-TMF 5 CUS - 0829658
Marker for terminal blocks, can be ordered: by sheet, white, labeled according to customer specifications, Mounting
type: Snap into flat marker groove, for terminal block width: 5.2 mm, Lettering field: 4.4 x 4.7 mm
Partition plate
Partition plate - ATP-ST 4 - 3030721
Partition plate, Length: 59.8 mm, Width: 2 mm, Height: 39 mm, Color: gray
Spacer plate - DP PS-5 - 3036725
Spacer plate, Length: 22.4 mm, Width: 5.2 mm, Height: 29 mm, Number of positions: 1, Color: red
Planning and marking software
Software - CLIP-PROJECT ADVANCED - 5146040
Multilingual software for convenient configuration of Phoenix Contact products on standard DIN rails.
Software - CLIP-PROJECT PROFESSIONAL - 5146053
Multilingual software for terminal strip configuration. A marking module enables the professional marking of markers
and labels for identifying terminal blocks, conductors and cables, and devices.
Reducing bridge
12/28/2016 Page 22 / 27
https://www.phoenixcontact.com/gb/products/3031212
Feed-through terminal block - ST 2,5 - 3031212
Accessories
Reducing bridge - RB ST (2,5/4)-1,5 - 3038943
Reducing bridge, Pitch: 7.1 mm, Length: 22.7 mm, Width: 10.4 mm, Number of positions: 2, Color: red
Screwdriver tools
Screwdriver - SZF 1-0,6X3,5 - 1204517
Actuation tool, for ST terminal blocks, also suitable for use as a bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2component grip, with non-slip grip
Screwdriver - ST-BW - 1207608
Actuation tool, for all 2.5 mm² - 4.0 mm² spring-cages
Terminal marking
Zack marker strip - ZB 5 :UNBEDRUCKT - 1050004
Zack marker strip, Strip, white, unlabeled, can be labeled with: Plotter, Mounting type: Snap into tall marker groove,
for terminal block width: 5.2 mm, Lettering field: 5.1 x 10.5 mm
Marker for terminal blocks - UC-TM 5 - 0818108
Marker for terminal blocks, Sheet, white, unlabeled, can be labeled with: BLUEMARK CLED, BLUEMARK LED,
Plotter, THERMOMARK CARD, THERMOMARK PRIME, Mounting type: Snap into tall marker groove, for terminal
block width: 5.2 mm, Lettering field: 10.5 x 4.6 mm
12/28/2016 Page 23 / 27
https://www.phoenixcontact.com/gb/products/3031212
Feed-through terminal block - ST 2,5 - 3031212
Accessories
Marker for terminal blocks - UCT-TM 5 - 0828734
Marker for terminal blocks, Sheet, white, unlabeled, can be labeled with: THERMOMARK CARD, BLUEMARK CLED,
BLUEMARK LED, TOPMARK LASER, THERMOMARK PRIME, Mounting type: Snap into tall marker groove, for
terminal block width: 5.2 mm, Lettering field: 4.6 x 10.5 mm
Zack Marker strip, flat - ZBF 5:UNBEDRUCKT - 0808642
Zack Marker strip, flat, Strip, white, unlabeled, can be labeled with: Plotter, Mounting type: Snap into flat marker
groove, for terminal block width: 5 mm, Lettering field: 5.1 x 5.2 mm
Marker for terminal blocks - UC-TMF 5 - 0818153
Marker for terminal blocks, Sheet, white, unlabeled, can be labeled with: BLUEMARK CLED, BLUEMARK LED,
Plotter, THERMOMARK CARD, THERMOMARK PRIME, Mounting type: Snap into flat marker groove, for terminal
block width: 5.2 mm, Lettering field: 4.6 x 5.1 mm
Marker for terminal blocks - UCT-TMF 5 - 0828744
Marker for terminal blocks, Sheet, white, unlabeled, can be labeled with: THERMOMARK CARD, BLUEMARK CLED,
BLUEMARK LED, TOPMARK LASER, THERMOMARK PRIME, Mounting type: Snap into flat marker groove, for
terminal block width: 5.2 mm, Lettering field: 4.4 x 4.7 mm
Test plug terminal block
Reducing plug - RPS - 0201647
Reducing plug, Color: gray
12/28/2016 Page 24 / 27
https://www.phoenixcontact.com/gb/products/3031212
Feed-through terminal block - ST 2,5 - 3031212
Accessories
Test plugs - MPS-MT - 0201744
Test plugs, with solder connection up to 1 mm² conductor cross section, Color: silver
Test plugs - PS-5 - 3030983
Test plugs, Color: red
Test plugs - PS-5/2,3MM RD - 3038723
Test plugs, Color: red
Test socket
Test adapter - PAI-4-FIX-5/6 BU - 3035975
4 mm test adapter, for terminal blocks with 5.2 mm and 6.2 mm pitch
Test adapter - PAI-4-FIX-5/6 OG - 3035974
4 mm test adapter, for terminal blocks with 5.2 mm and 6.2 mm pitch
12/28/2016 Page 25 / 27
https://www.phoenixcontact.com/gb/products/3031212
Feed-through terminal block - ST 2,5 - 3031212
Accessories
Test adapter - PAI-4-FIX-5/6 YE - 3035977
4 mm test adapter, for terminal blocks with 5.2 mm and 6.2 mm pitch
Test adapter - PAI-4-FIX-5/6 RD - 3035976
4 mm test adapter, for terminal blocks with 5.2 mm and 6.2 mm pitch
Test adapter - PAI-4-FIX-5/6 GN - 3035978
4 mm test adapter, for terminal blocks with 5.2 mm and 6.2 mm pitch
Test adapter - PAI-4-FIX-5/6 BK - 3035980
4 mm test adapter, for terminal blocks with 5.2 mm and 6.2 mm pitch
Test adapter - PAI-4-FIX-5/6 GY - 3035982
4 mm test adapter, for terminal blocks with 5.2 mm and 6.2 mm pitch
12/28/2016 Page 26 / 27
https://www.phoenixcontact.com/gb/products/3031212
Feed-through terminal block - ST 2,5 - 3031212
Accessories
Test adapter - PAI-4-FIX-5/6 VT - 3035979
4 mm test adapter, for terminal blocks with 5.2 mm and 6.2 mm pitch
Test adapter - PAI-4-FIX-5/6 BN - 3035981
4 mm test adapter, for terminal blocks with 5.2 mm and 6.2 mm pitch
Test adapter - PAI-4-FIX-5/6 WH - 3035983
4 mm test adapter, for terminal blocks with 5.2 mm and 6.2 mm pitch
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
12/28/2016 Page 27 / 27
