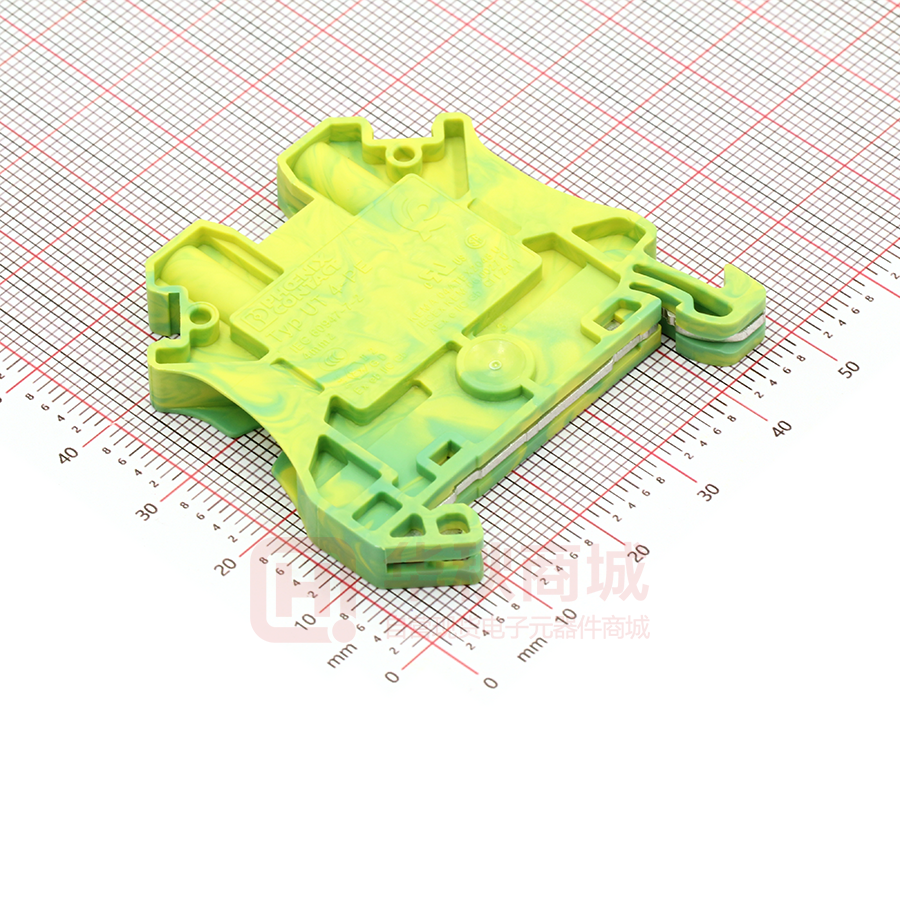

https://www.phoenixcontact.com/gb/products/3044128 Ground modular terminal block - UT 4-PE - 3044128 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Ground modular terminal block, Connection method: Screw connection, Cross section: 0.14 mm² - 6 mm², AWG: 26 - 10, Width: 6.2 mm, Color: green-yellow, Mounting type: NS 35/7,5, NS 35/15 Why buy this product  Tested for railway applications Key Commercial Data Packing unit 50 STK GTIN GTIN 4017918960407 Weight per Piece (excluding packing) 12.700 g Custom tariff number 85369010 Country of origin Germany Technical data General Number of levels 1 Number of connections 2 Potentials 1 Nominal cross section 4 mm² Color green-yellow Insulating material PA Flammability rating according to UL 94 V0 Area of application Railway industry Machine building Plant engineering Process industry Rated surge voltage 8 kV 12/28/2016   Page 1 / 21 https://www.phoenixcontact.com/gb/products/3044128 Ground modular terminal block - UT 4-PE - 3044128 Technical data General Degree of pollution 3 Overvoltage category III Insulating material group I Open side panel Yes Oscillation, broadband noise test result Test passed Test specification, oscillation, broadband noise DIN EN 50155 (VDE 0115-200):2008-03 Test spectrum Service life test category 1, class B, body mounted Test frequency f1 = 5 Hz to f2 = 150 Hz ASD level 1.857 (m/s ) /Hz Acceleration 0,8 g Test duration per axis 5h Test directions X-, Y- and Z-axis Shock test result Test passed Test specification, shock test DIN EN 50155 (VDE 0115-200):2008-03 Shock form Half-sine Acceleration 5g Shock duration 30 ms Number of shocks per direction 3 Test directions X-, Y- and Z-axis (pos. and neg.) Relative insulation material temperature index (Elec., UL 746 B) 130 °C Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 125 °C Static insulating material application in cold -60 °C Behavior in fire for rail vehicles (DIN 5510-2) Test passed Flame test method (DIN EN 60695-11-10) V0 Oxygen index (DIN EN ISO 4589-2) >32 % NF F16-101, NF F10-102 Class I 2 NF F16-101, NF F10-102 Class F 2 Surface flammability NFPA 130 (ASTM E 162) passed Specific optical density of smoke NFPA 130 (ASTM E 662) passed Smoke gas toxicity NFPA 130 (SMP 800C) passed Calorimetric heat release NFPA 130 (ASTM E 1354) 27,5 MJ/kg Fire protection for rail vehicles (DIN EN 45545-2) R22 HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R23 HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R24 HL 1 - HL 3 Fire protection for rail vehicles (DIN EN 45545-2) R26 HL 1 - HL 3 2 2 Dimensions Width 6.2 mm End cover width 2.2 mm Length 47.7 mm 12/28/2016   Page 2 / 21 https://www.phoenixcontact.com/gb/products/3044128 Ground modular terminal block - UT 4-PE - 3044128 Technical data Dimensions Height NS 35/7,5 47.5 mm Height NS 35/15 55 mm Connection data Note Please observe the current carrying capacity of the DIN rails. Connection method Screw connection Connection in acc. with standard IEC 60947-7-2 Note Note: Product releases, connection cross sections and notes on connecting aluminum cables can be found in the download area. Conductor cross section solid min. 0.14 mm² Conductor cross section solid max. 6 mm² Conductor cross section AWG min. 26 Conductor cross section AWG max. 10 Conductor cross section flexible min. 0.14 mm² Conductor cross section flexible max. 6 mm² Min. AWG conductor cross section, flexible 26 Max. AWG conductor cross section, flexible 10 Conductor cross section flexible, with ferrule without plastic sleeve min. 0.25 mm² Conductor cross section flexible, with ferrule without plastic sleeve max. 4 mm² Conductor cross section flexible, with ferrule with plastic sleeve min. 0.25 mm² Conductor cross section flexible, with ferrule with plastic sleeve max. 4 mm² 2 conductors with same cross section, solid min. 0.14 mm² 2 conductors with same cross section, solid max. 1.5 mm² 2 conductors with same cross section, stranded min. 0.14 mm² 2 conductors with same cross section, stranded max. 1.5 mm² 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. 0.5 mm² 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. 2.5 mm² 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. 0.25 mm² 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. 1.5 mm² Connection in acc. with standard IEC/EN 60079-7 Conductor cross section solid min. 0.14 mm² Conductor cross section solid max. 6 mm² Conductor cross section AWG min. 26 Conductor cross section AWG max. 10 Conductor cross section flexible min. 0.14 mm² Conductor cross section flexible max. 4 mm² Stripping length 9 mm Internal cylindrical gage A4 Screw thread M3 12/28/2016   Page 3 / 21 https://www.phoenixcontact.com/gb/products/3044128 Ground modular terminal block - UT 4-PE - 3044128 Technical data Connection data Tightening torque, min 0.6 Nm Tightening torque max 0.8 Nm Standards and Regulations Connection in acc. with standard CSA IEC 60947-7-2 Flammability rating according to UL 94 V0 Environmental Product Compliance China RoHS Environmentally Friendly Use Period = 50 For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” Drawings Circuit diagram Classifications eCl@ss eCl@ss 4.0 27141118 eCl@ss 4.1 27141118 eCl@ss 5.0 27141118 eCl@ss 5.1 27141118 eCl@ss 6.0 27141141 eCl@ss 7.0 27141141 eCl@ss 8.0 27141141 eCl@ss 9.0 27141141 ETIM ETIM 2.0 EC000901 ETIM 3.0 EC000901 ETIM 4.0 EC000901 ETIM 5.0 EC000901 ETIM 6.0 EC000901 UNSPSC UNSPSC 6.01 30211811 UNSPSC 7.0901 39121410 UNSPSC 11 39121410 UNSPSC 12.01 39121410 12/28/2016   Page 4 / 21 https://www.phoenixcontact.com/gb/products/3044128 Ground modular terminal block - UT 4-PE - 3044128 Classifications UNSPSC UNSPSC 13.2 39121410 Approvals Approvals Approvals CSA / UL Recognized / VDE Gutachten mit Fertigungsüberwachung / cUL Recognized / LR / GL / DNV / RS / IECEE CB Scheme / EAC / EAC / cULus Recognized Ex Approvals IECEx / ATEX / EAC Ex Approval details CSA    http://www.csagroup.org/services/testingand-certification/certified-product-listing/   B C mm²/AWG/kcmil 26-10 26-10 UL Recognized    13631  http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm   B C D mm²/AWG/kcmil 26-10 26-10 26-10 VDE Gutachten mit Fertigungsüberwachung    http://www.vde.com/en/Institute/OnlineService/ VDE-approved-products/Pages/Online-Search.aspx     mm²/AWG/kcmil 0.2-4 cUL Recognized    40013715  http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm   B C D mm²/AWG/kcmil 26-10 26-10 26-10  FILE E 60425  FILE E 60425 12/28/2016   Page 5 / 21 https://www.phoenixcontact.com/gb/products/3044128 Ground modular terminal block - UT 4-PE - 3044128 Approvals LR    http://www.lr.org/en  05/20042 GL    http://www.gl-group.com/newbuilding/approvals/index.html  5447707 HH DNV    http://exchange.dnv.com/tari/  E-13346 (E-9233) RS    http://www.rs-head.spb.ru/en/index.php  11.04057.250 IECEE CB Scheme    http://www.iecee.org/  DE1-50532     mm²/AWG/kcmil 0.2-4 EAC      EAC-Zulassung EAC      7500651.22.01.00246 cULus Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm   Accessories Accessories DIN rail 12/28/2016   Page 6 / 21 https://www.phoenixcontact.com/gb/products/3044128 Ground modular terminal block - UT 4-PE - 3044128 Accessories DIN rail perforated - NS 35/ 7,5 PERF 2000MM - 0801733 DIN rail, material: steel galvanized and passivated with a thick layer, perforated, height 7.5 mm, width 35 mm, length: 2000 mm     DIN rail, unperforated - NS 35/ 7,5 UNPERF 2000MM - 0801681 DIN rail, material: Steel, unperforated, height 7.5 mm, width 35 mm, length: 2 m     DIN rail perforated - NS 35/ 7,5 WH PERF 2000MM - 1204119 DIN rail 35 mm (NS 35)     DIN rail - NS 35/ 7,5 WH UNPERF 2000MM - 1204122 DIN rail 35 mm (NS 35)     DIN rail, unperforated - NS 35/ 7,5 AL UNPERF 2000MM - 0801704 DIN rail, unperforated, Width: 35 mm, Height: 7.5 mm, Length: 2000 mm, Color: silver     12/28/2016   Page 7 / 21 https://www.phoenixcontact.com/gb/products/3044128 Ground modular terminal block - UT 4-PE - 3044128 Accessories DIN rail perforated - NS 35/ 7,5 ZN PERF 2000MM - 1206421 DIN rail, material: Galvanized, perforated, height 7.5 mm, width 35 mm, length: 2 m     DIN rail, unperforated - NS 35/ 7,5 ZN UNPERF 2000MM - 1206434 DIN rail, material: Galvanized, unperforated, height 7.5 mm, width 35 mm, length: 2 m     DIN rail, unperforated - NS 35/ 7,5 CU UNPERF 2000MM - 0801762 DIN rail, material: Copper, unperforated, height 7.5 mm, width 35 mm, length: 2 m     End cap - NS 35/ 7,5 CAP - 1206560 DIN rail end piece, for DIN rail NS 35/7.5     DIN rail perforated - NS 35/15 PERF 2000MM - 1201730 DIN rail, material: steel galvanized and passivated with a thick layer, perforated, height 15 mm, width 35 mm, length: 2000 mm     12/28/2016   Page 8 / 21 https://www.phoenixcontact.com/gb/products/3044128 Ground modular terminal block - UT 4-PE - 3044128 Accessories DIN rail, unperforated - NS 35/15 UNPERF 2000MM - 1201714 DIN rail, material: Steel, unperforated, height 15 mm, width 35 mm, length: 2 m     DIN rail perforated - NS 35/15 WH PERF 2000MM - 0806602 DIN rail 35 mm (NS 35)     DIN rail - NS 35/15 WH UNPERF 2000MM - 1204135 DIN rail 35 mm (NS 35)     DIN rail, unperforated - NS 35/15 AL UNPERF 2000MM - 1201756 DIN rail, deep drawn, high profile, unperforated, 1.5 mm thick, material: aluminum, height 15 mm, width 35 mm, length 2000 mm     DIN rail perforated - NS 35/15 ZN PERF 2000MM - 1206599 DIN rail, material: Galvanized, perforated, height 15 mm, width 35 mm, length: 2 m     12/28/2016   Page 9 / 21 https://www.phoenixcontact.com/gb/products/3044128 Ground modular terminal block - UT 4-PE - 3044128 Accessories DIN rail, unperforated - NS 35/15 ZN UNPERF 2000MM - 1206586 DIN rail, material: Galvanized, unperforated, height 15 mm, width 35 mm, length: 2 m     DIN rail, unperforated - NS 35/15 CU UNPERF 2000MM - 1201895 DIN rail, material: Copper, unperforated, 1.5 mm thick, height 15 mm, width 35 mm, length: 2 m     End cap - NS 35/15 CAP - 1206573 DIN rail end piece, for DIN rail NS 35/15     DIN rail, unperforated - NS 35/15-2,3 UNPERF 2000MM - 1201798 DIN rail, unperforated, Width: 35 mm, Height: 15 mm, Length: 2000 mm, Color: silver     End block End clamp - CLIPFIX 35 - 3022218 Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, width: 9.5 mm, color: gray     12/28/2016   Page 10 / 21 https://www.phoenixcontact.com/gb/products/3044128 Ground modular terminal block - UT 4-PE - 3044128 Accessories End clamp - CLIPFIX 35-5 - 3022276 Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, with parking option for FBS...5, FBS...6, KSS 5, KSS 6, width: 5.15 mm, color: gray     End clamp - E/NS 35 N - 0800886 End clamp, width: 9.5 mm, color: gray     End cover End cover - D-UT 2,5/10 - 3047028 End cover, Length: 47.7 mm, Width: 2.2 mm, Height: 48.4 mm, Color: gray     Insulating sleeve Insulating sleeve - MPS-IH WH - 0201663 Insulating sleeve, Color: white     Insulating sleeve - MPS-IH RD - 0201676 Insulating sleeve, Color: red     12/28/2016   Page 11 / 21 https://www.phoenixcontact.com/gb/products/3044128 Ground modular terminal block - UT 4-PE - 3044128 Accessories Insulating sleeve - MPS-IH BU - 0201689 Insulating sleeve, Color: blue     Insulating sleeve - MPS-IH YE - 0201692 Insulating sleeve, Color: yellow     Insulating sleeve - MPS-IH GN - 0201702 Insulating sleeve, Color: green     Insulating sleeve - MPS-IH GY - 0201728 Insulating sleeve, Color: gray     Insulating sleeve - MPS-IH BK - 0201731 Insulating sleeve, Color: black     Jumper 12/28/2016   Page 12 / 21 https://www.phoenixcontact.com/gb/products/3044128 Ground modular terminal block - UT 4-PE - 3044128 Accessories Plug-in bridge - FBS 2-6 - 3030336 Plug-in bridge, Pitch: 6.2 mm, Length: 23 mm, Width: 10.7 mm, Number of positions: 2, Color: red     Plug-in bridge - FBS 3-6 - 3030242 Plug-in bridge, Pitch: 6.2 mm, Length: 23 mm, Width: 16.9 mm, Number of positions: 3, Color: red     Plug-in bridge - FBS 4-6 - 3030255 Plug-in bridge, Pitch: 6.2 mm, Length: 23 mm, Width: 23.1 mm, Number of positions: 4, Color: red     Plug-in bridge - FBS 5-6 - 3030349 Plug-in bridge, Pitch: 6.2 mm, Length: 23 mm, Width: 29.3 mm, Number of positions: 5, Color: red     Plug-in bridge - FBS 10-6 - 3030271 Plug-in bridge, Pitch: 6.2 mm, Length: 23 mm, Width: 60.3 mm, Number of positions: 10, Color: red     12/28/2016   Page 13 / 21 https://www.phoenixcontact.com/gb/products/3044128 Ground modular terminal block - UT 4-PE - 3044128 Accessories Plug-in bridge - FBS 20-6 - 3030365 Plug-in bridge, Pitch: 6.2 mm, Length: 23 mm, Width: 122.3 mm, Number of positions: 20, Color: red     Plug-in bridge - FBS 50-6 - 3032224 Plug-in bridge, Pitch: 6.2 mm, Number of positions: 50, Color: red     Plug-in bridge - FBSR 2-6 - 3033715 Plug-in bridge, Pitch: 6.2 mm, Number of positions: 2, Color: red     Plug-in bridge - FBSR 3-6 - 3001594 Plug-in bridge, Pitch: 6.2 mm, Number of positions: 3, Color: red     Plug-in bridge - FBSR 4-6 - 3001595 Plug-in bridge, Pitch: 6.2 mm, Number of positions: 4, Color: red     12/28/2016   Page 14 / 21 https://www.phoenixcontact.com/gb/products/3044128 Ground modular terminal block - UT 4-PE - 3044128 Accessories Plug-in bridge - FBSR 5-6 - 3001596 Plug-in bridge, Pitch: 6.2 mm, Number of positions: 5, Color: red     Plug-in bridge - FBSR 10-6 - 3033716 Plug-in bridge, Pitch: 6.2 mm, Number of positions: 10, Color: red     Labeled terminal marker Zack marker strip - ZB 6 CUS - 0824992 Zack marker strip, can be ordered: Strip, white, labeled according to customer specifications, Mounting type: Snap into tall marker groove, for terminal block width: 6.2 mm, Lettering field: 6.15 x 10.5 mm     Zack marker strip - ZB 6,LGS:FORTL.ZAHLEN - 1051016 Zack marker strip, Strip, white, labeled, can be labeled with: Plotter, Printed horizontally: Consecutive numbers 1 - 10, 11 - 20, etc. up to 491 - 500, Mounting type: Snap into tall marker groove, for terminal block width: 6.2 mm, Lettering field: 6.15 x 10.5 mm     Zack marker strip - ZB 6,QR:FORTL.ZAHLEN - 1051029 Zack marker strip, Strip, white, labeled, can be labeled with: Plotter, Printed vertically: Consecutive numbers 1 - 10, 11 - 20, etc. up to 491 - 500, Mounting type: Snap into tall marker groove, for terminal block width: 6.2 mm, Lettering field: 6.15 x 10.5 mm     12/28/2016   Page 15 / 21 https://www.phoenixcontact.com/gb/products/3044128 Ground modular terminal block - UT 4-PE - 3044128 Accessories Zack marker strip - ZB 6,LGS:GLEICHE ZAHLEN - 1051032 Zack marker strip, Strip, white, labeled, can be labeled with: Plotter, Printed horizontally: Identical numbers 1 or 2, etc. up to 100, Mounting type: Snap into tall marker groove, for terminal block width: 6.2 mm, Lettering field: 6.15 x 10.5 mm     Marker for terminal blocks - ZB 6,LGS:L1-N,PE - 1051414 Marker for terminal blocks, Strip, white, labeled, can be labeled with: Plotter, Horizontal: L1, L2, L3, N, PE, L1, L2, L3, N, PE, Mounting type: Snap into tall marker groove, for terminal block width: 6.2 mm, Lettering field: 6.15 x 10.5 mm     Marker for terminal blocks - ZB 6,LGS:U-N - 1051430 Marker for terminal blocks, Strip, white, labeled, can be labeled with: Plotter, Printed horizontally: U, V, W, N, GND, U, V, W, N, GND, Mounting type: Snap into tall marker groove, for terminal block width: 6.2 mm, Lettering field: 6.15 x 10.5 mm     Marker for terminal blocks - UC-TM 6 CUS - 0824589 Marker for terminal blocks, can be ordered: by sheet, white, labeled according to customer specifications, Mounting type: Snap into tall marker groove, for terminal block width: 6.2 mm, Lettering field: 5.6 x 10.5 mm     Marker for terminal blocks - UCT-TM 6 CUS - 0829602 Marker for terminal blocks, can be ordered: by sheet, white, labeled according to customer specifications, Mounting type: Snap into tall marker groove, for terminal block width: 6.2 mm, Lettering field: 5.6 x 10.5 mm     Marker pen 12/28/2016   Page 16 / 21 https://www.phoenixcontact.com/gb/products/3044128 Ground modular terminal block - UT 4-PE - 3044128 Accessories Marker pen - X-PEN 0,35 - 0811228 Marker pen without ink cartridge, for manual labeling of markers, labeling extremely wipe-proof, line thickness 0.35 mm     Partition plate Partition plate - ATP-UT - 3047167 Partition plate, Length: 50 mm, Width: 2.2 mm, Height: 48 mm, Color: gray     Screwdriver tools Screwdriver - SZS 0,6X3,5 - 1205053 Actuation tool, for ST terminal blocks, insulated, also suitable for use as a bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-component grip, with non-slip grip     Short-circuit connector Short-circuit connector - FBSRH 2-6 - 3033812 Short-circuit connector, Pitch: 6.2 mm, Number of positions: 2, Color: red     Terminal marking Zack marker strip - ZB 6:UNBEDRUCKT - 1051003 Zack marker strip, Strip, white, unlabeled, can be labeled with: Plotter, Mounting type: Snap into tall marker groove, for terminal block width: 6.2 mm, Lettering field: 6.15 x 10.5 mm     12/28/2016   Page 17 / 21 https://www.phoenixcontact.com/gb/products/3044128 Ground modular terminal block - UT 4-PE - 3044128 Accessories Marker for terminal blocks - UC-TM 6 - 0818085 Marker for terminal blocks, Sheet, white, unlabeled, can be labeled with: BLUEMARK CLED, BLUEMARK LED, Plotter, THERMOMARK CARD, THERMOMARK PRIME, Mounting type: Snap into tall marker groove, for terminal block width: 6.2 mm, Lettering field: 5.6 x 10.5 mm     Marker for terminal blocks - UCT-TM 6 - 0828736 Marker for terminal blocks, Sheet, white, unlabeled, can be labeled with: THERMOMARK CARD, BLUEMARK CLED, BLUEMARK LED, TOPMARK LASER, THERMOMARK PRIME, Mounting type: Snap into tall marker groove, for terminal block width: 6.2 mm, Lettering field: 5.6 x 10.5 mm     Test plug terminal block Test plugs - MPS-MT - 0201744 Test plugs, with solder connection up to 1 mm² conductor cross section, Color: silver     Test plugs - PS-6 - 3030996 Test plugs, Color: red     Test plugs - PS-6/2,3MM RD - 3038736 Test plugs, Color: red     Test socket 12/28/2016   Page 18 / 21 https://www.phoenixcontact.com/gb/products/3044128 Ground modular terminal block - UT 4-PE - 3044128 Accessories Test adapter - PAI-4-FIX-5/6 BU - 3035975 4 mm test adapter, for terminal blocks with 5.2 mm and 6.2 mm pitch     Test adapter - PAI-4-FIX-5/6 OG - 3035974 4 mm test adapter, for terminal blocks with 5.2 mm and 6.2 mm pitch     Test adapter - PAI-4-FIX-5/6 YE - 3035977 4 mm test adapter, for terminal blocks with 5.2 mm and 6.2 mm pitch     Test adapter - PAI-4-FIX-5/6 RD - 3035976 4 mm test adapter, for terminal blocks with 5.2 mm and 6.2 mm pitch     Test adapter - PAI-4-FIX-5/6 GN - 3035978 4 mm test adapter, for terminal blocks with 5.2 mm and 6.2 mm pitch     12/28/2016   Page 19 / 21 https://www.phoenixcontact.com/gb/products/3044128 Ground modular terminal block - UT 4-PE - 3044128 Accessories Test adapter - PAI-4-FIX-5/6 BK - 3035980 4 mm test adapter, for terminal blocks with 5.2 mm and 6.2 mm pitch     Test adapter - PAI-4-FIX-5/6 GY - 3035982 4 mm test adapter, for terminal blocks with 5.2 mm and 6.2 mm pitch     Test adapter - PAI-4-FIX-5/6 VT - 3035979 4 mm test adapter, for terminal blocks with 5.2 mm and 6.2 mm pitch     Test adapter - PAI-4-FIX-5/6 BN - 3035981 4 mm test adapter, for terminal blocks with 5.2 mm and 6.2 mm pitch     Test adapter - PAI-4-FIX-5/6 WH - 3035983 4 mm test adapter, for terminal blocks with 5.2 mm and 6.2 mm pitch     12/28/2016   Page 20 / 21 https://www.phoenixcontact.com/gb/products/3044128 Ground modular terminal block - UT 4-PE - 3044128 Accessories Test adapter - PAI-4-N GY - 3032871 4 mm test adapter, for terminal blocks with 5.2 mm, 6.2 mm and 8.2 mm pitch     Warning label printed Warning label - WS UT 4 - 3047332 Warning sign for UT terminal blocks     Phoenix Contact 2016 © - all rights reserved http://www.phoenixcontact.com 12/28/2016   Page 21 / 21
