Ferrule - AI 0,5 - 8 WH - 3200014
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

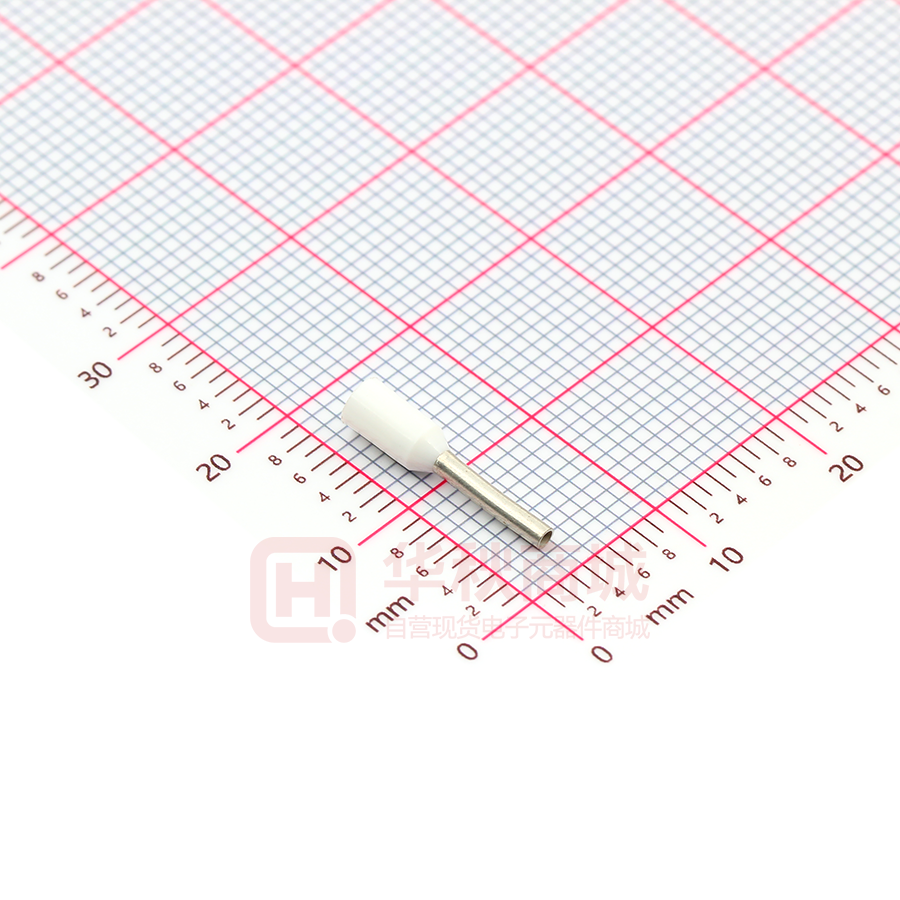

Ferrule, sleeve length: 8 mm, length: 14 mm, color: white
Your advantages
The insulation reliability of close connections is increased and the splicing of wires is prevented
The ferrules with plastic sleeve are made from soft tin-plated electrolytic copper
The AI 0,25.. ferrules can also be used to process 0.14 mm² conductors
Key Commercial Data
Packing unit
1 pc
Minimum order quantity
100 pc
GTIN
GTIN
4017918093662
Weight per Piece (excluding packing)
0.080 g
Custom tariff number
85369010
Country of origin
Germany
Technical data
Dimensions
Length (b)
14 mm
Maximum stripping length
11 mm
Sleeve length
8 mm
Inner dimension of the insulating collar (d)
2.5 mm
Ferrule diameter
1.1 mm
Insulating collar thickness
0.25 mm
08/14/2019 Page 1 / 7
https://www.phoenixcontact.com/us/products/3200014
Ferrule - AI 0,5 - 8 WH - 3200014
Technical data
Dimensions
Sleeve wall thickness
0.15 mm
Ambient conditions
Short-term temperature
120 °C
Max. permanent temperature
105 °C (-40°C no load / 0°C dynamic load)
General
Color
white
Components
free from silicone and halogen
Flammability rating according to UL 94
HB
Material
CU-DHP
Coating
tin-plated (galvanic)
Conductor category
Stranded conductors, class 2, 5, 6 / B, C, K, M
Standards and Regulations
Connection in acc. with standard
CSA
Flammability rating according to UL 94
HB
Design according to standard
DIN 46228-4:2017-05
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Classifications
eCl@ss
eCl@ss 4.0
27060701
eCl@ss 4.1
27060701
eCl@ss 5.0
27400201
eCl@ss 5.1
27400200
eCl@ss 6.0
27400200
eCl@ss 7.0
27400201
eCl@ss 8.0
27400201
eCl@ss 9.0
27400201
ETIM
ETIM 2.0
EC000005
ETIM 3.0
EC000005
ETIM 4.0
EC000005
ETIM 5.0
EC000005
08/14/2019 Page 2 / 7
https://www.phoenixcontact.com/us/products/3200014
Ferrule - AI 0,5 - 8 WH - 3200014
Classifications
ETIM
ETIM 6.0
EC000005
ETIM 7.0
EC000005
UNSPSC
UNSPSC 6.01
30212109
UNSPSC 7.0901
27121703
UNSPSC 11
27121703
UNSPSC 12.01
27121703
UNSPSC 13.2
27121703
Approvals
Approvals
Approvals
CSA / UL Listed / cUL Listed / CSAus / cULus Listed / cCSAus
Ex Approvals
Approval details
CSA
http://www.csagroup.org/services-industries/product-listing/
247397
UL Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
E488001
cUL Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
E488001
CSAus
http://www.csagroup.org/services-industries/product-listing/
247397
08/14/2019 Page 3 / 7
https://www.phoenixcontact.com/us/products/3200014
Ferrule - AI 0,5 - 8 WH - 3200014
Approvals
cULus Listed
cCSAus
