物料型号:文档中列出了多种型号的接线端子,例如AI 0.14-8 GY-10002、AI 0.25-6BU2、AI 0.34-6TQ2等,具体型号根据导线截面积和颜色编码有所不同。

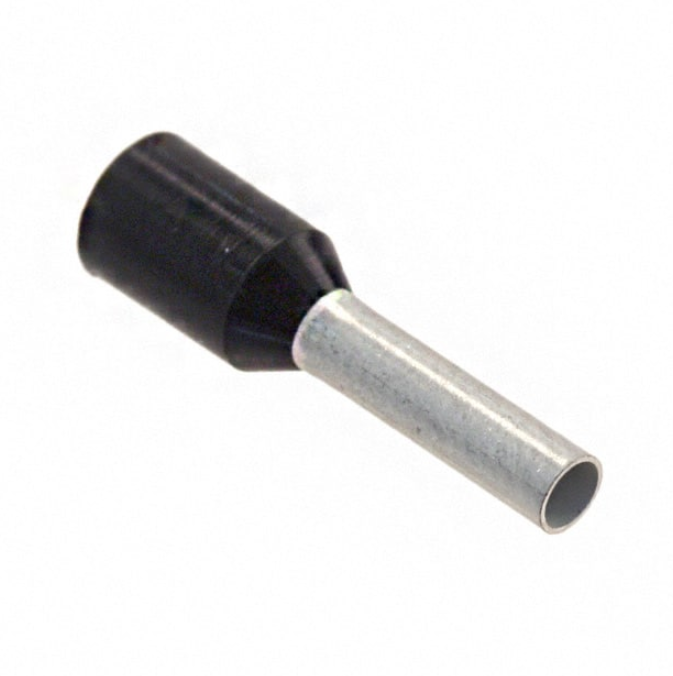

器件简介:AI…接线端子具有绝缘套筒,当连接更紧密时,绝缘更可靠,电线不太可能发生搭接。端子尺寸符合DIN 46228-4标准。金属绝缘套由软电镀铜(E-CU)制成,并镀锡,确保在使用适当的Phoenix Contact工具压接时实现最佳连接。
引脚分配:文档中没有明确提到“引脚分配”,但提供了接线端子的尺寸和颜色编码信息。
参数特性:接线端子的参数特性包括其尺寸、颜色编码、适用的导线截面积等。例如,0.14mm2的端子外径为12.5mm,内径为0.8mm,绝缘套筒内径为1.8mm。
功能详解:文档中没有提供详细的功能解释,但可以推断这些端子用于确保电气连接的可靠性和绝缘性。
应用信息:文档建议始终使用最新的文档资料,可以在www.phoenixcontact.net/catalog下载。
封装信息:绝缘套由聚丙烯制成,耐热高达105°C。套筒由E-CU(电镀铜)制成,表面镀锡。
