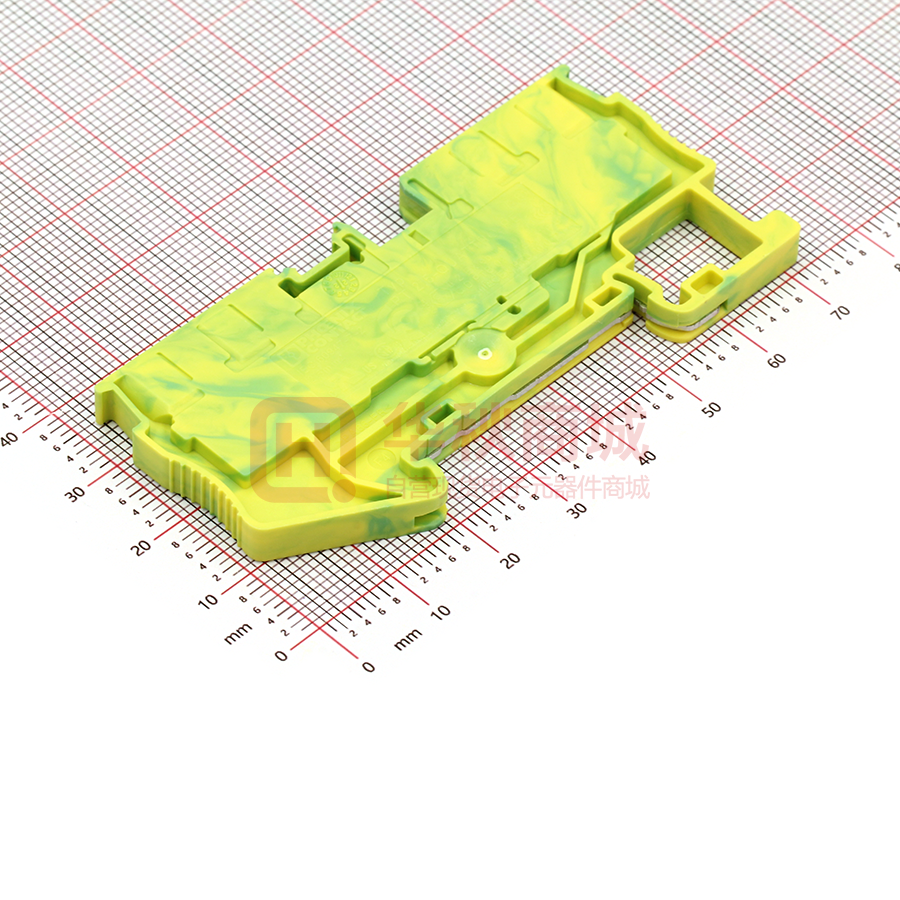

https://www.phoenixcontact.com/us/products/3209594 Ground modular terminal block - PT 2,5-QUATTRO-PE - 3209594 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Ground modular terminal block, Connection method: Push-in connection, Cross section: 0.14 mm² - 4 mm², AWG: 26 - 12, Width: 5.2 mm, Height: 35.3 mm, Color: green-yellow, Mounting type: NS 35/7,5, NS 35/15 Product Features  The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors  The compact design and front connection enable wiring in a confined space  In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection  Tested for railway applications     Key Commercial Data Packing unit 1 pc Minimum order quantity 50 pc Weight per Piece (excluding packing) 13.6 g Custom tariff number 85369010 Country of origin Germany Technical data General Number of levels 1 Number of connections 4 Nominal cross section 2.5 mm² Color green-yellow Insulating material PA Flammability rating according to UL 94 V0 Area of application Railway industry 12/01/2015   Page 1 / 6 https://www.phoenixcontact.com/us/products/3209594 Ground modular terminal block - PT 2,5-QUATTRO-PE - 3209594 Technical data General Mechanical engineering Plant engineering Process industry Rated surge voltage 8 kV Pollution degree 3 Overvoltage category III Insulating material group I Connection in acc. with standard IEC 60947-7-2 Open side panel ja Shock protection test specification DIN EN 50274 (VDE 0660-514):2002-11 Back of the hand protection guaranteed Finger protection guaranteed Test specification, oscillation, broadband noise DIN EN 50155 (VDE 0115-200):2008-03 Test spectrum Service life test category 2, bogie mounted Test frequency f1 = 5 Hz to f2 = 250 Hz ASD level 6.12 (m/s ) /Hz Acceleration 3.12 g Test duration per axis 5h Test directions X-, Y- and Z-axis Oscillation, broadband noise test result Test passed Test specification, shock test DIN EN 50155 (VDE 0115-200):2008-03 Shock form Half-sine Acceleration 30g Shock duration 18 ms Number of shocks per direction 3 Test directions X-, Y- and Z-axis (pos. and neg.) Shock test result Test passed Temperature index, insulating material (DIN EN 60216-1 (VDE 0304-21)) 125 °C Static insulating material application in cold -60 °C 2 2 Dimensions Width 5.2 mm End cover width 2.2 mm Length 72.2 mm Height 35.3 mm Height NS 35/7,5 36.8 mm Height NS 35/15 44.3 mm 12/01/2015   Page 2 / 6 https://www.phoenixcontact.com/us/products/3209594 Ground modular terminal block - PT 2,5-QUATTRO-PE - 3209594 Technical data Connection data Note Please observe the current carrying capacity of the DIN rails. Connection method Push-in connection Connection in acc. with standard IEC 60947-7-2 Conductor cross section solid min. 0.14 mm² Conductor cross section solid max. 4 mm² Conductor cross section AWG min. 26 Conductor cross section AWG max. 12 Conductor cross section flexible min. 0.14 mm² Conductor cross section flexible max. 2.5 mm² Min. AWG conductor cross section, flexible 26 Max. AWG conductor cross section, flexible 14 Conductor cross section flexible, with ferrule without plastic sleeve min. 0.14 mm² Conductor cross section flexible, with ferrule without plastic sleeve max. 2.5 mm² Conductor cross section flexible, with ferrule with plastic sleeve min. 0.14 mm² Conductor cross section flexible, with ferrule with plastic sleeve max. 2.5 mm² 2 conductors with same cross section, stranded, TWIN ferrules with plastic 0.5 mm² sleeve, max. Conductor cross section AWG min. 26 Conductor cross section AWG max. 12 Stripping length 8 mm ... 10 mm Internal cylindrical gage A3 Standards and Regulations Connection in acc. with standard CSA IEC 60947-7-2 Flammability rating according to UL 94 V0 Classifications eCl@ss eCl@ss 4.0 27141118 eCl@ss 4.1 27141118 eCl@ss 5.0 27141118 eCl@ss 5.1 27141118 eCl@ss 6.0 27141141 eCl@ss 7.0 27141141 eCl@ss 8.0 27141141 eCl@ss 9.0 27141141 12/01/2015   Page 3 / 6 https://www.phoenixcontact.com/us/products/3209594 Ground modular terminal block - PT 2,5-QUATTRO-PE - 3209594 Classifications ETIM ETIM 2.0 EC000901 ETIM 3.0 EC000901 ETIM 4.0 EC000901 ETIM 5.0 EC000901 UNSPSC UNSPSC 6.01 30211811 UNSPSC 7.0901 39121410 UNSPSC 11 39121410 UNSPSC 12.01 39121410 UNSPSC 13.2 39121410 Approvals Approvals Approvals CSA / UL Recognized / cUL Recognized / LR / RS / ABS / NK / BV / VDE Zeichengenehmigung / IECEE CB Scheme / EAC / GL / NK / EAC / cULus Recognized Ex Approvals ATEX / IECEx / EAC Ex Approvals submitted Approval details CSA      mm²/AWG/kcmil 26-12 12/01/2015   Page 4 / 6 https://www.phoenixcontact.com/us/products/3209594 Ground modular terminal block - PT 2,5-QUATTRO-PE - 3209594 Approvals UL Recognized    B C mm²/AWG/kcmil 26-12 26-12   B C mm²/AWG/kcmil 26-12 26-12 cUL Recognized  LR  RS  ABS  NK  BV  VDE Zeichengenehmigung      mm²/AWG/kcmil 0.2-2.5 IECEE CB Scheme      mm²/AWG/kcmil 2.5 EAC  GL  12/01/2015   Page 5 / 6 https://www.phoenixcontact.com/us/products/3209594 Ground modular terminal block - PT 2,5-QUATTRO-PE - 3209594 Approvals NK  EAC  cULus Recognized  Drawings Circuit diagram Phoenix Contact 2015 © - all rights reserved http://www.phoenixcontact.com 12/01/2015   Page 6 / 6
