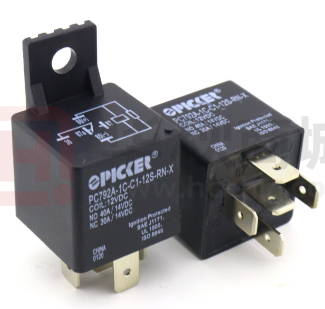

PC792A-1C-C-12S-RN-X 数据手册
Automotive Plug-In / PCB Mini ISO Relay
PC792A
FEATURES
• 40 Amps Continuus Carrying Current
• Internal Diode or Resistor Option
• Sockets Available
• Fully Automated Assembly
CONTACT RATINGS
CHARACTERISTICS
Contact Form
Contact Rating
1A SPST N.O.
Insulation Resistance
100 MΩ min. at 500 VDC
1C SPDT
Dielectric Strength
500 Vrms, 50 Hz, between contacts
1A 40A @ 14VDC, resistive
750 Vrms, 50 Hz, between coil & contacts
20A @ 24VDC, resistive
Power Consumption
1.6W, 1.9W, 2.3W
Terminal Strength
8N quick connect, 4N PCB pins
NC 30A @ 14VDC, resistive
Solderability
260°C 5 s ± 0.5 s
NO 20A @ 24VDC, resistive
Operating Temperature
-40ºC to 125ºC
NC 15A @ 24VDC, resistive
Storage Temperature
-40ºC to 155ºC
Shock Resistance
147 m/s2 11 ms
Vibration Resistance
10-40Hz; 1.5mm double amplitude
Weight
31.0g
1C NO 40A @ 14VDC, resistive
CONTACT DATA
Maximum Switching Power
560 W
Maximum Switching Voltage
75 VDC
Maximum Continuous Current 40 A
Material
AgSnO2
Initial Contact Resistance
30 mΩ max.
Service Life
Mechanical 1 x 107 operations
Electrical 1 x 105 operations
Values can change due to the switching frequency, desired reliability levels, environmental conditions, and
in-rush current levels. It is recommended to test to actual load conditions for the applicaiton. It is the users
responsibility to determine the performance suitability for their specific application. The use of any coil voltage
less than the rated coil voltage may compromise the operation of the relay.
14680 James Road, Rogers, MN 55374 USA
Sales (763) 535-2339
Dimensions are shown for reference purposes only.
PC792A Rev V 12/2020
www.PickerComponents.com
email: sales@PickerComponents.com
1 of 6
Specifications and availability subject to change without notice.
Automotive Plug-In / PCB Mini ISO Relay
PC792A
ORDERING INFORMATION
Example
PC792A
-1C
-C
Model:
PC792A
Contact Form:
1A
1C
Mounting Version:
C = Plug-In
C1 = Plastic Bracket
C2 = Metal Bracket
C3 = Weatherproof Case with Metal Bracket
P = PC Pins
Coil Voltage:
6 = 6VDC
9 = 9VDC
12 = 12VDC
24 = 24VDC
48 = 48VDC
Enclosure:
C = Dust Cover
S = Sealed
S1 = Flux Tight (1)
Coil Power:
Nil = 1.6W
1.9 = 1.9W
2.3 = 2.3W (2)
Parallel Component:
Nil = None
D = Diode (1N4005)
D1 = Reverse Diode (1N4005)
R = Resistor (680 Ohms for 12VDC, 2700 for 24VDC)
Terminal Plating:
Nil = PC Pin
N = Nickel Plated Terminals, standard on all Plug-In models
RoHS Compliant:
-X
-12
S
1.9
-D
N
-X
(1) Flux Tight relays are constructed such that Flux will not enter the relay in an automated soldering process, they are NOT suitable for water wash cleaning.
(2) Special coil - minimum order quantities apply.
COIL DATA
Coil Voltage
Rated
Maximum
Resistance
(Ohms ± 10%)
1.6W
1.9W
2.3W
Pick Up Voltage Max. Release Voltage Min.
VDC
VDC
6
7.8
22.5
19
15.6
3.9
0.6
9
11.7
50.6
n/a
n/a
5.9
0.9
12
15.6
90
75.8
62.6
7.8
1.2
24
31.2
360
303.2
250.4
15.6
2.4
48
62.4
1440
n/a
n/a
31.2
4.8
14680 James Road, Rogers, MN 55374 USA
Sales (763) 535-2339
Dimensions are shown for reference purposes only.
PC792A Rev V 12/2020
Coil Power
W
Operate Time
ms
Release Time
ms
1.6W, 1.9W or
2.3W
≤10
≤10
www.PickerComponents.com
email: sales@PickerComponents.com
2 of 6
Specifications and availability subject to change without notice.
Automotive Plug-In / PCB Mini ISO Relay
PC792A
DIMENSIONS mm (inches)
26.00
[1.02]
26.00
[1.02]
26.00
[1.02]
26.00
[1.02]
2.10 TYP
[.08]
9.50
[.37]
24.50
[.96]
24.50
[.96]
5.15 TYP
[.20]
8.40
[.33]
8.40
[.33]
6.35 TYP
[.25]
8.40
[.33]
5.90
[.23]
0.80 TYP
[.03]
5.90
[.23]
16.80
[.66]
13.00
[.51]
10.75 TYP
[.42]
0.80 TYP
[.03]
16.80
[.66]
13.00
[.51]
17.90
[.70]
17.90
[.70]
Standard with PC Pins (P)
Standard with Quick Connect (C)
14680 James Road, Rogers, MN 55374 USA
Sales (763) 535-2339
Dimensions are shown for reference purposes only.
PC792A Rev V 12/2020
www.PickerComponents.com
email: sales@PickerComponents.com
3 of 6
Specifications and availability subject to change without notice.
Automotive Plug-In / PCB Mini ISO Relay
PC792A
DIMENSIONS mm (inches)
26.00
[1.02]
26.00
[1.02]
26.00
[1.02]
15.88
[.63]
Ø5.70
[Ø0.22]
26.00
[1.02]
26.70
[1.05]
Ø5.20
[Ø0.20]
9.50
[.37]
15.35
[.60]
30.55
[1.20]
7.22
[.28]
39.35
[1.55]
24.00
[.94]
38.02
[1.50]
24.50
[.96]
11.60 TYP
[.46]
6.35 TYP
[.25]
10.75 TYP
[.42]
0.80 TYP
[.03]
6.35 TYP
[.25]
16.80
[.66]
0.80 TYP
[.03]
16.80
[.66]
17.90
[.70]
17.90
[.70]
13.00
[.51]
5.90
[.23]
13.00
[.51]
Quick Connect with Plastic Bracket (C1)
Quick Connect with Metal Bracket (C2)
14680 James Road, Rogers, MN 55374 USA
Sales (763) 535-2339
Dimensions are shown for reference purposes only.
PC792A Rev V 12/2020
5.90
[.23]
www.PickerComponents.com
email: sales@PickerComponents.com
4 of 6
Specifications and availability subject to change without notice.
Automotive Plug-In / PCB Mini ISO Relay
PC792A
DIMENSIONS mm (inches)
35.20
[1.39]
35.10
[1.38]
8.33
[.33]
46.50
[1.83]
Ø6.65
[Ø0.26]
13.20
[.52]
67.20
[2.65]
45.00
[1.77]
0.80 TYP
[.03]
35.20
[1.39]
6.35 TYP
[.25]
16.80
[.66]
17.90
[.70]
17.60
[.69]
10.45
[.41]
Quick Connect with Weatherproof Shroud (C3)
14680 James Road, Rogers, MN 55374 USA
Sales (763) 535-2339
Dimensions are shown for reference purposes only.
PC792A Rev V 12/2020
www.PickerComponents.com
email: sales@PickerComponents.com
5 of 6
Specifications and availability subject to change without notice.
Automotive Plug-In / PCB Mini ISO Relay
PC792A
SCHEMATICS Bottom Views
86
86
30
87
87
85
85
1A
1C
86
86
30
87a
30
87a
87
30
87a
85
85
1C with Resistor
1C with Diode
86
87
30
87a
87
85
1C with Reverse Diode
PC LAYOUT
9.50
[.37]
8.40
[.33]
8.40
[.33]
(5X) Ø3.00
[Ø0.12]
8.00
[.31]
8.40
[.33]
14680 James Road, Rogers, MN 55374 USA
Sales (763) 535-2339
Dimensions are shown for reference purposes only.
PC792A Rev V 12/2020
www.PickerComponents.com
email: sales@PickerComponents.com
6 of 6
Specifications and availability subject to change without notice.
