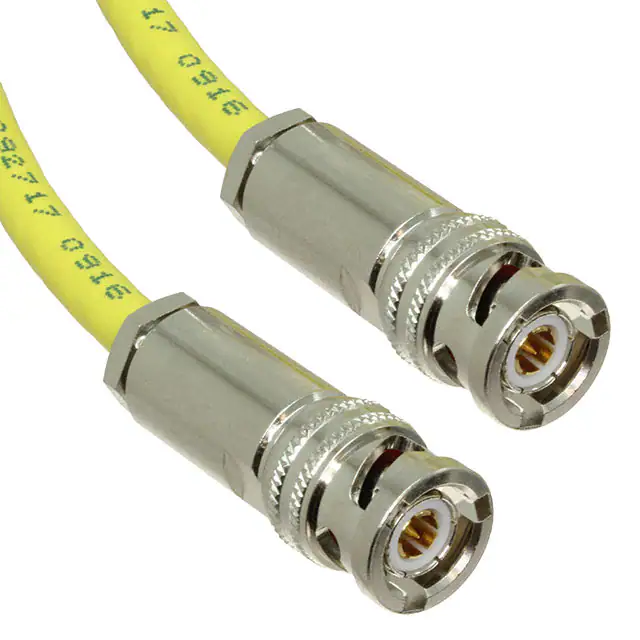

Pomona ® Model 5223 Triaxial Cable Assembly Male Both Ends, 3 Lug FEATURES: • Mates to Model #5219 • 2 Shields provided for use in high interference areas • Lengths other than those specified available upon request. MATERIALS: Conn: 1st EndTriaxial Cable Male: BNC 3 Lug Bayonet Style. Finish: Body and Fittings – Tarnish Resistant. Intermediate and Center Contacts: Gold plated per requirements of MIL-C-39012. Cable: Belden 9222. Triaxial conductors. Nominal Impedance: 50 Ohms. 20 AWG, Polyethylene dielectric, Shield: Tinned Copper, Jacket: PVC, 6.15 (.242) O.D. Color: Yellow. Marking: “POMONA 5223” Conn: 2nd End- Same as first. RATINGS: Operating Voltage: 500 VRMS/DC. Nominal Impedance of Cable: 50 Ohms. ORDERING INFORMATION: Model 5223-XX XX=Cable Length, Standard Lengths: 36” (914), 60” (1524), Ordering Example: 5223-60 indicates 60” in length. All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm). All specifications are to the latest revisions. Specifications are subject to change without notice. Registered trademarks are the property of their respective companies. Made in USA 6/9/99 SY/EH/LS Sales: 800-490-2361 Fax: 888-403-3360 Technical Assistance: 800-241-2060 C:\Laura Goldberg\FlukeDataSheet\d5223_1_01.doc PomonaACCESS 90627 (800) 444-6785 or (425) 446-6010 More drawings available at www.pomonaelectronics.com Page 1 of 1 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Pomona: 5223-60 5223-36 EM5223-168 5223-48
