2SC0635T2A1-45

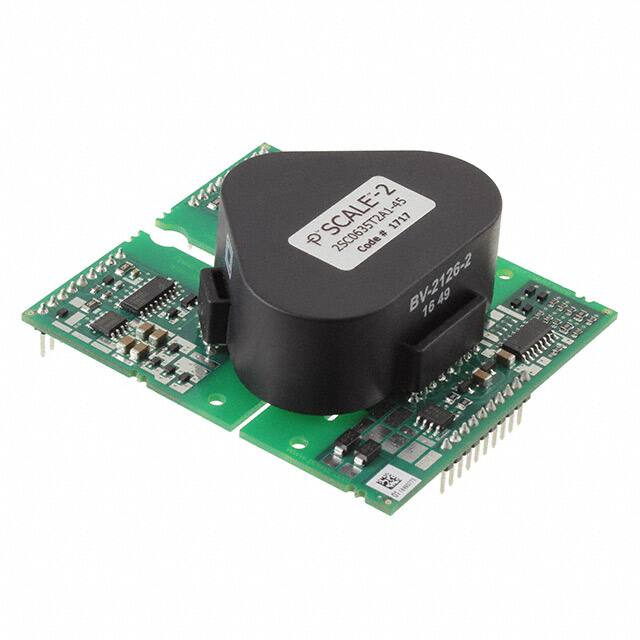

SCALE™-2 2SC0635T2A1-45 2SC0635T2A1-45 Preliminary Datasheet Dual-Channel Cost-Effective SCALE™-2 IGBT Driver Core for 4500V IGBTs Abstract The SCALE™-2 dual-driver core 2SC0635T2A1-45 combines unrivalled compactness with broad applicability. The driver is designed for universal applications requiring high reliability. The 2SC0635T2A1-45 drives all usual high-power IGBT modules up to 4500V. Its embedded paralleling capability allows easy inverter design covering higher power ratings. Multi-level topologies involving 1700V or 3300V IGBTs with higher isolation requirements can also be easily supported by 2SC0635T2A1-45. The 2SC0635T2A1-45 combines a complete two-channel driver core with all components required for driving, such as an isolated DC/DC converter, short-circuit protection, Advanced Active Clamping as well as supply voltage monitoring. Each of the two output channels is electrically isolated from the primary side and from the other secondary channel. An output current of 35A and 6W drive power is available per channel, making the 2SC0635T2A1-45 an ideal driver platform for universal use in medium and high-power applications. The driver provides a gate voltage swing of 15V/-10V. The turn-on voltage is regulated to maintain a stable 15V regardless of the output power level. Its outstanding EMC allows safe and reliable operation even in hard industrial applications. Product Highlights  Ultra-compact dual-channel driver  Highly integrated SCALE-2 chipset  Gate current ±35A, 6W output power per channel  15V/-10V gate driving  Blocking voltages up to 4500V  Basic isolation to IEC 61800-5-1 and IEC 60664-1  Short delay and low jitter  15V logic level interface  UL compliant  Lead free www.power.com/igbt-driver Applications  Traction  Railroad power supplies  Light rail vehicles  HVDC  Flexible AC transmission systems (FACTS)  Medium-voltage converters  Wind-power converters  Industrial drives  Medical applications Page 1 SCALE™-2 2SC0635T2A1-45 Preliminary Data Sheet Safety Notice! The data contained in this data sheet is intended exclusively for technically trained staff. Handling all highvoltage equipment involves risk to life. Strict compliance with the respective safety regulations is mandatory! Any handling of electronic devices is subject to the general specifications for protecting electrostatic-sensitive devices according to international standard IEC 60747-1, Chapter IX or European standard EN 100015 (i.e. the workplace, tools, etc. must comply with these standards). Otherwise, this product may be damaged. Important Product Documentation This data sheet contains only product-specific data. For a detailed description, must-read application notes and important information that apply to this product, please refer to “2SC0635T Description & Application Manual” on www.power.com/igbt-driver/go/2SC0635T. Absolute Maximum Ratings Parameter Remarks Supply voltage VDC VDC to GND Supply voltage VCC Logic input and output voltages SOx current Gate peak current Iout External gate resistance Average supply current IDC Output power VCC to GND Primary side, to GND Failure condition, total current Note 1 Turn-on and turn-off Notes 2, 3 Ambient temperature 0°C…70°C (Notes 4, 5) Ambient temperature -40°C…85°C (Note 4) Switching frequency f Test voltage (50Hz/1min.) Primary to secondary (Note 14) |dV/dt| Operating voltage Secondary to secondary (Note 14) Rate of change of input to output voltage Primary/secondary, secondary/secondary Operating temperature Notes 5, 17 Storage temperature www.power.com/igbt-driver Min Max Unit 0 16 V 0 16 -0.5 VCC+0.5 20 -35 +35 0.5 1450 9 6 100 10.2 V V mA A Ω mA W W kHz kVeff 10.2 kVeff 35 kV/μs 4500 Vpeak -40 +85 °C -55 +90 °C Page 2 SCALE™-2 2SC0635T2A1-45 Preliminary Data Sheet Recommended Operating Conditions Power Supply Remarks Min Typ Max Unit Supply voltage VDC VDC to GND, IGBT mode 14.5 15 15.5 V Supply voltage VCC VCC to GND 14.5 15 15.5 V Min Typ Max Unit Electrical Characteristics (IGBT mode) All data refer to +25°C and VCC = VDC = 15V unless otherwise specified. Power supply Remarks Supply current IDC Without load 70 mA Supply current ICC f = 0Hz 25 mA Supply current ICC f = 100kHz 34 mA Coupling capacitance Cio Primary to output, total 19 pF Power Supply Monitoring Remarks Min Typ Max Unit Supply threshold VCC 11.9 11.3 0.35 12.1 11.5 0.35 5 4.7 0.15 12.6 12.0 13.3 12.7 12.6 12.0 13.1 12.5 5.15 4.85 5.3 5 Monitoring hysteresis Primary side, clear fault Primary side, set fault (Note 11) Primary side, set/clear fault Secondary side, clear fault Secondary side, set fault (Note 12) Secondary side, set/clear fault Secondary side, clear fault Secondary side, set fault (Note 12) Secondary side, set/clear fault V V V V V V V V V Logic Inputs and Outputs Remarks Min Typ Max Unit Input impedance Turn-on threshold Turn-off threshold SOx pull-up resistor to VCC SOx output voltage V(INx) = 15V V(INx) V(INx) On board Failure condition, I(SOx)
