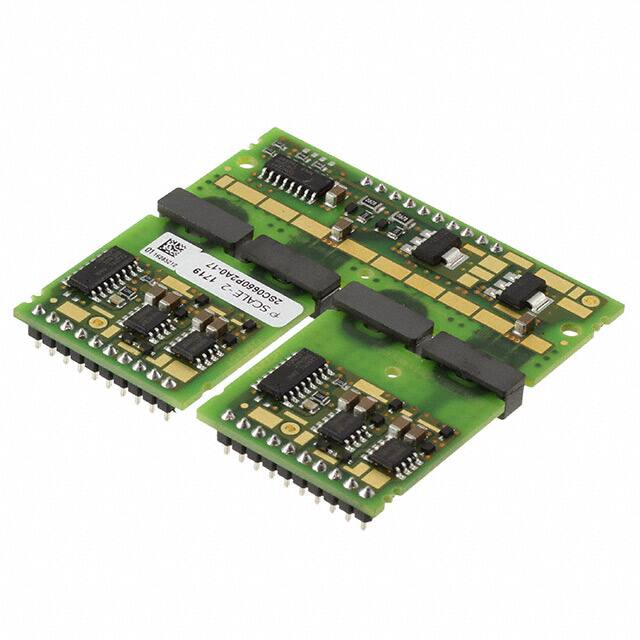

2SC0650P2Ax-17 2SC0650P2Ax-17 Preliminary Data Sheet Dual-Channel High-Power High-Frequency SCALE-2 Driver Core Short Description The SCALE-2 dual driver core 2SC0650P2Ax-17 combines highest power density with broad applicability. The driver is designed for both high-power and high-frequency applications requiring maximum reliability. It is suitable for IGBTs with reverse voltages up to 1700V and also features a dedicated MOSFET mode. The embedded paralleling capability allows easy inverter design covering higher power ratings. Multi-level topologies are also supported. CONCEPT’s patented planar-transformer technology assures efficient and high-voltage isolation with long-term reliability and sets new milestones in compactness, interference immunity and performance. Its outstanding EMC with a dv/dt strength of more than 100V/ns allows safe and reliable operation in even the toughest industrial applications. Thanks to its ultra-flat design with an insertion height of max. 6.5mm and a footprint of 61.7mm x 57.2, the 2SC0650P2Ax-17 can efficiently utilize even the most constrained insertion spaces. Compared with conventional drivers, the highly integrated SCALE-2 chipset allows about 85% of components to be dispensed with. This advantage is impressively reflected in increased reliability at simultaneously minimized cost. Equipped with the latest SCALE-2 technology, the driver core opens up the possibility of working with clock frequencies of up to 150kHz – at best-in-class efficiency. The 2SC0650P2Ax-17 combines a complete twochannel driver core with all components required for driving, such as an isolated DC/DC converter, short-circuit protection, advanced active clamping as well as supply voltage monitoring. Each of the two output channels is electrically isolated from the primary side and the other secondary channel. Product Highlights  Ultra-flat dual channel driver  Highly integrated SCALE-2 chipset  Planar transformer technology  Blocking voltages up to 1700V  Switching frequency up to 150kHz  Short delay and extremely small jitter  Gate current ±50A, 6W output power per channel  +15V/-10V gate driving  Safe isolation to EN 50178  UL compliant IGBT-Driver.com Applications  Wind power converters  Industrial drives  Traction applications  Electro/hybrid drive commercial vehicles  Driving parallel-connected large IGBTs  High gate-current driving applications  Induction heating  Switched mode power supplies (SMPS)  Laser and medical (MRT, CT, X-Ray)  Laser technology Page 1 2SC0650P2Ax-17 Preliminary Data Sheet Safety Notice! The data contained in this data sheet is intended exclusively for technically trained staff. Handling all highvoltage equipment involves risk to life. Strict compliance with the respective safety regulations is mandatory! Any handling of electronic devices is subject to the general specifications for protecting electrostatic-sensitive devices according to international standard IEC 60747-1, Chapter IX or European standard EN 100015 (i.e. the workplace, tools, etc. must comply with these standards). Otherwise, this product may be damaged. Important Product Documentation This data sheet contains only product-specific data. For a detailed description, must-read application notes and important information that apply to this product, please refer to “2SC0650P Description & Application Manual” on www.IGBT-Driver.com/go/2SC0650P Absolute Maximum Ratings Parameter Remarks Supply voltage V DC VDC to GND Supply voltage V CC Logic input and output voltages SOx current Gate peak current I out External gate resistance Average supply current I DC Output power VCC to GND Primary side, to GND Failure condition, total current Note 1 Turn-on and turn-off Notes 2, 3 Ambient temperature 3V V(INx) V(INx) Failure condition, I(SOx)
