2SP0320T2Cx-17
2SP0320T2Cx-17
Preliminary Data Sheet
Compact, high-performance, plug-and-play dual-channel IGBT driver based on
SCALE™-2 technology for individual and parallel-connected modules in 2-level,
3-level and multilevel converter topologies
Abstract

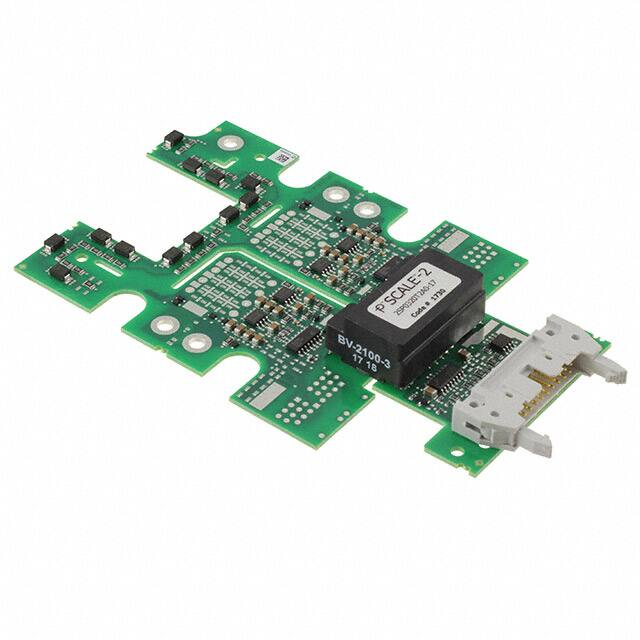

The SCALE™-2 plug-and-play driver 2SP0320T2Cx-17 is a compact dual-channel intelligent gate driver
designed for 1700V IGBT modules from Danfoss, Fuji or Infineon. The driver features an electrical interface
with a built-in DC/DC power supply.
The turn-on and turn-off gate resistors of both channels are not assembled in order to provide
maximum flexibility. They must be assembled by the user before start of operation. Please refer to
the paragraph on “Gate Resistor Assembly” for the recommended gate resistors.
For drivers adapted to other types of high-power and high-voltage IGBT modules, refer to
www.IGBT-Driver.com/go/plug-and-play
Features
Applications
Plug-and-play solution
Allows parallel connection of IGBT modules
For 2-level, 3-level and multilevel topologies
Shortens application development time
Extremely reliable; long service life
Built-in DC/DC power supply
20-pin flat cable interface
Duty cycle 0... 100%
Active clamping of V at turn-off
IGBT short-circuit protection
Monitoring of supply voltage
Safe isolation to EN 50178
UL compliant
Suitable for 1700V IGBT modules
Gate resistors not assembled
ce
www.IGBT-Driver.com
Wind-power converters
Industrial drives
UPS
Power-factor correctors
Traction
Railroad power supplies
Welding
SMPS
Radiology and laser technology
Research
and many others
Page 1
2SP0320T2Cx-17
Preliminary Data Sheet
Safety Notice!
The data contained in this data sheet is intended exclusively for technically trained staff. Handling all highvoltage equipment involves risk to life. Strict compliance with the respective safety regulations is mandatory!
Any handling of electronic devices is subject to the general specifications for protecting electrostatic-sensitive
devices according to international standard IEC 60747-1, Chapter IX or European standard EN 100015 (i.e. the
workplace, tools, etc. must comply with these standards). Otherwise, this product may be damaged.
Important Product Documentation
This data sheet contains only product-specific data. For a detailed description, must-read application notes and
common data that apply to the whole series, please refer to “Description & Application Manual for 2SP0320T
SCALE-2 IGBT Drivers” on www.IGBT-Driver.com/go/2SP0320.
The gate resistors on this gate driver are not assembled in order to provide maximum flexibility. For the gate
resistors required for specific IGBT modules, refer to the paragraph on “Gate Resistor Assembly”. Use of gate
resistors other than those specified may result in failure.
Mechanical Dimensions
Dimensions: See the relevant “Description and Application Manual”
Mounting principle: Connected to IGBT module with screws
Absolute Maximum Ratings
Parameter
Remarks
Min
Supply voltage V DC
Supply voltage V CC
Logic input and output voltages
SO x current
Gate peak current I out
Average supply current I DC
Output power per gate
Turn-on gate resistance
Turn-off gate resistance
Switching frequency F
Test voltage (50Hz/1min.)
VDC to GND
VCC to GND (Note 1)
To GND
Fault condition, total current
Note 2
Note 16
Ambient temperature
