InnoSwitch3-CP Family
Off-Line CV/CC QR Flyback Switcher IC with Integrated
Primary Switch, Synchronous Rectification, FluxLink Feedback
and Constant Power Profile
Product Highlights
Highly Integrated, Compact Footprint
InnoSwitch3-CP
FB
GND
V
BPS
D
SR
SR FET
FWD
• Up to 94% efficiency across full load range
• Quasi-Resonant (QR) / CCM flyback controller, high-voltage switch4,
secondary-side sensing and synchronous rectification driver
• Integrated FluxLink™, HIPOT-isolated, feedback link
• Easily interfaces to load-directed and fast charge protocol ICs
• Constant Power (CP) Profile minimizes charging time with continuous
adjustment of output current and voltage
• Accurate CV/CC/CP, independent of external components
• External IS resistor allows custom CC programming
• Instantaneous transient response with 0%-100%-0% load step
• PowiGaN™ technology – up to 100 W without heat sinks (INN3278C,
INN3279C and INN3270C)
VOUT
Primary Switch
and Controller
S
IS
BPP
RS
Secondary
Control IC
PI-8322-072419
Figure 1. Typical Application Schematic.
EcoSmart™ – Energy Efficient
Advanced Protection / Safety Features

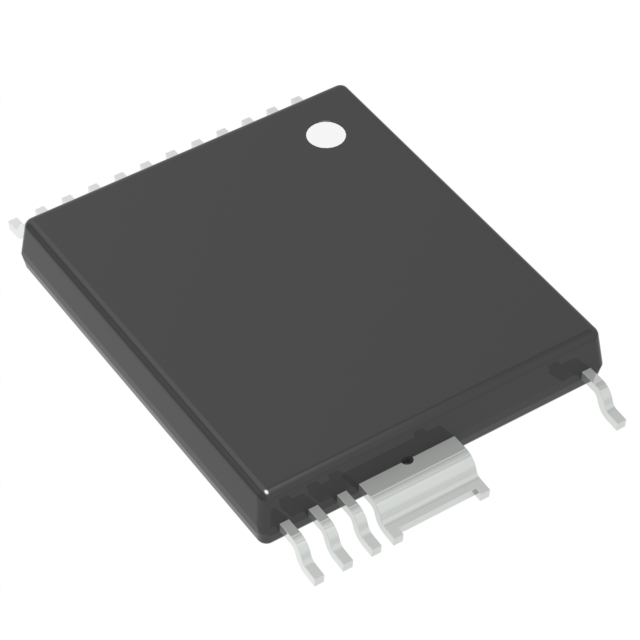

Figure 2. High Creepage, Safety-Compliant InSOP-24D Package.
PI-8321-082317
• Less than 30 mW no-load including line sense
• Easily meets all global energy efficiency regulations
• Low heat dissipation
Optional Features
•
•
•
•
•
Cable-drop compensation with multiple settings
Variable output voltage, constant current profiles
Auto-restart or latching fault response for output OVP/UVP
Multiple output UV fault thresholds
Latching or hysteretic primary over-temperature protection
Output Voltage (V)
• Secondary switch or diode short-circuit protection
• Open SR FET-gate detection
• Fast input line UV/OV protection
VPK
Full Safety and Regulatory Compliance
•
•
•
•
Reinforced isolation
Isolation voltage >4000 VAC
100% production HIPOT testing
UL1577, TUV (EN62368-1), CQC (GB4943.1) and VDE 0884-17
(EN60747-17) safety approved
• Excellent noise immunity enables designs that achieve class “A”
performance criteria for EN61000-4 suite; EN61000-4-2, 4-3
(30 V/m), 4-4, 4-5, 4-6, 4-8 (100 A/m) and 4-9 (1000 A/m)
Green Package
CC set by IS pin resistor (RS)
Output Current (A)
Figure 3. Typical Constant Power Characteristics.
Output Power Table
Product 3,4
230 VAC ± 15%
85-265 VAC
Adapter
Open
Frame2
Adapter1
Open
Frame2
25 W
15 W
20 W
1
• Halogen free and RoHS compliant
INN3264C/3274C
20 W
Applications
INN3265C/3275C
25 W
30 W
22 W
25 W
INN3266C/3276C
35 W
40 W
27 W
36 W
INN3277C
40 W
45 W
36 W
40 W
INN3267C
45 W
50 W
40 W
45 W
INN3268C
55 W
65 W
50 W
55 W
INN3278C
70 W
75 W
55 W
65 W
• High efficiency flyback designs up to 100 W
• USB PD / QC / proprietary protocol chargers
Description
The InnoSwitch™3-CP family of ICs dramatically simplifies the design
and manufacture of flyback power converters, particularly those
requiring high efficiency and/or compact size. The InnoSwitch3-CP
family incorporates primary and secondary controllers and safety-rated
feedback into a single IC.
InnoSwitch3-CP family devices incorporate multiple protection features
including line over and undervoltage protection, output overvoltage
and over-current limiting, and over-temperature shutdown. Devices are
available that support the common combinations of latching and
auto-restart behaviors required by applications such as quick charge
and USB PD designs. The devices are available with and without
cable-drop compensation.
INN3279C
80 W
85 W
65 W
75 W
INN3270C
90 W
100 W
75 W
85 W
Table 1. Output Power Table.
Notes:
1. Minimum continuous power in a typical non-ventilated enclosed adapter
measured at 40 °C ambient. (package temperature tAR(SK).
The second is included to ensure that if communication is lost, the
primary tries to restart. Although this should never be the case in
normal operation, it can be useful when system ESD events (for
example) causes a loss of communication due to noise disturbing the
secondary controller. The issue is resolved when the primary restarts
after an auto-restart off-time.
4
www.power.com
Rev. M 09/21
InnoSwitch3-CP
The auto-restart is reset as soon as an AC reset occurs.
SOA Protection
In the event that there are two consecutive cycles where the ILIM is
reached within ~500 ns (the blanking time + current limit delay time)
(including leading edge current spike), the controller will skip 2.5
cycles or ~25 ms (based on full frequency of 100 kHz). This provides
sufficient time for the transformer to reset with large capacitive loads
without extending the start-up time.
Secondary Rectifier/SR Switch Short Protection (SRS)
In the event that the output diode or SR FET is short-circuited before
or during the primary conduction cycle, the drain current (prior to the
end of the leading edge blanking time) can be much higher than the
maximum current limit threshold. If the controller turns the highvoltage power switch off, the resulting peak drain voltage could
exceed the rated BVDSS of the device, resulting in catastrophic failure
even with minimum on-time.
To address this issue, the controller features a circuit that reacts
when the drain current exceeds the maximum current limit threshold
prior to the end of leading-edge blanking time. If the leading-edge
current exceeds current limit within a cycle (200 ns), the primary
controller will trigger a 30 ms off-time event. SOA mode is triggered if
there are two consecutive cycles above current limit within tLES
(~500 ns). SRS mode also triggers t AR(OFF)SH off-time, if the current
limit is reached within 200 ns after a 30 ms off-time.
SRS Protection is not available in PowiGaN devices INN3x79C and
INN3270C.
Input Line Voltage Monitoring
The UNDER/OVER INPUT VOLTAGE pin is used for input undervoltage
and overvoltage sensing and protection.
A sense resistor is tied between the high-voltage DC bulk capacitor
after the bridge (or to the AC side of the bridge rectifier for fast AC
reset) and the UNDER/OVER INPUT VOLTAGE pin to enable this
functionality. This function can be disabled by shorting the UNDER/
OVER INPUT VOLTAGE pin to SOURCE pin.
At power-up, after the primary bypass capacitor is charged and the
ILIM state is latched, and prior to switching, the state of the UNDER/
OVER INPUT VOLTAGE pin is checked to confirm that it is above the
brown-in and below the overvoltage shutdown thresholds.
In normal operation, if the UNDER/OVER INPUT VOLTAGE pin current
falls below the brown-out threshold and remains below brown-in for
longer than tUV-, the controller enters auto-restart. Switching will only
resume once the UNDER/OVER INPUT VOLTAGE pin current is above
the brown-in threshold.
In the event that the UNDER/OVER INPUT VOLTAGE pin current is
above the overvoltage threshold, the controller will also enter
auto-restart. Again, switching will only resume once the UNDER/
OVER INPUT VOLTAGE pin current has returned to within its normal
operating range.
The input line UV/OV function makes use of an internal high-voltage
switch on the UNDER/OVER INPUT VOLTAGE pin to reduce power
consumption. If the cycle off-time tOFF is greater than 50 ms, the
internal high-voltage switch will disconnect the external sense resistor
from the internal IC to eliminate current drawn through the sense
resistor. The line sensing function will activate again at the beginning
of the next switching cycle.
P: Primary Chip
S: Secondary Chip
Start
P: Powered Up, Switching
S: Powering Up
P: Auto-Restart
S: Powering Up
tAR(OFF)
S: Has powered
up within tAR
No
P: Goes to Auto-Restart Off
S: Bypass Discharging
Yes
tAR
P: Switching
S: Sends Handshaking Pulses
P: Has Received
Handshaking
Pulses
No
P: Continuous Switching
S: Doesn’t Take Control
No
P: Not Switching
S: Doesn’t Take Control
Yes
P: Stops Switching, Hands
Over Control to Secondary
S: Has Taken
Control?
Yes
End of Handshaking,
Secondary Control Mode
PI-7416a-102116
Figure 8. Primary-Secondary Handshake Flowchart.
Primary-Secondary Handshake
At start-up, the primary-side initially switches without any feedback
information (this is very similar to the operation of a standard
TOPSwitch™, TinySwitch™ or LinkSwitch™ controllers).
If no feedback signals are received during the auto-restart on-time
(t AR), the primary goes into auto-restart mode. Under normal
conditions, the secondary controller will power-up via the FORWARD
pin or from the OUTPUT VOLTAGE pin and take over control. From
this point onwards the secondary controls switching.
If the primary controller stops switching or does not respond to cycle
requests from the secondary during normal operation (when the
secondary has control), the handshake protocol is initiated to ensure
that the secondary is ready to assume control once the primary
begins to switch again. An additional handshake is also triggered if
the secondary detects that the primary is providing more cycles than
were requested.
5
www.power.com
Rev. M 09/21
InnoSwitch3-CP
The most likely event that could require an additional handshake is
when the primary stops switching as the result of a momentary line
brown-out event. When the primary resumes operation, it will default
to a start-up condition and attempt to detect handshake pulses from
the secondary.
If the secondary does not detect that the primary responds to switching
requests for 8 consecutive cycles, or if the secondary detects that the
primary is switching without cycle requests for 4 or more consecutive
cycles, the secondary controller will initiate a second handshake
sequence. This provides additional protection against cross-conduction
of the SR FET while the primary is switching. This protection mode
also prevents an output overvoltage condition in the event that the
primary is reset while the secondary is still in control.
Wait and Listen
When the primary resumes switching after initial power-up recovery
from an input line voltage fault (UV or OV) or an auto-restart event, it
will assume control and require a successful handshake to relinquish
control to the secondary controller.
As an additional safety measure the primary will pause for an
auto-restart on-time period, t AR (~82 ms), before switching. During
this “wait” time, the primary will “listen” for secondary requests. If it
sees two consecutive secondary requests, separated by ~30 ms, the
primary will infer secondary control and begin switching in slave
mode. If no pulses occurs during the t AR “wait” period, the primary
will begin switching under primary control until handshake pulses are
received.
Audible Noise Reduction Engine
The InnoSwitch3-CP features an active audible noise reduction mode
whereby the controller (via a “frequency skipping” mode of operation)
avoids the resonant band (where the mechanical structure of the
power supply is most likely to resonate − increasing noise amplitude)
between 5 kHz and 12 kHz - 200 ms and 83 ms period respectively. If a
secondary controller switch request occurs within this time window
from the last conduction cycle, the gate drive to the power switch is
inhibited.
Secondary Controller
As shown in the block diagram in Figure 5, the IC is powered by a
4.4 V (VBPS) regulator which is supplied by either VOUT or FWD. The
SECONDARY BYPASS pin is connected to an external decoupling
capacitor and fed internally from the regulator block.
The FORWARD pin also connects to the negative edge detection
block used for both handshaking and timing to turn on the SR FET
connected to the SYNCHRONOUS RECTIFIER DRIVE pin. The
FORWARD pin voltage is used to determine when to turn off the
SR FET in discontinuous conduction mode operation. This is when
the voltage across the RDS(ON) of the SR FET drops below zero volts.
In continuous conduction mode (CCM) the SR FET is turned off when
the feedback pulse is sent to the primary to demand the next
switching cycle, providing excellent synchronous operation, free of
any overlap for the FET turn-off.
The mid-point of an external resistor divider network between the
OUTPUT VOLTAGE and SECONDARY GROUND pins is tied to the
FEEDBACK pin to regulate the output voltage. The internal voltage
comparator reference voltage is VFB (1.265 V).
The external current sense resistor connected between ISENSE and
SECONDARY GROUND pins is used to regulate the output current in
constant current regulation mode.
Minimum Off-Time
The secondary controller initiates a cycle request using the inductiveconnection to the primary. The maximum frequency of secondary-
cycle requests is limited by a minimum cycle off-time of tOFF(MIN). This
is in order to ensure that there is sufficient reset time after primary
conduction to deliver energy to the load.
Maximum Switching Frequency
The maximum switch-request frequency of the secondary controller
is fSREQ.
Frequency Soft-Start
At start-up the primary controller is limited to a maximum switching
frequency of fSW and 75% of the maximum programmed current limit
at the switch-request frequency of 100 kHz.
The secondary controller temporarily inhibits the FEEDBACK short
protection threshold (VFB(OFF)) until the end of the soft-start (tSS(RAMP))
time. After hand-shake is completed the secondary controller linearly
ramps up the switching frequency from fSW to fSREQ over the tSS(RAMP)
time period.
In the event of a short-circuit or overload at start-up, the device will
move directly into CC (constant-current) mode. The device will go
into auto-restart (AR), if the output voltage does not rise above the
VFB(AR) threshold before the expiration of the soft-start timer (tSS(RAMP))
after handshake has occurred.
The secondary controller enables the FEEDBACK pin-short protection
mode (VFB(OFF)) at the end of the tSS(RAMP) time period. If the output
short maintains the FEEDBACK pin below the short-circuit threshold,
the secondary will stop requesting pulses triggering an auto-restart
cycle.
If the output voltage reaches regulation within the tSS(RAMP) time
period, the frequency ramp is immediately aborted and the secondary
controller is permitted to go full frequency. This will allow the
controller to maintain regulation in the event of a sudden transient
loading soon after regulation is achieved. The frequency ramp will
only be aborted if quasi-resonant-detection programming has already
occurred.
Maximum Secondary Inhibit Period
Secondary requests to initiate primary switching are inhibited to
maintain operation below maximum frequency and ensure minimum
off-time. Besides these constraints, secondary-cycle requests are
also inhibited during the “ON” time cycle of the primary switch (time
between the cycle request and detection of FORWARD pin falling
edge). The maximum time-out in the event that a FORWARD pin
falling edge is not detected after a cycle requested is ~30 ms.
Output Voltage Protection
In the event that the sensed voltage on the FEEDBACK pin is 2%
higher than the regulation threshold, a bleed current of ~2.5 mA
(3 mA max) is applied on the OUTPUT VOLTAGE pin (weak bleed).
This bleed current increases to ~200 mA (strong bleed) in the event
that the FEEDBACK pin voltage is raised beyond ~10% of the internal
FEEDBACK pin reference voltage. The current sink on the OUTPUT
VOLTAGE pin is intended to discharge the output voltage after
momentary overshoot events. The secondary does not relinquish
control to the primary during this mode of operation.
If the voltage on the FEEDBACK pin is sensed to be 20% higher than
the regulation threshold, a command is sent to the primary to either
latch-off or begin an auto-restart sequence (see Secondary Fault
Response in Feature Code Addendum). This integrated VOUT OVP can
be used independently from the primary sensed OVP or in conjunction.
FEEDBACK Pin Short Detection
If the sensed FEEDBACK pin voltage is below VFB(OFF) at start-up, the
secondary controller will complete the handshake to take control of
the primary complete tSS(RAMP) and will stop requesting cycles to initiate
auto-restart (no cycle requests made to primary for longer than t AR(SK)
second triggers auto-restart).
6
www.power.com
Rev. M 09/21
InnoSwitch3-CP
Cable Drop Compensation (CDC)
The amount of cable drop compensation is a function of the load with
respect to the constant current regulation threshold as illustrated in
Figure 9.
Cable Drop
Compensation
VFB
No-Load
Load Current
Onset of CC
Regulation
PI-8035-072516
Figure 9. Cable Drop Compensation Characteristics.
FORWARD Pin Voltage
During normal operation, the secondary will stop requesting pulses
from the primary to initiate an auto-restart cycle when the FEEDBACK
pin voltage falls below the VFB(OFF) threshold. The deglitch filter on the
protection mode is on for less than ~10 ms. By this mechanism, the
secondary will relinquish control after detecting that the FEEDBACK
pin is shorted to ground.
Auto-Restart Thresholds
The FEEDBACK pin or OUTPUT VOLTAGE pin includes a comparator to
detect when the feedback voltage or output voltage falls below VFB(AR)
or V VOUT(AR), for a duration exceeding tFB(AR) or tVOUT(AR)respectively. The
secondary controller will relinquish control when this fault condition is
detected. This threshold is meant to limit the range of constant
current (CC) operation and is included to support high power charger
applications.
SECONDARY BYPASS Pin Overvoltage Protection
The InnoSwitch3-CP secondary controller features a SECONDARY
BYPASS pin OV feature similar to the PRIMARY BYPASS pin OV feature.
When the secondary is in control, in the event that the SECONDARY
BYPASS pin current exceeds IBPS(SD) (~7 mA) the secondary will send a
command to the primary to initiate an auto-restart off-time (t AR(OFF)) or
latch-off (see Secondary Fault Response in Feature Code Addendum).
Output Constant Current and Constant Power Regulation
The InnoSwitch3-CP regulates the output current through an external
current sense resistor between the ISENSE and SECONDARY
GROUND pins and also controls output power in conjunction with the
PI-8147-102816
FEEDBACK Pin
Voltage
X × VFB
Request Window
Output Voltage
Primary VDS
Time
Time
Figure 10. Intelligent Quasi-Resonant Mode Switching.
7
www.power.com
Rev. M 09/21
InnoSwitch3-CP
output voltage sensed on the OUTPUT VOLTAGE pin. If constant
current regulation is not required, the ISENSE pin must be tied to the
SECONDARY GROUND pin. The InnoSwitch3-CP has constant current
regulation below the VPK threshold, and a constant output power
profile above the VPK threshold. The transition between CP and CC is
set by the VPK threshold and the set constant current is programmed
by the resistor between the ISENSE and SECONDARY GROUND pins.
SR Disable Protection
In each cycle SR is only engaged if a set cycle was requested by the
secondary controller and the negative edge is detected on the
FORWARD pin. In the event that the voltage on the ISENSE pin
exceeds approximately 3 times the CC threshold, the SR FET drive is
disabled until the surge current has diminished to nominal levels.
SR Static Pull-Down
To ensure that the SR gate is held low when the secondary is not in
control, the SYNCHRONOUS RECTIFIER DRIVE pin has a nominally
“ON” device to pull the pin low and reduce any voltage on the SR gate
due to capacitive coupling from the FORWARD pin.
Open SR Protection
In order to protect against an open SYNCHRONOUS RECTIFIER
DRIVE pin system fault the secondary controller has a protection
mode to ensure the SYNCHRONOUS RECTIFIER DRIVE pin is
connected to an external FET. If the external capacitance on the
SYNCHRONOUS RECTIFIER DRIVE pin is below 100 pF, the device
will assume the SYNCHRONOUS RECTIFIER DRIVE pin is “open” and
there is no FET to drive. If the pin capacitance detected is above
100 pF, the controller will assume an SR FET is connected.
If the SYNCHRONOUS RECTIFIER DRIVE pin is tied to ground at
start-up, the SR drive function is disabled and the open
SYNCHRONOUS RECTIFIER DRIVE pin protection mode is also
disabled.
Intelligent Quasi-Resonant Mode Switching
In order to improve conversion efficiency and reduce switching
losses, the InnoSwitch3-CP features a means to force switching when
the voltage across the primary switch is near its minimum voltage
when the converter operates in discontinuous conduction mode (DCM).
This mode of operation is automatically engaged in DCM and disabled
once the converter moves to continuous-conduction mode (CCM).
Rather than detecting the magnetizing ring valley on the primaryside, the peak voltage of the FORWARD pin voltage as it rises above
the output voltage level is used to gate secondary requests to initiate
the switch “ON” cycle in the primary controller.
The secondary controller detects when the controller enters in
discontinuous-mode and opens secondary cycle request windows
corresponding to minimum switching voltage across the primary
power switch.
Quasi-Resonant (QR) mode is enabled for 20 ms after DCM is detected
or when ring amplitude (pk-pk) >2 V. Afterwards, QR switching is
disabled, at which point switching may occur at any time a secondary
request is initiated.
The secondary controller includes blanking of ~1 ms to prevent false
detection of primary “ON” cycle when the FORWARD pin rings below
ground. See Figure 10.
In the event the SYNCHRONOUS RECTIFIER DRIVE pin is detected to
be open, the secondary controller will stop requesting pulses from
the primary to initiate auto-restart.
8
www.power.com
Rev. M 09/21
InnoSwitch3-CP
Applications Example
R2
150 kΩ
1%
FL4
D1
DFLR1800-7
FL6
FL5
L2
600 µH
2
4
1
3
F1
2A
J1
t
RT1
5Ω
85 - 265
VAC
VR2
DZ2S100M0L
10 V
R20
4.02 kΩ
1%
D
V
R10*
4.02 kΩ
1%
R16
31.6 kΩ
1%
R17
31.6 kΩ
1%
R7
200 Ω
1%
C16
100 nF
50 V
R9
1.00 kΩ
1%
1/8 W
C17
1 µF
35 V
R23
100 kΩ
1%
R25
4.7 KΩ
CYPD2134
U2
XRES VDDD
R11
10 Ω
1%
GPIO10
VCCD
C9
10 µF
35 V
CC1
I2C_SCL_P0.1
R24
10 kΩ
1%
VOUT
GPIO6
GPIO5
I2C_SDA_P0.0
R12
100 kΩ
1%
C13
2.2 µF
25 V
CC2
GPIO7
EPAD
C20
C19
C18
330 pF 330 pF 1 µF
16 V 16 V 16 V
R18*
18.0 kΩ
1%
BPS
C12
100 nF
305 VAC
FWD
R15
1.5 MΩ
1%
D3
SM4003PL-TP
4
D2
BAV21WS-7-F
2
R14
402 Ω
1%
Q7
MMBTA06LT1G
3
VR1
MMSZ5259BT1G
L1
34 mH
1
R13
47 Ω
1/10 W
5 V, 3 A
9 V, 3 A
15 V, 3 A
C5*
6.8 nF
50 V
C11
330 pF
50 V
Q6
RU1J002YNTCL
T1
EQ27
C3
39 µF
400 V
C10
2.2 µF
25 V
FL2
R3
1.8 MΩ
1%
C2
39 µF
400 V
R4
100 kΩ
1%
C8
1 nF
200 V
GND
R5
20 Ω
1%
R8
10 Ω
1%
VO
R1
2.00 MΩ
1%
C4
2.2 nF
630 V
Q3
SIR882ADP-T1-GE3
BR2
TBS20J-TP
600 V
SR
BR1
TBS20J-TP
600 V
R6
49.9 kΩ
Q1
Q2
1%
BSC030P03NS3 G 1/10 W BSC030P03NS3 G
C6
C7
390 µF 390 µF
20 V
20 V
FL3
Q5
RJU003N03T106
FL1
Q4
RJU003N03T106
C1
1 nF
250 VAC
CONTROL
R19
12.7 kΩ
1%
FB
O
J2
S
C14
22 µF
50 V
BPP
C15
4.7 µF
50 V
InnoSwitch3-CP
U1
INN3268C-H208
IS
R21
0.01 Ω
1%
RTN
*Not connected
PI-8409a-090717
Figure 11. 5 V, 3 A ; 9 V, 3 A ; 15 V, 3 A USB PD 2.0 Compliant Adapter.
The circuit shown in Figure 11 is a 5 V, 3 A ; 9 V, 3 A ; 15 V, 3 A USB
PD 2.0 compliant adapter using INN3268C. This design is DOE Level
6 and EC CoC 5 compliant.
Common mode chokes L1 and L2 provide attenuation for EMI. Bridge
rectifiers BR1 and BR2 rectify the AC line voltage and provide a full
wave rectified DC. Thermistor RT1 limits the inrush current when the
power supply is connected to the input AC supply. Fuse F1 isolates
the circuit and provides protection from component failure.
One end of the transformer primary is connected to the rectified DC
bus; the other is connected to the drain terminal of the integrated
switch in the InnoSwitch3-CP IC (U1).
A low cost RCD clamp formed by diode D1, resistors R2 and R5 and
capacitor C4 limits the peak drain voltage of U1 at the instant of turn
off of the switch inside U1. The clamp helps to dissipate the energy
stored in the leakage reactance of transformer T1.
The InnoSwitch3-CP IC is self-starting, using an internal high-voltage
current source to charge the PRIMARY BYPASS pin capacitor (C15)
when AC is first applied. During normal operation, the primary-side
block is powered from an auxiliary winding on the transformer T1.
Output of the auxiliary (or bias) winding is rectified using diode D3
and filtered using capacitor C14. Resistors R15 and R20 along with
Q7 and VR2 form a linear regulator circuit to control the current
supplied to the PRIMARY BYPASS pin of U1 irrespective of the output
voltage. The Zener VR1 along with resistor R14 and diode D2 provide
a latching OVP in the event of an output overvoltage condition.
In a flyback converter, output of the auxiliary winding tracks the
output voltage of the converter. In the event of an overvoltage on
the output of the converter, the auxiliary winding voltage increases
and causes VR1 to breakdown. This puts current into the PRIMARY
BYPASS pin of U1. If the current into the PRIMARY BYPASS pin
increases above the ISD threshold, the InnoSwitch3-CP controller will
latch-off, preventing any further increase in output voltage.
The secondary-side controller of the InnoSwitch3-CP IC provides
output voltage sensing and output current sensing as well as driving
the synchronous rectification FET. The secondary output from the
transformer is rectified by FET Q3 and filtered by capacitors C6 and
C7. High frequency ringing during switching transients that would
otherwise create radiated EMI is reduced via an RC snubber, R8 and C8.
The gate of Q3 is turned on by the secondary-side controller inside
U1, based on the voltage (sensed via resistor R13) fed to the
FORWARD pin of the IC.
In continuous conduction mode, the FET is turned off prior to the
secondary-side’s requesting the start of a new switching cycle from
the primary. The power FET is turned off when the voltage drop
across the FET falls below a threshold of VSR(TH). Secondary-side
control of the primary-side power switch avoids any possibility of
cross conduction of the two switches and provides extremely reliable
synchronous rectification.
The secondary-side of the IC is self-powered from either the output
winding forward voltage or the output voltage. Capacitor C10,
connected to the SECONDARY BYPASS pin of IC U1 provides
decoupling for the internal circuitry.
During CC operation, when the output voltage falls, the device will
directly power itself from the secondary winding. During the on-time
of the primary-side power switch, the forward voltage that appears
across the secondary winding is used to charge the decoupling
capacitor C10 via resistor R13 and an internal regulator. This allows
output current regulation to be maintained down to ~3.4 V. Output
current is sensed by monitoring the voltage drop across resistor R21
between the IS and SECONDARY GROUND pins. A threshold of
approximately 35 mV reduces losses. Once the internal current sense
threshold is exceeded the device regulates the number of switch
pulses to maintain a fixed output current.
9
www.power.com
Rev. M 09/21
InnoSwitch3-CP
Below the CC threshold, the device operates in constant voltage
mode. Output voltage is regulated so as to achieve a voltage of
1.265 V on the FEEDBACK pin. Capacitor C11 provides noise filtering
of the signal at the FEEDBACK pin.
voltage is changed to 15 V, 9 V or 5 V when sink requests for the
same. To change the output to 15 V, GPI07 of IC U2 goes low and
adds resistor R19 in parallel to the bottom resistor of the feedback
divider network.
In this design, a Cypress CYPD2134 (U2) IC is the USB Type-C and PD
controller used. The output of the power conversion stage powers
the Cypress device through its VCC pin.
USB PD protocol is communicated over either the CC1 or CC2 line
depending on the orientation of the Type-C plug. P-channel switch
Q1 and Q2 form the bus-switch and allow the USB Type-C receptacle
to go “cold-socket” when no device is attached to the charger as per
the USB Type-C specification.
Resistors R23 and R24 of the PD controller stage sense the output of
power stage to provide voltage feedback to the PD controller. Output
10
www.power.com
Rev. M 09/21
InnoSwitch3-CP
C3
470 pF
250 VAC
R5
1.80 MΩ
1%
4
D4
BAV19WS
FL2
D2
BAV3004WS-7
300 V
D1
2
D2
R13
100 kΩ
1%
1/16 W
R15
47 Ω
1/10 W
R2
1 MΩ
VR2
DZ2S100M0L
10 V
J1-2
R14
3 kΩ
1%
1/10 W
C37
R43
33 nF 30 kΩ
50 V 1/10 W
R37
1 kΩ
1%
1/10 W
C32
10 nF
50 V
C22
100 pF
50 V
C9
2.2 µF
25 V
D
V
CONTROL
S
C5
6.8 µF
63 V
BPP
C6
4.7 µF
25 V
C11
1000 pF
50 V
FB
C33
4.7 nF
50 V
InnoSwitch3
U1
INN3279C-H215
C24
100 pF
50 V
R18
0.005 Ω
1%
1/2 W
R44
1 kΩ
1/10 W
R24
1 kΩ
1%
1/10 W
C21
330 nF
16 V
R35
0.0 Ω
1/16 W
C15
10 µF
35 V
C16
100 nF
25 V
R41
1 kΩ
1/10 W
J2A
CON24_USB_C
GND1
C14
1 µF
100 V
TX1+
VBUS_OUT
C36
1 nF
100 V
TX1VBUS1
CC1
D1+
RT2
100 kΩ
OTPA
GPIOB
GATE
VDD
IFB
D+
VFB
D-
IS-
CC1
IS+
CC2
C27
1 nF
100 V
R28
5.1 kΩ
1/10 W
IS
R34
3.01 kΩ
1%
1/10 W
R42
9.09 kΩ
1%
1/10 W
R16
47 Ω
1/10 W
BPS
1
C2
100 µF
400 V
T1
EQ2506
VO
L1
250 µH
2
L2
04291-T231
18 mH
3
GND
1
C1
330 nF
275 VAC
3
D3
BAV16WS-7-F
R38
100 Ω
1%
1/10 W
VBUS_OUT
Q4
MMST4403-7-F
R23
15 kΩ
1/10 W
C18
100 nF
25 V
FWD
90 - 265
VAC
4
Q1
MMBTA06LT1G
4
VR1
MMSZ5261BT1G
3
C10
330 pF
100 V
1
R1
1 MΩ
CAPZero
U3
CAP200DG
R21
11.5 kΩ
1%
1/10 W
Q2
AONS62922
D1
DFLR1800-7
R33
3.01 kΩ
1%
1/10 W
GPIOD
R10
0.0 Ω
C13A
330 µF
25 V
C12
330 µF
25 V
VSS
R6
20 Ω
R19
10 Ω
R22
49.9 kΩ
Q3
1%
1/10 W AON6407
R20
191 kΩ
1%
1/16 W
VCC
BR1
GBL06
600 V
F1
3.15 A
R4
2.00 MΩ
1%
SR/P
J1-1
R9
680 kΩ
C38
1 µF
35 V
C8
1 nF
200 V
FL1
CATH
2
C4
2.2 nF
630 V
R8
680 kΩ
R7
20 Ω
t
D1-
O
VBUS_OUT
SBU1
VBUS2
RX2RX2+
GND2
R31
22 Ω
1/10 W
J2B
CON24_USB_C
GND3
A1
A2
A3
TX2+
VBUS_OUT
CC2
A5
D2+
A6
A7
A8
A9
A10
A11
A12
TX2VBUS3
A4
D2VBUS_OUT
SBU2
VBUS4
RX1RX1+
GND4
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
R29
22 Ω
1/10 W
U2
WT6615F
C26
4.7 µF
10 V
C25
100 nF
16 V
C30
560 pF
50 V
C28
560 pF
50 V
GND
RTN
PI-8735-071919
Figure 12. 5 V / 3 A, 9 V / 3 A, 15 V / 3 A, 20 V / 3 A USB PD 3.0 adapter.
The circuit shown in Figure 12 is a USB PD 3.0 based adapter design
delivering 5 V / 3 A, 9 V / 3 A, 15 V / 3 A, 20 V /3 A using INN3279C.
This design is DOE Level 6 and EC CoC 5 compliant.
Fuse F1 isolates the circuit and provides protection from component
failure, and the common mode choke L1 and L2 with capacitor C1
attenuation for EMI. Bridge rectifier BR1 rectifies the AC line voltage
and provides a full wave rectified DC across the filter capacitor C2.
Capacitor C3 is used to mitigate the common mode EMI.
Resistors R1 and R2 along with U3 discharges capacitor C1 when the
power supply is disconnected from AC mains.
One end of the transformer (T1) primary is connected to the rectified
DC bus; the other is connected to the drain terminal of the switch
inside the InnoSwitch3-CP IC (U1). Resistors R4 and R5 provide Input
voltage sense protection for under voltage and over voltage
conditions.
A low cost RCD clamp formed by diode D1, resistors R6, R7, R8, and
R9, and capacitor C4 limits the peak drain voltage of U1 at the instant
of turn off of the switch inside U1. The clamp helps to dissipate the
energy stored in the leakage reactance of transformer T1.
The IC is self-starting, using an internal high-voltage current source
to charge the BPP pin capacitor (C6) when AC is first applied. During
normal operation the primary side block is powered from an auxiliary
winding on the transformer T1. Output of the auxiliary (or bias)
winding is rectified using diode D2 and filtered using capacitor C5. In
USB PD or rapid charge applications, the output voltage range is very
wide. In the given example, adapter would need to support 5 V, 9 V,
15 V and 20 V. Such a wide output voltage variation results in a large
change in bias winding output voltage as well. A linear regulator
circuit is generally required to limit the current injected into the
PRIMARY BYPASS pin of the InnoSwitch3-CP. Transistor Q1, Zener
diode VR2 and resistor R13 forms a linear regulator. Resistor R14
limits the current being supplied to the BPP pin of the
InnoSwitch3-CP IC (U1).
Zener diode VR1 along with R15 offers primary sensed output over
voltage protection. In a flyback converter, output of the auxiliary
winding tracks the output voltage of the converter. In case of over
voltage at output of the converter, the auxiliary winding voltage
increases and causes breakdown of VR1 which then causes a current
to flow into the BPP pin of InnoSwitch3-CP IC U1. If the current
flowing into the BPP pin increases above the ISD threshold, the U1
controller will latch off and prevent any further increase in output
voltage.
The secondary-side of the INN3279C IC provides output voltage,
output current sensing and drive to a MOSFET providing synchronous
rectification. The secondary of the transformer is rectified by SR FET
Q2 and filtered by capacitors C12 and C13A. High frequency ringing
during switching transients that would otherwise create radiated EMI
is reduced via a RCD snubber R19, C8 and D4. Diode D4 was used to
minimize the dissipation in resistor R19.
The gate of Q2 is turned on by secondary-side controller inside IC U1,
based on the winding voltage sensed via resistor R16 and fed into the
FWD pin of the IC.
In continuous conduction mode of operation, the MOSFET is turned
off just prior to the secondary-side commanding a new switching
cycle from the primary. In discontinuous mode of operation, the
power MOSFET is turned off when the voltage drop across the
MOSFET falls below a threshold of VSR(TH). Secondary-side control of
the primary-side power switch avoids any possibility of cross
conduction of the two switches and provides extremely reliable
synchronous rectification.
The secondary-side of the IC U1 is self-powered from either the
secondary-winding forward voltage or the output voltage. Capacitor
C9 connected to the BPS pin of IC U1 provides decoupling for the
internal circuitry. When the output voltage is below 5 V during
startup, the device will directly power itself from the secondary
winding. During the on-time of the primary-side power MOSFET, the
forward voltage that appears across the secondary winding is used to
charge the decoupling capacitor C9 via resistor R16 and an internal
regulator.
Below the CC threshold, the device operates in constant voltage
mode. During constant voltage mode operation, output voltage
regulation is achieved through sensing the output voltage via divider
resistors R15 and R16. The voltage across R16 is fed into the FB pin
with an internal reference voltage threshold of 1.265 V. Output
voltage is regulated so as to achieve a voltage of 1.265 V on the FB
pin. Capacitor C13 provides noise filtering of the signal at the FB pin.
In this design, WT6615F (U2) is the USB Type-C and PD controller.
Output of the InnoSwitch3-CP powers the WT6615F device.
P-MOSFET Q3 makes the USB Type-C receptacle cold socket when no
device is attached to the charger as per the USB Type-C specification.
The gate of the P-MOSFET Q3 is directly driven by the WT6615F IC.
The discharge of the VBUS output after Q3 is also internally done by
WT6615F IC.
11
www.power.com
Rev. M 09/21
InnoSwitch3-CP
Resistors R20 and R21 form the feedback divider network to sense
the output voltage and provide feedback to InnoSwitch3-CP.
Resistors R33, R34, Q4, R42 and U2 work together to inject current
into the resistor R21 and thereby cause a change in the output
voltage when there is a request through CC1 and CC2 lines for the
same. The default output voltage is maintained at 5 V.
USB PD protocol is communicated over either CC1 or CC2 line
depending on the orientation in which Type-C plug is connected.
Output current is sensed by monitoring the voltage drop across
resistor R18 between the IS and SECONDARY GROUND pins of
InnoSwitch3-CP with a maximum ISVTH threshold of approximately
35 mV to reduce losses. This threshold sets the maximum CC
threshold for the power supply. C12 provides filtering on the IS pin
from external noise. Output current is also sensed by U2 by
monitoring the voltage drop across resistor R18 connected between
IS pin of InnoSwitch3-CP and IS+ pin of U2. WT6615F can adjust the
CC threshold to any value between the maximum threshold and 1 A
depending on the PDO request it receives from the sink side.
Key Application Considerations
Output Power Table
The data sheet output power table (Table 1) represents the maximum
practical continuous output power level that can be obtained under
the following conditions:
1. The minimum DC input voltage is 90 V or higher for 85 VAC input,
220 V or higher for 230 VAC input or 115 VAC with a voltagedoubler. Input capacitor voltage should be sized to meet these
criteria for AC input designs.
2. Efficiency assumptions depend on power level. Smallest device
power level assumes efficiency >84% increasing to >89% for the
largest device.
3. Transformer primary inductance tolerance of ±10%.
4. Reflected output voltage (VOR) is set to maintain KP = 0.8 at
minimum input voltage for universal line and KP = 1 for high input
line designs (for thermally constrained environment efficiency
should be >92% with larger devices).
5. Maximum conduction losses for adapters is limited to 0.6 W, 0.8 W
for open frame designs.
6. Increased current limit is selected for peak and open frame power
columns and standard current limit for adapter columns.
7. The part is board mounted with SOURCE pins soldered to a
sufficient area of copper and/or a heat sink to keep the SOURCE
pin temperature at or below 110 °C.
8. Ambient temperature of 50 °C for open frame designs and 40 °C
for sealed adapters.
9. Below a value of 1, KP is the ratio of ripple to peak primary
current. To prevent reduced power delivery, due to premature
termination of switching cycles, a transient KP limit of ≥0.25 is
recommended. This prevents the initial current limit (IINT) from
being exceeded at switch turn-on.
Primary-Side Overvoltage Protection
(Latch-Off/Auto-Restart Mode)
Primary-side output overvoltage protection provided by the
InnoSwitch3-CP IC uses an internal protection depending on H code
that is triggered by a threshold current of ISD into the PRIMARY
BYPASS pin. In addition to an internal filter, the PRIMARY BYPASS pin
capacitor forms an external filter helping noise immunity. For the
bypass capacitor to be effective as a high frequency filter, the
capacitor should be located as close as possible to the SOURCE and
PRIMARY BYPASS pins of the device.
The primary sensed OVP function can be realized by connecting a
series combination of a Zener diode, a resistor and a blocking diode
from the rectified and filtered bias winding voltage supply to the
PRIMARY BYPASS pin. The rectified and filtered bias winding output
voltage may be higher than expected (up to 1.5X or 2X the desired
value) due to poor coupling of the bias winding with the output
winding and the resulting ringing on the bias winding voltage waveform.
It is therefore recommended that the rectified bias winding voltage
be measured. This measurement should be ideally done at the
lowest input voltage and with highest load on the output. This
measured voltage should be used to select the components required
to achieve primary sensed OVP. It is recommended that a Zener
diode with a clamping voltage approximately 6 V lower than the bias
winding rectified voltage at which OVP is expected to be triggered be
selected. A forward voltage drop of 1 V can be assumed for the
blocking diode. A small signal standard recovery diode is
recommended. The blocking diode prevents any reverse current
discharging the bias capacitor during start-up. Finally, the value of
the series resistor required can be calculated such that a current
higher than ISD will flow into the PRIMARY BYPASS pin during an
output overvoltage.
Reducing No-Load Consumption
The InnoSwitch3-CP IC can start in self-powered mode, drawing
energy from the BYPASS pin capacitor charged through an internal
current source. Use of a bias winding is however required to provide
(IS1) supply current to the PRIMARY BYPASS pin once the InnoSwitch3-CP
IC has started switching. An auxiliary (bias) winding provided on the
transformer serves this purpose. A bias winding driver supply to the
PRIMARY BYPASS pin enables design of power supplies with no-load
power consumption less than 15 mW. Resistor R20 shown in Figure
11 should be adjusted to achieve the lowest no-load input power.
Secondary-Side Overvoltage Protection (Auto-Restart Mode)
The secondary-side output overvoltage protection provided by the
InnoSwitch3-CP IC uses an internal auto restart circuit that is
triggered by an input current exceeding a threshold of IBPS(SD) into the
SECONDARY BYPASS pin. The direct output sensed OVP function can
be realized by connecting a Zener diode from the output to the
SECONDARY BYPASS pin. The Zener diode voltage needs to be the
difference between 1.25 × VOUT and 4.4 V − the SECONDARY BYPASS
pin voltage. It is necessary to add a low value resistor in series with
the OVP Zener diode to limit the maximum current into the
SECONDARY BYPASS pin.
Selection of Components
Components for InnoSwitch3-CP
Primary-Side Circuit
BPP Capacitor
A capacitor connected from the PRIMARY BYPASS pin of the
InnoSwitch3-CP IC to GND provides decoupling for the primary-side
controller and also selects current limit. A 0.47 mF or 4.7 mF capacitor
may be used. Though electrolytic capacitors can be used, often
surface mount multi-layer ceramic capacitors are preferred for use on
double sided boards as they enable placement of capacitors close to
the IC. Their small size also makes it ideal for compact power supplies.
At least 10 V, 0805 or larger size rated X5R or X7R dielectric capacitors
are recommended to ensure that minimum capacitance requirements
are met. The ceramic capacitor type designations, such as X7R, X5R
from different manufacturers or different product families do not have
the same voltage coefficients. It is recommended that capacitor
datasheets be reviewed to ensure that the selected capacitor will not
have more than 20% drop in capacitance at 5 V. Do not use Y5U or
Z5U / 0603 rated MLCC due to this type of SMD ceramic capacitor has
very poor voltage and temperature coefficient characteristics.
Bias Winding and External Bias Circuit
The internal regulator connected from the DRAIN pin of the switch to
the PRIMARY BYPASS pin of the InnoSwitch3-CP primary-side
12
www.power.com
Rev. M 09/21
InnoSwitch3-CP
controller charges the capacitor connected to the PRIMARY BYPASS
pin to achieve start-up. A bias winding should be provided on the
transformer with a suitable rectifier and filter capacitor to create a
bias supply that can be used to supply at least 1 mA of current to the
PRIMARY BYPASS pin.
The turns ratio for the bias winding should be selected such that 7 V
is developed across the bias winding at the lowest rated output
voltage of the power supply at the lowest load condition. If the
voltage is lower than this, no-load input power will increase.
In USB PD or rapid charge applications, the output voltage range is
very wide. For example, a 45 W adapter would need to support 5 V,
9 V and 15 V and a 100 W adapter would have output voltages
selectable from 5 V to 20 V. Such a wide output voltage variation
results in a large change in bias winding output voltage as well.
A linear regulator circuit is generally required to limit the current
injected into the PRIMARY BYPASS pin of the InnoSwitch3-CP
(as shown in Figure 11).
The bias current from the external circuit should be set to ISI(MAX) to
achieve lowest no-load power consumption when operating the
power supply at 230 VAC input, (VBPP > 5 V). A glass passivated
standard recovery rectifier diode with low junction capacitance is
recommended to avoid the snappy recovery typically seen with fast
or ultrafast diodes that can lead to higher radiated EMI.
An aluminum capacitor of at least 22 mF with a voltage rating 1.2
times greater than the highest voltage developed across the capacitor
is recommended. Highest voltage is typically developed across this
capacitor when the supply is operated at the highest rated output
voltage and load with the lowest input AC supply voltage.
Line UV and OV Protection
Resistors connected from the UNDER/OVER INPUT VOLTAGE pin to
the DC bus enable sensing of input voltage to provide line
undervoltage and overvoltage protection. For a typical universal
input application, a resistor value of 3.8 MW is recommended.
Figure 18 shows circuit configurations that enable either the line UV
or the line OV feature only to be enabled.
InnoSwitch3-CP features a primary sensed OV protection feature that
can be used to latch-off the power supply. Once the power supply is
latched off, it can be reset if the UNDER/OVER INPUT VOLTAGE pin
current is reduced to zero. Once the power supply is latched off,
even after the input supply is turned off, it can take considerable
amount of time to reset the InnoSwitch3-CP controller as the energy
stored in the DC bus will continue to provide current to the controller.
A fast AC reset can be achieved using the modified circuit
configuration shown in Figure 19. The voltage across capacitor CS
reduces rapidly after input supply is disconnected reducing current
into the INPUT VOLTAGE MONITOR pin of the InnoSwitch3-CP IC and
resetting the InnoSwitch3-CP controller.
Primary Sensed OVP (Overvoltage Protection)
The voltage developed across the output of the bias winding tracks
the power supply output voltage. Though not precise, a reasonably
accurate detection of the amplitude of the output voltage can be
achieved by the primary-side controller using the bias winding
voltage. A Zener diode connected from the bias winding output to
the PRIMARY BYPASS pin can reliably detect a secondary overvoltage
fault and cause the primary-side controller to latch-off/auto-restart
depending on H code. It is recommended that the highest voltage at
the output of the bias winding should be measured for normal steadystate conditions (at full load and lowest input voltage) and also under
transient load conditions. A Zener diode rated for 1.25 times this
measured voltage will typically ensure that OVP protection will only
operate in case of a fault.
Primary-Side Snubber Clamp
A snubber circuit should be used on the primary-side as shown in
Figure 11. This prevents excess voltage spikes at the drain of the
switch at the instant of turn-off of the switch during each switching
cycle though conventional RCD clamps can be used. RCDZ clamps
offer the highest efficiency. The circuit example shown in Figure 11
uses an RCD clamp with a resistor in series with the clamp diode.
This resistor dampens the ringing at the drain and also limits the
reverse current through the clamp diode during reverse recovery.
Standard recovery glass passivated diodes with low junction
capacitance are recommended as these enable partial energy
recovery from the clamp thereby improving efficiency.
Components for InnoSwitch3-CP
Secondary-Side Circuit
SECONDARY BYPASS Pin – Decoupling Capacitor
A 2.2 mF, 10 V / X7R or X5R / 0805 or larger size multi-layer ceramic
capacitor should be used for decoupling the SECONDARY BYPASS pin
of the InnoSwitch3-CP IC. Since the SECONDARY BYPASS pin voltage
needs to be 4.4 V before the output voltage reaches the regulation
voltage level, a significantly higher BPS capacitor value could lead to
output voltage overshoot during start-up. Values lower than 1.5 mF
may not offer enough capacitance, and cause unpredictable operation.
The capacitor must be located adjacent to the IC pins. At least 10 V
is recommended voltage rating to give enough margin from BPS
voltage, and 0805 size is necessary to guarantee the actual value in
operation since the capacitance of ceramic capacitors drops
significantly with applied DC voltage especially with small package
SMD such as 0603. 6.3 V / 0603 / X5U or Z5U type of MLCC is not
recommended for this reason. The ceramic capacitor type designations,
such as X7R, X5R from different manufacturers or different product
families do not have the same voltage coefficients. It is recommended
that capacitor datasheets be reviewed to ensure that the selected
capacitor will not have more than 20% drop in capacitance at 4.4 V.
Capacitors with X5R or X7R dielectrics should be used for best results.
When the output voltage of the power supply is 5 V or higher, the
supply current for the secondary-side controller is provided by the
OUTPUT VOLTAGE (VOUT) pin of the IC as the voltage at this pin is
higher than the SECONDARY BYPASS pin voltage. During start-up
and operating conditions where the output voltage of the power
supply is below 5 V, the secondary-side controller is supplied by
current from an internal current source connected to the FORWARD
pin. If the output voltage of the power supply is below 5 V and the
load at the output of the power supply is very light, the operating
frequency can drop significantly and the current supplied to the
secondary-side controller from the FORWARD pin may not be
sufficient to maintain the SECONDARY BYPASS pin voltage at 4.4 V.
For such applications, it is recommended that an additional active
preload be used as shown in Figure 13. This load is turned on by the
interface IC (or USB PD controller) when the output voltage of the
power supply is below 5 V.
VOUT
RL
To USB PD Controller GP10
PI-8414-082317
Figure 13. Active Pre-Load Circuit.
13
www.power.com
Rev. M 09/21
InnoSwitch3-CP
FORWARD Pin Resistor
A 47 W, 5% resistor is recommended to ensure sufficient IC supply
current. A higher or lower resistor value should not be used as it can
affect device operation such as the timing of the synchronous rectifier
drive. Figures 14, 15, 16 and 17 below show examples of unacceptable
and acceptable FORWARD pin voltage waveforms. VD is forward
voltage drop across the SR.
Note:
If t1 + t2 = 1.5 ms ± 50 ns, the controller may fail the handshake and
trigger a primary bias winding OVP latch-off/auto-restart.
0V
VSR(TH)
0V
VSR(TH)
VD
PI-8393-051818
VD
Figure 17. Acceptable FORWARD Pin Waveform before Handshake with Body
Diode Conduction During Flyback Cycle.
PI-8392-051818
Figure 14. Unacceptable FORWARD Pin Waveform After Handshake with
SR Switch Conduction During Flyback Cycle.
0V
VSR(TH)
VD
PI-8393-051818
Figure 15. Acceptable FORWARD Pin Waveform After Handshake with
SR Switch Conduction During Flyback Cycle.
0V
VSR(TH)
SR FET Operation and Selection
Although a simple diode rectifier and filter works for the output, use
of an SR FET enables the significant improvement in operating
efficiency often necessary to meet the European CoC and the U.S.
DoE energy efficiency requirements. The secondary-side controller
turns on the SR FET once the flyback cycle begins. The SR FET gate
should be tied directly to the SYNCHRONOUS RECTIFIER DRIVE pin
of the InnoSwitch3-CP IC (no additional resistors should be connected
in the gate circuit of the SR FET). The SR FET is turned off once the
VDS of the SR FET reaches 0 V.
A FET with 18 mW RDS(ON) is appropriate for a 5 V, 2 A output, and a
FET with 8 mW RDS(ON) is suitable for designs rated with a 12 V, 3 A
output. The SR FET driver uses the SECONDARY BYPASS pin for its
supply rail, and this voltage is typically 4.4 V. A FET with a high
threshold voltage is therefore not suitable; FETs with a threshold
voltage of 1.5 V to 2.5 V are ideal although switches with a threshold
voltage (absolute maximum) as high as 4 V may be used provided
their data sheets specify RDS(ON) across temperature for a gate voltage
of 4.5 V.
There is a slight delay between the commencement of the flyback
cycle and the turn-on of the SR FET. During this time, the body diode
of the SR FET conducts. If an external parallel Schottky diode is
used, this current mostly flows through the Schottky diode. Once the
InnoSwitch3-CP IC detects end of the flyback cycle, voltage across
SR FET RDS(ON) reaches 0 V, any remaining portion of the flyback cycle
is completed with the current commutating to the body diode of the
SR FET or the external parallel Schottky diode. Use of the Schottky
diode parallel to the SR FET may provide higher efficiency and
typically a 1 A surface mount Schottky diode is adequate. However,
the gains are modest. For a 5 V, 2 A design the external diode adds
~0.1% to full load efficiency at 85 VAC and ~0.2% at 230 VAC.
The voltage rating of the Schottky diode and the SR FET should be at
least 1.4 times the expected peak inverse voltage (PIV) based on the
turns ratio used for the transformer. 60 V rated FETs and diodes are
suitable for most 5 V designs that use a VOR < 60 V, and 100 V rated
FETs and diodes are suitable for 12 V designs.
VD
t1
t2
PI-8394-051818
Figure 16. Unacceptable FORWARD Pin Waveform before Handshake with Body
Diode Conduction During Flyback Cycle.
14
www.power.com
Rev. M 09/21
InnoSwitch3-CP
The interaction between the leakage reactance of the output
windings and the SR FET capacitance (COSS) leads to ringing on the
voltage waveform at the instance of voltage reversal at the winding
due to primary switch turn-on. This ringing can be suppressed using
an RC snubber connected across the SR FET. A snubber resistor in
the range of 10 W to 47 W may be used (higher resistance values lead
to noticeable drop in efficiency). A capacitance value of
1 nF to 2.2 nF is adequate for most designs.
+
R1
1N4148
FB
GND
BPS
V
SR
D
Output Capacitor
Low ESR aluminum electrolytic capacitors are suitable for use with
most high frequency flyback switching power supplies though the use
of aluminum-polymer solid capacitors have gained considerable
popularity due to their compact size, stable temperature characteristics,
extremely low ESR and high RMS ripple current rating. These
capacitors enable the design of ultra-compact chargers and adapters.
FWD
R2
VOUT
S
IS
BPP
InnoSwitch3-CP
PI-8405-081617
(a)
Typically, 200 mF to 300 mF of aluminum-polymer capacitance per
ampere of output current is adequate. The other factor that
influences choice of the capacitance is the output ripple. Ensure that
capacitors with a voltage rating higher than the highest output
voltage plus sufficient margin be used.
+
R1
6.2 V
FB
BPS
GND
V
SR
D
FWD
R2
Output Voltage Feedback Circuit
The output voltage FEEDBACK pin voltage is 1.265 V [VFB]. A voltage
divider network should be connected at the output of the power
supply to divide the output voltage such that the voltage at the
FEEDBACK pin will be 1.265 V when the output is at its desired
voltage. The lower feedback divider resistor should be tied to the
SECONDARY GROUND pin. A 300 pF (or smaller) decoupling
capacitor should be connected at the FEEDBACK pin to the
SECONDARY GROUND pin of the InnoSwitch3-CP IC. This capacitor
should be placed close to the InnoSwitch3-CP IC.
VOUT
S
IS
BPP
InnoSwitch3-CP
PI-8406-051818
(b)
Figure 18. (a) Line OV Only; (b) Line UV Only.
InnoSwitch3-CP
CS
100 nF
FB
GND
BPS
V
SR
D
FWD
SR FET
VOUT
Primary FET
and Controller
S
BPP
IS
Secondary
Control IC
PI-8408-081617
Figure 19. Fast AC Reset Configuration.
15
www.power.com
Rev. M 09/21
InnoSwitch3-CP
Output Overload Protection
For output voltage below the VPK threshold, the InnoSwitch3-CP IC
will limit the output current once the voltage across the IS and GND
pins exceeds the current limit or ISV(TH) threshold. This provides
current limited or constant current operation. The current limit is set
by the programming resistor between the ISENSE and SECONDARY
GROUND pins. For any output voltage above the VPK threshold,
InnoSwitch3-CP IC will provide a constant power characteristic. An
increase in load current will result in a drop in output voltage such
that the product of output voltage and current equals the maximum
power set by the product of VPK and set current limit.
Interfacing with USB PD and Rapid Charge Controllers
A micro controller can be used to alter the feedback voltage divider in
order to increase or decrease the output voltage. The interface IC
can also use the signal from the InnoSwitch3-CP ISENSE pin to sense
output current and provide current, power limiting or protection
features.
Recommendations for Circuit Board Layout
See Figure 20 for a recommended circuit board layout for an
InnoSwitch3-CP based power supply.
Single-Point Grounding
Use a single-point ground connection from the input filter capacitor to
the area of copper connected to the SOURCE pins.
Bypass Capacitors
The PRIMARY BYPASS and SECONDARY BYPASS pin capacitor must
be located directly adjacent to the PRIMARY BYPASS-SOURCE and
SECONDARY BYPASS-SECONDARY GROUND pins respectively and
connections to these capacitors should be routed with short traces.
Primary Loop Area
The area of the primary loop that connects the input filter capacitor,
transformer primary and IC should be kept as small as possible.
Primary Clamp Circuit
A clamp is used to limit peak voltage on the DRAIN pin at turn-off.
This can be achieved by using an RCD clamp or a Zener diode
(~200 V) and diode clamp across the primary winding. To reduce
EMI, minimize the loop from the clamp components to the
transformer and IC.
Thermal Considerations
The SOURCE pin is internally connected to the IC lead frame and
provides the main path to remove heat from the device. Therefore
the SOURCE pin should be connected to a copper area underneath
the IC to act not only as a single point ground, but also as a heat
sink. As this area is connected to the quiet source node, it can be
maximized for good heat sinking without compromising EMI
performance. Similarly for the output SR switch, maximize the PCB
area connected to the pins on the package through which heat is
dissipated from the SR switch.
Sufficient copper area should be provided on the board to keep the
IC temperature safely below the absolute maximum limits. It is
recommended that the copper area provided for the copper plane on
which the SOURCE pin of the IC is soldered is sufficiently large to
keep the IC temperature below 110 °C when operating the power
supply at full rated load and at the lowest rated input AC supply
voltage.
Y Capacitor
The Y capacitor should be placed directly between the primary input
filter capacitor positive terminal and the output positive or return
terminal of the transformer secondary. This routes high amplitude
common mode surge currents away from the IC. Note – if an input
pi-filter (C, L, C) EMI filter is used then the inductor in the filter should
be placed between the negative terminals of the input filter
capacitors.
Output SR Switch
For best performance, the area of the loop connecting the secondary
winding, the output SR switch and the output filter capacitor, should
be minimized.
ESD
Sufficient clearance should be maintained (>8 mm) between the
primary-side and secondary-side circuits to enable easy compliance
with any ESD / hi-pot requirements.
The spark gap is best placed directly between output positive rail and
one of the AC inputs. In this configuration a 6.4 mm spark gap is
often sufficient to meet the creepage and clearance requirements of
many applicable safety standards. This is less than the primary to
secondary spacing because the voltage across spark gap does not
exceed the peak of the AC input.
Drain Node
The drain switching node is the dominant noise generator. As such
the components connected the drain node should be placed close to
the IC and away from sensitive feedback circuits. The clamp circuit
components should be located physically away from the PRIMARY
BYPASS pin and trace lengths minimized.
The loop area of the loop comprising of the input rectifier filter
capacitor, the primary winding and the IC primary-side switch should
be kept as small as possible.
16
www.power.com
Rev. M 09/21
InnoSwitch3-CP
Layout Example
Optional Y capacitor
connection to the plus
bulk rail on the primaryside for surge protection
Maximize source
area for good heat
sinking
PCB - Top Side
Keep BPP and BPS
capacitors near the IC
6.4 mm spark gap
Keep drain and
clamp loop short;
Keep drain
components away
from BPP and
VOLTAGE pin circuitry
Keep FEEDBACK pin
decoupling capacitor
close to the Feedback pin
Place forward and
feedback sense
resistors near the IC
Maximize drain area
of SF FET for good
heat sinking
Maximize source
area for good
heat sinking
Keep output SF FET
and output filter
capacitor loop short
Place VOLTAGE pin sense
resistor close to the
VOLTAGE pin
Keep IS-GND sense
resistor close to IC
In order to increase ESD immunity
and to meet isolation requirement,
no traces are routed beneath the IC
PCB - Bottom Side
PI-8396-120419
Figure 20. PCB.
17
www.power.com
Rev. M 09/21
InnoSwitch3-CP
Recommendations for EMI Reduction
Consider the following for design optimization:
1. Appropriate component placement and small loop areas of the
primary and secondary power circuits help minimize radiated and
conducted EMI. Care should be taken to achieve a compact loop
area.
2. A small capacitor in parallel to the clamp diode on the primaryside can help reduce radiated EMI.
3. A resistor in series with the bias winding helps reduce radiated EMI.
4. Common mode chokes are typically required at the input of the
power supply to sufficiently attenuate common mode noise.
However, the same performance can be achieved by using shield
windings on the transformer. Shield windings can also be used in
conjunction with common mode filter inductors at input to
improve conducted and radiated EMI margins.
5. Adjusting SR switch RC snubber component values can help
reduce high frequency radiated and conducted EMI.
6. A pi-filter comprising differential inductors and capacitors can be
used in the input rectifier circuit to reduce low frequency
differential EMI.
7. A 1 mF ceramic capacitor connected at the output of the power
supply helps to reduce radiated EMI.
1. Higher VOR allows increased power delivery at VMIN, which
minimizes the value of the input capacitor and maximizes power
delivery from a given InnoSwitch3-CP device.
2. Higher VOR reduces the voltage stress on the output diodes and
SR switches.
3. Higher VOR increases leakage inductance which reduces power
supply efficiency.
4. Higher VOR increases peak and RMS current on the secondary-side
which may increase secondary-side copper and diode losses.
Recommendations for Transformer Design
Transformer design must ensure that the power supply delivers the
rated power at the lowest input voltage. The lowest voltage on the
rectified DC bus depends on the capacitance of the filter capacitor
used. At least 2 mF/W is recommended to always keep the DC bus
voltage above 70 V, though 3 mF/W provides sufficient margin. The
ripple on the DC bus should be measured to confirm the design
calculations for transformer primary-winding inductance selection.
Switching Frequency (fSW)
It is a unique feature in InnoSwitch3-CP that for full load, the designer
can set the switching frequency to between 25 kHz to 95 kHz. For
lowest temperature, the switching frequency should be set to around
60 kHz. For a smaller transformer, the full load switching frequency
needs to be set to 95 kHz. When setting the full load switching
frequency it is important to consider primary inductance and peak
current tolerances to ensure that average switching frequency does
not exceed 110 kHz which may trigger auto-restart due to overload
protection. The following table provides a guide to frequency
selection based on device size. This represents the best compromise
between overall device losses (conduction losses and switching
losses) based on the size of the integrated high-voltage switch.
INN3264C/3274C
85-90 kHz
INN3265C/3275C
80 kHz
INN3266C/3276C
75 kHz
INN3277C
70 kHz
INN3267C
65 kHz
PowiGaN device INN3278
70 kHz
PowiGaN device INN3279
65 kHz
PowiGaN device INN3270
60 kHz
Reflected Output Voltage, VOR (V)
This parameter describes the effect on the primary switch drain
voltage of the secondary-winding voltage during diode/SR conduction
which is reflected back to the primary through the turns ratio of the
transformer. To make full use of QR capability and ensure flattest
efficiency over line/load, set reflected output voltage (VOR) to
maintain KP = 0.8 at minimum input voltage for universal input and
KP = 1 for high-line-only conditions.
There are some exceptions to this. For very high output currents the
VOR should be reduced to get highest efficiency. For output voltages
above 15 V, VOR should be higher to maintain an acceptable PIV across
the output synchronous rectifier.
Ripple to Peak Current Ratio, KP
A KP below 1 indicates continuous conduction mode, where KP is the
ratio of ripple-current to peak-primary-current (Figure 21).
KP ≡ KRP = IR / IP
A value of KP higher than 1, indicates discontinuous conduction mode.
In this case KP is the ratio of primary switch off-time to the secondary
diode conduction-time.
KP ≡ KDP = (1 – D) x T/ t = VOR × (1 – DMAX) / ((VMIN – VDS) × DMAX)
It is recommended that a KP close to 0.9 at the minimum expected DC
bus voltage should be used for most InnoSwitch3-CP designs. A KP
value of 1
T = 1/fS
Primary
D×T
(1-D) × T = t
Secondary
(b) Borderline Discontinuous/Continuous, KP = 1
PI-2578-103114
Figure 22. Discontinuous Conduction Mode Current Waveform, KP > 1.
19
www.power.com
Rev. M 09/21
InnoSwitch3-CP
staircase beyond the normal operating level. A value of 3800 gauss
at the peak current limit of the selected device together with the
built-in protection features of InnoSwitch3-CP IC provide sufficient
margin to prevent core saturation under start-up or output shortcircuit conditions.
Design Considerations When Using PowiGaN
Devices (INN3278C, INN3279C and INN3270C)
Transformer Primary Inductance, (LP)
Once the lowest operating input voltage, switching frequency at full
load, and required VOR are determined, the transformers primary
inductance can be calculated. The PIXls design spreadsheet can be
used to assist in designing the transformer.
VOR is the reflected output voltage across the primary winding when
the secondary is conducting. VBUS is the DC voltage connected to one
end of the transformer primary winding.
Quick Design Checklist
As with any power supply, the operation of all InnoSwitch3-CP
designs should be verified on the bench to make sure that component
limits are not exceeded under worst-case conditions.
As a minimum, the following tests are strongly recommended:
1. Maximum Drain Voltage – Verify that VDS of InnoSwitch3-CP and
SR FET do not exceed 90% of breakdown voltages at the highest
input voltage and peak (overload) output power in normal
operation and during start-up.
2. Maximum Drain Current – At maximum ambient temperature,
maximum input voltage and peak output (overload) power.
Review drain current waveforms for any signs of transformer
saturation or excessive leading-edge current spikes at start-up.
Repeat tests under steady-state conditions and verify that the
leading edge current spike is below ILIMIT(MIN) at the end of tLEB(MIN).
Under all conditions, the maximum drain current for the primary
switch should be below the specified absolute maximum ratings.
3. Thermal Check – At specified maximum output power, minimum
input voltage and maximum ambient temperature, verify that
temperature specification limits for InnoSwitch3-CP IC,
transformer, output SR FET, and output capacitors are not
exceeded. Enough thermal margin should be allowed for
part-to-part variation of the RDS(ON) of the InnoSwitch3-CP IC.
Under low-line, maximum power, a maximum InnoSwitch3-CP
SOURCE pin temperature of 110 °C is recommended to allow for
these variations.
For a flyback converter configuration, typical voltage waveform at the
DRAIN pin of the IC is shown in Figure 23.
In addition to VBUS+VOR, the drain also sees a large voltage spike at
turn off that is caused by the energy stored in the leakage inductance
of the primary winding. To keep the drain voltage from exceeding the
rated maximum continuous drain voltage, a clamp circuit is needed
across the primary winding. The forward recovery of the clamp diode
will add a spike at the instant of turn-OFF of the primary switch. VCLM
in Figure 23 is the combined clamp voltage including the spike. The
peak drain voltage of the primary switch is the total of VBUS, VOR and VCLM.
VOR and the clamp voltage VCLM should be selected such that the peak
drain voltage is lower than 650 V for all normal operating conditions.
This provides sufficient margin to ensure that occasional increase in
voltage during line transients such as line surges will maintain the
peak drain voltage well below 750 V under abnormal transient
operating conditions. This ensures excellent long term reliability and
design margin.
To make full use of QR capability and ensure flattest efficiency over
line/load, set reflected output voltage (VOR) to maintain KP = 0.8 at
minimum input voltage for universal input and KP ≥ 1 for high-lineonly conditions.
Consider the following for design optimization:
1. Higher VOR allows increased power delivery at VMIN, which
minimizes the value of the input capacitor and maximizes power
delivery from a given PowiGaN INN3679C/INN3670C device.
2. Higher VOR reduces the voltage stress on the output diodes and
SR FETs.
3. Higher VOR increases leakage inductance which reduces power
supply efficiency.
4. Higher VOR increases peak and RMS current on the secondary-side
which may increase secondary-side copper and diode losses.
750 V = VMAX(NON-REPETITIVE)
Safe Surge Voltage
Region (SSVR)
Typical margin (150 V)
gives de-rating of >80%
650 V = VMAX(CONTINUOUS)
VCLM
VOR
380 VDC
VBUS
Primary Switch Voltage Stress (264 VAC)
PI-8769-071218
Figure 23. Peak Drain Voltage for 264 VAC Input Voltage.
20
www.power.com
Rev. M 09/21
InnoSwitch3-CP
There are some exceptions to this. For very high output currents the
VOR should be reduced to get highest efficiency. For output voltages
above 15 V, VOR should be maintained higher to maintain an
acceptable PIV across the output synchronous rectifier.
Connection between the two layers was made by 82 vias in a 5 x 17
matrix outside the package mounting area. Vias are spaced at
40 mils, with 12 mil diameter and plated through holes are not filled.
VOR choice will affect the operating efficiency and should be selected
carefully. Table below shows the typical range of VOR for optimal
performance:
Output Voltage
Optimal Range for VOR
5V
45 - 70
12 V
80 - 120
15 V
100 - 135
20 V
120 - 150
24 V
135 - 180
Thermal Resistance Test Conditions for
PowiGaN Devices (INN3278C, INN3279C and
INN3270C)
Thermal resistance value is for primary power device junction to
ambient only.
Figure 24. Thermal Resistance Test Conditions for PowiGaN
Devices
(INN3678C,
INN3670C).
value
is for INN3679C
primary and
power
device junction to
Testing performed on custom thermal test PCB as shown in Figure 24.Thermal resistance
The test board consists of 2 layers of 2 oz. Cu with the InSOP
ambient only.
package mounted to the top surface and connected to a bottom layer
Cu heat sinking area of 550 mm2.
Testing performed on custom thermal test PCB as shown in the figure
above. The test board consists of 2 layers of 2 oz. Cu with the InSOP
package mounted to the top surface and connected to a bottom layer
Cu heatsinking area of 550mm2.
Connection between the two layers was made by 82 vias in a 5 x 17
matrix outside the package mounting area. Vias are spaced at 40 mils,
with 12 mil diameter and plated through holes are not filled.
Figure xx. Thermal Resistance Test Conditions for INN3379C and INN3370C
21
www.power.com
Rev. M 09/21
InnoSwitch3-CP
Absolute Maximum Ratings1,2
DRAIN Pin Voltage: INN3264C - INN3268C.................. -0.3 V to 650 V
INN3274C - INN3277C.................. -0.3 V to 725 V
INN3278C, INN3279C, INN3270C.... -0.3 V to 750 V8
DRAIN Pin Peak Current: INN3264C........................................3.26 A3
INN3265C........................................3.87 A3
INN3266C........................................4.88 A3
INN3267C........................................5.57 A3
INN3268C........................................6.24 A3
INN3274C........................................ 3.47 A6
INN3275C........................................ 4.11 A6
INN3276C........................................ 5.19 A6
INN3277C........................................ 5.92 A6
PowiGaN device INN3278C.................6.5 A7
PowiGaN device INN3279C..................10 A7
PowiGaN device INN3270C..................14 A7
BPP/BPS Pin Voltage ........................................................-0.3 to 6 V
BPP/BPS Current .................................................................. 100 mA
FWD Pin Voltage ....................................................... -1.5 V to 150 V
FB Pin Voltage ..............................................................-0.3 V to 6 V
SR Pin Voltage ..............................................................-0.3 V to 6 V
V Pin Voltage (INN326x) ............................................ -0.3 V to 650 V
V Pin Voltage (INN327x)............................................. -0.3 V to 725 V
VOUT Pin Voltage ....................................................... -0.3 V to 27 V
IS Pin Voltage9 ...........................................................-0.3 V to 0.3 V
Storage Temperature ...................................................-65 to 150 °C
Operating Junction Temperature4 ................................. -40 to 150 °C
Ambient Temperature ..................................................-40 to 105 °C
Lead Temperature5 ................................................................ 260 °C
Notes:
1. All voltages referenced to SOURCE and Secondary GROUND,
TA = 25 °C.
2. Maximum ratings specified may be applied one at a time without
causing permanent damage to the product. Exposure to Absolute
Maximum Ratings conditions for extended periods of time may
affect product reliability.
3. Please refer to Figure 25 about maximum allowable voltage and
current combinations.
4. Normally limited by internal circuitry.
5. 1/16” from case for 5 seconds.
6. Please refer to Figure 31 about maximum allowable voltage and
current combinations.
7. Please refer to Figure 39 about maximum allowable voltage and
current combinations.
8. PowiGaN devices:
Maximum drain voltage (non-repetitive pulse)..........-0.3 V to 750 V
Maximum continuous drain voltage.........................-0.3 V to 650 V.
9. Absolutely maximum voltage for less than 500 msec is 3 V.
Thermal Resistance
Thermal Resistance:
INN3264C to INN3268C & INN3274C to INN3277C
(qJA).................................... 76 °C/W1, 65 °C/W2
(qJC)..................................................... 8 °C/W3
PowiGan devices INN3278C, INN3279C, INN3270C
(qJA)................................................... 50 °C/W4
Notes:
1. Soldered to 0.36 sq. inch (232 mm2) 2 oz. (610 g/m2) copper clad.
2. Soldered to 1 sq. inch (645 mm2), 2 oz. (610 g/m2) copper clad.
3. The case temperature is measured on the top of the package.
4. Please see Figure 24.
22
www.power.com
Rev. M 09/21
InnoSwitch3-CP
Symbol
Conditions
SOURCE = 0 V
TJ = -40 °C to 125 °C
(Unless Otherwise Specified)
Min
Typ
Max
Units
Start-Up Switching
Frequency
fSW
TJ = 25 °C
23
25
27
kHz
Jitter Modulation
Frequency
fM
TJ = 25 °C
fSW = 100 kHz
0.80
1.25
1.70
kHz
Maximum On-Time
tON(MAX)
TJ = 25 °C
12.4
14.6
16.9
µs
Minimum Primary
Feedback Block-Out
Timer
tBLOCK
tOFF(MIN)
µs
Parameter
Control Functions
IS1
BPP Supply Current
IS2
BPP Pin Charge Current
VBPP = VBPP + 0.1 V
(Switch not Switching)
TJ = 25 °C
VBPP = VBPP + 0.1 V
(Switch Switching
at 132 kHz)
TJ = 25 °C
INN32x6C
INN32x6C
145
200
300
INN3278C INN3270C
145
266
425
INN3264C
0.38
0.50
0.69
INN3265C
0.49
0.65
1.03
INN3266C
0.64
0.86
1.21
INN3267C
0.77
1.03
1.38
INN3268C
0.90
1.20
1.75
INN3274C
0.44
0.58
0.83
INN3275C
0.59
0.79
1.10
INN3276C
0.77
1.02
1.38
INN3277C
0.90
1.20
1.73
INN3278C
0.93
1.24
1.79
INN3279C INN3270C
1.46
1.95
2.81
mA
ICH1
VBP = 0 V, TJ = 25 °C
-1.75
-1.35
-0.88
ICH2
VBP = 4 V, TJ = 25 °C
-5.98
-4.65
-3.32
4.65
4.90
5.15
mA
mA
BPP Pin Voltage
VBPP
BPP Pin Voltage
Hysteresis
VBPP(H)
TJ = 25 °C
BPP Shunt Voltage
VSHUNT
IBPP = 2 mA
5.15
5.36
5.65
V
BPP Power-Up Reset
Threshold Voltage
VBPP(RESET)
TJ = 25 °C
2.80
3.15
3.50
V
UV/OV Pin Brown-In
Threshold
INN32xxC
23.9
26.1
28.2
IUV+
INN3278C INN3270C
22.4
24.4
26.7
INN32xxC
21.0
23.7
25.5
INN3278C INN3270C
19
21.6
23.5
UV/OV Pin Brown-Out
Threshold
IUV-
Brown-Out Delay Time
tUV-
TJ = 25 °C
TJ = 25 °C
TJ = 25 °C
0.39
35
V
V
µA
µA
ms
23
www.power.com
Rev. M 09/21
InnoSwitch3-CP
Parameter
Symbol
Conditions
SOURCE = 0 V
TJ = -40 °C to 125 °C
(Unless Otherwise Specified)
Min
Typ
Max
INN32xxC
106
115
118
INN3278C INN3270C
106
112
118
Units
Control Functions (cont.)
UV/OV Pin Line
Overvoltage Threshold
IOV+
TJ = 25 °C
UV/OV Pin Line
Overvoltage Hysteresis
IOV(H)
TJ = 25 °C
UV/OV Pin Line
Overvoltage Recovery
Threshold
IOV-
TJ = 25 °C
VOLTAGE Pin Line Overvoltage Deglitch Filter
tOV+
TJ = 25 °C
See Note B
VOLTAGE Pin
Voltage Rating
VV
TJ = 25 °C
INN32xxC
7
INN3278C INN3270C
8
µA
µA
100
µA
Line Fault Protection
3
µs
650
V
Circuit Protection
Standard Current Limit
(BPP) Capacitor =
0.47 mF
ILIMIT
See Note C
Increased Current Limit
(BPP) Capacitor =
4.7 mF
See Note C
ILIMIT+1
di/dt = 188 mA/ms
TJ = 25 °C
INN32x4C
697
750
803
di/dt = 213 mA/ms
TJ = 25 °C
INN32x5C
883
950
1017
di/dt = 238 mA/ms
TJ = 25 °C
INN32x6C
1162
1250
1338
INN3277C
1255
1350
1445
INN3267C
1348
1450
1552
di/dt = 375 mA/ms
TJ = 25 °C
INN3268C
1534
1650
1766
di/dt = 375 mA/ms
TJ = 25 °C
INN3278C
1581
1700
1819
di/dt = 425 mA/ms
TJ = 25 °C
INN3279C
1767
1900
2033
di/dt = 525 mA/ms
TJ = 25 °C
INN3270C
2139
2300
2461
di/dt = 188 mA/ms
TJ = 25 °C
INN32x4C
864
950
1036
di/dt = 213 mA/ms
TJ = 25 °C
INN32x5C
1046
1150
1254
di/dt = 238 mA/ms
TJ = 25 °C
INN32x6C
1319
1450
1581
INN3277C
1410
1550
1689
di/dt = 300 mA/ms
TJ = 25 °C
di/dt = 300 mA/ms
TJ = 25 °C
INN3267C
1501
1650
1799
di/dt = 375 mA/ms
TJ = 25 °C
INN3268C
1683
1850
2017
di/dt = 375 mA/ms
TJ = 25 °C
INN3278C
1767
1900
2033
di/dt = 425 mA/ms
TJ = 25 °C
INN3279C
1980
2130
2279
di/dt = 525 mA/ms
TJ = 25 °C
INN3270C
2395
2576
2756
mA
mA
24
www.power.com
Rev. M 09/21
InnoSwitch3-CP
Symbol
Conditions
SOURCE = 0 V
TJ = -40 °C to 125 °C
(Unless Otherwise Specified)
Min
Typ
Max
Units
Overload Detection
Frequency
fOVL
TJ = 25 °C
102
110
118
kHz
BYPASS Pin Latching/
Auto-Restart Shutdown
Threshold Current
ISD
TJ = 25 °C
6.0
7.5
11.3
mA
Auto-Restart On-Time
t AR
TJ = 25 °C
75
82
89
ms
Auto-Restart Trigger
Skip Time
t AR(SK)
TJ = 25 °C
See Note A
Auto-Restart Off-Time
t AR(OFF)
TJ = 25 °C
1.7
t AR(OFF)SH
TJ = 25 °C
0.17
Parameter
Circuit Protection (cont.)
Short Auto-Restart
Off-Time
1.3
sec
2.11
sec
0.20
0.23
sec
TJ = 25 °C
3.20
3.68
TJ = 100 °C
4.96
5.70
TJ = 25 °C
3.22
3.70
TJ = 100 °C
4.99
5.74
TJ = 25 °C
1.95
2.24
TJ = 100 °C
3.02
3.47
TJ = 25 °C
1.95
2.24
TJ = 100 °C
3.02
3.47
TJ = 25 °C
1.30
1.50
TJ = 100 °C
2.02
2.32
TJ = 25 °C
1.34
1.54
TJ = 100 °C
2.08
2.39
TJ = 25 °C
1.02
1.17
TJ = 100 °C
1.58
1.82
TJ = 25 °C
1.20
1.38
TJ = 100 °C
1.86
2.14
TJ = 25 °C
0.86
0.99
TJ = 100 °C
1.34
1.54
TJ = 25 °C
0.52
0.68
TJ = 100 °C
0.78
1.02
TJ = 25 °C
0.35
0.44
TJ = 100 °C
0.49
0.62
TJ = 25 °C
0.29
0.39
TJ = 100 °C
0.41
0.54
Output
INN3264C
ID = ILIMIT+1
INN3274C
ID = ILIMIT+1
INN3265C
ID = ILIMIT+1
INN3275C
ID = ILIMIT+1
INN3266C
ID = ILIMIT+1
INN3276C
ID = ILIMIT+1
ON-State Resistance
RDS(ON)
INN3267C
ID = ILIMIT+1
INN3277C
ID = ILIMIT+1
INN3268C
ID = ILIMIT+1
INN3278C
ID = ILIMIT+1
INN3279C
ID = ILIMIT+1
INN3270C
ID = ILIMIT+1
W
25
www.power.com
Rev. M 09/21
InnoSwitch3-CP
Parameter
Symbol
Conditions
SOURCE = 0 V
TJ = -40 °C to 125 °C
(Unless Otherwise Specified)
IDSS1
VBPP = VBPP + 0.1 V
VDS = 80% Peak Drain Voltage
TJ = 125 °C
IDSS2
VBPP = VBPP + 0.1 V
VDS = 325 V
TJ = 25 °C
Min
Typ
Max
Units
200
mA
Output (cont.)
OFF-State Drain
Leakage Current
Drain Supply Voltage
15
mA
50
V
Thermal Shutdown
TSD
See Note A
Thermal Shutdown
Hysteresis
TSD(H)
See Note A
FEEDBACK Pin Voltage
VFB
TJ = 25 °C
Cable Drop
Compensation
φCD
See Feature Code Addendum
Maximum Switching
Frequency
fSREQ
TJ = 25 °C
FEEDBACK Pin/OUTPUT
VOLTAGE Pin Latching/
Auto-Restart Threshold
VFB(AR)
V VO(AR)
See Feature Code Addendum
FEEDBACK Pin/OUTPUT
VOLTAGE Pin Latching/
Auto-Restart Timer
tFB(AR)
tVO(AR)
TJ = 25 °C
49.5
BPS Pin Current at
No-Load
ISNL
TJ = 25 °C
325
485
mA
BPS Pin Voltage
VBPS
4.20
4.40
4.60
V
BPS Pin Undervoltage
Threshold
VBPS(UVLO)(TH)
3.60
3.80
4.00
V
BPS Pin Undervoltage
Hysteresis
VBPS(UVLO)(H)
135
142
150
70
°C
°C
Secondary
1.250
1.265
1.280
V
mV
118
132
145
kHz
ms
0.65
V
Current Limit
Voltage Threshold
ISV(TH)
FWD Pin Voltage
VFWD
150
Minimum Off-Time
tOFF(MIN)
2.48
3.38
4.37
ms
Soft-Start Frequency
Ramp Time
tSS(RAMP)
7.5
11.8
19.0
ms
Set By External Resistor
TJ = 25 °C
TJ = 25 °C
35.17
35.90
36.62
mV
V
26
www.power.com
Rev. M 09/21
InnoSwitch3-CP
Parameter
Symbol
Conditions
SOURCE = 0 V
TJ = -40 °C to 125 °C
(Unless Otherwise Specified)
Min
Typ
Max
Units
Secondary (cont.)
5
6
Constant Power
Voltage Threshold
VKP
See Feature Code Addendum
V
9
12
15
BPS Pin Latch/AutoRestart Command
Shutdown Threshold
Current
IBPS(SD)
FEEDBACK Pin
Short-Circuit
VFB(OFF)
5.2
TJ = 25 °C
8.9
12
mA
112
135
mV
4.4
4.6
V
-2.5
0
mV
Synchronous Rectifier @ TJ = 25 °C
SR Pin Drive Voltage
4.2
VSR
SR Pin Voltage
Threshold
VSR(TH)
SR Pin Pull-Up Current
ISR(PU)
TJ = 25 °C
CLOAD = 2 nF, fSW = 100 kHz
125
165
195
mA
SR Pin Pull-Down
Current
ISR(PD)
TJ = 25 °C
CLOAD = 2 nF, fSW = 100 kHz
87
97
115
mA
Rise Time
tR
TJ = 25 °C
CLOAD = 2 nF
See Note B
10-90%
50
ns
Fall Time
tF
TJ = 25 °C
CLOAD = 2 nF
See Note B
90-10%
80
ns
Output Pull-Up
Resistance
RPU
TJ = 25 °C
VBPS = 4.4 V
ISR = 10 mA
7.2
8.3
12
W
Output Pull-Down
Resistance
RPD
TJ = 25 °C
VBPS = 4.4 V
ISR = 10 mA
10.0
12.1
15
W
NOTES:
A. This parameter is derived from characterization.
B. This parameter is guaranteed by design.
C. To ensure correct current limit it is recommended that nominal 0.47 mF / 4.7 mF capacitors are used. In addition, the BPP capacitor value
tolerance should be equal or better than indicated below across the ambient temperature range of the target application. The minimum and
maximum capacitor values are guaranteed by characterization.
Nominal BPP Pin
Capacitor Value
BPP Capacitor Value Tolerance
Minimum
Maximum
0.47 mF
-60%
+100%
4.7 mF
-50%
N/A
Recommended to use at least 10 V / 0805 / X7R SMD MLCC.
27
www.power.com
Rev. M 09/21
InnoSwitch3-CP
Scaling Factors:
INN3264 1.95
INN3265 3.20
INN3266 4.80
INN3267 6.10
INN3268 7.65
1.2
1.0
0.8
0.6
0.4
TCASE = 25 °C
TCASE = 100 °C
0.2
0
100 200 300 400 500
0
600 700
Drain Voltage (V)
Scaling Factors:
INN3264 1.95
INN3265 3.20
INN3266 4.80
INN3267 6.10
INN3268 7.65
1000
75
Power (mW)
10000
100
2
4
6
Drain Voltage (V)
8
10
Figure 26. Output Characteristics.
PI-8419-082417
Figure 25. Maximum Allowable Drain Current vs. Drain Voltage
(INN326x).
0
PI-8420-082917
0.0
Drain Capacitance (pF)
PI-8421-121418
1.0
1.4
Drain Current (A)
PI-8505-072519
Drain Current (A)
(Normalized to Absolute
MaximumCurrent Rating)
Typical Performance Curves
Scaling Factors:
INN3264 1.95
INN3265 3.20
INN3266 4.80
INN3267 6.10
INN3268 7.65
50
25
10
Switching Frequency = 100 kHz
1
100
200
300
400
500
600
PI-2213-012301
Breakdown Voltage
(Normalized to 25 °C)
1.1
1.0
0
25
50
100
200
300
400
500
600
Figure 28. Drain Capacitance Power.
75 100 125 150
Junction Temperature (°C)
Figure 29. Breakdown vs. Temperature (Exclude INN3278C /
INN3279C / INN3270C).
SYNCHRONOUS RECTIFIER DRIVE
Pin Voltage Limits (V)
Figure 27. COSS vs. Drain Voltage.
0.9
-50 -25
0
Drain Voltage (V)
Drain Voltage (V)
VSR(t)
PI-7474-011215
1
0
-0.0
-0.3
-1.8
500 ns
Time (ns)
Figure 30. SYNCHRONOUS RECTIFIER DRIVE Pin Negative
Voltage.
28
www.power.com
Rev. M 09/21
InnoSwitch3-CP
0.75
0.50
0.25
1.0
0.8
0.6
0.4
TCASE = 25 °C
TCASE = 100 °C
0.2
0
0
100 200 300 400 500 600 700 800
Drain Voltage (V)
Figure 31. Maximum Allowable Drain Current vs. Drain Voltage
(INN3274/75/76/77).
1000
100
4
6
Drian Voltage (V)
8
10
Scaling Factors:
INN3274 1.95
INN3275 3.20
INN3276 4.60
INN3277 5.20
75
Power (mW)
Scaling Factors:
INN3274 1.95
INN3275 3.20
INN3276 4.60
INN3277 5.20
2
Figure 32. Output Characteristics.
PI-8423-082917
10000
0
100
PI-8425-082917
0.0
Drain Capacitance (pF)
Scaling Factors:
INN3274 1.95
INN3275 3.20
INN3276 4.60
INN3277 5.20
1.2
Drain Current (mA)
1.0
PI-8424-121418
1.4
PI-8966-042919
Drain Current (A)
(Normalized to Absolute
Maximum Current Rating)
Typical Performance Curves (cont.)
50
10
25
1
0
Switching Frequency = 100 kHz
1
100
200
300
400
500
600
0
100
200
300
400
500
600
Drain Voltage (V)
Drain Voltage (V)
Figure 33. COSS vs. Drain Voltage.
Figure 34. Drain Capacitance Power.
PI-8432-090717
Normalized Current Limit
1.4
1.2
1.0
0.8
0.6
Normalized
di/dt = 1
0.4
0.2
0
1
Note: For the
normalized current
limit value, use the
typical current limit
specified for the
appropriate BP/M
capacitor.
2
3
4
Normalized di/dt
Figure 35. Standard Current Limit vs. di/dt.
29
www.power.com
Rev. M 09/21
InnoSwitch3-CP
Drain Current IDS (A)
20
15
10
5
0
TCASE = 25 °C
TCASE = 100 °C
0
2
4
6
8
10000
Scaling Factors:
INN3278C 0.62
INN3279C 1.0
INN3270C 1.4
1000
100
10
10
0 50
Power (mW)
100
50
0
100
200
350
300
400
Drain Voltage (V)
Figure 38. Drain Capacitance Power.
500
450
550
PI-8851n-012720
100
Drian Current (A)
Scaling Factors:
INN3278C 0.62
INN3279C 1.0
INN3270C 1.4
150
0
250
Figure 37. COSS vs. Drain Voltage.
PI-8854m-110719
Figure 36. Output Characteristics.
200
150
Drain Voltage (V)
Drain Voltage VDS (V)
250
PI-8852m-110719
Scaling Factors:
INN3278C 0.62
INN3279C 1.0
INN3270C 1.4
Drain Capacitance (pF)
25
PI-8853m-110719
Typical Performance Curves (cont.)
10
Scaling Factors:
INN3278C 0.65
INN3279C 1.0
INN3270C 1.4
1
0.1
0.01
0.001
10
100
Drain Voltage (V)
1000
Figure 39. Maximum Allowable Drain Current vs. Drain Voltage
(PowiGaN DevicesINN3278C / INN3279C /
INN3270C).
30
www.power.com
Rev. M 09/21
www.power.com
0.057
0.049
Body Thickness
1.45
1.25
2
1
0.75 [0.030]
C B
24
Coplanarity: 17 Leads
C
Seating
Plane
C A B
16X
3
A
4
2X
C A
2
3
Detail A
0.30
0.18
0.41
[0.016]
8.25
[0.325]
0.75
[0.030]
0.032
0.020
1.58
[0.062]
Standoff
0.010
0.004
6. Datums A & B to be determined at Datum H.
5. Controlling dimensions in millimeters [inches].
4. Does not include inter-lead flash or protrusions.
3. Dimensions noted are inclusive of plating thickness.
PI-8106-052620
POD-InSOP-24D Rev B
2.81
[0.111]
8.25
[0.325]
7.50
[0.295]
6.75
[0.266]
4.80
[0.189]
0.45 [0.018]
Ref.
PCB PAD LAYOUT
1.58
[0.062]
C
0.25
0.10
12.72
[0.501]
DETAIL A
Seating Plane
H
2. Dimensions noted are determined at the outermost extremes of the plastic body exculsive of mold flash, tie bar burrs, gate burrs, and interlead flash,
but including any mismatch between the top and bottom of the plastic body. Maximum mold protrusion is 0.18 [0.007] per side.
17X
0.012
0.007
0.25 [0.010]
0° – 8°
0.81
0.51
Gauge
Plane
0.20 [0.008] Ref.
BOTTOM VIEW
0.10 [0.004]
9.40 [0.370]
END VIEW
0.107
0.102
1.32 [0.052] Ref.
C
C
2.71
2.59
Notes:
1. Dimensioning and Tolerancing per ASME Y14.5M – 1994.
SIDE VIEW
0.012
0.008
4
12 Lead Tips
0.15 [0.006]
13.43 [0.529]
0.15 [0.006]
5 Lead Tips
0.25 [0.010] M
3
0.30
0.20
12
13
0.10 [0.004] C
TOP VIEW
0.50 [0.020] Ref.
1.60 [0.063] Max.
Total Mounting Height
Pin #1 I.D.
10.80 [0.425]
0.10 [0.004]
2X
3.35 [0.132] Ref.
InSOP-24D
InnoSwitch3-CP
Rev. M 09/21
31
InnoSwitch3-CP
PACKAGE MARKING
InSOP-24D
INN3266C
M5U604A
A
A.
B.
C.
D.
E.
1806
1 Hxxx
C
D
B
E
Power Integrations Registered Trademark
Assembly Date Code (last two digits of year followed by 2-digit work week)
Product Identification (Part #/Package Type)
Lot Identification Code
Test Sublot and Feature Code
PI-8726-050418
32
www.power.com
Rev. M 09/21
InnoSwitch3-CP
Parameter
Conditions
Rating
Units
Current from pin (16-19) to pin 24
1.5
A
TAMB = 25 °C
(device mounted in socket resulting in TCASE = 120 °C)
1.35
W
TAMB = 25 °C
(device mounted in socket)
0.125
W
Ratings for UL1577
Primary-Side
Current Rating
Primary-Side
Power Rating
Secondary-Side
Power Rating
33
www.power.com
Rev. M 09/21
InnoSwitch3-CP
Parameter
Symbol
Conditions
Rating
Units
Package Characteristics
Clearance
CLR
11.4
mm (min)
Creepage
CPG
11.4
mm (min)
Distance Through
Insulation
DTI
0.4
mm
Comparative Tracking
Index
CTI
>600
V
Isolation Resistance,
Input to Output
R IO
Isolation Capacitance,
Input to Output
CIO
VIO = 500 V, TJ = 25 °C (See Note 1)
1012
VIO = 500 V, 100 °C ≤ TJ ≤ 125 °C (See Note 1)
1011
(See Note 1)
1
INN326xC
460
INN3274C, IN3275C, INN3276C, INN3277C
512
INN3278C, INN3279C, INN3270C
530
INN326xC
650
INN3274C, IN3275C, INN3276C, INN3277C
725
INN3278C, INN3279C, INN3270C
750
W (min)
pF
Package Insulation Characteristics (See Note 2)
Maximum RMS Working
Isolation Voltage
Maximum Repetitive
Peak Isolation Voltage
VIORM(RMS)
VIORM(PK)
VRMS (max)
VPK (max)
Maximum Transient
Peak Isolation Voltage
VIOTM
Test Voltage = VIOTM, t = 60 s (qualification),
t = 1 s (100% production)
8
kVPK (max)
Maximum Surge
Isolation Voltage
VIOSM
Surge Test 1.2/50 usec
Table 2 IEC 60747-17
10.4
kVPK (max)
Method A, After Environmental Tests
Subgroup 1, VPD = 1.6 × VIORM, t = 10 s
(qualification)
Partial Discharge < 5 pC
Input to Output Test
Peak Voltage
VPD
Method A, After Input / Output Safety Test
Subgroup 2/3, VPD = 1.2 × VIORM, t = 10 s,
(qualification)
Partial Discharge < 5 pC
Method B1, 100% Production Test,
VPD = 1.875 × VIORM, t = 1 s
Partial Discharge < 5 pC
INN326xC
1040
INN3274C
INN3275C
INN3276C
INN3277C
1160
INN3278C
INN3279C
INN3270C
1200
INN326xC
780
INN3274C
INN3275C
INN3276C
INN3277C
870
INN3278C
INN3279C
INN3270C
900
INN326xC
1220
INN3274C
INN3275C
INN3276C
INN3277C
1360
INN3278C
INN3279C
INN3270C
1406
VPEAK (min)
34
www.power.com
Rev. M 09/21
InnoSwitch3-CP
Parameter
Insulation Resistance
RMS Withstanding
Isolation Voltage
Symbol
Conditions
Rating
Units
RS
VIO = 500 V at TJ = 150 ºC
>109
W
VISO
Test Voltage = VISO, t = 60 s (qualification),
Test Voltage = 1.2 x VISO, t = 1 s (100% production)
5000
VRMS (min)
Climatic Category
Parameter
40/125/21
Conditions
Specifications
Material Group
I
Rated Mains RMS voltage ≤ 150 V
I - IV
Rated Mains RMS voltage ≤ 300 V
I - IV
Rated Mains RMS voltage ≤ 600V
I - IV
Rated Mains RMS voltage ≤ 1000 V
I - III
IEC 60664-1 Rating Table
Basic Isolation Group
Insulation
Classification
Note 1: All pins on each side of the barrier tied together creating a two-terminal device
Note 2: VDE 0884-11 (IEC/EN 60747-17) Only applies to devices with following H-codes: -H223, -H224, -H225, -H226, -H227
35
www.power.com
Rev. M 09/21
InnoSwitch3-CP
Feature Code Table1,2
Secondary
Fault
Response
Feature
Code
CDC
AR
Threshold
OTP
Response
AR and OVL
Response
Output
Profile
H114
0 mV
63%
AR
AR
Fixed CC
Enable
AR
H201
0 mV
3.45 V
Hysteretic
AR
CP-6 V
‒
AR
H202
300 mV
3.45 V
Hysteretic
AR
CP-6 V
‒
AR
H203
0 mV
3.45 V
Hysteretic
AR
CP-9 V
‒
AR
H204
300 mV
3.45 V
Hysteretic
AR
CP-9 V
‒
AR
H205
0 mV
3.45 V
Hysteretic
AR
CP-12 V
‒
AR
H206
0 mV
63%
Latch-Off
Latch-Off
Fixed CC
‒
Latch-Off
H207
0 mV
3.45 V
Latch-Off
Latch-Off
CP-15 V
‒
Latch-Off
H208
0 mV
3.45 V
Latch-Off
AR
CP-15 V
‒
Latch-Off
H209
0 mV
3.45 V
Latch-Off
AR
Fixed CC
‒
Latch-Off
H210
0 mV
55%
AR
AR
CP-9 V
‒
AR
H211
0 mV
55%
AR
AR
CP-6 V
‒
AR
H212
0 mV
55%
AR
AR
Fixed CC
‒
Latch-Off
H215
0 mV
3.45 V
Latch-Off
AR
Fixed CC
‒
Latch-Off
H217
0 mV
63%
Latch-Off
Latch-Off
Fixed CC
‒
Latch-Off
H218*
0 mV
3.45 V
Latch-Off
AR
Fixed CC
‒
Latch-Off
VOUT OVP
Common Feature Code
H201
H202
INN3264C-H2XX
Part 650 V
INN3265C-H2XX
INN3266C-H2XX
H203
H204
H205
H206
H201
H202
INN3274C-H2XX
INN3275C-H2XX
INN3276C-H2XX
H203
H204
INN3277C-H2XX
INN3278C-Hxxx
H209
H210
H211
H212
INN3268C-H2XX
Part 750 V
H208
INN3267C-H2XX
Part 725 V
H207
H205
H206
H207
H208
H209
H114
H215
H217
INN3279C-Hxxx
INN3270C-Hxxx
H218*
For the latest updates, please visit www.power.com InnoSwitch Family page to Build Your Own InnoSwitch.
To download the feature code data sheet addendum, please visit www.power.com.
*H218 has specific ILIM = 2.30 A, ILIM+1 = 2.58 A.
1
2
36
www.power.com
Rev. M 09/21
InnoSwitch3-CP
MSL Table
Part Number
MSL Rating
INN32xxC
3
ESD and Latch-Up Table
Test
Conditions
Results
Latch-up at 125 °C
JESD78D
Human Body Model ESD
ANSI/ESDA/JEDEC JS-001-2014
> ±2000 V on all pins
Charge Device Model ESD
ANSI/ESDA/JEDEC JS-002-2014
> ±500 V on all pins
> ±100 mA or > 1.5 × VMAX on all pins
Part Ordering Information
• InnoSwitch3 Product Family
• CP Series Number
• Package Identifier
C
InSOP-24D
• Features Code
• Tape & Reel and Other Options
INN 3264 C - H201 - TL
TL
Tape & Reel, 2 k pcs per reel.
37
www.power.com
Rev. M 09/21
InnoSwitch3-CP
Revision
Notes
Date
A
Preliminary.
02/17
B
Code B and Code S combined release.
05/17
C
Code A release.
09/17
D
Added InSOP-24D package marking and made minor text edits.
06/18
D
Updated Full Safety and Regulatory Compliance section on page 1 and added CTI to the parameter table.
08/18
E
Added GaN-based INN3279C & INNN3270C parts. Updated IDSS1 and IDSS2 parameters.
08/19
F
Added ‘PowiGaN’ trademark name.
09/19
G
PCN-19281 – Updated Figure 19. Updated parameters: VBPP(H), IUV-, IOV(H), IOV-, VV, tSS(RAMP), ISR(PU), tR, tF, RPU, VSR and IBP(SD).
10/19
H
Added INN3278C part for Code S release.
11/19
I
Code A release. Added new application design example.
02/20
J
Updated IDSS1 parameter to read VDS = 80% Peak Drain Voltage.
03/20
K
Updated safety information on page 1 and corrected typo in Package drawing on page 31.
06/20
L
Update Package Characteristics Table and VDE 0884-11 device list.
08/21
M
Updated VDE-0884-17 device list.
09/21
38
www.power.com
Rev. M 09/21
InnoSwitch3-CP
Notes
39
www.power.com
Rev. M 09/21
For the latest updates, visit our website: www.power.com
Power Integrations reserves the right to make changes to its products at any time to improve reliability or manufacturability. Power Integrations
does not assume any liability arising from the use of any device or circuit described herein. POWER INTEGRATIONS MAKES NO WARRANTY
HEREIN AND SPECIFICALLY DISCLAIMS ALL WARRANTIES INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY RIGHTS.
Patent Information
The products and applications illustrated herein (including transformer construction and circuits external to the products) may be covered by one
or more U.S. and foreign patents, or potentially by pending U.S. and foreign patent applications assigned to Power Integrations. A complete list of
Power Integrations patents may be found at www.power.com. Power Integrations grants its customers a license under certain patent rights as set
forth at www.power.com/ip.htm.
Life Support Policy
POWER INTEGRATIONS PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS
WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF POWER INTEGRATIONS. As used herein:
1. A Life support device or system is one which, (i) is intended for surgical implant into the body, or (ii) supports or sustains life, and (iii) whose
failure to perform, when properly used in accordance with instructions for use, can be reasonably expected to result in significant injury or
death to the user.
2. A critical component is any component of a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or system, or to affect its safety or effectiveness.
Power Integrations, the Power Integrations logo, CAPZero, ChiPhy, CHY, DPA-Switch, EcoSmart, E-Shield, eSIP, eSOP, HiperPLC, HiperPFS,
HiperTFS, InnoSwitch, Innovation in Power Conversion, InSOP, LinkSwitch, LinkZero, LYTSwitch, SENZero, TinySwitch, TOPSwitch, PI, PI Expert,
PowiGaN, SCALE, SCALE-1, SCALE-2, SCALE-3 and SCALE-iDriver, are trademarks of Power Integrations, Inc. Other trademarks are property of
their respective companies. ©2021, Power Integrations, Inc.
Power Integrations Worldwide Sales Support Locations
World Headquarters
5245 Hellyer Avenue
San Jose, CA 95138, USA
Main: +1-408-414-9200
Customer Service:
Worldwide: +1-65-635-64480
Americas: +1-408-414-9621
e-mail: usasales@power.com
China (Shanghai)
Rm 2410, Charity Plaza, No. 88
North Caoxi Road
Shanghai, PRC 200030
Phone: +86-21-6354-6323
e-mail: chinasales@power.com
Germany (AC-DC/LED Sales)
Einsteinring 24
85609 Dornach/Aschheim
Germany
Tel: +49-89-5527-39100
e-mail: eurosales@power.com
Germany (Gate Driver Sales)
HellwegForum 3
59469 Ense
Germany
Tel: +49-2938-64-39990
e-mail: igbt-driver.sales@power.com
India
#1, 14th Main Road
Vasanthanagar
China (Shenzhen)
17/F, Hivac Building, No. 2, Keji Nan Bangalore-560052 India
Phone: +91-80-4113-8020
8th Road, Nanshan District,
e-mail: indiasales@power.com
Shenzhen, China, 518057
Phone: +86-755-8672-8689
e-mail: chinasales@power.com
Italy
Via Milanese 20, 3rd. Fl.
20099 Sesto San Giovanni (MI) Italy
Phone: +39-024-550-8701
e-mail: eurosales@power.com
Japan
Yusen Shin-Yokohama 1-chome Bldg.
1-7-9, Shin-Yokohama, Kohoku-ku
Yokohama-shi,
Kanagawa 222-0033 Japan
Phone: +81-45-471-1021
e-mail: japansales@power.com
Korea
RM 602, 6FL
Korea City Air Terminal B/D, 159-6
Samsung-Dong, Kangnam-Gu,
Seoul, 135-728, Korea
Phone: +82-2-2016-6610
e-mail: koreasales@power.com
Singapore
51 Newton Road
#19-01/05 Goldhill Plaza
Singapore, 308900
Phone: +65-6358-2160
e-mail: singaporesales@power.com
Taiwan
5F, No. 318, Nei Hu Rd., Sec. 1
Nei Hu Dist.
Taipei 11493, Taiwan R.O.C.
Phone: +886-2-2659-4570
e-mail: taiwansales@power.com
UK
Building 5, Suite 21
The Westbrook Centre
Milton Road
Cambridge
CB4 1YG
Phone: +44 (0) 7823-557484
e-mail: eurosales@power.com
