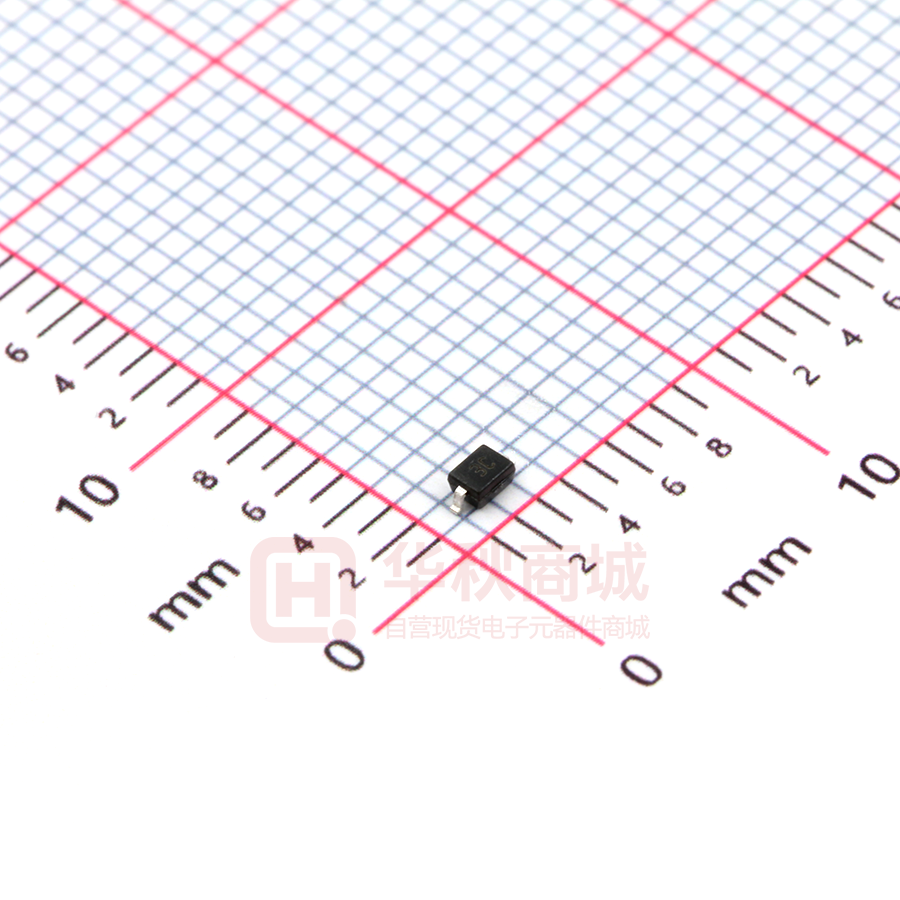

GBLC03C-LF-T7

05126 GBLC03 - GBLC24C Only One Name Means ProTek’Tion™ ULTRA LOW CAPACITANCE TVS ARRAY DESCRIPTION The GBLCxx and GBLCxxC Series are ultra low capacitance transient voltage suppressor arrays, designed to protect applications such as portable electronics and SMART phones. This series is available in both unidirectional and bidirectional configurations and is rated at 350 Watts for an 8/20µs waveshape. The GBLCxx and GBLCxxC Series meets IEC 61000-4-2 (ESD) and IEC 61000-4-4 (EFT) requirements. At higher operating frequencies or faster edge rates, insertion loss and signal integrity are a major concern. This series offers a ultra low capacitance and low leakage current in a miniature SOD-323 package. SOD-323 PACKAGE FEATURES APPLICATIONS • Compatible with IEC 61000-4-2 (ESD): Air - 15kV, Contact - 8kV Exceeds Level 4: Handles 10kV Contact & 25kV Air Discharge • Compatible with IEC 61000-4-4 (EFT): 40A - 5/50ns • Compatible with IEC 61000-4-5 (Surge) • 350 Watts Peak Pulse Power per Line (tp = 8/20µs) • Replacement for MLV (0805) • Unidirectional & Bidirectional Configuration • Protects One Power or I/O Port • ESD Protection > 25kV • Low Clamping Voltage • Available in Multiple Voltages Ranging From 3V to 24V • Ultra Low Capacitance: 3pF (Typical) • RoHS Compliant • REACH Compliant • Ethernet 10/100/1000 Base T • SMART Phones • Handheld - Wireless Systems • USB Interface MECHANICAL CHARACTERISTICS • Molded JEDEC SOD-323 Package • Approximate Weight: 5 milligrams • Lead-Free Pure-Tin Plating (Annealed) • Solder Reflow Temperature: Pure-Tin - Sn, 100: 260-270°C • 8mm Tape and Reel Per EIA Standard 481 • Flammability Rating UL 94V-0 PIN CONFIGURATIONS 05126.R18 6/14 1 1 2 UNIDIRECTIONAL 2 BIDIRECTIONAL Page 1 www.protekdevices.com 05126 GBLC03 - GBLC24C Only One Name Means ProTek’Tion™ TYPICAL DEVICE CHARACTERISTICS MAXIMUM RATINGS @ 25°C Unless Otherwise Specified PARAMETER SYMBOL VALUE UNITS PPP 350 Watts Operating Temperature TA -55 to 150 °C Storage Temperature TSTG -55 to 150 °C Peak Pulse Power (tp = 8/20µs) - See Figure 1 ELECTRICAL CHARACTERISTICS PER LINE @ 25°C Unless Otherwise Specified PART NUMBER (Note 1 -2) DEVICE MARKING RATED STAND-OFF VOLTAGE MINIMUM BREAKDOWN VOLTAGE MAXIMUM LEAKAGE CURRENT TYPICAL CAPACITANCE @ 1mA V(BR) VOLTS MAXIMUM CLAMPING VOLTAGE (Fig. 2) @ IP = 1A VC VOLTS VWM VOLTS @V WM ID µA @0V, 1MHz C pF GBLC03 3 3.3 4.0 7.0 5 3 GBLC03C 3C 3.3 4.0 7.0 5 3 GBLC05 5 5.0 6.0 9.8 5 3 GBLC05C 5C 5.0 6.0 9.8 5 3 GBLC08 8 8.0 8.5 13.4 2 3 GBLC08C 8C 8.0 8.5 13.4 2 3 GBLC12 2 12.0 13.3 19.0 1 3 GBLC12C 2C 12.0 13.3 19.0 1 3 GBLC15 6 15.0 16.7 24.0 1 3 GBLC15C 6C 15.0 16.7 24.0 1 3 GBLC18 1 18.0 20.0 29.0 1 3 GBLC18C 1C 18.0 20.0 29.0 1 3 GBLC24 4 24.0 26.7 43.0 1 3 GBLC24C 4C 24.0 26.7 43.0 1 3 NOTES 1. Part numbers with an additional “C” suffix are bidirectional devices, i.e., GBLC05C. 2. Unidirectional Only: Positive potential is applied from pin 1 to 2. 05126.R18 6/14 Page 2 www.protekdevices.com 05126 GBLC03 - GBLC24C Only One Name Means ProTek’Tion™ TYPICAL DEVICE CHARACTERISTICS FIGURE 1 PEAK PULSE POWER VS PULSE TIME PPP - Peak Pulse Power - Watts 10,000 1,000 350W, 8/20µs Waveform 100 10 0.1 1 10 100 td - Pulse Duration - µs IPP - Peak Pulse Current - % of IPP 10,000 FIGURE 2 PULSE WAVE FORM 120 tf 100 TEST WAVEFORM PARAMETERS tf = 8µs td = 20µs Peak Value IPP 80 e-t 60 40 td = t/(IPP/2) 20 0 05126.R18 6/14 1,000 0 5 10 15 t - Time - µs Page 3 20 25 30 www.protekdevices.com 05126 GBLC03 - GBLC24C Only One Name Means ProTek’Tion™ SPICE MODEL FIGURE 1 SPICE MODEL I/O I/O ABD ABD LCRD LCRD ABD LCRD LCRD Lg 0.6nH Lg 0.6nH UNIDIRECTIONAL BIDIRECTIONAL ABD - Avalanche Breakdown Diode (TVS) LCRD: Low Capacitance Rectifier Diode Lg - Lead Inductance TABLE 1 - SPICE PARAMETERS PARAMETER UNIT ABD(TVS) LCRD BV V See Table 2 200 IBV µA 1 0.01 Cjo pF See Table 2 2 IS A See Table 2 1E-11 Vj V 0.6 0.6 M - 0.33 0.33 N - 1 1 RS Ohms See Table 2 0.75 TT s 1E-8 1E-9 EG eV 1.11 1.11 PART NUMBER 05126.R18 6/14 TABLE 2 - ABD SPECIFIC SPICE PARAMETERS I S (AMPS) B V(VOLTS) Cjo(pF) Rs(OHMS) GBLC03 & GBLC03C 4.0 438 1E-11 0.21 GBLC05 & GBLC05C 6.0 284 1E-11 0.14 GBLC08 & GBLC08C 8.5 146 1E-11 0.28 GBLC12 & GBLC12C 13.3 123 1E-13 0.40 GBLC15 & GBLC15C 16.7 102 1E-13 0.52 GBLC18 & GBLC18C 20.0 80 1E-13 0.80 GBLC24 & GBLC24C 26.7 61 1E-13 1.54 Page 4 www.protekdevices.com 05126 GBLC03 - GBLC24C Only One Name Means ProTek’Tion™ SOD-323 PACKAGE INFORMATION OUTLINE DIMENSIONS DIM MILLIMETERS C INCHES A MIN MAX MIN MAX A 1.60 1.90 0.063 0.075 B 1.15 1.45 0.045 0.057 C 2.39 2.70 0.094 0.106 D 0.80 1.10 0.031 0.043 E 0.25 0.40 0.010 0.016 F 0.10 0.20 0.004 0.008 H - 0.10 - 0.004 L 0.20 - 0.008 - E B F D H NOTES 1. Controlling dimension: millimeters. 2. Dimensioning and tolerances per ANSI Y14.5M, 1985. 3. Dimensions are exclusive of mold flash and metal burrs. L A PAD LAYOUT DIMENSIONS DIM MILLIMETERS INCHES MIN MAX MIN MAX A 2.87 3.12 0.113 0.123 B 0.66 0.91 0.026 0.036 C 0.66 0.91 0.026 0.036 C B NOTES 1. Controlling dimension: millimeters. 05126.R18 6/14 Page 5 www.protekdevices.com 05126 GBLC03 - GBLC24C Only One Name Means ProTek’Tion™ TAPE AND REEL D t Top Cover Tape P2 P0 10 Pitches Cumulative Tolerance on tape ± 0.2 E A0 F K0 W B0 Pin 1 Indicated by Band P User Direction of Feed SPECIFICATIONS REEL DIA. TAPE WIDTH 178mm (7”) 8mm A0 B0 K0 D E F W P0 P2 P 1.55 ± 0.10 2.90 ± 0.10 1.35 ± 0.10 1.50 ± 0.10 1.75 ± 0.10 3.50 ± 0.05 8.00 ± 0.30 4.00 ± 0.10 2.00 ± 0.05 4.00 ± 0.10 tmax 0.25 NOTES 1. 2. 3. 4. Dimensions are in millimeters. Surface mount product is taped and reeled in accordance with EIA-481. Suffix - T7 = 7” Reel - 3,000 pieces per 8mm tape. Marking on Part - marking code (see page 2), polarity band (Unidirectional Only). ORDERING INFORMATION BASE PART NUMBER (xx = Voltage) LEADFREE SUFFIX TAPE SUFFIX QTY/REEL REEL SIZE TUBE QTY GBLCxx/GBLCxxC -LF -T7 3,000 7” n/a This device is only available in a Lead-Free configuration. 05126.R18 6/14 Page 6 www.protekdevices.com 05126 GBLC03 - GBLC24C Only One Name Means ProTek’Tion™ COMPANY INFORMATION COMPANY PROFILE In business more than 20 years, ProTek Devices™ is a privately held semiconductor company. The company offers a product line of overvoltage protection and overcurrent protection components. These include transient voltage suppressor array (TVS arrays) avalanche breakdown diode, steering diode TVS array and electronics SMD chip fuses. These components deliver circuit protection in electronic systems from numerous overvoltage and overcurrent events. They include lightning; electrostatic discharge (ESD); nuclear electromagnetic pulses (NEMP); inductive switching; and electromagnetic interference (EMI) / radio frequency interference (RFI). ProTek Devices also offers high performance interface and linear products. They include analog switches; multiplexers; LED drivers; LED wafer die for ESD protection; audio control ICs; RF and related high frequency products. CONTACT US Corporate Headquarters 2929 South Fair Lane Tempe, Arizona 85282 USA By Telephone General: 602-431-8101 Sales: & Marketing: 602-414-5109 Customer Service: 602-414-5114 Product Technical Support: 602-414-5107 By Fax General: 602-431-2288 By E-mail: Asia Sales: asiasales@protekdevices.com Europe Sales: europesales@protekdevices.com U.S. Sales: ussales@protekdevices.com Distributor Sales: distysales@protekdevices.com Customer Service: service@protekdevices.com Technical Support: support@protekdevices.com ProTek Devices (Asia Pacific) Pte. Ltd. 8 Ubi Road 2, #06-19 Zervex Singapore - 408538 Tel: +65-67488312 Fax: +65-67488313 Web www.protekdevices.com COPYRIGHT © ProTek Devices 2001 - This literature is subject to all applicable copyright laws and is not for resale in any manner. SPECIFICATIONS: ProTek reserves the right to change the electrical and or mechanical characteristics described herein without notice. DESIGN CHANGES: ProTek reserves the right to discontinue product lines without notice and that the final judgement concerning selection and specifications is the buyer’s and that in furnishing engineering and technical assistance. ProTek assumes no responsibility with respect to the selection or specifications of such products. ProTek makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ProTek assume any liability arising out of the application or use of any product or circuit and specifically disclaims any and all liability without limitation special, consequential or incidental damages. LIFE SUPPORT POLICY: ProTek Devices products are not authorized for use in life support systems without written consent from the factory. 05126.R18 6/14 Page 7 www.protekdevices.com
