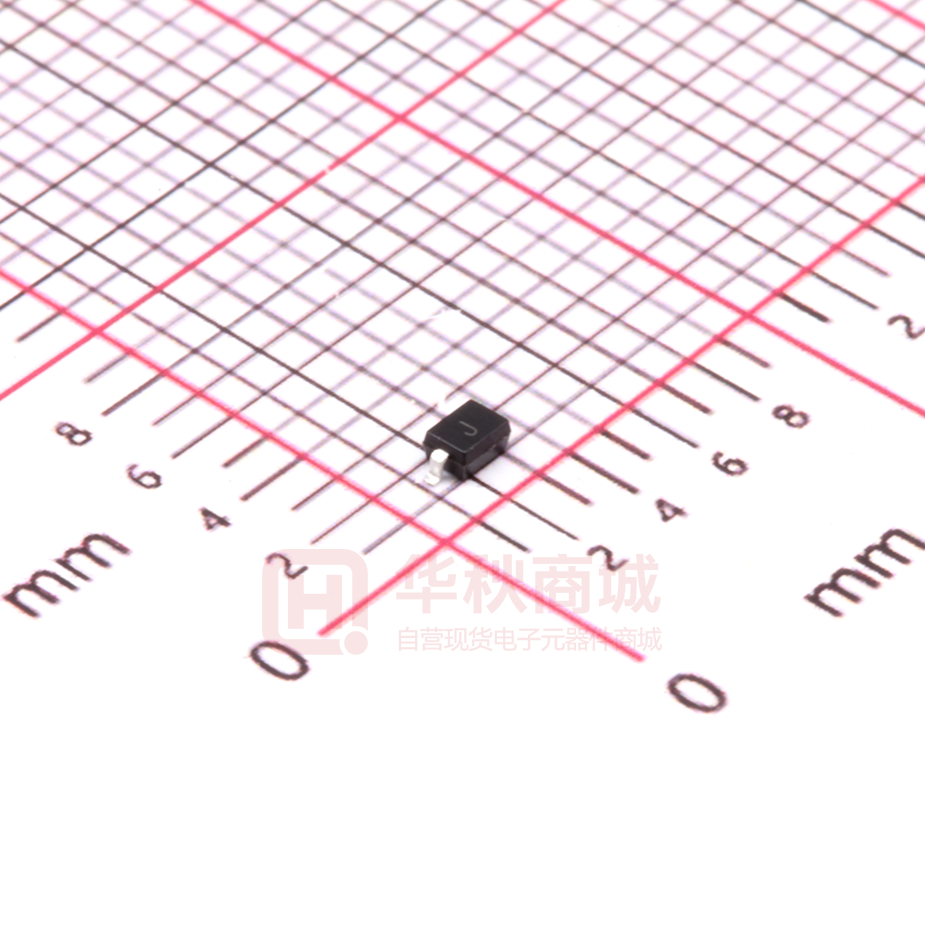

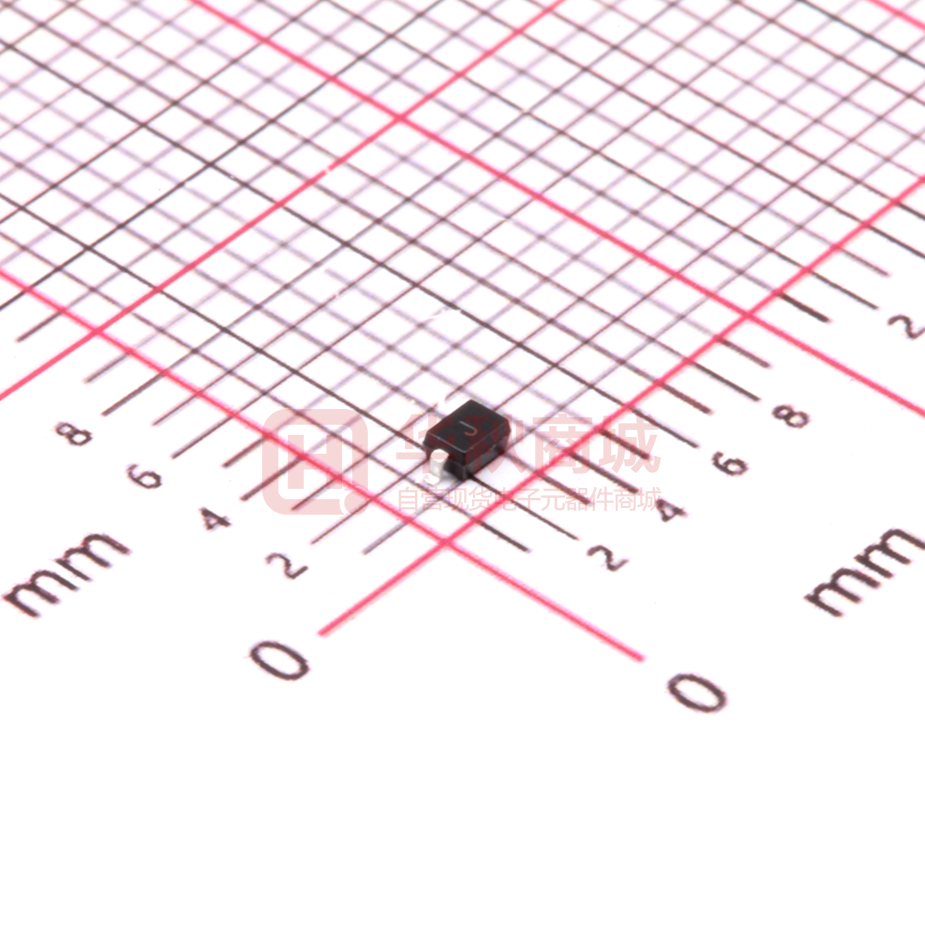

PSD08C-LF-T7

05118 PSD03 - PSD36C Only One Name Means ProTek’Tion™ HIGH POWERED TVS ARRAY DESCRIPTION The PSDxx and PSDxxC Series are transient voltage suppressor arrays designed for ESD protection of SMART phones, laptop computers and other portable electronics. These silicon based diodes offer superior clamping voltage and performance compared to other technologies such as MLVs. The PSDxx and PSDxxC Series can be utilized as a single line protector in either a unidirectional or bidirectional configuration. The SOD-323 small package configuration offers designers the flexibility of placement on the printed circuit board for each I/O port or voltage bus. The PSDxx and PSDxxC Series meets the IEC 61000-4-2 (ESD), 61000-4-4 (EFT) and 61000-4-5 requirements. SOD-323 PACKAGE FEATURES APPLICATIONS • Compatible with IEC 61000-4-2 (ESD): Air - 15kV, Contact - 8kV • Compatible with IEC 61000-4-4 (EFT): 40A - 5/50ns • Compatible with IEC 61000-4-5 (Surge): 24A, 8/20µs Level 2(LineGnd) & Level 3 (Line-Line) • Unidirectional: 500 Watts Peak Pulse Power per Line (tp = 8/20µs) • Bidirectional: 400 Watts Peak Pulse Power per Line (tp = 8/20µs) • Replacement for MLV (0805) • Unidirectional & Bidirectional Configurations • Protects One Power or I/O Port • ESD Protection > 25kV • Low Clamping Voltage • Available in Multiple Voltages Ranging From 3V to 36V • RoHS Compliant • REACH Compliant • Laptop Computers • SMART Phones • Portable Electronics MECHANICAL CHARACTERISTICS • Molded JEDEC SOD-323 Package • Approximate Weight: 5 milligrams • Lead-Free Pure-Tin Plating (Annealed) • Solder Reflow Temperature: Pure-Tin - Sn, 100: 260-270°C • 8mm Tape and Reel Per EIA Standard 481 • Flammability Rating UL 94V-0 PIN CONFIGURATIONS 05118.R15 11/13 Downloaded from Arrow.com. 1 1 2 UNIDIRECTIONAL 2 BIDIRECTIONAL Page 1 ISO 9001: 2015 CERTIFIED 05118 PSD03 - PSD36C Only One Name Means ProTek’Tion™ TYPICAL DEVICE CHARACTERISTICS MAXIMUM RATINGS @ 25°C Unless Otherwise Specified PARAMETER SYMBOL VALUE UNITS Unidirectional: Peak Pulse Power (tp = 8/20µs) - See Figure 1 PPP 500 Watts Bidirectional: Peak Pulse Power (tp = 8/20µs) - See Figure 1 PPP 400 Watts Operating Temperature TL -55 to 150 °C TSTG -55 to 150 °C Storage Temperature ELECTRICAL CHARACTERISTICS PER LINE @ 25°C Unless Otherwise Specified PART NUMBER (Note 1 ) DEVICE MARKING RATED STAND-OFF VOLTAGE MINIMUM BREAKDOWN VOLTAGE VWM VOLTS MAXIMUM LEAKAGE CURRENT TYPICAL CAPACITANCE @ 1mA V(BR) VOLTS MAXIMUM CLAMPING VOLTAGE (Fig. 2) @ IP = 1A VC VOLTS @V WM ID µA @0V, 1MHz C pF PSD03 A 3.3 4.0 6.5 125 500 PSD03C G 3.3 4.0 7.0 125 200 PSD05 B 5.0 6.0 9.8 10 350 PSD05C H 5.0 6.0 9.8 10 175 PSD08 C 8.0 8.5 13.4 10 250 PSD08C J 8.0 8.5 13.4 10 150 PSD12 D 12.0 13.3 19.0 1 150 PSD12C K 12.0 13.3 19.0 1 50 PSD15 E 15.0 16.7 24.0 1 100 PSD15C L 15.0 16.7 24.0 1 40 PSD18 18 18.0 20.0 29.0 1 90 PSD18C N 18.0 20.0 29.0 1 40 PSD24 F 24.0 26.7 43.0 1 88 PSD24C M 24.0 26.7 43.0 1 40 PSD36 R 36.0 40.0 60.0 1 75 PSD36C T 36.0 40.0 60.0 1 35 NOTES 1. Part numbers with an additional “C” suffix are bidirectional devices, i.e., PSD05C. 05118.R15 11/13 Downloaded from Arrow.com. Page 2 ISO 9001: 2015 CERTIFIED 05118 PSD03 - PSD36C Only One Name Means ProTek’Tion™ TYPICAL DEVICE CHARACTERISTICS FIGURE 1 PEAK PULSE POWER VS PULSE TIME PPP - Peak Pulse Power - Watts 10,000 1,000 500W, 8/20µs Waveform 400W, 8/20µs Waveform 100 10 0.1 10 100 td - Pulse Duration - µs Peak Value IPP 80 100 TEST WAVEFORM PARAMETERS tf = 8µs td = 20µs e-t 60 40 10,000 FIGURE 3 POWER DERATING CURVE Peak Pulse Power 8/20µs 80 % Of Rated Power tf 100 td = t/(IPP/2) 60 40 20 20 0 1,000 FIGURE 2 PULSE WAVE FORM 120 IPP - Peak Pulse Current - % of IPP 1 0 05118.R15 11/13 Downloaded from Arrow.com. 5 10 15 t - Time - µs 20 25 0 30 Page 3 Average Power 0 25 50 75 100 125 TA - Ambient Temperature - °C 150 ISO 9001: 2015 CERTIFIED 05118 PSD03 - PSD36C Only One Name Means ProTek’Tion™ TYPICAL DEVICE CHARACTERISTICS FIGURE 4 OVERSHOOT & CLAMPING VOLTAGE FOR PSD03 35 5 Volts per Division 25 15 5 -5 ESD Test Pulse - 25 kilovolt, 1/30ns (Waveshape) C - Capacitance - pF 400 300 200 100 0 05118.R15 11/13 Downloaded from Arrow.com. 0 1 2 3 4 VR - Reverse Voltage - Volts Page 4 5 6 ISO 9001: 2015 CERTIFIED 05118 PSD03 - PSD36C Only One Name Means ProTek’Tion™ TYPICAL DEVICE CHARACTERISTICS Current (I) - Amps FIGURE 6 PSD03 FORWARD TLP Leakage Current @ Pulse (I) - µA Leakage Test Voltage = 0.5V Voltage (V) - Volts Current (I) - Amps FIGURE 7 PSD03 REVERSE TLP Leakage Current @ Pulse (I) - µA Leakage Test Voltage = 0.5V Voltage (V) - Volts Note: Indicative TLP performance- for reference only 05118.R15 11/13 Downloaded from Arrow.com. Page 5 ISO 9001: 2015 CERTIFIED 05118 PSD03 - PSD36C Only One Name Means ProTek’Tion™ TYPICAL DEVICE CHARACTERISTICS Current (I) - Amps FIGURE 8 PSD36 FORWARD TLP Leakage Current @ Pulse (I) - µA Leakage Test Voltage = 0.5V Voltage (V) - Volts Current (I) - Amps FIGURE 9 PSD36 REVERSE TLP Leakage Current @ Pulse (I) - µA Leakage Test Voltage = 0.5V Voltage (V) - Volts Note: Indicative TLP performance- for reference only 05118.R15 11/13 Downloaded from Arrow.com. Page 6 ISO 9001: 2015 CERTIFIED 05118 PSD03 - PSD36C Only One Name Means ProTek’Tion™ SPICE MODEL FIGURE 1 SPICE MODEL FOR ABD ABD ABD Lg 0.55nH Lg 0.5nH UNIDIRECTIONAL BIDIRECTIONAL ABD - Avalanche Breakdown Diode (TVS) Lg - Lead Inductance TABLE 1 - SPICE PARAMETERS PART NUMBER PSD03 05118.R15 11/13 Downloaded from Arrow.com. PARAMETER UNIT ABD(TVS) BV V See Table 2 IBV µA 1 Cjo pF See Table 2 IS A See Table 2 Vj V 0.6 M - 0.33 N - 1 RS Ohms See Table 2 TT s 1E-8 EG eV 1.11 TABLE 2 - ABD SPECIFIC SPICE PARAMETERS I S (AMPS) B V(VOLTS) Cjo(pF) 4.0 438 1E-11 Rs(OHMS) 0.21 PSD05 6.0 284 1E-11 0.14 PSD08 8.5 146 1E-11 0.28 PSD12 13.3 123 1E-13 0.40 PSD15 16.7 102 1E-13 0.52 PSD24 26.7 61 1E-13 1.54 PSD03C 4.5 219 1E-11 0.21 PSD05C 6.0 142 1E-11 0.14 PSD08C 8.5 73 1E-11 0.28 PSD12C 13.3 62 1E-13 0.40 PSD15C 16.7 51 1E-13 0.52 PSD24C 26.7 30 1E-13 1.54 Page 7 ISO 9001: 2015 CERTIFIED 05118 PSD03 - PSD36C Only One Name Means ProTek’Tion™ SOD-323 PACKAGE INFORMATION OUTLINE DIMENSIONS DIM MILLIMETERS C INCHES A MIN MAX MIN MAX A 1.60 1.90 0.063 0.075 B 1.15 1.45 0.045 0.057 C 2.39 2.70 0.094 0.106 D 0.80 1.10 0.031 0.043 E 0.25 0.40 0.010 0.016 F 0.10 0.20 0.004 0.008 H - 0.10 - 0.004 L 0.20 - 0.008 - E B F D H NOTES 1. Controlling dimension: millimeters. 2. Dimensioning and tolerances per ANSI Y14.5M, 1985. 3. Dimensions are exclusive of mold flash and metal burrs. L A PAD LAYOUT DIMENSIONS DIM MILLIMETERS INCHES MIN MAX MIN MAX A 2.87 3.12 0.113 0.123 B 0.66 0.91 0.026 0.036 C 0.66 0.91 0.026 0.036 C B NOTES 1. Controlling dimension: millimeters. 05118.R15 11/13 Downloaded from Arrow.com. Page 8 ISO 9001: 2015 CERTIFIED 05118 PSD03 - PSD36C Only One Name Means ProTek’Tion™ TAPE AND REEL D t Top Cover Tape P2 P0 10 Pitches Cumulative Tolerance on tape ± 0.2 E A0 F K0 W B0 Pin 1 Indicated by Band P User Direction of Feed SPECIFICATIONS REEL DIA. TAPE WIDTH 178mm (7”) 8mm A0 B0 K0 D E F W P0 P2 P 1.55 ± 0.10 2.90 ± 0.10 1.35 ± 0.10 1.50 ± 0.10 1.75 ± 0.10 3.50 ± 0.05 8.00 ± 0.30 4.00 ± 0.10 2.00 ± 0.05 4.00 ± 0.10 tmax 0.25 NOTES 1. 2. 3. 4. Dimensions are in millimeters. Surface mount product is taped and reeled in accordance with EIA-481. Suffix - T7 = 7” Reel - 3,000 pieces per 8mm tape. Marking on Part - marking code (see page 2), polarity band (Unidirectional Only). ORDERING INFORMATION BASE PART NUMBER (xx = Voltage) LEADFREE SUFFIX TAPE SUFFIX QTY/REEL REEL SIZE TUBE QTY PSDxx/PSDxxC -LF -T7 3,000 7” n/a This device is only available in a Lead-Free configuration. 05118.R15 11/13 Downloaded from Arrow.com. Page 9 ISO 9001: 2015 CERTIFIED 05118 PSD03 - PSD36C Only One Name Means ProTek’Tion™ COMPANY INFORMATION COMPANY PROFILE In business more than 25 years, ProTek Devices™ is a privately held semiconductor company. The company offers a product line of overvoltage protection and overcurrent protection components. These include transient voltage suppressor array (TVS arrays) avalanche breakdown diode, steering diode TVS array and electronics SMD chip fuses. These components deliver circuit protection in electronic systems from numerous overvoltage and overcurrent events. They include lightning; electrostatic discharge (ESD); nuclear electromagnetic pulses (NEMP); inductive switching; and electromagnetic interference (EMI) / radio frequency interference (RFI). ProTek Devices also offers LED wafer die for ESD protection and related high frequency products. ProTek Devices is ISO 9001:2015 certified. CONTACT US Corporate Headquarters 2929 South Fair Lane Tempe, Arizona 85282 USA By Telephone General: 602-431-8101 Sales: & Marketing: 602-414-5109 Customer Service: 602-414-5114 Product Technical Support: 602-414-5107 By Fax General: 602-431-2288 By E-mail: Asia Sales: asiasales@protekdevices.com Europe Sales: europesales@protekdevices.com U.S. Sales: ussales@protekdevices.com Distributor Sales: distysales@protekdevices.com Customer Service: service@protekdevices.com Technical Support: support@protekdevices.com ProTek Devices (Asia Pacific) Pte. Ltd. 8 Ubi Road 2, #06-19 Zervex Singapore - 408538 Tel: +65-67488312 Fax: +65-67488313 Web www.protekdevices.com COPYRIGHT © ProTek Devices 2000 - This literature is subject to all applicable copyright laws and is not for resale in any manner. SPECIFICATIONS: ProTek reserves the right to change the electrical and or mechanical characteristics described herein without notice. DESIGN CHANGES: ProTek reserves the right to discontinue product lines without notice and that the final judgement concerning selection and specifications is the buyer’s and that in furnishing engineering and technical assistance. ProTek assumes no responsibility with respect to the selection or specifications of such products. ProTek makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ProTek assume any liability arising out of the application or use of any product or circuit and specifically disclaims any and all liability without limitation special, consequential or incidental damages. LIFE SUPPORT POLICY: ProTek Devices products are not authorized for use in life support systems without written consent from the factory. 05118.R15 11/13 Downloaded from Arrow.com. Page 10 ISO 9001: 2015 CERTIFIED
