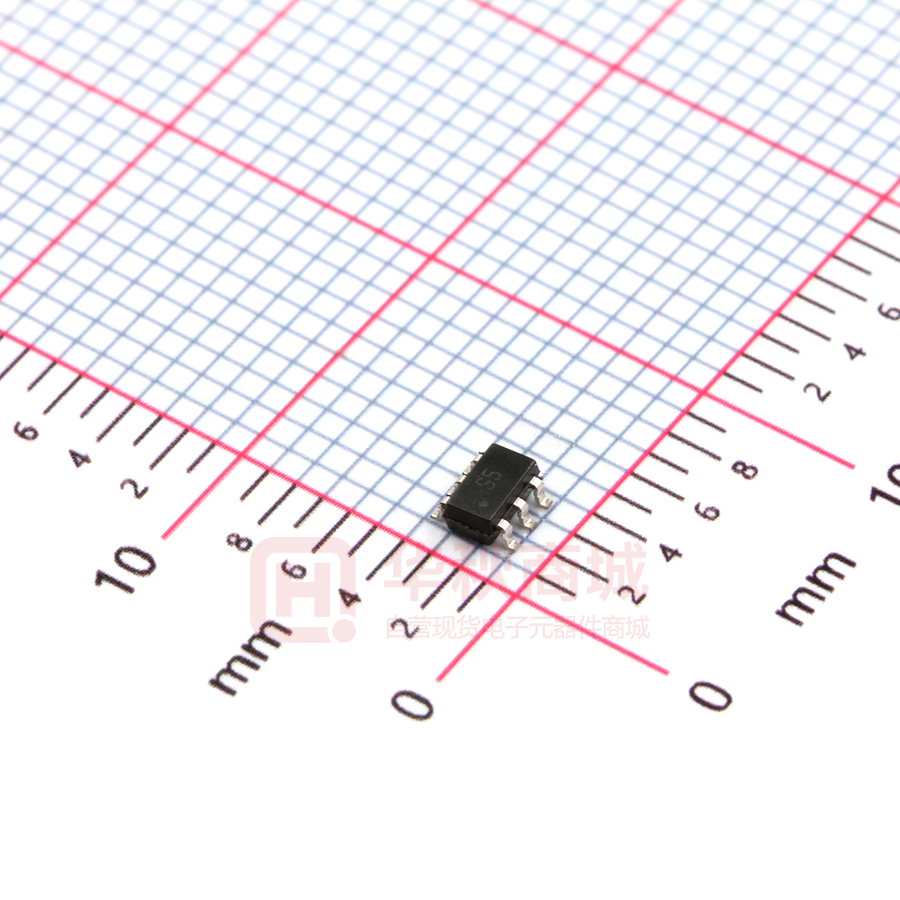

SRV05-4-P-T7

05150 SRV05-4 Only One Name Means ProTek’Tion™ ULTRA LOW CAPACITANCE STEERING DIODE/TVS ARRAY DESCRIPTION The SRV05-4 is a dual USB port protection array that features ultra low capacitance. This device can be used in applications such as video cards, SMART phones, Gigabit Ethernet and other computer interfaces. Designed for ESD protection, the SRV05-4 can clamp the effects of electrical fast transients on the power bus. The SRV05-4 combines 8 low capacitance steering diodes for up to four individual data or transmission lines and one TVS diode for power bus protection. This device is available in the space-saving SOT-23-6 package configuration, which minimizes lead inductance to prevent overshoot voltages during high ESD current events. The SRV05-4 meets the IEC 61000-4-2, 61000-4-2 and 61000-4-5 requirements. SOT-23-6 PACKAGE FEATURES APPLICATIONS • Compatible with IEC 61000-4-2 (ESD): Air 15kV, Contact 8kV • Compatible with IEC 61000-4-4 (EFT): 40A, 5/50ns • Compatible with IEC 61000-4-5 (Surge): 24A, 8/20µs - Level 2(LineGnd) & Level 3(Line-Line0 • 500 Watts Peak Pulse Power per Line(tp = 8/20µs) • ESD Protection > 25 kilovolts • Low Clamping Voltage • Protection for 4 Lines • Ultra Low Capacitance: 3.5pF Typical (IO to GND) • RoHS Compliant • REACH Compliant • Gigabit Ethernet • SMART Phones • Portable Electronics • Video Card Interfaces • USB 2.0 Interfaces • DVI Interfaces MECHANICAL CHARACTERISTICS • Molded JEDEC SOT-23-6 Package • Approximate Weight: 16 milligrams • Lead-Free Nickel Paladium Gold Plating • Solder Reflow Temperature - 260-270°C • Flammability Rating UL 94V-0 • 8mm Tape and Reel per EIA Standard 481 PIN CONFIGURATION 05150.R16 4/16 I/O 1 1 6 I/O 4 GND 2 5 REF I/O 2 3 4 I/O 3 Page 1 www.protekdevices.com 05150 SRV05-4 Only One Name Means ProTek’Tion™ TYPICAL DEVICE CHARACTERISTICS MAXIMUM RATINGS @ 25°C Unless Otherwise Specified PARAMETER Peak Pulse Power (tp = 8/20µs) - See Figure 1 Operating Temperature SYMBOL VALUE UNITS PPP 500 Watts TL -55 to 150 °C Storage Temperature TSTG -55 to 150 °C Forward Surge Rating (5ms @ 25°C, IF = 10mA) VF 0.5 Min. - 1.2 Max. Volts Peak Pulse Current (tp = 8/20µs) - Note 1 IPP 30 Amps NOTES 1. Across TVS only - pin 2 to pin 5. ELECTRICAL CHARACTERISTICS PER LINE @ 25°C Unless Otherwise Specified PART NUMBER DEVICE MARKING SRV05-4 RATED STAND-OFF VOLTAGE (Note 1) MINIMUM BREAKDOWN VOLTAGE (Note 1) VWM VOLTS 5.0 S5 MAXIMUM CLAMPING VOLTAGE (Fig. 2) (Note 1) @ IP = 5A VC VOLTS MAXIMUM LEAKAGE CURRENT (Note 1) @ 1mA V(BR) VOLTS MAXIMUM CLAMPING VOLTAGE (Fig. 2) (Note 1) @ I P = 1A VC VOLTS 6.0 12.0 15.0 5 @V WM ID µA @ 25°C Unless Otherwise Specified TYPICAL CAPACITANCE I/O to GND MAXIMUM CAPACITANCE I/O to GND TYPICAL CAPACITANCE I/O to I/O MAXIMUM CAPACITANCE I/O to I/O @0V, 1MHz C J(SD) pF @0V, 1MHz C J(SD) pF @0V, 1MHz C J(SD) pF @0V, 1MHz C J(SD) pF 3.5 5.0 2.5 4.0 05150.R16 4/16 Page 2 www.protekdevices.com 05150 SRV05-4 Only One Name Means ProTek’Tion™ TYPICAL DEVICE CHARACTERISTICS FIGURE 1 PEAK PULSE POWER VS PULSE TIME PPP - Peak Pulse Power - Watts 10,000 1,000 500W, 8/20µs Waveform 100 10 0.1 1 10 100 td - Pulse Duration - µs IPP - Peak Pulse Current - % of IPP 10,000 FIGURE 2 PULSE WAVE FORM 120 tf 100 TEST WAVEFORM PARAMETERS tf = 8µs td = 20µs Peak Value IPP 80 e-t 60 40 td = t/(IPP/2) 20 0 05150.R16 4/16 1,000 0 5 10 15 t - Time - µs Page 3 20 25 30 www.protekdevices.com 05150 SRV05-4 Only One Name Means ProTek’Tion™ TYPICAL DEVICE CHARACTERISTICS 100 FIGURE 3 POWER DERATING CURVE Peak Pulse Power 8/20µs % Of Rated Power 80 60 40 20 0 Average Power 0 25 50 75 100 125 TA - Ambient Temperature - °C 150 FIGURE 4 OVERSHOOT & CLAMPING VOLTAGE 5 Volts per Division 35 25 15 5 -5 ESD Test Pulse - 25 kilovolt, 1/30ns (Waveshape) 05150.R16 4/16 Page 4 www.protekdevices.com 05150 SRV05-4 Only One Name Means ProTek’Tion™ SPICE MODEL FIGURE 1 SPICE MODEL VCC LCRD LCRD I/O I/O LCRD LCRD ABD LCRD LCRD I/O I/O LCRD LCRD Lg 0.7nH LCABD - Low Capacitance Avalanche Breakdown Diode (TVS) LCRD: Low Capacitance Rectifier Diode Lg - Lead Inductance TABLE 1 - SPICE PARAMETERS PARAMETER 05150.R16 4/16 UNIT ABD(TVS) LCRD BV V 6.0 200 IBV µA 1 0.01 Cjo pF 230 3 IS A 1E-11 1E-13 Vj V 0.6 0.6 M - 0.33 0.33 N - 1 1 RS Ohms 0.014 0.31 TT s 1E-9 1E-9 EG eV 1.11 1.11 Page 5 www.protekdevices.com 05150 SRV05-4 Only One Name Means ProTek’Tion™ SOT-23-6 PACKAGE INFORMATION D OUTLINE DIMENSIONS DIM MILLIMETERS E INCHES MIN MAX MIN MAX A 2.80 3.05 0.110 0.120 B 1.50 1.75 0.059 0.070 C 0.90 1.30 0.036 0.051 D 0.30 0.40 0.012 0.016 E 0.85 1.05 0.033 0.040 G 0.90 1.45 0.036 0.057 J 0.09 0.20 0.003 0.008 K 2.60 3.00 0.102 0.118 L 0.0 0.15 0.0 0.006 M 0.30 0.60 0.012 0.024 6 4 5 1 3 2 L G C B PAD LAYOUT DIMENSIONS INCHES NOMINAL NOMINAL A 0.70 0.028 B 1.90 0.074 C 0.95 0.037 D 2.40 0.094 E 1.00 0.039 M A 1. Controlling dimension: inches. 2. Dimensioning and tolerances per ANSI Y14.5M, 1985. 3. Dimensions are exclusive of mold flash and metal burrs. MILLIMETERS J B NOTES DIM 0° - 8° K C E D A NOTES 1. Controlling dimension: inches. 05150.R16 4/16 Page 6 www.protekdevices.com 05150 SRV05-4 Only One Name Means ProTek’Tion™ TAPE AND REEL P0 P2 D t 10 Pitches Cumulative Tolerance on Tape. ± 0.2 E Top Cover Tape Pin 1 A0 F W K0 B0 P User Direction of Feed SPECIFICATIONS REEL DIA. TAPE WIDTH 178mm (7”) 8mm A0 B0 K0 D E F W P0 P2 P 3.20 ± 0.10 3.20 ± 0.10 1.65 ± 0.10 1.50 ± 0.10 1.75 ± 0.10 3.50 ± 0.05 8.00 ± 0.30 4.00 ± 0.10 2.00 ± 0.05 4.00 ± 0.10 tmax 0.25 NOTES 1. 2. 3. 4. Dimensions are in millimeters. Surface mount product is taped and reeled in accordance with EIA-481. Suffix - T7 = 7” Reel - 3,000 pieces per 8mm tape. Marking on Part - marking code (see page 2) and pin one defined by dot on package. Package outline, pad layout and tape specifications per document number 06013.R5 2/11 ORDERING INFORMATION BASE PART NUMBER LEADFREE SUFFIX TAPE SUFFIX QTY/REEL REEL SIZE TUBE QTY SRV05-4 -P -T7 3,000 7” n/a This device is only available in a Lead-Free configuration. 05150.R16 4/16 Page 7 www.protekdevices.com 05150 SRV05-4 Only One Name Means ProTek’Tion™ COMPANY INFORMATION COMPANY PROFILE In business more than 20 years, ProTek Devices™ is a privately held semiconductor company. The company offers a product line of overvoltage protection and overcurrent protection components. These include transient voltage suppressor array (TVS arrays) avalanche breakdown diode, steering diode TVS array and electronics SMD chip fuses. These components deliver circuit protection in electronic systems from numerous overvoltage and overcurrent events. They include lightning; electrostatic discharge (ESD); nuclear electromagnetic pulses (NEMP); inductive switching; and electromagnetic interference (EMI) / radio frequency interference (RFI). ProTek Devices also offers high performance interface and linear products. They include analog switches; multiplexers; LED drivers; LED wafer die for ESD protection; audio control ICs; RF and related high frequency products. CONTACT US Corporate Headquarters 2929 South Fair Lane Tempe, Arizona 85282 USA By Telephone General: 602-431-8101 Sales: & Marketing: 602-414-5109 Customer Service: 602-414-5114 Product Technical Support: 602-414-5107 By Fax General: 602-431-2288 By E-mail: Asia Sales: asiasales@protekdevices.com Europe Sales: europesales@protekdevices.com U.S. Sales: ussales@protekdevices.com Distributor Sales: distysales@protekdevices.com Customer Service: service@protekdevices.com Technical Support: support@protekdevices.com ProTek Devices (Asia Pacific) Pte. Ltd. 8 Ubi Road 2, #06-19 Zervex Singapore - 408538 Tel: +65-67488312 Fax: +65-67488313 Web www.protekdevices.com COPYRIGHT © ProTek Devices 2002 - This literature is subject to all applicable copyright laws and is not for resale in any manner. SPECIFICATIONS: ProTek reserves the right to change the electrical and or mechanical characteristics described herein without notice. DESIGN CHANGES: ProTek reserves the right to discontinue product lines without notice and that the final judgement concerning selection and specifications is the buyer’s and that in furnishing engineering and technical assistance. ProTek assumes no responsibility with respect to the selection or specifications of such products. ProTek makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ProTek assume any liability arising out of the application or use of any product or circuit and specifically disclaims any and all liability without limitation special, consequential or incidental damages. LIFE SUPPORT POLICY: ProTek Devices products are not authorized for use in life support systems without written consent from the factory. 05150.R16 4/16 Page 8 www.protekdevices.com
