ANT1204F002R0433A

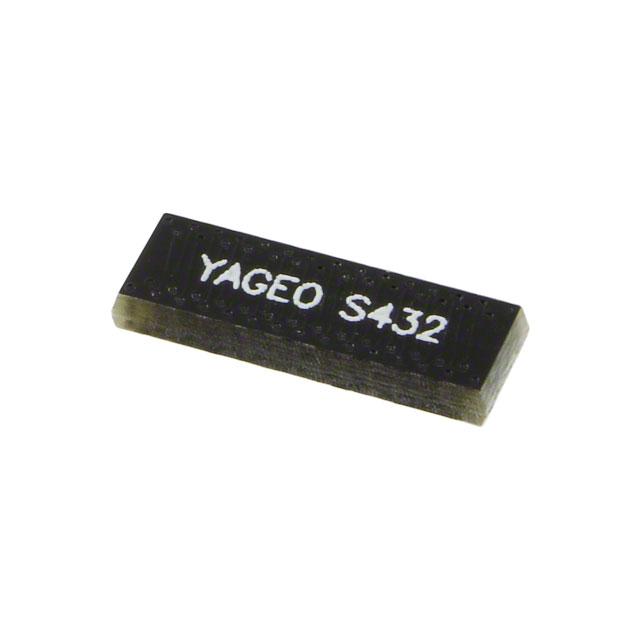

Description: 1204 433MHz FR4 Chip Antenna PART NUMBER: ANT1204F002R0433A Features: • Size : 12.3x4.0x1.6 mm • Omni-directional Radiation • Tape & reel automatic mounting • Reflow process compatible • RoHS compliant Applications: • Smart meter • Industrial remote control • ISM band equipment In the effort to improve our products, we reserve the right to make changes judged to be necessary. CONFIDENTIAL AND PROPRIETARY INFORMATION This document contains confidential and proprietary information of Pulse Electronics, Inc. (Pulse) and is protected by copyright, trade secret and other state and federal laws. Its receipt or possession does not convey any rights to reproduce, disclose its contents, or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific written authorization of Pulse is strictly forbidden. For more information: Pulse Worldwide Headquarters 15255 Innovation Drive #100 San Diego, CA 92128 USA Tel:1-858-674-8100 Pulse/Larsen Antennas 18110 SE 34th St Bldg 2 Suite 250 Vancouver, WA 98683 USA Tel: 1-360-944-7551 Europe Headquarters Pulse GmbH & Do, KG Zeppelinstrasse 15 Herrenberg, Germany Tel: 49 7032 7806 0 Pulse (Suzhou) Wireless Products Co, Inc. 99 Huo Ju Road(#29 Bldg,4th Phase Suzhou New District Jiangsu Province, Suzhou 215009 PR China Tel: 86 512 6807 9998 1 Description: 1204 433MHz FR4 Chip Antenna PART NUMBER: ANT1204F002R0433A ELECTRICAL SPECIFICATIONS Working Frequency Bandwidth Return Loss Polarization Azimuth Beamwidth Peak Gain Impedance Operating Temperature Maximum Power Termination Resistance to Soldering Heats 433 MHz 28 MHz(Typ.) 6.5 dB Min. Linear Omni-directional 0.79 dBi(Typ.) 50 Ω - 40~105 ℃ 2W Ni / Sn (Environmentally-Friendly Leadless) 260℃ , 10sec. NOTE 1. The specification is defined on Pulse evaluation board MECHANICAL DRAWING L (mm) W (mm) T (mm) A (mm) Terminal name S1 S2 Dimension 12.3 ±0.20 4.00 ±0.20 1.60 ±0.20 0.50 ±0.20 Function Feeding Point Soldering Point In the effort to improve our products, we reserve the right to make changes judged to be necessary. CONFIDENTIAL AND PROPRIETARY INFORMATION 2 This document contains confidential and proprietary information of Pulse Electronics, Inc. (Pulse) and is protected by copyright, trade secret and other state and federal laws. Its receipt or possession does not convey any rights to reproduce, disclose its contents, or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific written authorization of Pulse is strictly forbidden. Description: 1204 433MHz FR4 Chip Antenna PART NUMBER: ANT1204F002R0433A REFERENCE DESIGN OF EVALUATION BOARD Outlook and dimension of evaluation board Details of soldering Pad In the effort to improve our products, we reserve the right to make changes judged to be necessary. CONFIDENTIAL AND PROPRIETARY INFORMATION 3 This document contains confidential and proprietary information of Pulse Electronics, Inc. (Pulse) and is protected by copyright, trade secret and other state and federal laws. Its receipt or possession does not convey any rights to reproduce, disclose its contents, or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific written authorization of Pulse is strictly forbidden. Description: 1204 433MHz FR4 Chip Antenna PART NUMBER: ANT1204F002R0433A ELECTRICAL PERFORMANCES Marker data 1. 419MHz, -6.5dB 2. 433MHz, -16 dB 3. 447MHz, -6.5dB Return loss Gain (dBi) Z axle X Y Z X axle Y axle Evaluation board and XYZ direction Frequency= 433 MHz Max gain = 0.79 dBi, at (150,330) YNH00131 MEG (mean effective gain)= -4.84 dBi Directivity (dB) = 6.35 Efficiency = -5.56dB, 27.79 % Radiation pattern In the effort to improve our products, we reserve the right to make changes judged to be necessary. CONFIDENTIAL AND PROPRIETARY INFORMATION 4 This document contains confidential and proprietary information of Pulse Electronics, Inc. (Pulse) and is protected by copyright, trade secret and other state and federal laws. Its receipt or possession does not convey any rights to reproduce, disclose its contents, or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific written authorization of Pulse is strictly forbidden. Description: 1204 433MHz FR4 Chip Antenna PART NUMBER: ANT1204F002R0433A REVISION HISTORY Revision Version 1 Date Apr. 29, 2021 Description - New issue for Maximum Power 2W. In the effort to improve our products, we reserve the right to make changes judged to be necessary. CONFIDENTIAL AND PROPRIETARY INFORMATION 5 This document contains confidential and proprietary information of Pulse Electronics, Inc. (Pulse) and is protected by copyright, trade secret and other state and federal laws. Its receipt or possession does not convey any rights to reproduce, disclose its contents, or to manufacture, use or sell anything it may describe. Reproduction, disclosure or use without specific written authorization of Pulse is strictly forbidden.
