ANTX100P112B24553

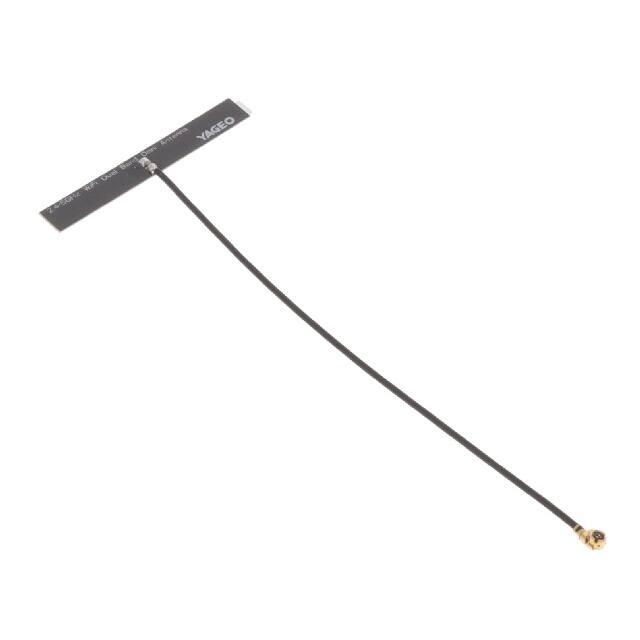

DATA SHEET WIRELESS COMPONENTS PCB type antenna ANTX100P112B24553 2.40 ~ 2.50GHZ / 5.150 ~ 5.875 GHZ Product Specification – April 20, 2016 V.0 \ Product specification Wireless Components FEATURES & BENEFITS  The smallest PCB antenna in the market  Miniature design allows users to save required space  Double-side adhesive tape makes it easy to install in device  Ranges of types of connector and cable provide a flexible design options  Halogen free and RoHS compliant APPLICATIONS  Tablet / Desktop PC  Internet TV / STB / Game console / Camera  WiFi network devices (IEEE 802.11b/g/n)  Bluetooth / ZigBee devices  Car Infotainment  Smart meter  Lighting control PCB Type Antenna 2 7 ORDERING INFORMATION - GLOBAL PART NUMBER, PHYCOMP CTC & 12NC All part numbers are identified by the series, packing type, material, size, antenna type, working frequency and packing quantity. YAGEO BRAND ordering code GLOBAL PART NUMBER ( PREFERRED ) ANT X100 P 112 B 2455 3 (1) (2) (3) (4) (5) (6) (7) (1) FAMILY ANT = Antenna products (2) CONNECTOR & CABLE LENGTH (MM) X = I-PEX 100 = 100mm (3) ANTENNA TYPE P=PCB (4) SERIAL NUMBER 112 = SERIAL NUMBER 112 (5) PACKAGE TYPE B = Bulk (6) WORKING FREQUENCY 2455 = 2.40 ~ 2.50 GHz / 5.150 ~ 5.875 GHz (7) CABLE TYPE 3 = 1.13mm diameter Mini-Coaxial Cable Apr. 20, 2016 V0 www.yageo. com Product specification Wireless Components PCB Type Antenna 3 7 SPECIFICATIONS Table 1 VALUE DESCRIPTION Working Frequency 2.40 ~ 2.50 GHz / 5.150 ~ 5.875 GHz VSWR 2.5:1 max / 2.5:1 max Peak Gain 2.2 dBi / 2.9 dBi Polarization Linear Radiation Pattern Omni-directional Impedance 50 Ω Nominal Operating Temperature –40 °C to 85 °C Maximum Power 1W Dimension 40mm x 6mm x 0.55mm I-PEX (20278-112R-13) Radio Connector Cable Diameter / Length / Color 1.13mm / 100mm / Black Mounting Adhesive Tape (HF-DS) DIMENSIONS Table 2 Mechanical Dimension DIMENSION VALUE L (mm) 100 ±3.00 W (mm) 40 ± 0.30 H (mm) 6 ± 0.30 T (mm) 0.55 ± 0.15 A (mm) 2.30 Max OUTLINES Fig. 1 Antenna outlines Apr. 20, 2016 V0 www.yageo. com Product specification Wireless Components PCB Type Antenna 4 7 RETURN LOSS & VSWR Return Loss (dB) Frequency (GHz) VSWR Frequency (GHz) Fig. 2 Return loss & VSWR Measurement Apr. 20, 2016 V0 www.yageo. com Product specification Wireless Components PCB Type Antenna 5 7 ANTENNA GAIN & EFFICIENCY Table 3 FREQUENCY (GHz) AVERAGE GAIN (dBi) EFFICIENCY (%) PEAK GAIN (dBi) 2.40 2.45 2.50 -0.6 -0.6 -0.9 87.7 87.0 81.9 2.1 2.2 1.5 ANTENNA RADIATION PATTERNS Scale: 5 dBi / div Z Max : 5 dBi Min : -30dBi X Y Device Coordinates X-Z Plane X-Y Plane Y-Z Plane Fig. 3 Antenna radiation patterns at 2.45 GHz Apr. 20, 2016 V0 www.yageo. com Product specification Wireless Components PCB Type Antenna 6 7 ANTENNA GAIN & EFFICIENCY Table 4 FREQUENCY (GHz) AVERAGE GAIN (dBi) EFFICIENCY (%) PEAK GAIN (dBi) 5.150 5.350 5.470 5.725 5.875 -1.9 -2.2 -2.0 -2.0 -1.8 65.0 60.4 63.7 63.7 65.6 2.3 2.5 2.9 2.7 2.7 ANTENNA RADIATION PATTERNS Scale: 5 dBi / div Z Max : 5 dBi Min : -30 dBi X Y Device Coordinates X-Z Plane X-Y Plane Y-Z Plane Fig. 4 Antenna radiation patterns at 5.350 GHz Apr. 20, 2016 V0 www.yageo. com Product specification Wireless Components PCB Type Antenna 7 7 REVISION HISTORY REVISION DATE Version 0 CHANGE NOTIFICATION Apr. 20, 2016 - Apr. 20, 2016 V0 DESCRIPTION - Data sheet for PCB type antenna, 2.40 ~ 2.50GHz / 5.150 ~ 5.875 GHz www.yageo. com
