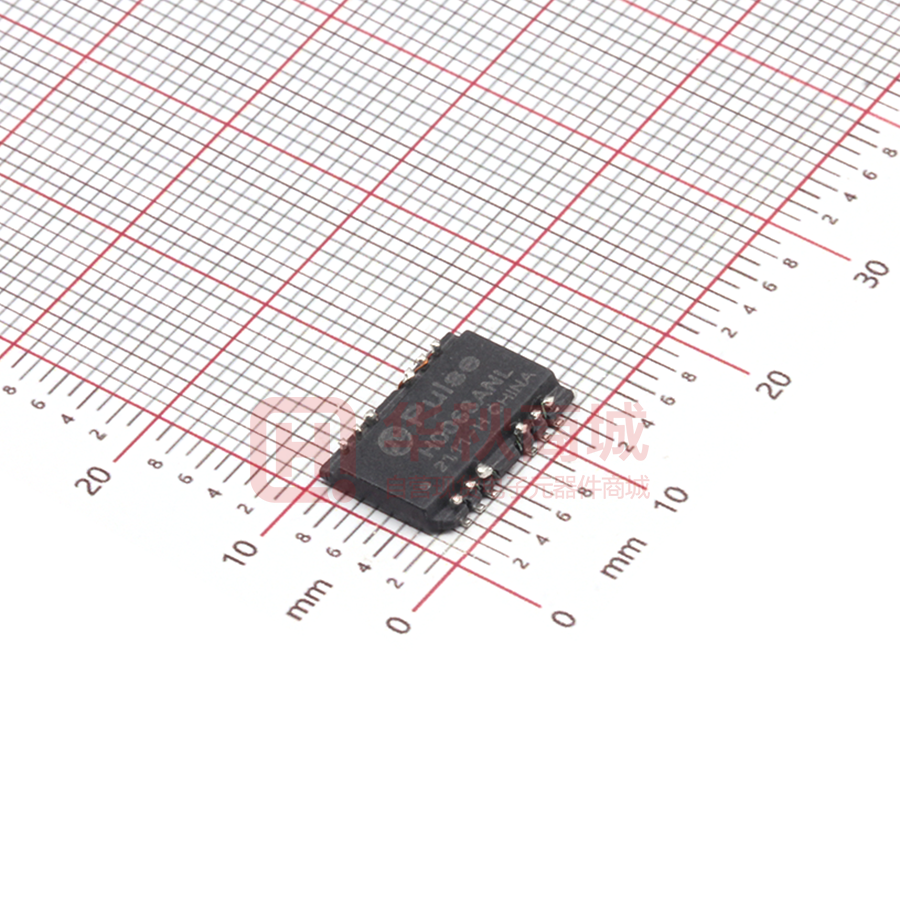

H0068ANL

10/100 PC Card LAN Magnetic Modules RoHS peak reflow temperature rating 260°C Low profile packages from .094” (2,39mm) to .078” (1,98mm) for PC card and cardbus applications Electrical Specifications @ 25°C - Operating Temperature 0°C to +70°C RoHS Compliant Part Number Turns Ratio (±5%) Insertion Loss (dB MAX) Differential to Common Mode Rejection (dB MIN) Return Loss (dB MIN) Crosstalk (dB MIN) Hipot (Vrms MIN) TX wRX 100 kHz-100 MHz 2a 1:1 1:1 -1.0 -16 -14 -12 -40 -35 -30 -45 -40 -37 1500 1,2a 1:1 1:1 -1.0 -16 -14 -12 -40 -35 -30 -45 -40 -35 1500 H0068ANL HX0068ANL 30 MHz 60 MHz 80 MHz 30 MHz 50 MHz 100 MHz 30 MHz 62 MHz 100 MHz 1. Extended operating temperature (-40°C to +85°C) 2. MSL (Moisture Sensitivity Level): a = 1, b = 2, c = 3, d = 4, e = 5 Notes: When ordering Tape & Reel packaging, add the suffix “T” to the end of the part number. For example: HX0068ANLT. Mechanicals H0068ANL, HX0068ANL H0068ANL / HX0068ANL Dimensions: USA 858 674 8100 Germany 49 7032 7806 0 1 Inches mm Unless otherwise specified, all tolerances are ± Singapore 65 6287 8998 pulseelectronics.com .010 0,25 Shanghai 86 21 62787060 Weight ......................0.4 grams Tape & Reel ..............2000/Reel Tube .............................40/Tube China 86 755 33966678 Taiwan 886 3 4356768 H304.L (10/13) 10/100 PC Card LAN Magnetics Modules H0068ANL, HX0068ANL For More Information Pulse Worldwide Headquarters 12220 World Trade Drive San Diego, CA 92128 U.S.A. Pulse Europe Einsteinstrasse 1 D-71083 Herrenberg Germany Tel: 858 674 8100 Tel: 49 7032 7806 Pulse China Headquarters B402, Shenzhen Academy of Aerospace Technology Bldg. 10th Kejinan Road High-Tech Zone Nanshan District Shenzen, PR China 518057 Pulse North China Room 2704/2705 Super Ocean Finance Ctr. 2067 Yan An Road West Shanghai 200336 China Pulse South Asia 135 Joo Seng Road #03-02 PM Industrial Bldg. Singapore 368363 Tel: 65 6287 8998 Fax: 65 6287 8998 Pulse North Asia 3F, No. 198 Zhongyuan Road Zhongli City Taoyuan County 320 Taiwan R. O. C. Tel: 886 3 4356768 Fax: 886 3 4356823 (Pulse) Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may be trademarks or registered trademarks of their respective owners. © Copyright, 2013. Pulse Electronics, Inc. All rights reserved. 2 pulseelectronics.com H304.K (10/13)
