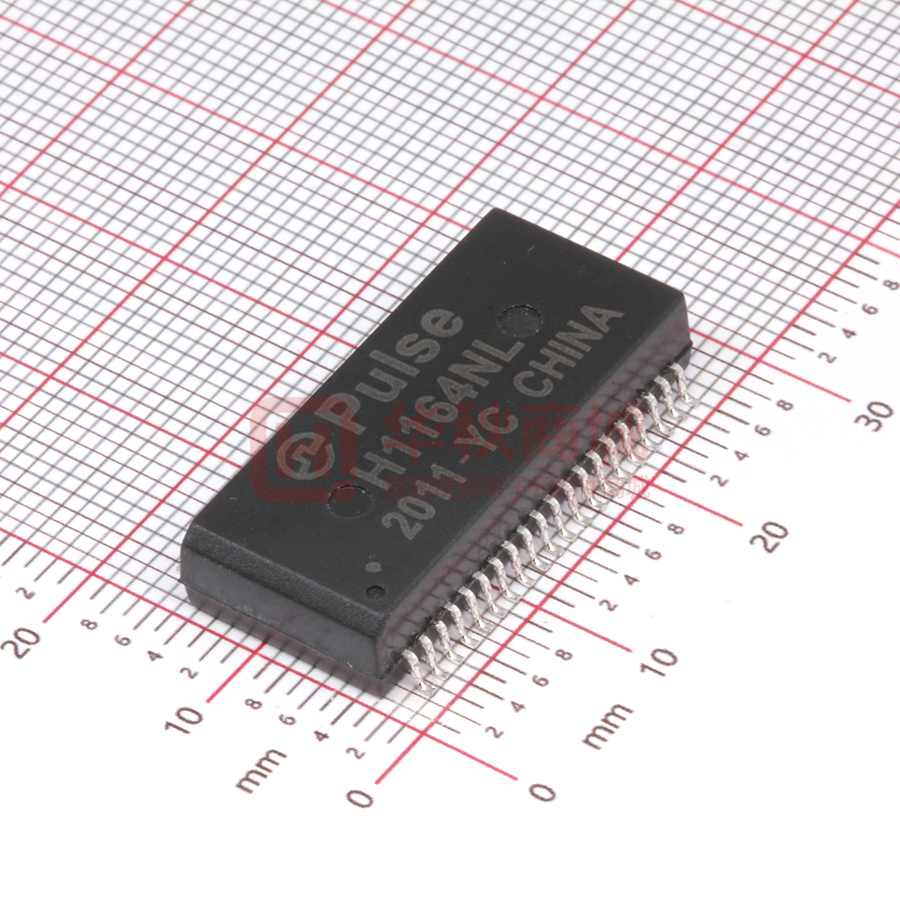

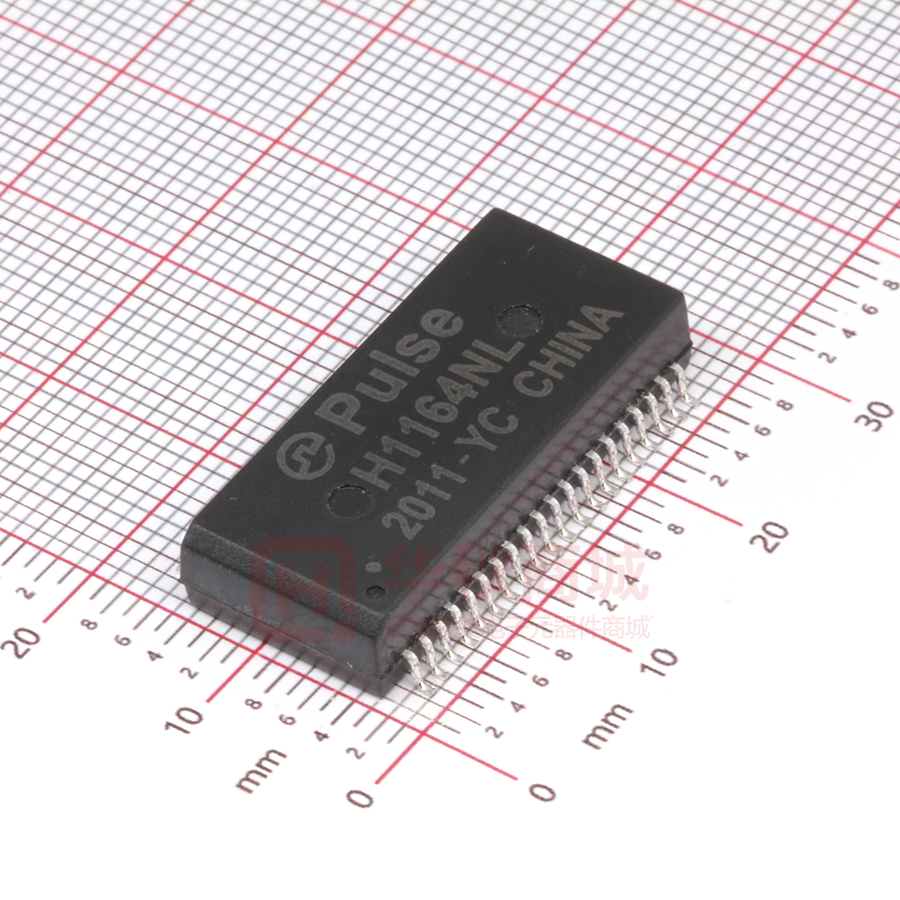

H1164NLT

10/100BASE-TX TRANSFORMER MODULES For Auto MDI/MDIX Applications RoHS peak reflow temperature rating 245°C Symmetrical transmit and recieve channels for Auto MDI/MDIX capability Approved for use with the Broadcom BCM5226 and Level One LXT9784 Meets IEEE 802.3 specification Electrical Specifications @ 25°C — Operating Temperature 0°C to 70°C RoHS Compliant Part Number 2 Insertion Loss (MAX) Return Loss (dB MIN) Differential to Common Mode Rejection (dBMIN) Crosstalk (dB MIN) 0.1-100 MHz 2-30 MHz 40 MHz 50 MHz 60-80 MHz 1 kHZ 30 MHz 60 MHz 100 MHz -1.0 -18 -14.4 -13.1 -12 -65 -50 -40 -35 -1.0 -18 -14.4 -13.1 -12 -65 -50 -40 -35 -1.0 -18 -14.4 -13.1 -12 -55 -45 -40 -33 -1.4 -18 -14.4 -13.1 -12 -55 -45 -40 -33 1. Operating Temperature -40°C to +85° Cww 2. For Tape & Reel packaging, add a “T” suffix to the end of the part number when ordering, (Ex: H1164NLT) 3. MSL = Moisture Sensitivity Level a=1 b=2 c=3 d=4 H1140NL3c H1141NL3c H1164NL3d HX1234NL1, 3c 1-60 MHz -40 -40 -37 -37 60-200 MHz -35 -35 -25 -25 Hipot (Vrms MIN) 1500 1500 1500 1500 Mechanicals H1140NL, H1164NL, HX1234NL Weight . . . . . . . . . . 4.8 grams Tape & Reel . . . . . . . 250/reel Tube . . . . . . . . . . . . . . 15/tube Dimensions: H1141NL Inches mm Unless otherwise specified, all tolerances are ± .010 0,25 Weight . . . . . . . . . . . . 1 gram Tape & Reel . . . . . . . 350/reel Tube . . . . . . . . . . . . . . 35/tube USA 858 674 8100 • Germany 49 7032 7806 0 • Singapore 65 6287 8998 • Shanghai 86 21 32181071 • China 86 755 33966678 • Taiwan 886 3 4643715 www.pulseeng.com 1 H328.G (7/09) 10/100BASE-TX TRANSFORMER MODULES For Auto MDI/MDIX Applications Schematics H1140NL 9 TXTD- 8 10 NC NC 7 11 TX+ TD+ 6 13 NC 12 NC NC 5 NC 4 14 RX- 15 NC NC 2 RD- 3 16 RX+ RD+ 1 H1141NL 22 TX1- 21 TX1+ TD1- 19 TD1+ 20 24 RX1+ RD1+ 17 23 CMGND 25 RX1RD1- 16 CT1 18 26 RX2- 29 TX2TD2- 12 RD2- 15 30 TX2+ TD2+ 11 27 RX2+ 31 TX3+ TD3+ 10 RD2+ 14 32 TX3TD3- 9 28 CMGND 33 CMGND CT3 8 CT2 13 34 RX3+ 35 RX3RD3- 6 RD3+ 7 36 RX4RD4- 5 38 CMGND CT4 3 37 RX4+ 39 TX4TD4- 2 RD4+ 4 40 TX4+ TD4+ 1 H1164NL, HX1234NL For More Information: Pulse Worldwide Headquarters Pulse Europe Einsteinstrasse 1 12220 World Trade Dr. D-71083 Herrenberg San Diego, CA 92128 Germany U.S.A. www.pulseeng.com Tel: 858 674 8100 Fax: 858 674 8262 Tel: 49 7032 7806 0 Fax: 49 7032 7806 135 Pulse China Headquarters Pulse North China Puls e South Asia Pulse North Asia B402, Shenzhen Academy of Aerospace Technology Bldg. 10th Kejinan Rd. High-Tech Zone Nanshan District Shenzen, PR China 518057 TEL: 86 755 33966678 FAX: 86 755 33966700 Room 1503 XinYin Building No. 888 YiShan Rd. Shanghai 200233 China 135 Joo Seng Rd. #03-02 PM Industrial Bldg. Singapore 368363 No. 26, Kao Ching Rd. Yang Mei Chen Taoyuan Hsien Taiwan R. O. C. Tel: 86 21 54643211/2 Fax: 86 21 54643210 TEL: 65 6287 8998 FAX: 65 6280 0080 Tel: 886 3 4643715 Fax: 886 3 4641911 Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may be trademarks or registered trademarks of their respective owners. © Copyright, 2009. Pulse Engineering, Inc. All rights reserved. www.pulseeng.com 2 H328.G (7/09)
