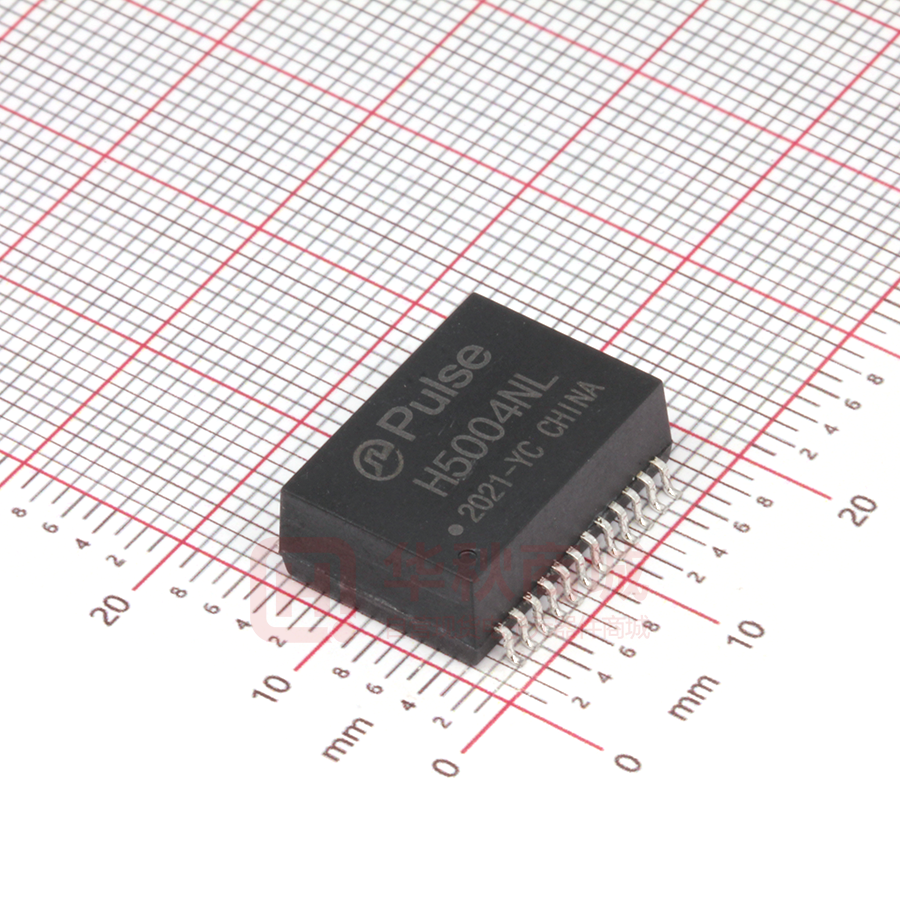

H5004NL

1000BASE-T Magnetics Module Designed to Support 1:1 Turns Ratio Transceivers RoHS peak reflow temperature rating 245�C Meets IEEE 802.3 specification RoHS Compliant Part Number 2 H5004NL HX5004NL H5007NL Insertion Loss (dB MAX) Electrical Specifications @ 25°C - Operating Temperature 0°C to 70°C Differential to Common Return Loss Mode Rejection (dB MIN) (dB MIN) Crosstalk (dB MIN) Number of Ports Hipot (Vrms) 1-100 MHz 3d 1 1 -18 -18 -16 -12 -10 -43 -37 -33 -43 -37 -33 1500 1, 3d 1 1 -18 -18 -16 -12 -10 -43 -37 -33 -43 -37 -33 1500 3d 1 1 -18 -18 -16 -12 -10 -43 -37 -33 -43 -37 -33 1500 1-30MHz 40 MHz 50 MHz 60-80 MHz 100 MHz 30 MHz 60 MHz 100 MHz 30 MHz 60 MHz 100 MHz Notes: 1. HX = extended temperature version -40�C to +85�C 2. For Tape & Reel packaging, add a “T” suffix at the end of the part number, e.g. H5007NLT. 3. MSL = Moisture Sensitivity Level: a = 1, b = 2, c = 3, d = 4 Mechanical H5004NL, HX5004NL, H5007NL Dimensions: Inches mm Unless otherwise specified, all tolerances are ± .010 0,25 1 Weight . . . . . . . . . . . . 1.6 grams Tape & Reel . . . . . . . . . . . . . 300 Tube . . . . . . . . . . . . . . . . . . . . 25 HC500.S (02/19) 1000BASE-T Magnetics Module Designed to Support 1:1 Turns Ratio Transceivers Schematics H5004NL H5007NL HX5004NL For More Information: Americas - prodinfonetworkamericas@pulseelectronics.com | Europe - comms-Apps-Europe@pulseelectronics.com | Asia - prodinfonetworkapac@pulseelectronics.com Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may be trademarks or registered trademarks of their respective owners. © Copyright, 2019. Pulse Electronics, Inc. All rights reserved. 2 Networking.PulseElectronics.com HC500.S (02/19)
