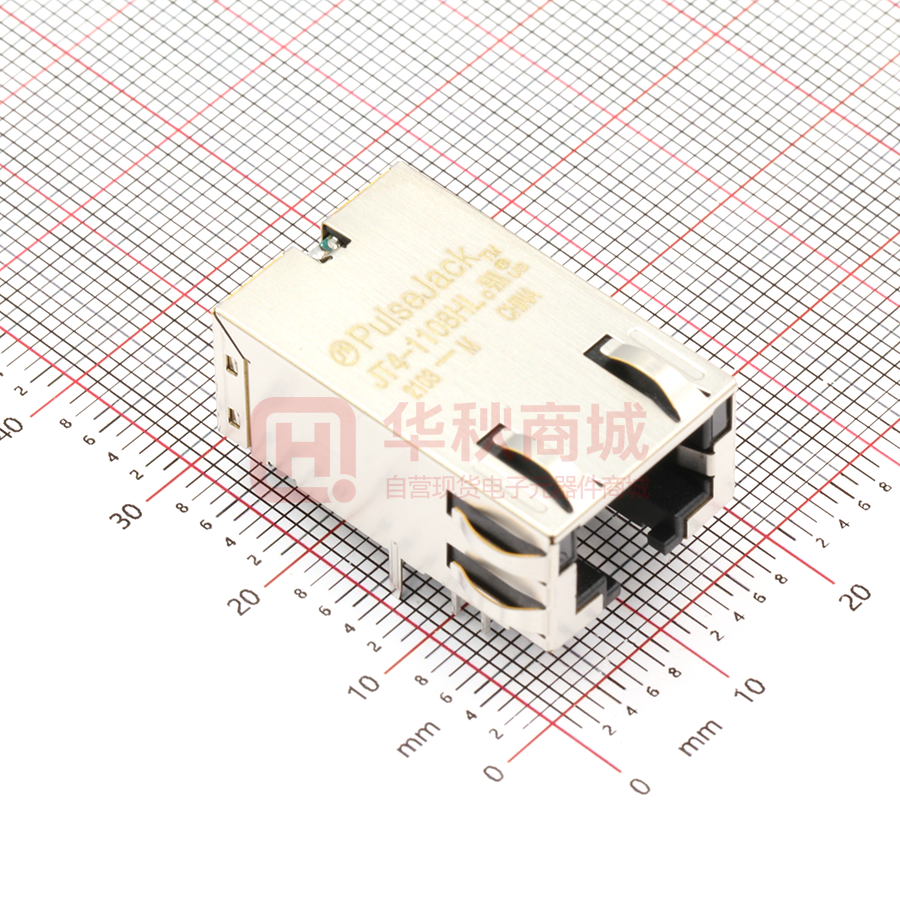

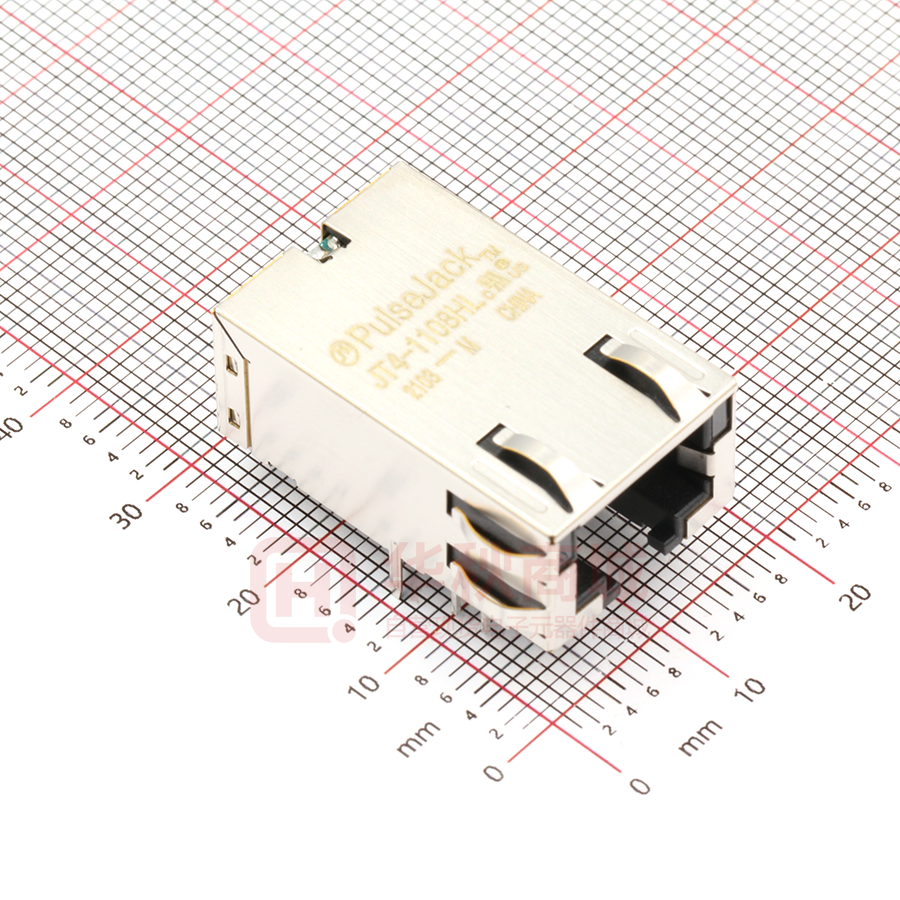

JT4-1108HL

PulseJack­­™ 1X1 Tab-Down 10GBase-T RJ45 Designed to Support 10GBASE-T Transceivers Features and Benefits: Compliant with IEEE 802.3 standard Qualified with top 10Gig PHY Manufacturers RoHS peak wave solder temperature rating 260°C Low profile package for PCI Express Fine-tune magnetics to specific PHY vendors Electrical Specifications @ 25°C - Operating Temperature 0°C to 70°C Common to Differential Mode Rejection (dB or better) Return Loss (dB or better) Cross Talk (dB or better) RoHS Compliant Part Channel LEDs2 Number Option (L/R) 100 KHz Insertion Loss (dB or better) 1-400 MHz 1-40 MHz 40-500 MHz 1-250 MHz 250-500 MHz 1-100 MHz 100-500 MHz JT4-1108HL 5 3.0 -2.0dB MAX (-1.4 dB TYP) -22 -22 +18.27*LOG(f/100) -30 -22 -30 -20 1500 JT4-1109HL 5 G-A/G-A 3.0 -2.0dB MAX (-1.4 dB TYP) -22 -22 +18.27*LOG(f/100) -30 -22 -30 -20 1500 JT4-1120HL 4 -2.0dB MAX (-1.4 dB TYP) -22 -17 +18.27*LOG(f/100) -30 -22 -30 -20 1500 G-Y/G G-Y/G 3.0 Hipot (VRMS MIN) Notes: 1. LEDs: (Left/Right) G = green, Y = yellow, A = amber RJ45 Durability Testing Rating Part Number Mating Force (MAX) Unmating Force (MAX) Durability Plug to Jack Retention (MIN) JT4 Series 5 Ibs./2.268 kgs. 5 Ibs./2.268 kgs. 750 Insertions 20lbs./9.072 kgs. RJ45 Material Specification Part Number JT4 Series Shield Contact Housing 3 Material Finish Material Plating Area Solder Area Brass 50-200µ inches thick nickel over brass Phosphor Bronze 50µ inches gold over 30-50µ inches nickel 200-500µ inches tin over 50-100µ inches nickel Material Specification MSL2 Rating Thermoplastic UL 94 V-0 1 Notes: 1. Connector dimensions comply with FCC dimension requirements. 2. MSL - Moisture Sensitivity Level 3. All parts are tin matte finish over nickel. 1 Networking.PulseElectronics.com J425.N (03/19) PulseJack­­™ 1X1 Tab-Down 10GBase-T RJ45 Designed to Support 10GBASE-T Transceivers Mechanicals JT4-1108HL, JT4-1109HL, JT4-1120HL JT4-XXXXHL 15 14 12 11 10 13 9 8 7 15 14 12 11 10 6 5 4 3 2 1 9 8 7 16 19 16 19 17 20 17 21 18 SUGGESTED FOOTPRINT (JT4-1108HL SIDE SHOWN) JT4-1108HL 12 11 10 6 6 5 4 3 2 1 18 SUGGESTED FOOTPRINT (JT4-1108HL SIDE SHOWN) THE FOLLOWING TOLERANCES APPLY: _0.08 [±.003] THE FOLLOWING TOLERANCES APPLY: x.xx [.xxx] = ±.008 [±.003] 2 13 SUGGESTED FOOTPRINT (JT4-1109HL SIDE SHOWN) SUGGESTED FOOTPRINT (JT4-1109HL THE FOLLOWING TOLERANCES APPLY: SIDE SHOWN) _0.08 [±.003] THE FOLLOWING TOLERANCES APPLY: x.xx [.xxx] = ±.008 [±.003] JT4-1109HL Networking.PulseElectronics.com 5 4 9 3 8 2 7 1 15 16 13 17 14 SUGGESTED FOOTPRINT (JT4-1120HL SIDE SHOWN) SUGGESTED FOOTPRINT (JT4-1120HL SIDE SHOWN) THE FOLLOWING TOLERANCES APPLY: _0.08 [±.003] THE FOLLOWING TOLERANCES APPLY: x.xx [.xxx] = ±.008 [±.003] JT4-1120HL J425.N (03/19) PulseJack™ 1X1 Tab-Down 10GBase-T RJ45 Designed to Support 10GBASE-T Transceivers Schematics JT4-1108HL, JT4-1109HL JT4-1120HL Isolation Transformer and Common Mode Filter Isolation Transformer and Common Mode Filter LED SPECIFICATION FOR JT4-1108HL LED SPECIFICATION FOR JT4-1109HL LED SPECIFICATION FOR JT4-1120HL For More Information: Americas - prodinfonetworkamericas@pulseelectronics.com | Europe - comms-Apps-Europe@pulseelectronics.com | Asia - prodinfonetworkapac@pulseelectronics.com Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may be trademarks or registered trademarks of their respective owners. © Copyright, 2019. Pulse Electronics, Inc. All rights reserved. 3 Networking.PulseElectronics.com J425.N (03/19)
