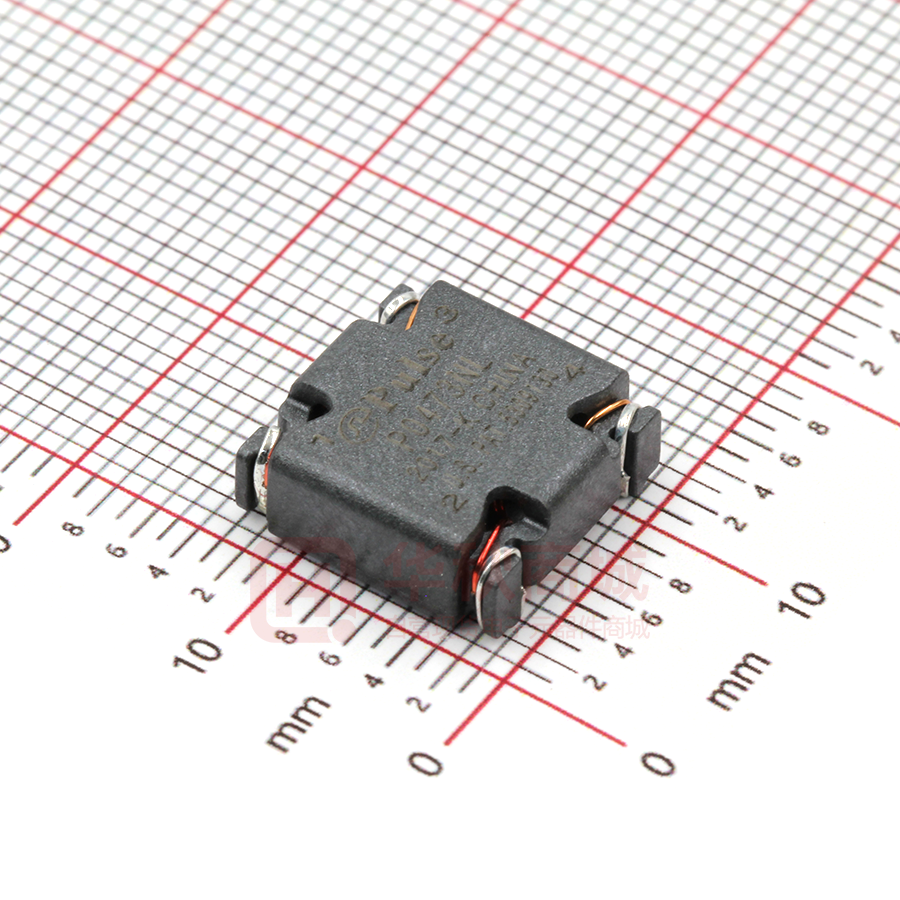

P0473NL

SMT Common Mode Chokes 1.22A to 14.0 A Solutions based on impedance, size and current Designed for DC/DC converters Wide variety of inductor sizes and current ratings available Dielectric strength: 1000VRMS (380Vrms continuous) Electrical Specifications @ 25°C - Operating Temperature -40°C to +120°C3 Part Number Inductance (mH±35%) Irated1 (A) DCR (MAX) (mΩ) Curve (see # below) Package Weight (Grams) Quantity In Tube Quantity In Reel P0502NL 0.47 14.0 8 9 Big Foot 14.8 15 75 P0469NL 0.63 11.6 10 7 Big Foot 14.3 20 75 P0429NL 0.81 9.70 14 6 Big Foot 13.5 20 75 P0527NL 0.53 7.20 15 8 HCCI-68 7.7 15 100 P0353NL 0.59 5.60 21 7 LCCI-50 5.2 30 200 P0422NL 0.77 4.70 40 6 LCCI-50 4.9 30 200 P0421NL 0.22 3.30 60 5 LCCI-50 4.7 30 200 P0420NL 1.32 3.30 60 4 LCCI-50 4.6 30 200 P0351NL 1.47 2.80 80 3 LCCI-50 4.3 30 200 P0473NL 0.88 1.63 110 2 Polecat 1.5 35 500 P0354NL 1.17 1.22 200 1 Polecat 1.4 35 500 Notes: 1. 2. 3. The current rating (Irated) is based upon the temperature rise of the component and represents the rms current which will cause a typical temperature rise of 55C with 50LFM forced cooling. Optional Tape & Reel packaging can be ordered by adding a “T” suffix to the part number (i.e. P0502 becomes P0502T). Pulse complies to industry standard tape and reel specification EIAv481. The temperature of the component (ambient plus temperature rise) must be within the stated operating temperature range. 1 power.pulseelectronics.com SPM2007_63 (02/19) http://www.power.pulseelectronics.com/contact SMT Common Mode Chokes 1.22A to 14.0 A 15K 7.5K 12K 6.0K 6 3 5 4 9K Impedance (Ω) Impedance (Ω) Impedance Curves 1 2 6K 3K 0 7 4.5K 9 8 3.0K 1.5K 100 KHz 1 MHz 10 MHz 0 100 MHz Frequency 100 KHz 1 MHz 10 MHz 100 MHz Frequency Mechanicals Polecat LCCI-50 .500 MAX 12,70 .330 8,38 1 3 1 .500 MAX 12,70 4 2 4X .060 1,52 4X .175 4,45 R 3 2 .410 10,41 4 Suggested Pad Layout .215 MAX 5,46 .005/0,13 4 SURFACES .410 10,41 .330 8,38 Schematic Dimensions: .Inches mm Unless otherwise specified, all tolerances are: ±..005 0,13 2 power.pulseelectronics.com 1 3 2 4 SPM2007_63 (02/19) http://www.power.pulseelectronics.com/contact SMT Common Mode Chokes 1.22A to 14.0 A Mechanicals HCCI-68 Big Foot Schematic Dimensions: .Inches mm Unless otherwise specified, all tolerances are: ±..005 0,13 For More Information Pulse Worldwide Headquarters 15255 Innovation Drive Ste 100 San Diego, CA 92128 U.S.A. Tel: 858 674 8100 Fax: 858 674 8262 1 3 2 4 Pulse Europe Pulse Electronics GmbH Am Rottland 12 58540 Meinerzhagen Germany Pulse China Headquarters Pulse Electronics (ShenZhen) CO., LTD D708, Shenzhen Academy of Aerospace Technology, The 10th Keji South Road, Nanshan District, Shenzhen, P.R. China 518057 Pulse North China Room 2704/2705 Super Ocean Finance Ctr. 2067 Yan An Road West Shanghai 200336 China Pulse South Asia 3 Fraser Street 0428 DUO Tower Singapore 189352 Pulse North Asia 1F., No.111 Xiyuan Road Zhongli District Taoyuan City 32057 Taiwan (R.O.C) Tel: 49 2354 777 100 Fax: 49 2354 777 168 Tel: 86 755 33966678 Fax: 86 755 33966700 Tel: 86 21 62787060 Fax: 86 2162786973 Tel: 65 6287 8998 Fax: 65 6280 0080 Tel: 886 3 4356768 Fax: 886 3 4356820 Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may be trademarks or registered trademarks of their respective owners. © Copyright, 2019. Pulse Electronics, Inc. All rights reserved. 3 power.pulseelectronics.com SPM2007_63 (02/19) http://www.power.pulseelectronics.com/contact Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Pulse: P0420 P0420T P0421 P0421T P0422 P0422T P0429 P0429T P0469 P0469T P0473 P0473T P0502T P0527 P0527T P0351 P0351T P0353 P0353T P0354 P0354T P0351NL P0354NLT P0422NLT P0354NL P0429NL P0473NL P0527NL P0422NL P0351NLT P0421NLT P0421NL P0502NLT P0469NL P0502NL P0353NL P0527NLT P0353NLT P0420NL P0420NLT P0429NLT P0469NLT P0473NLT P0355NL P0355NLT
