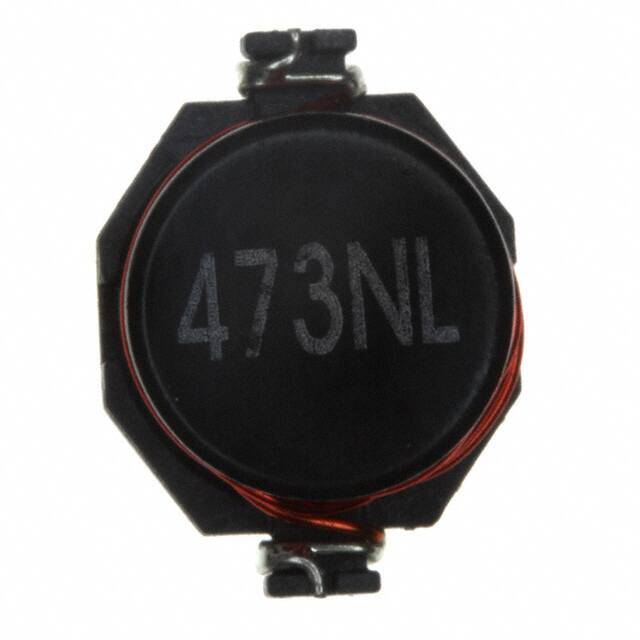

P0751.473NLT

SMT POWER INDUCTORS Unshielded Drum Core - P0751NL/52NL Series Height: 5.5mm Max Footprint: 13.0mm x 9.4mm Max Current Rating: up to 6.8A Inductance Range: 1.0µH to 1000µH Electrical Specifications @ 25°C — Operating Temperature -40°C to +130°C Part 6,7 Number Inductance @ IPK ADC (µH ± 20%) Irated 5 (A) DCR (MAX) (mΩ) Saturation Current (A) @ 25°C Heating Current (A) P0751.102NL P0751.152NL P0751.222NL P0751.332NL P0751.472NL P0751.682NL P0751.103NL P0751.153NL P0751.223NL P0751.333NL P0751.473NL P0751.683NL P0752.104NL P0752.154NL P0752.224NL P0752.334NL P0752.474NL P0752.684NL P0752.105NL 1.0 1.5 2.2 3.3 4.7 6.8 10 15 22 33 47 68 100 150 220 330 470 680 1000 6.8 6.4 6.1 5.4 4.8 4.4 3.8 3.0 2.6 2.0 1.6 1.4 1.2 1.0 0.8 0.6 0.5 0.4 0.3 10 12 15 18 33 44 50 55 114 120 168 240 380 570 840 1020 1460 2170 3300 9.0 8.0 7.0 6.4 5.4 4.6 3.8 3.0 2.6 2.0 1.6 1.4 1.2 1.0 0.8 0.6 0.5 0.4 0.3 6.8 6.4 6.1 5.4 4.8 4.4 3.9 3.1 2.7 2.1 1.8 1.5 1.3 1.0 0.8 0.6 0.5 0.4 0.3 NOTES: 1. The temperature of the component (ambient plus temperature rise) must be within the specified operating temperature range. 2. Inductance tested at 100kHz, 10mVRMS 3. Inductance drop = 10% typical at the saturation current 4. ΔT = 15°C rise typical at the heating current 5. The rated current is the lower of the saturation or heating current 6. Optional Tape & Reel packaging can be ordered by adding a "T" suffix to the part number (i.e. P0751.102NL becomes P0751.102NLT). Pulse complies to industry standard tape and reel specification EIA481. 7. The "NL" suffix indicates an RoHS-compliant part number. Non-NL suffixed parts are not necessarily RoHS compliant, but are electrically and mechanically equivalent to NL versions. If a part number does not have the "NL" suffix, but an RoHS compliant version is required, please contact Pulse for availability. Schematic Mechanical SUGGESTED PAD LAYOUT .110 2,79 XXX .115 2,92 .510 MAX 12,95 1 .290 7,37 .215 5,46 MAX .370 MAX 9,40 2 .004/0,10 .211 5,36 Weight . . . . . . . . 0.8 grams Tape & Reel . . . . . . 800/reel .945 ± .012 24,00 ± 0,30 .520 13,21 TAPE & REEL LAYOUT .380 9,65 .472 12,00 Dimensions: Inches mm Unless otherwise specified, all tolerances are ± .010 0,25 USER DIRECTION OF FEED USA 858 674 8100 • Germany 49 7032 7806 0 • Singapore 65 6287 8998 • Shanghai 86 21 54643211 / 2 • China 86 755 33966678 • Taiwan 886 3 4641811 www.pulseeng.com 18 SPM2007 (11/07)
