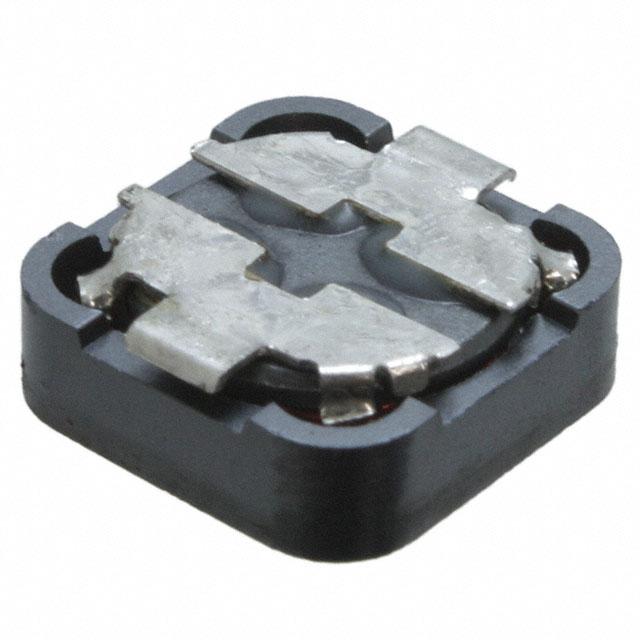

P1169.564NLT

SMT Power Inductors Shielded Drum Core - P1168NL/P1169NL Series Height: 4.5mm Max Footprint: 12.2mm x 12.2mm Max Current Rating: up to 14A Inductance Range: .32µH to 750µH Electrical Specifications @ 25°C - Operating Temperature -40°C to +130°C Part2,3 Numbers Inductance @ 0ADC (µH ±20%) Inductance @ Irated (µH) MIN Irated5 (ADC) DCR (mΩ) TYP MAX Saturation6 Current -25% (A) Heating7 Current +40°C (A) Core Loss8 Factor (K2) SRF (MHz) P1168.501NL P1169.501NL 0.5* 0.32 14 1.9 2.3 18 14 100 >40 P1168.102NL P1169.102NL ** 1.0* 0.65 11 3.0 3.7 14 11 150 >40 P1168.162NL P1169.162NL 1.6* 1.0 8.5 5.4 6.3 10 8.5 180 >40 P1168.242NL P1169.242NL ** 2.4* 1.6 7.5 6.9 8.1 8.1 7.5 220 >40 P1168.332NL 3.3* 2.2 6.4 9.5 11 7.3 6.4 260 >40 P1168.452NL P1169.452NL ** 4.5* 2.9 6.0 11 13 6.4 6.0 310 35 P1168.562NL P1169.562NL 5.6* 3.6 5.5 13 15 5.7 5.5 340 30 P1168.682NL P1169.682NL 6.8* 4.4 4.6 18 22 5.2 4.6 370 27 P1168.103NL P1169.103NL ** 10 7.5 3.6 29 35 4.1 3.6 440 21 P1168.123NL P1169.123NL ** 12 9.0 3.5 32 37 3.8 3.5 490 19 P1168.153NL P1169.153NL ** 15 11.3 3.1 40 47 3.3 3.1 570 17 P1168.183NL P1169.183NL 18 13.5 2.8 48 58 2.9 2.8 590 15 P1168.223NL ** P1169.223NL ** 22 16.5 2.6 55 67 2.7 2.6 640 13 P1168.273NL P1169.273NL ** 27 20.3 2.4 67 79 2.4 2.4 740 12 P1168.333NL ** P1169.333NL ** 33 24.8 2.2 76 94 2.2 2.2 820 11 P1168.393NL ** P1169.393NL ** 39 29.3 1.9 101 126 2.0 1.9 880 10 47 35.3 1.8 112 140 1.9 1.8 980 9.0 P1168.563NL P1169.563NL ** 56 42.0 1.7 129 157 1.7 1.7 1000 8.0 P1168.683NL 68 51.0 1.5 169 202 1.5 1.6 1200 7.0 P1168.823NL P1169.823NL ** 82 61.5 1.4 191 232 1.4 1.5 1300 6.0 P1168.104NL P1169.104NL ** 100 75.0 1.2 222 270 1.2 1.4 1400 6.0 P1168.124NL P1169.124NL ** 120 90.0 1.1 252 316 1.1 1.3 1500 5.5 P1168.154NL P1169.154NL ** 150 113 1.0 346 456 1.0 1.1 1700 4.9 P1168.184NL P1169.184NL ** 180 135 0.90 385 497 0.90 1.1 1900 4.4 P1168.224NL ** P1169.224NL 220 165 0.80 506 681 0.80 0.93 2100 3.7 P1168.274NL ** P1169.274NL ** 270 203 0.70 596 775 0.70 0.85 2300 3.3 330 248 0.66 764 955 0.66 0.75 2600 2.8 390 293 0.62 870 1087 0.62 0.71 2800 2.6 470 353 0.57 1150 1403 0.57 0.61 3100 2.4 P1168.564NL P1169.564NL ** 560 420 0.53 1283 1623 0.53 0.58 3300 2.2 P1168.684NL P1169.684NL ** 680 510 0.50 1493 1824 0.50 0.54 3700 2.1 P1168.824NL ** P1169.824NL ** 820 615 0.44 1924 2355 0.44 0.47 4000 1.7 1000 750 0.40 2174 2850 0.40 0.45 4500 1.5 P1168.473NL P1168.334NL P1169.332NL P1169.473NL P1169.683NL P1169.334NL P1168.394NL ** P1169.394NL ** P1168.474NL P1168.105NL P1169.474NL P1169.105NL ** * Inductance is at 0ADC tolerance on indicated part numbers is ±30%; tolerance is ±20% on all other parts. 1 power.pulseelectronics.com SPM2007_25 (02/19) http://www.power.pulseelectronics.com/contact SMT Power Inductors Shielded Drum Core - P1168NL/P1169NL Series Mechanical Schematic PXXXX.XXXNL Weight .....................0.7 grams Tape & Reel ..............1200/reel Dimensions: .Inches mm Unless otherwise specified, .010 all tolerances are: ±.0,25 Notes: 1. Unless otherwise specified, all testing is made at 100kHz, 0.1VAC. 2. Optional Tape & Reel packaging can be ordered by adding a “T” suffix to the part number (i.e P1166.102NL becomes P1166.102NLT). Pulse complies with industry standard Tape and Tape & Reel specification EIA481. 3. The “NL” suffix indicates an RoHS-compliant part numer. Non-NL suffixed parts are not necessarily RoHS compliant, but are electrically and mechanically equivalent to NL versions. If a part number does not have the “NL” version, but an RoHS compliant version is required, please contact Pulse for availability. 4. Temperature of the component (ambient plus temperature rise) must be within specified operating temperature range. 5. The rated current (Irated) as listed is either the saturation current or the heating current depending on which value is lower. 6. The saturation current, Isat, is the current at which the component inductance drops by the indicated percentage (typical) at an ambient temperature of 25C. This current is determined by placing the component in the specified ambient environment and applying a short duration pulse current (to eliminate self-heating effects) to the component. 7. The heating current, Idc, is the DC current required to raise the component temperature by the indicated delta (approximately). The heating current isdetermined by mounting the component on a typical PCB and applying current for 30 minutes. The temperature is measured by placing the thermocouple on top of the unit under test. 2 power.pulseelectronics.com 8. In high volt*time (Et) or ripple current applications, additional heating in the component can occur due to core losses in the inductor which may necessitate derating the current in order to limit the temperature rise of the component. In order to determine the approximate total loss (or temperature rise) for a given application, both copper losses and core losses should be taken into account. Estimated Temperature Rise: Trise = [Total loss (mW) / K0].833(°C) Total Loss = Copper loss + Core loss (mW) Copper loss = IRMS2 x DCR (Typical) (mW) Irms = [IDC2 + ΔI2 /12]1/2 (A) Core loss = K1 x f (kHz)1.23 x Bac (Ga)2.38 (mW) Bac (peak to peak flux density) = K2 x ΔI (Ga) [= K2/L (µH) x Et (V-µSec) (Ga)] where f varies between 25kHz and 1MHz, and Bac is less than 2500 Gauss. K2 is a core size and winding dependent value and is given for each p/n in the proceeding datasheets. K0 & K1 are platform and material dependant constants and are given in the table below for each platform. ** Contact Pulse for availability SPM2007_25 (02/19) http://www.power.pulseelectronics.com/contact SMT Power Inductors Shielded Drum Core - P1168NL/P1169NL Series Part No. Trise Factor (KO) Core Loss Factor (K1) PG0085/86 2.3 5.29E-10 PG0087 5.8 15.2E-10 PG0040/41 0.8 2.80E-10 P1174 0.8 6.47E-10 PF0601 4.6 14.0E-10 PF0464 3.6 24.7E-10 PF0465 3.6 33.4E-10 P1166 1.9 29.6E-10 P1167 2.1 42.2E-10 PF0560NL 5.5 136E-10 P1168/69 4.8 184E-10 P1170/71 4.3 201E-10 P1172/73 5.6 411E-10 PF0552NL 8.3 201E-10 PF0553NL 7.1 411E-10 Take note that the component’s temperature rise varies depending on the system condition. It is suggested that the component be tested at the system level, to verify the temperature rise of the component during system operation. For More Information Pulse Worldwide Headquarters 15255 Innovation Drive Ste 100 San Diego, CA 92128 U.S.A. Tel: 858 674 8100 Fax: 858 674 8262 Pulse Europe Pulse Electronics GmbH Am Rottland 12 58540 Meinerzhagen Germany Pulse China Headquarters Pulse Electronics (ShenZhen) CO., LTD D708, Shenzhen Academy of Aerospace Technology, The 10th Keji South Road, Nanshan District, Shenzhen, P.R. China 518057 Pulse North China Room 2704/2705 Super Ocean Finance Ctr. 2067 Yan An Road West Shanghai 200336 China Pulse South Asia 3 Fraser Street 0428 DUO Tower Singapore 189352 Pulse North Asia 1F., No.111 Xiyuan Road Zhongli District Taoyuan City 32057 Taiwan (R.O.C) Tel: 49 2354 777 100 Fax: 49 2354 777 168 Tel: 86 755 33966678 Fax: 86 755 33966700 Tel: 86 21 62787060 Fax: 86 2162786973 Tel: 65 6287 8998 Fax: 65 6280 0080 Tel: 886 3 4356768 Fax: 886 3 4356820 Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may be trademarks or registered trademarks of their respective owners. © Copyright, 2019. Pulse Electronics, Inc. All rights reserved. 3 power.pulseelectronics.com SPM2007_25 (02/19) http://www.power.pulseelectronics.com/contact
