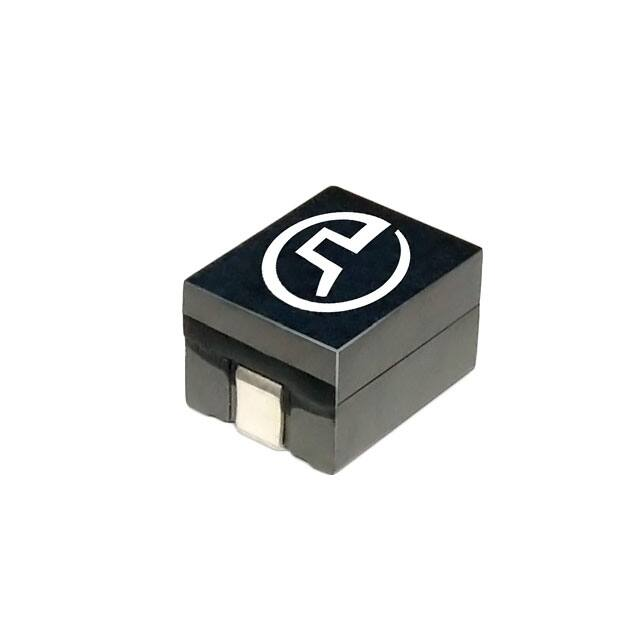

SMT Power Inductors Power Beads - PA2202.XXXNL Series Current Rating: Over 75Apk Inductance Range: 120nH to 360nH Height: 6.0mm Max Footprint: 12.1mm x 10.0mm Max Electrical Specifications @ 25°C — Operating Temperature -40°C to +130°C 7 Part Number Inductance @0ADC (nH ±15%) Inductance @Irated (nH TYP) Irated 1 (ADC) PA2202.121NL PA2202.181NL PA2202.211NL PA2202.231NL PA2202.321NL PA2202.361NL 120 180 215 230 325 365 120 180 215 230 282 315 36 36 36 36 31 27 Inductance @Isat (nH TYP) Inductance @Isat (nH MIN) 25°C 100°C 0.48 ± 6.5% 96 144 172 184 260 292 78 117 140 150 211 237 84 64 53 47 34 30 75 52 47 44 31 27 NOTES: 1. The rated current as listed is either the saturation current or the heating current depending on which value is lower. 2. The nominal DCR is measured from point a to point b , as shown below on the mechanical drawing. 3. The saturation current is the typical current which causes the inductance to drop by 20% at the stated ambient temperatures (25°C and 100°C). Inductance at Isat is the minimum inductance when measured at Isat (25°C and 100°C).This current is determined by placing the component in the specified ambient environment and applying a short duration pulse current (to eliminate selfheating effects) to the component. 4. The heating current is the DC current which causes the part temperature to increase by approximately 40°C. This current is determined by soldering the component on a typical application PCB, and then applying the current to the device for 30 minutes. PA2202.XXXNL Saturation Current 3 (A TYP) DCR 2 (mΩ) Heating 4 Current (A TYP) 36 5. In high volt*time applications, additional heating in the component can occur due to core losses in the inductor which may neccessitate derating the current in order to limit the temperature rise of the component. To determine the approximate total losses (or temperature rise) for a given application, the coreloss and temperature rise curves can be used. 6. Optional Tape & Reel packaging can be ordered by adding a “T” suffix to the part number (i.e. PA2202.121NL becomes PA2202.121NLT). Pulse complies to industry standard tape and reel specification EIA481. 7. The temperature of the component (ambient plus temperature rise) must be within the stated operating temperature range. Mechanical Schematic       Weight . . . . . . . . . . . . . . . . . . . . 2.7 grams Tape & Reel . . . . . . . . . . . . . . . . . 600/reel 1 Dimensions: Inches mm Unless otherwise specified, all tolerances are ± .010 0,25 pulseelectronics.com           P664.E (02/13) SMT Power Inductors Power Beads - PA2202.XXXNL Series „… †‡ˆ  ­ƒ€’ … ‰  ­ƒ’   ­ƒ’ ­’  ­‚’  ­’                        †  „… †‡ˆ  ­ƒ€’ … ‰  ­ƒ’   ­ƒ’ ­’  ­‚’  ­’              Ž‰Œ    € Ž‰Œ  ‘ Ž‰Œ ƒ Ž‰Œ   Ž‰Œ  ­ ‹‰Œ  Ž‰Œ         † Š† ­ƒ ‰     †       ­€ ­‚ƒƒ                             
     For More Information Pulse Worldwide Headquarters 12220 World Trade Drive San Diego, CA 92128 U.S.A. Pulse Europe Einsteinstrasse 1 D-71083 Herrenberg Germany Pulse China Headquarters Pulse North China Pulse South Asia Pulse North Asia B402, Shenzhen Academy of Room 2704/2705 135 Joo Seng Road 3F, No. 198 Aerospace Technology Bldg. Super Ocean Finance Ctr. #03-02 Zhongyuan Road 10th Kejinan Road 2067 Yan An Road West PM Industrial Bldg. Zhongli City High-Tech Zone Shanghai 200336 Singapore 368363 Taoyuan County 320 Nanshan District China Taiwan R. O. C. Shenzen, PR China 518057 Tel: 886 3 4356768 Tel: 858 674 8100 Tel: 49 7032 7806 0 Tel: 86 755 33966678 Tel: 86 21 62787060 Tel: 65 6287 8998 Fax: 886 3 4356823 (Pulse) Fax: 858 674 8262 Fax: 49 7032 7806 135 Fax: 86 755 33966700 Fax: 86 2162786973 Fax: 65 6287 8998 Fax: 886 3 4356820 (FRE) Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may be trademarks or registered trademarks of their respective owners. © Copyright, 2013. Pulse Electronics, Inc. All rights reserved. 2 pulseelectronics.com P664.E (02/13)
