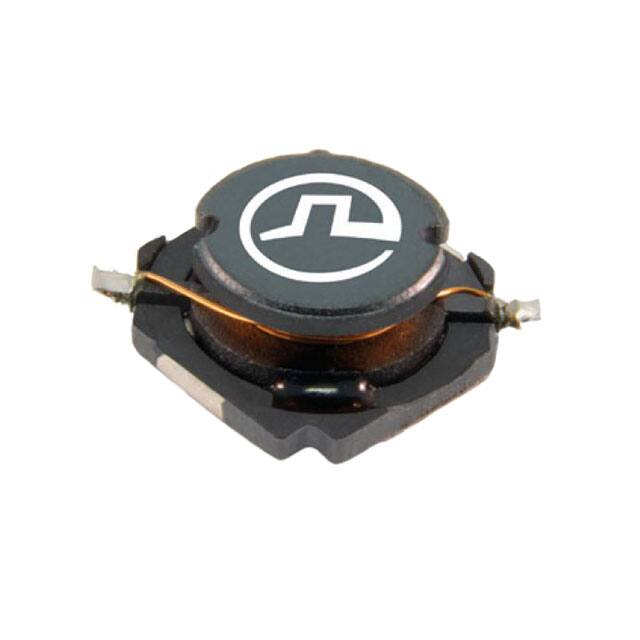

PA4306.103NLT

Unshielded Drum Core Inductor PA4306.XXXNL, PA4307.XXXNL & PA4308.XXXNL Series Height: 3.1mm (PA4306), 3.5mm (PA4307) and 4.8mm (PA4308) Max Footprint: 7.3 x 7.3 mm Max Current Rating: 0.22A to 12A Inductance Range: 1uH to 1000uH Electrical Specifications @ 25°C — Operating Temperature -40°C to 125°C Pulse Part Number PA4306.102NLT PA4306.152NLT PA4306.222NLT PA4306.332NLT PA4306.472NLT PA4306.562NLT PA4306.682NLT PA4306.822NLT PA4306.103NLT PA4306.153NLT PA4306.223NLT PA4306.333NLT PA4306.473NLT PA4306.563NLT PA4306.683NLT PA4306.823NLT PA4306.104NLT PA4306.124NLT PA4306.154NLT PA4306.184NLT PA4306.224NLT PA4306.274NLT PA4306.334NLT PA4306.394NLT PA4306.474NLT PA4306.564NLT PA4306.684NLT PA4306.824NLT PA4306.105NLT 1 Inductance (uH)1,2 1.0 1.5 2.2 3.3 4.7 5.6 6.8 8.2 10 15 22 33 47 56 68 82 100 120 150 180 220 270 330 390 470 560 680 820 1000 power.pulseelectronics.com Rated Current (A) Max 3 5.9 5.7 5 4 3.3 3 2.7 2.4 2.1 1.8 1.5 1.2 1 0.95 0.82 0.8 0.75 0.63 0.6 0.52 0.44 0.42 0.4 0.36 0.35 0.3 0.28 0.25 0.22 P756. C (09/19) DC Resistance (mΩ) Max 33 35 45 60 72 85 120 130 140 208 286 470 640 810 975 1053 1210 1690 1820 2340 2700 4030 4680 5070 5720 6630 8580 11800 14950 Package Size (mm) 7.3 x 7.3 x 3.1mm Max http://www.power.pulseelectronics.com/contact Unshielded Drum Core Inductor PA4306.XXXNL, PA4307.XXXNL & PA4308.XXXNL Series Electrical Specifications @ 25°C — Operating Temperature -40°C to 125°C Pulse Part Number PA4307.102NLT PA4307.152NLT PA4307.222NLT PA4307.332NLT PA4307.472NLT PA4307.562NLT PA4307.682NLT PA4307.822NLT PA4307.103NLT PA4307.153NLT PA4307.223NLT PA4307.333NLT PA4307.473NLT PA4307.563NLT PA4307.683NLT PA4307.823NLT PA4307.104NLT PA4307.124NLT PA4307.154NLT PA4307.184NLT PA4307.224NLT PA4307.274NLT PA4307.334NLT PA4307.394NLT PA4307.474NLT PA4307.564NLT PA4307.684NLT PA4307.824NLT PA4307.105NLT 2 Inductance (uH) 1.0 1.5 2.2 3.3 4.7 5.6 6.8 8.2 10 15 22 33 47 56 68 82 100 120 150 180 220 270 330 390 470 560 680 820 1000 1,2 power.pulseelectronics.com Rated Current (A) Max 7.5 7.3 6.8 5.4 4.6 4 3.8 3.4 2.8 2.5 2 1.8 1.5 1.3 1.2 1.1 1 0.9 0.8 0.75 0.63 0.6 0.55 0.5 0.44 0.4 0.35 0.32 0.3 3 P756. C (09/19) DC Resistance (mΩ) Max 30 38 42 60 70 85 95 130 140 285 345 425 587 610 850 1066 1243 1620 1755 2025 2700 2835 3780 4825 5400 7290 9585 10820 12295 Package Size (mm) 7.3 x 7.3 x 3.5mm Max http://www.power.pulseelectronics.com/contact Unshielded Drum Core Inductor PA4306.XXXNL, PA4307.XXXNL & PA4308.XXXNL Series Electrical Specifications @ 25°C — Operating Temperature -40°C to 125°C Inductance (uH)1,2 1.0 1.5 2.2 3.3 4.7 5.6 6.8 8.2 10 15 22 33 47 56 68 82 100 120 150 180 220 270 330 390 470 560 680 820 1000 Pulse Part Number PA4308.102NLT PA4308.152NLT PA4308.222NLT PA4308.332NLT PA4308.472NLT PA4308.562NLT PA4308.682NLT PA4308.822NLT PA4308.103NLT PA4308.153NLT PA4308.223NLT PA4308.333NLT PA4308.473NLT PA4308.563NLT PA4308.683NLT PA4308.823NLT PA4308.104NLT PA4308.124NLT PA4308.154NLT PA4308.184NLT PA4308.224NLT PA4308.274NLT PA4308.334NLT PA4308.394NLT PA4308.474NLT PA4308.564NLT PA4308.684NLT PA4308.824NLT PA4308.105NLT Rated Current (A) Max 3 12 11 9 7.5 6 5.5 5.2 4.8 4.3 3.4 2.9 2.3 1.9 1.75 1.6 1.4 1.3 1.23 1.1 1 0.92 0.8 0.7 0.65 0.57 0.53 0.48 0.42 0.36 NOTES: 1. Inductance tolerance is +/-30% for inductance values between 1uH and 8.2uH and +/-20% for values between 10uH and 680uH. 2. Inductance is measured at 100kHz, 250mV 3. The rated current as listed is the rms or heating current that the part can withstand with acceptable temperature rise in typical applications. At the listed current the inductance typically drops to 85%-90% of the no load value when measured at 25�C. The inductance is guaranteed to be greater than 65% of the no load inductance value when measured at 25�C. 3 power.pulseelectronics.com DC Resistance (mΩ) Max 35 38 42 50 65 70 84 97 125 158 225 358 486 545 660 885 1120 1485 1647 1863 2450 2995 3888 4250 5610 7830 10760 12217 17550 Package Size (mm) 7.3 x 7.3 x 4.8mm Max 4. The temperature of the component (ambient plus temperature rise) must be within the stated operating temperature. 5. Parts come in tape and reel packaging. Pulse complies with industry standard tape and reel specification EIA481. The tape and reel for this product has a width (W=16mm) and pitch (P=12mm). P756. C (09/19) http://www.power.pulseelectronics.com/contact Unshielded Drum Core Inductor PA4306.XXXNL, PA4307.XXXNL & PA4308.XXXNL Series Mechanical PA43XX.XXXNLT 7.3mm Max 7.3MAX C (2.0) C (2.4) (1.8) [4.0] [1.8] 7.3mm Max (4.0) (7.0) [2.4] 7.3MAX [3.8] [1.8] (3.0) (1.8) [2.0] [1.5] PA4306.XXXNLT - C Dimension is 3.1mm Max PA4307.XXXNLT – C Dimension is 3.5mm Max PA4308.XXXNLT – C Dimenison is 4.8mm Max For More Information Pulse Worldwide Headquarters 15255 Innovation Drive Ste 100 San Diego, CA 92128 U.S.A. Tel: 858 674 8100 Fax: 858 674 8262 Weight ......................0.266 grams (PA4306) .......................0.314 grams (PA4307) .......................0.44 grams (PA4308) Tape & Reel ..................1000/reel Pulse Europe Pulse Electronics GmbH Am Rottland 12 58540 Meinerzhagen Germany Pulse China Headquarters Pulse Electronics (ShenZhen) CO., LTD D708, Shenzhen Academy of Aerospace Technology, The 10th Keji South Road, Nanshan District, Shenzhen, P.R. China 518057 Pulse North China Room 2704/2705 Super Ocean Finance Ctr. 2067 Yan An Road West Shanghai 200336 China Pulse South Asia 3 Fraser Street 0428 DUO Tower Singapore 189352 Pulse North Asia 1F., No.111 Xiyuan Road Zhongli District Taoyuan City 32057 Taiwan (R.O.C) Tel: 49 2354 777 100 Fax: 49 2354 777 168 Tel: 86 755 33966678 Fax: 86 755 33966700 Tel: 86 21 62787060 Fax: 86 2162786973 Tel: 65 6287 8998 Fax: 65 6280 0080 Tel: 886 3 4356768 Fax: 886 3 4356820 Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may be trademarks or registered trademarks of their respective owners. © Copyright, 2019. Pulse Electronics, Inc. All rights reserved. 4 power.pulseelectronics.com P756. C (09/19) http://www.power.pulseelectronics.com/contact
