PA4310.105NLT

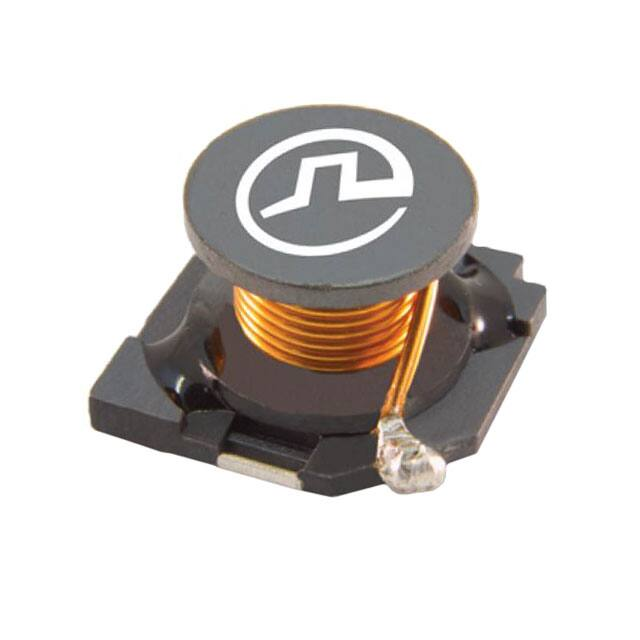

Pulse Jack Unshielded Drum Core Inductor PA4309.XXXNL & PA4310.XXXNL Series Electronics Height: 7.0mm (PA4309) and 8.0mm (PA4310) Max Footprint: 12.8 x 12.8 mm Max Current Rating: 1A to 20A Inductance Range: 1uH to 1000uH Electrical Specifications @ 25°C — Operating Temperature -40°C to 125°C Pulse Part Number PA4309.102NLT PA4309.152NLT PA4309.222NLT PA4309.332NLT PA4309.472NLT PA4309.562NLT PA4309.682NLT PA4309.822NLT PA4309.103NLT PA4309.153NLT PA4309.223NLT PA4309.333NLT PA4309.473NLT PA4309.563NLT PA4309.683NLT PA4309.823NLT PA4309.104NLT PA4309.124NLT PA4309.154NLT PA4309.184NLT PA4309.224NLT PA4309.274NLT PA4309.334NLT PA4309.394NLT PA4309.474NLT PA4309.564NLT PA4309.684NLT PA4309.824NLT PA4309.105NLT 1 Inductance (uH)1,2 1.0 1.5 2.2 3.3 4.7 5.6 6.8 8.2 10 15 22 33 47 56 68 82 100 120 150 180 220 270 330 390 470 560 680 820 1000 pulseelectronics.com Rated Current (A) Max 3 20 20 20 19 15 14.5 13.5 11.5 11 9.3 7.5 6.2 5.2 4.6 4.2 3.9 3.5 3.2 2.8 2.6 2.3 2.12 1.9 1.75 1.6 1.45 1.32 1.2 1.08 DC Resistance (mΩ) Max 19 22 27 30 38 40 42 48 52 68 98 135 182 236 298 326 405 452 605 735 885 985 1215 1485 1755 2241 2565 3510 3915 Package Size (mm) 12.8 x 12.8 x 7.0mm Max P757.A (02/15) Pulse Jack Unshielded Drum Core Inductor PA4309.XXXNL & PA4310.XXXNL Series Electronics Electrical Specifications @ 25°C — Operating Temperature -40°C to 125°C Pulse Part Number PA4310.102NLT PA4310.152NLT PA4310.222NLT PA4310.332NLT PA4310.472NLT PA4310.562NLT PA4310.682NLT PA4310.822NLT PA4310.103NLT PA4310.153NLT PA4310.223NLT PA4310.333NLT PA4310.473NLT PA4310.563NLT PA4310.683NLT PA4310.823NLT PA4310.104NLT PA4310.124NLT PA4310.154NLT PA4310.184NLT PA4310.224NLT PA4310.274NLT PA4310.334NLT PA4310.394NLT PA4310.474NLT PA4310.564NLT PA4310.684NLT PA4310.824NLT PA4310.105NLT Inductance (uH) 1 1.5 2.2 3.3 4.7 5.6 6.8 8.2 10 15 22 33 47 56 68 82 100 120 150 180 220 270 330 390 470 560 680 820 1000 Rated Current (A) Max 20 20 20 20 17 16 14 13 12 9 7 6.5 5 4.8 4.3 4 3.5 3.2 3 2.7 2.5 2.1 1.8 1.7 1.6 1.5 1.4 1.2 1.1 NOTES: 1. Inductance tolerance is +/-30% for inductance values between 1uH and 8.2uH and +/-20% for values between 10uH and 680uH. 2. Inductance is measured at 100kHz, 250mV 3. The rated current as listed is the rms or heating current that the part can withstand with acceptable temperature rise in typical applications. At the listed current the inductance typically drops to 85%-90% of the no load value when measured at 25�C. The inductance is guaranteed to be greater than 65% of the no load inductance value when measured at 25�C. 2 pulseelectronics.com DC Resistance (mΩ) Max 16 18 20 26 28 30 32 36 37 63 82 109 160 191 225 285 310 380 430 570 660 830 941 1170 1430 1680 1999 2630 3600 Package Size (mm) 12.8 x 12.8 x 8.0mm Max 4. The temperature of the component (ambient plus temperature rise) must be within the stated operating temperature. 5. Parts come in tape and reel packaging. Pulse complies with industry standard tape and reel specification EIA481. The tape and reel for this product has a width (W=24mm) and pitch (P=16mm). P757.A (02/15) Pulse Jack Unshielded Drum Core Inductor PA4309.XXXNL & PA4310.XXXNL Series Electronics Mechanical PA43XX.XXXNLT 12.8MAX C [3.4] [3.0] [2.4] 5 12.8MAX [8.5] [2.0] [8.2] [2.4] PA4309.XXXNL – C dimension is 7.0mm Max PA4310.XXXNL – C dimensin is 8.0mm Max Weight ......................PA4309 (2.03 grams), PA4310 (2.39 grams) Tape & Reel ................1500/reel For More Information Pulse Worldwide Headquarters 12220 World Trade Drive San Diego, CA 92128 U.S.A. Pulse Europe Zeppelinstrasse 15 71083 Herrenberg Germany Pulse China Headquarters Pulse North China Pulse South Asia Pulse North Asia B402, Shenzhen Academy of Room 2704/2705 135 Joo Seng Road 3F, No. 198 Aerospace Technology Bldg. Super Ocean Finance Ctr. #03-02 Zhongyuan Road 10th Kejinan Road 2067 Yan An Road West PM Industrial Bldg. Zhongli City High-Tech Zone Shanghai 200336 Singapore 368363 Taoyuan County 320 Nanshan District China Taiwan R. O. C. Shenzhen, PR China 518057 Tel: 886 3 4356768 Tel: 858 674 8100 Tel: 49 7032 7806 0 Tel: 86 755 33966678 Tel: 86 21 62787060 Tel: 65 6287 8998 Fax: 886 3 4356823 (Pulse) Fax: 858 674 8262 Fax: 49 7032 7806 12 Fax: 86 755 33966700 Fax: 86 2162786973 Fax: 65 6287 8998 Fax: 886 3 4356820 (FRE) Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may be trademarks or registered trademarks of their respective owners. © Copyright, 2015. Pulse Electronics, Inc. All rights reserved. 3 pulseelectronics.com P757.A (02/15)
