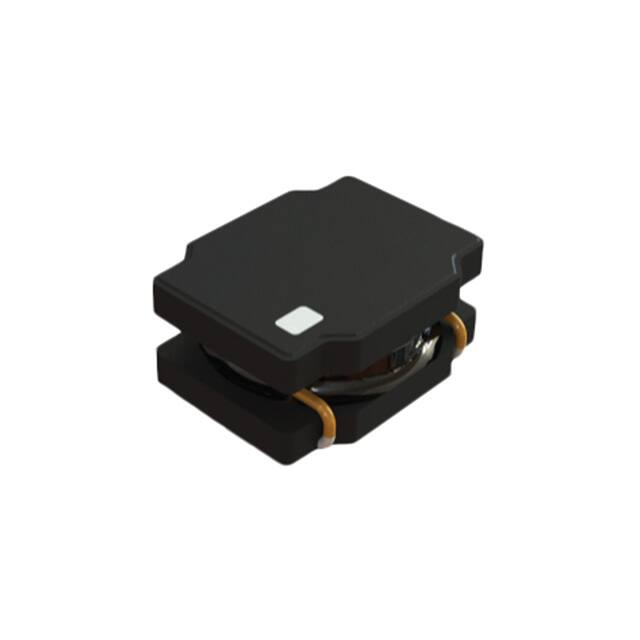

SMT Power Inductor Shielded Drum Core - PA4335.XXXNLT Series Height: 1.2mm Max Footprint: 2.7mm x 2.2mm Max Current Rating: up to 4.05A Inductance Range: 0.24uH to 10uH Shielded magnetic circuit reduces leakage flux, Fe base metal core enables high saturation and metalized core termination results in excellent shock resistance. Electrical Specifications @ 25°C - Operating Temperature -40°C to +125°C Part Number PA4335.241NLT PA4335.331NLT PA4335.471NLT PA4335.681NLT PA4335.102NLT PA4335.152NLT PA4335.222NLT PA4335.222YNLT PA4335.332NLT PA4335.472NLT PA4335.682NLT PA4335.103NLT Inductance 1MHz, 1V Rated Current Min. Self-Resonant Frequency uH ±20% 0.24±20% 0.33±20% 0.47±20% 0.68±20% 1.0±20% 1.5±20% 2.2±20% 2.2±20% 3.3±20% 4.7±20% 6.8±20% 10±20% A 4.05 3.70 3.45 3.15 3.00 2.40 1.90 2.10 1.7 1.25 0.95 0.85 MHz 117 104 89 67 52 38 32 36 25 23 16 14 Notes: 1. Actual temperature of the component during system operation (ambient plus temperature rise) must be within the standard operating range. 2. The rated current as listed is either the saturation current (@ 20°C) or the heating current (∆ T ~ 40°C) depending on which value is lower. 3. The saturation current is the current at which the initial inductance drops approximately 30% at the stated ambient temperature. This current is determined by placing the component in the specified ambient environment and applying a short duration pulse current (to eliminate self-heating effect) to the component. USA 858 674 8100 Germany 49 7032 7806 0 1 Singapore 65 6287 8998 pulseelectronics.com DC Resistance MAX. mΩ 23 28 35 43 54 72 120 102 163 260 366 480 Heating Current TYP. Saturation Current (20�C) ∆ T ≈ 40�C mΩ 19 23 29 36 48 60 100 85 136 225 305 435 A 6.50 5.00 4.70 3.50 3.60 2.90 2.60 2.30 1.70 1.60 1.15 1.10 A 4.05 3.70 3.45 3.15 3.00 2.40 1.90 2.10 1.80 1.25 0.95 0.85 4. The heating current is the DC current required to raise the component temperature by approximately 40°C. Take note that the components’ performance varies depending on the system condition. It is suggested that the component be tested at the system level, to verify the temperature rise of the component during system operation. 5. Maximum voltage across terminals to be limited to
