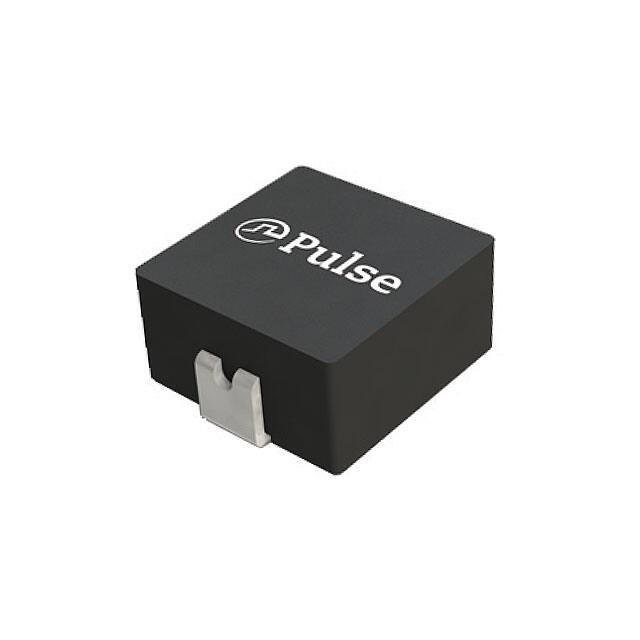

SMT Power Inductors Molded Power Inductor - PA4340.XXXNLT AND PM4340.XXXNLT Series POWER PRODUCTS IA Height: 3.0mm Max Footprint: 6.0mm x 5.4mm Max Current Rating: up to 23A Inductance Range: 0.10uH to 33uH Shielded construction and compact design High current, low DCR, and high efficiency Minimized acoustic noise and minimized leakage flux 200Vdc Isolation between terminal and core T F 169 4 9 Electrical Specifications @ 25°C - Operating Temperature -55°C to +125°C Automotive Commercial 6,7 6,7 DC Resistance Inductance5 100KHz, 1V Rated3 Current TYP. MAX. Saturation2 Current uH±20% A mΩ mΩ A PA4340.101NLT PM4340.101NLT 0.10* 23 2.5 3.0 27 PA4340.151NLT PM4340.151NLT 0.15* 18 2.3 2.7 30 PA4340.201NLT PM4340.201NLT 0.20* 16 2.6 3.2 25 PA4340.221NLT PM4340.221NLT 0.22* 15.5 3.7 4.4 21 PA4340.331NLT PM4340.331NLT 0.33 14 4.3 5.0 18 PA4340.471NLT PM4340.471NLT 0.47 12 6.4 7.4 16 PA4340.561NLT PM4340.561NLT 0.56 10 8.0 10 15 PA4340.681NLT PM4340.681NLT 0.68 8.5 10 12 14 PA4340.821NLT PM4340.821NLT 0.82 8.0 11.5 13 12.5 PA4340.102NLT PM4340.102NLT 1.0 7.0 13 14 11 PA4340.122NLT PM4340.122NLT 1.2 6.5 14 16 11 PA4340.152NLT PM4340.152NLT 1.5 6.0 16 25 10 PA4340.222NLT PM4340.222NLT 2.2 5.5 25 35 9.0 PA4340.332NLT PM4340.332NLT 3.3 5.0 32 38 8.0 PA4340.362NLT PA4340.362NLT 3.6 4.9 46 54 7.0 PA4340.472NLT PM4340.472NLT 4.7 4.6 50 53 6.0 PA4340.562NLT PM4340.562NLT 5.6 4.25 55 63 4.5 PA4340.682NLT PM4340.682NLT 6.8 4.0 68 76.2 4.3 PA4340.103NLT PM4340.103NLT 10 2.75 110 128 3.5 PA4340.153NLT PM4340.153NLT 15 2.1 165 190 2.6 PA4340.183NLT PM4340.183NLT 18 2.0 195 230 2.3 PA4340.223NLT PM4340.223NLT 22 1.9 220 250 1.7 PA4340.333NLT PM4340.333NLT 33 1.6 380 440 1.6 1 Power.PulseElectronics.com P767.M (06/20) SMT Power Inductors Molded Power Inductor - PA4340.XXXNLT AND PM4340.XXXNLT Series Notes: 1. Actual temperature of the component during system operation (ambient plus temperature rise) must be within the standard operating range. 2. The saturation current is the current at which the initial inductance drops approximately 30% at the stated ambient temperature. This current is determined by placing the compnent in the specified ambient environment and applying a short duration pulse current (to eliminate self-heating effect) to the component. 3. The rated current is the DC current required to raise the component temperature by approximately 40�C. Take note that the components’ performanc varies depending on the system condition. It is suggested that the component be tested at the system level, to verify the temperature rise of the component during system operation. 4. The part temperature (ambient+temp rise) should not exceed 125�C under worst case operating conditions. Circuit design, PCB trace size and thickness, airflow and other cooling provisions all affect the part temperature. Part temperature should be verified in the end application. POWER PRODUCTS 5. Please note that the inductance tolerance of all parts are +/-20% except those indicated with a * which are +/-30%. Parts shown in bold are standard catalog parts and are available through sample stock and distribution. Parts in lighter font are available but are not necessarily held in sample stock or distribution and lead times may be longer. Please contact Pulse for availablity. Both the PA and PM part numbers are AEC-Q200 qualified parts. The PM part numbers have full automotive IATF16949 certification. The PM part number dimensions are 100% tested in production but do not necessarily meet a product capability index (Cpk)> 1.33 and therefore may not strictly conform to PPAP. Special characteristics 6. 7. 8. Mechanical PA4340/ PM4340 Final Layout Series PA4340/PM4340 A 6.0 MAX B 5.4 MAX SUGGESTED PAD LAYOUT C 3.0 MAX D (1.5) E 3.5 MAX F (1.8) G (2.0) H (2.5) All Dimensions in mm. TAPE & REEL INFO Marking Marking K0 A W P1 G Direction of tape SURFACE MOUNTING TYPE, REEL/TAPE LIST PA4340/PM4340 2 REEL SIZE (mm) A G P1 Ø330 8 Power.PulseElectronics.com 12 TAPE SIZE (mm) W K0 12 3.3 QTY PCS/REEL 2000 P767.M (06/20) SMT Power Inductors Molded Power Inductor - PA4340.XXXNLT AND PM4340.XXXNLT Series POWER PRODUCTS Typical Performance Curves PA4340.XXXNLT 3 PA4340.101NLT PA4340.151NLT PA4340.201NLT PA4340.251NLT PA4340.331NLT PA4340.471NLT PA4340.561NLT PA4340.681NLT PA4340.821NLT PA4340.102NLT PA4340.122NLT PA4340.152NLT PA4340.222NLT PA4340.332NLT PA4340.362NLT Power.PulseElectronics.com P767.M (06/20) SMT Power Inductors Molded Power Inductor - PA4340.XXXNLT AND PM4340.XXXNLT Series POWER PRODUCTS PA4340.472NLT PA4340.562NLT PA4340.682NLT PA4340.103NLT PA4340.153NLT PA4340.183NLT PA4340.223NLT PA4340.333NLT For More Information: Americas - prodinfo_power@pulseelectronics.com | Europe - power-apps-europe@pulseelectronics.com | Asia - power-apps-asia@pulseelectronics.com Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may be trademarks or registered trademarks of their respective owners. © Copyright, 2020. Pulse Electronics, Inc. All rights reserved. 4 Power.PulseElectronics.com P767.M (06/20) POWER PRODUCTS
