PA4344.102ANLT

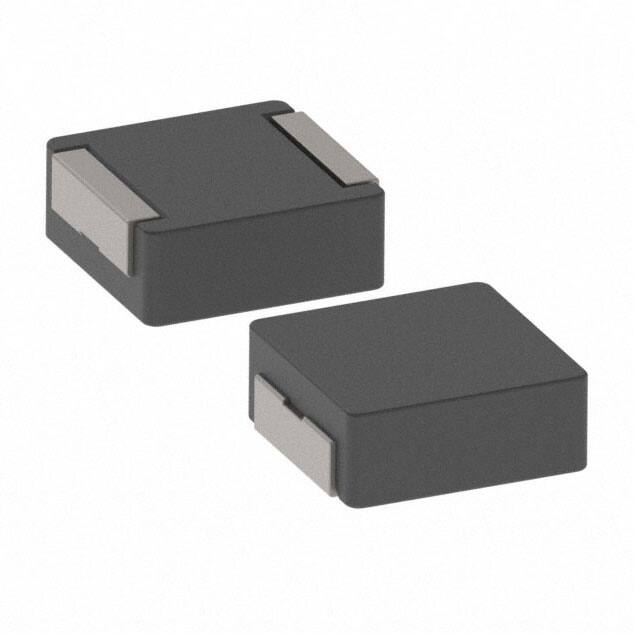

SMT Power Inductor High Current Molded Power Inductor - PA4344.XXXANLT Series Height: 7.0mm Max Footprint: 18.3mm x 17.2mm Max Current Rating: up to 60.0A Inductance Range: 0.47uH to 82uH Shielded construction and compact design High current, low DCR, and high efficiency Minimized acoustic noise and minimized leakage flux Electrical Specifications @ 25°C - Operating Temperature -55°C to +155°C DC Resistance Inductance 100KHz, 1V Rated Current MAX. TYP. Saturation Current Max. uH±20% 0.47 A 60.0 mΩ 0.9 mΩ 0.7 A 110.0 PA4344.561ANLT 0.56 56.0 0.97 0.81 80.0 PA4344.102ANLT PA4344.152ANLT PA4344.182ANLT PA4344.222ANLT PA4344.332ANLT PA4344.472ANLT PA4344.682ANLT PA4344.103ANLT PA4344.153ANLT PA4344.223ANLT PA4344.333ANLT PA4344.473ANLT PA4344.823ANLT 1.00 1.50 1.80 2.20 3.30 4.70 6.80 10.0 15.0 22.0 33.0 47.0 82.0 52.0 39.0 35.0 32.0 30.0 28.0 24.0 21.0 16.0 13.5 12.0 9.5 6.5 1.2 1.8 2.0 2.2 3.3 4.5 7.2 10.6 15.5 24.0 37.0 47.0 83.0 1.03 1.5 1.7 1.8 2.7 3.7 6.0 9.2 12.8 20.5 32.0 40.0 69.0 50.0 46.0 40.0 35.0 32.0 29.0 25.0 22.0 16.0 13.5 12.0 9.5 8.0 Part Number PA4344.471ANLT 1 power.pulseelectronics.com P796.C (09/17) http://www.power.pulseelectronics.com/contact SMT Power Inductor High Current Molded Power Inductor - PA4344.XXXANLT Series Notes: 1. Actual temperature of the component during system operation (ambient plus tempera- 3. The rated current is the DC current required to raise the component temperature by ture rise) must be within the standard operating range. approximately 40�C. Take note that the components’ performanc varies depending on the 2. The saturation current is the current at which the initial inductance drops approxisystem condition. It is suggested that the component be tested at the system level, to mately 30% at the stated ambient temperature. This current is determined by placing verify the temperature rise of the component during system operation. the component in the specified ambient environment and applying a short duration 4. The part temperature (ambient+temp rise) should not exceed 155�C under worst case pulse current (to eliminate self-heating effect) to the component. operating conditions. Circuit design, PCB trace size and thickness, airflow and other cooling provisions all affect the part temperature. Part temperature should be verified in the end application. Mechanical PA4344.XXXNLT Final Layout SUGGESTED PAD LAYOUT Series A B C D E F G H PA4344.XXXANLT 17.8±0.5 16.9±0.3 6.7±0.3 (11.9) (13.1) (12.5) (3.15) (12.2) All Dimensions in mm. TAPE & REEL INFO SURFACE MOUNTING TYPE, REEL/TAPE LIST REEL SIZE (mm) PA4344.XXXANLT 2 TAPE SIZE (mm) QTY A G N E F D0 P1 P0 P2 W T K0 PCS/REEL Ø330 32.4 100 1.75 14.2 1.5 24 4 2 32 0.5 7.5 300 power.pulseelectronics.com P796.C (09/17) http://www.power.pulseelectronics.com/contact SMT Power Inductor High Current Molded Power Inductor - PA4344.XXXANLT Series Typical Performance Curves                                                                                      3   power.pulseelectronics.com                     P796.C (09/17)                       http://www.power.pulseelectronics.com/contact SMT Power Inductor High Current Molded Power Inductor - PA4344.XXXANLT Series                                                                                                   4    power.pulseelectronics.com                P796.C (09/17)                    http://www.power.pulseelectronics.com/contact SMT Power Inductor High Current Molded Power Inductor - PA4344.XXXANLT Series                                                               For More Information Pulse Worldwide Pulse Europe Headquarters Pulse Electronics GmbH 15255 Innovation Drive Ste 100 Am Rottland 12 San Diego, CA 92128 58540 Meinerzhagen U.S.A. Germany Tel: 858 674 8100 Fax: 858 674 8262 Tel: 49 2354 777 100 Fax: 49 2354 777 168 Pulse China Headquarters Pulse Electronics (ShenZhen) CO., LTD D708, Shenzhen Academy of Aerospace Technology, The 10th Keji South Road, Nanshan District, Shenzhen, P.R. China 518057 Pulse North China Room 2704/2705 Super Ocean Finance Ctr. 2067 Yan An Road West Shanghai 200336 China Pulse South Asia 135 Joo Seng Road #03-02 PM Industrial Bldg. Singapore 368363 Pulse North Asia 1F., No.111 Xiyuan Rd Zhongli City Taoyuan City 32057 Taiwan (R.O.C) Tel: 86 755 33966678 Fax: 86 755 33966700 Tel: 86 21 62787060 Fax: 86 2162786973 Tel: 65 6287 8998 Fax: 65 6280 0080 Tel: 886 3 4356768 Fax: 886 3 4356820 Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may be trademarks or registered trademarks of their respective owners. © Copyright, 2017. Pulse Electronics, Inc. All rights reserved. 5 power.pulseelectronics.com P796.C (09/17) http://www.power.pulseelectronics.com/contact
