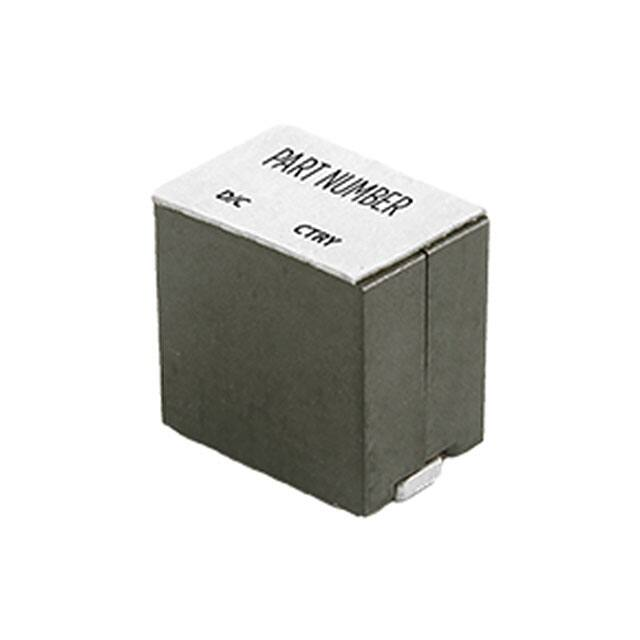

PA4390.151HLT

Pulse Jack SMT Power Inductors Power Beads - PA4390.XXXHLT Series Electronics Current Rating: Over 100Apk Inductance Range: 100nH to 330nH Height: 10.0mm Max Footprint: 10.0mm x 7.0mm Max Halogen Free Inductance1 @ 0ADC (nH +/- 15%) 100 120 150 330 Part Number PA4390.101HLT PA4390.121HLT PA4390.151HLT PA4390.331HLT Electrical Specifications @ 25°C — Operating Temperature -40°C to +130°C 7 Saturation Current 5 Inductance2 3 4 Irated DCR (A TYP) @Irated (ADC) (mΩ nominal) (nH TYP) 25°C 100°C 100 68 113 86 120 68 94 81 0.185+/-10% 150 68 80 75 310 33 43 33 NOTES: 1. Inductance measured at 100kHz, 100mVrms. 2. Inductance at Irated is the value of the inductance at 25°C at the listed rated current. 3. The rated current as listed is either the saturation current (25°C or 100°C) or the heating current depending on which value is lower. 4. The nominal DCR is measured from point a to point b , as shown below on the mechanical drawing. 5. The saturation current is the typical current which causes the inductance to drop by 20% at the stated ambient temperatures (25°C, 100°C ). This current is determined by placing the component in the specified ambient environment and applying a short duration pulse current (to eliminate self-heating effects) to the component. Heating Current6 (A TYP) 125°C 81 78 73 31 68 7. In high volt*time applications, additional heating in the component can occur due to core losses in the inductor which may neccessitate derating the current in order to limit the temperature rise of the component. To determine the approximate total losses (or temperature rise) for a given application, the coreloss and temperature rise curves can be used. 8. Parts with the HLT suffix are sold in tape and reel packaging. Pulse complies to industry standard tape and reel specification EIA-481. The tape and reel for this product has a width (W=24mm), pitch (Po=16mm) and depth (Ko=10.5mm). Samples of these parts can be ordered by removing the HLT suffix and replacing with HL. 9. The temperature of the component (ambient plus temperature rise) must be within the stated operating temperature range. 6. The heating current is the DC current which causes the part temperature to increase by approximately 40°C when used in a typical application. Mechanical Schematic PA4390.XXXHLT PA4390.XXXHL D/C CTRY Weight . . . . . . . . . . 2.74/grams Tape & Reel . . . . . . . . . 300/reel Dimensions: mm Unless otherwise specified, all tolerances are ± 0,25 1 pulseelectronics.com P765.D (06/16) Pulse Jack SMT Power Inductors Power Beads - PA4390.XXXHLT Series Electronics PA4390.XXXHL, LvsI, 25°C 400 Inductance (nH) 350 300 250 200 150 100 50 0 0 10 20 30 40 50 60 70 80 70 80 Current (A) .101HL_25°C .121HL_25°C .151HL_25°C .331HL_25°C PA4390.XXXHL, LvsI, 100°C 400 Inductance (nH) 350 300 250 200 150 100 50 0 0 10 20 30 40 50 60 Current (A) _101HL_100°C .121HL_100°C .151HL_100°C .331HL_100°C PA4390.XXXHL, LvsI, 125°C 400 Inductance (nH) 350 300 250 200 150 100 50 0 0 10 20 30 40 50 60 70 80 Current (A) _101HL_125°C 2 pulseelectronics.com .121HL_125°C .151HL_125°C .331HL_125°C P765.D (06/16) Pulse Jack SMT Power Inductors Power Beads - PA4390.XXXHLT Series Electronics PA4390.XXXHLT CoreLoss PA4390.XXXHLT CoreLoss (W)(W) 0.6 CoreLoss (W) 0.5 0.4 0.3 0.2 0.1 0.0 0 500 1000 1500 2000 2500 3000 DeltaB where DeltaB = .34 * L(nH) * DeltaI PA4390.XXXHL Temp Rise vs Power Dissipation 200kHz 300kHz 400kHz 500kHz 600kHz 700kHz 1.0MHz Temp Rise above Ambient (C) PA4390.XXXHLT Temp Rise vs Power Dissipation 60 50 40 30 20 10 0 0 0.2 0.4 0.6 Power (W) 0.8 1 1.2 Total Power Dissipation (W) = CopperLoss + CoreLoss CopperLoss = Irms^2 * Rdc(mOhms) / 1000 CoreLoss = (from table) For More Information Pulse Worldwide Headquarters 12220 World Trade Drive San Diego, CA 92128 U.S.A. Pulse Europe Pulse Electronics GmbH Am Rottland 12 58540 Meinerzhagen Germany Pulse China Headquarters Pulse North China Pulse South Asia Pulse North Asia B402, Shenzhen Academy of Room 2704/2705 135 Joo Seng Road 3F, No. 198 Aerospace Technology Bldg. Super Ocean Finance Ctr. #03-02 Zhongyuan Road 10th Kejinan Road 2067 Yan An Road West PM Industrial Bldg. Zhongli City High-Tech Zone Shanghai 200336 Singapore 368363 Taoyuan County 320 Nanshan District China Taiwan R. O. C. Shenzhen, PR China 518057 Tel: 886 3 4356768 Tel: 858 674 8100 Tel: 49 2354 777 100 Tel: 86 755 33966678 Tel: 86 21 62787060 Tel: 65 6287 8998 Fax: 886 3 4356823 (Pulse) Fax: 858 674 8262 Fax: 49 2354 777 168 Fax: 86 755 33966700 Fax: 86 2162786973 Fax: 65 6287 8998 Fax: 886 3 4356820 (FRE) Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may be trademarks or registered trademarks of their respective owners. © Copyright, 2016. Pulse Electronics, Inc. All rights reserved. 3 pulseelectronics.com P765.D (06/16)
