PA4990.151HLT

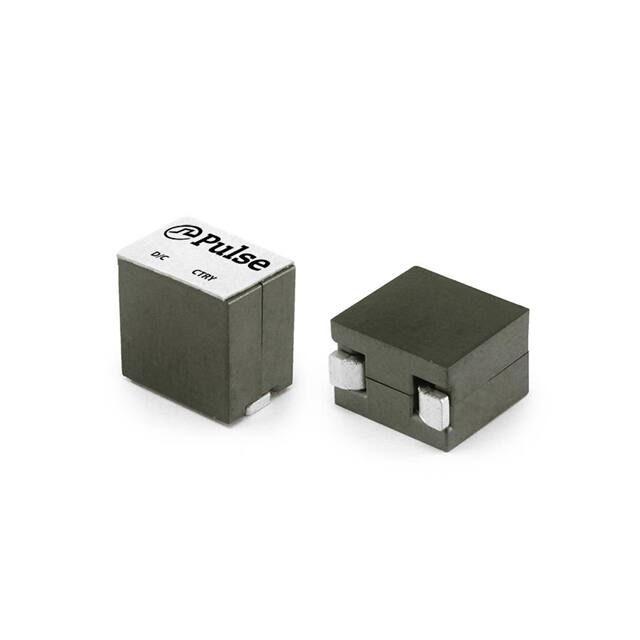

SMT Power Inductor Power Beads - PA4990 Series Height: 12mm Max Footprint: 10.0mm x 6.0mm Max Current Rating: Over 100Apk Inductance Range: 100nH to 330nH Electrical Specifications @ 25°C — Operating Temperature -40°C to +130°C 7 Part Number Inductance1 @ 0ADC (nH ±15%) Inductance2 @Irated (nH TYP) Irated (ADC) PA4990.101HLT 100 100 77 PA4990.121HLT 120 120 77 PA4990.151HLT 150 140 77 PA4990.331HLT 330 300 32 3 Saturation Current 5 (A TYP) 4 DCR (mΩ ) 0.125±10% 25°C 100°C 125°C 125 105 95 105 88 81 83 78 71 40 32 28 Heating Current6 (A TYP) 77 NOTES: 1. 2. 3. 4. 5. 6. Inductance measured at 100kHz, 100mVrms. 7. Inductance at Irated is the value of the inductance at 25°C at the listed rated current. The rated current as listed is either the saturation current (25°C or 100°C) or the heating current depending on which value is lower. The nominal DCR is measured from point ① to point ②, as shown below on the mechanical drawing. 8. The saturation current is the typical current which causes the inductance to drop by 20% at the stated ambient temperatures (25°C, 100°C ). This current is determined by placing the component in the specified ambient environment and applying a short duration pulse current (to eliminate self-heating effects) to the component. The heating current is the DC current which causes the part temperature to increase 9. by approximately 40°C when used in a typical application. 1 Power.PulseElectronics.com In high volt*time applications, additional heating in the component can occur due to core losses in the inductor which may neccessitate derating the current in order to limit the temperature rise of the component. To determine the approximate total losses (or temperature rise) for a given application, the coreloss and temperature rise curves can be used. Parts with the HLT suffix are sold in tape and reel packaging. Pulse complies to industry standard tape and reel specification EIA-481. The tape and reel for this product has a width (W=24mm), pitch (Po=16mm) and depth (Ko=10.5mm). Samples of these parts can be ordered by removing the HLT suffix and replacing with HL. The temperature of the component (ambient plus temperature rise) must be within the stated operating temperature range. P854. B (08/20) SMT Power Inductor Power Beads - PA4990 Series Schematic Mechanical PA4990.XXXHLT Weight: ....... 2.65grms Tape &Reel : ....... 270 Reel Dimensions: mm Unless otherwise specified , all tolerances are ± 0.25 2 Power.PulseElectronics.com P854. B (08/20) SMT Power Inductor Power Beads - PA4990 Series PA4990.101HL, LvsI, 25°C/ 100°C/ 125°C 120 100 Inductance (nH) 80 60 40 20 0 0 10 20 30 40 50 60 70 80 90 Current (A) .101HL_25°C .101HL_100°C .101HL_125°C PA4990.121HL, LvsI, 25 °C/ 100°C/ 125°C 140 120 Inductance (nH) 100 80 60 40 20 0 0 10 20 30 40 50 60 70 80 Curent (A) .121HL_25°C 3 .121HL_100°C Power.PulseElectronics.com .121HL_125°C P854. B (08/20) SMT Power Inductor Power Beads - PA4990 Series PA4990.151HLT, LvsI, 25°C/ 100°C/ 125°C 160 Inductance (nH) 140 120 100 80 60 40 20 0 0 10 20 30 40 50 60 70 80 Current (A) .151HL_100°C .151HL_25°C .151HL_125°C PA4990.331HL, LvsI, 25°C/ 100°C/ 125°C 400 350 300 Inductance (nH) 250 200 150 100 50 0 0 5 10 15 20 25 30 35 40 45 Current (A) .331HL_25°C 4 .331HL_100°C Power.PulseElectronics.com .331HL_125°C P854. B (08/20) SMT Power Inductor Power Beads - PA4990 Series PA4990.XXXNL CoreLoss (W) 0.50 0.45 0.40 CoreLoss (W) 0.35 0.30 0.25 0.20 0.15 0.10 0.05 0.00 0 500 1000 1500 2000 2500 DeltaB where DeltaB = .31 * L(nH) * DeltaI 200kHz 300kHz 400kHz 500kHz 600kHz 700kHz 1.0MHz PA4990.XXXHL Temp Rise vs Power Dissipation Temp Rise above Ambient (°C) 70 60 50 40 30 20 10 0 0 0.2 0.4 0.6 0.8 1 1.2 Power (W) Total Power Dissipation (W) = CopperLoss + CoreLoss CopperLoss = Irms^2 * Rdc(mOhms) / 1000… 5 Power.PulseElectronics.com P854. B (08/20) SMT Power Inductor Power Beads - PA4990 Series TAPE & REEL INFO SURFACE MOUNTING TYPE, REEL/TAPE LIST REEL SIZE (mm) TYPE PA4990.XXXHLT TAPE SIZE (mm) QTY A W1 W2 N E F D0 P0 P1 P2 W T K0 PCS/REEL Ø330 24.4 30.4 100 1.75 11.5 1.5 4 16 2 24 0.6 12.3 270 For More Information: Americas - prodinfo_power@pulseelectronics.com | Europe - power-apps-europe@pulseelectronics.com | Asia - power-apps-asia@pulseelectronics.com Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may be trademarks or registered trademarks of their respective owners. © Copyright, 2020. Pulse Electronics, Inc. All rights reserved. 6 Power.PulseElectronics.com P854. B (08/20)
