PA5034.471HLT

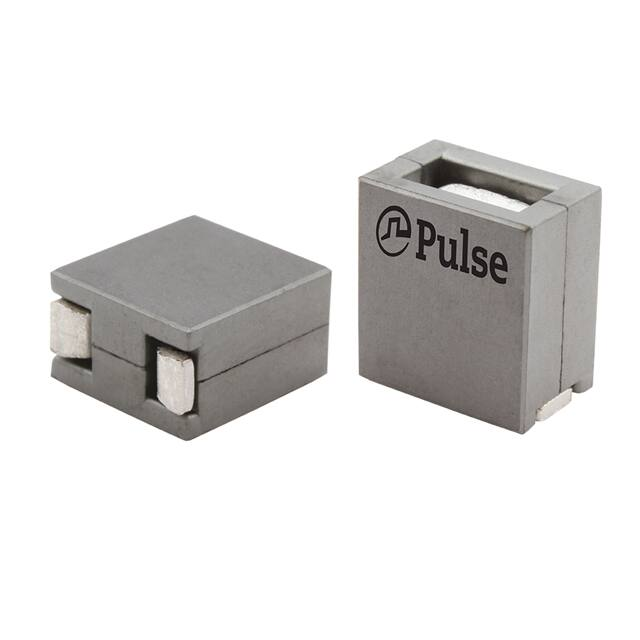

SMT Power Inductors Power Beads - PA5034.XXXHLT Series Current Rating: Over 30Apk Inductance Range: 330nH to 470nH Height: 10.0mm Max Footprint: 10.0mm x 7.0mm Max Part Number PA5034.331HLT PA5034.471HLT Electrical Specifications @ 25°C — Operating Temperature -40°C to +130°C 7 Saturation Current5 Inductance1 4 3 Inductance2 DCR Irated (A TYP) @ 0ADC @Irated (mΩ nominal) (ADC) (nH +/- 15%) (nH TYP) 25°C 100°C 330 231 40 40 32 0.4+/- 10% 470 329 30 30 22 Heating Current6 (A TYP) 47 NOTES: 1. 2. 3. 4. 5. 6. Inductance measured at 100kHz, 100mVrms. Inductance at Irated is the value of the inductance at 25°C at the listed rated current. The rated current as listed is either the saturation current (25°C or 100°C) or the heating current depending on which value is lower. The nominal DCR is measured at point 2. , as shown below on the mechanical drawing. The saturation current is the typical current which causes the inductance to drop by 20% at the stated ambient temperatures (25°C, 100°C ). This current is determined by placing the component in the specified ambient environment and applying a short duration pulse current (to eliminate self-heating effects) to the component. The heating current is the DC current which causes the part temperature to increase by approximately 40°C when used in a typical application. 7. 8. 9. In high volt*time applications, additional heating in the component can occur due to core losses in the inductor which may neccessitate derating the current in order to limit the temperature rise of the component. To determine the approximate total losses (or temperature rise) for a given application, the coreloss and temperature rise curves can be used. Parts with the HLT suffix are sold in tape and reel packaging. Pulse complies to industry standard tape and reel specification EIA-481. The tape and reel for this product has a width (W=24mm), pitch (Po=16mm) and depth (Ko=10.5mm). Samples of these parts can be ordered by removing the HLT suffix and replacing with HL. The temperature of the component (ambient plus temperature rise) must be within the stated operating temperature range. Schematic Mechanical PA5034.XXXHLT 10 MAX PA5034.XXXHL DC CTRY 7 MAX 1 10 MAX 2 Weight: 2.74grms Tape &Reel: 300/ Reel Dimensions: 1 2 Unless otherwise specified , all tolerances are ± 0.25 2. 10.3 3.90 3.30 (2.2) (2.6) 1 (4.6) PulseElectronics.com SUGGESTED PAD LAYOUT TOLERANCES ±0.05 mm P904.A (04/21) SMT Power Inductors Power Beads - PA5034.XXXHLT Series TAPE & REEL INFO P0 P2 A0 F W K1 B0 K0 D1 P1 SURFACE MOUNTING TYPE, REEL/TAPE LIST REEL SIZE (mm) TYPE W ± 0.30 PA5034.XXXHLT 24.0 TAPE SIZE (mm) QTY A0 ± 0.1 B0 ± 0.1 K0 ± 0.1 K1 ± 0.1 P1 ± 0.1 6.9 10.2 10.5 9.65 16.0 F ± 0.1 PCS/REEL 11.5 300 PA5034.331HLT, L vs I, Curve PA5034.471HLT, L vs I, Curve PA5034.471HL L vs I curve 540 490 Inductance (nH) 440 390 340 290 240 190 140 90 40 0 5 10 15 20 25 30 35 40 45 Current I (A) 25� 2 PulseElectronics.com 100� P904.A (04/21) SMT Power Inductors Power Beads - PA5034.XXXHLT Series PA5034.XXXHLT CoreLoss (W) PA5034.XXXHLT Temp Rise vs Power Dissipation For More Information: Americas - prodinfo_power@pulseelectronics.com | Europe - power-apps-europe@pulseelectronics.com | Asia - power-apps-asia@pulseelectronics.com Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may be trademarks or registered trademarks of their respective owners. © Copyright, 2021. Pulse Electronics, Inc. All rights reserved. 3 PulseElectronics.com P904.A (04/21)
