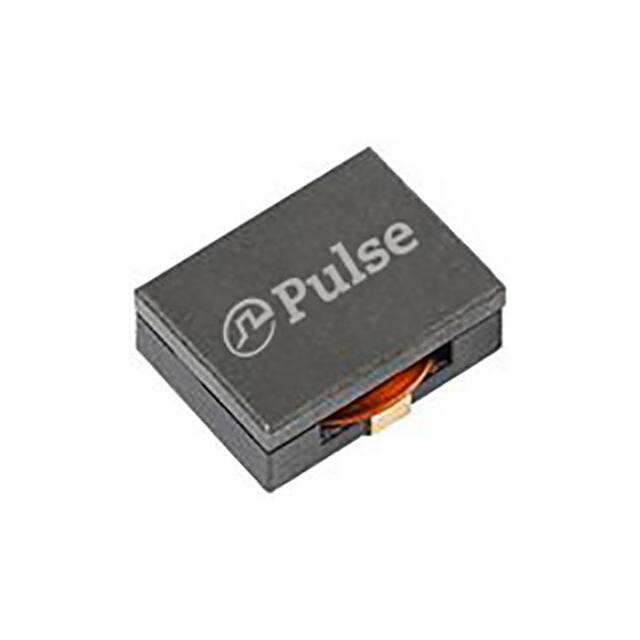

PA5119.421NLT

SMT Power Inductors Power Beads - PA5119.XXXNLT & PA5120.XXXNLT Series POWER PRODUCTS Compatible with Picor® Cool-Power® Current Rating: Over 42Apk Inductance Range: 0.42uH to 1.5uH Height: 5.0mm Max (PA5119) and 6.9mm Max (PA5120) Footprint: 12.7mm x 10.2mm Max (PA5119) 17.8mm x 14.4mm Max (PA5120) Electrical Specifications @ 25°C — Operating Temperature -40°C to +130°C 7 Saturation Current 5 Inductance1 3 4 Inductance2 Part Irated DCR (A TYP) @ 0ADC @Irated Number (ADC) (mΩ ±10%) (uH ±10%) (uH TYP) 25°C 125°C PA5119 Series (12.7 x 10.2 x 5.0mm Max) PA5119.421NLT 0.42 0.42 16 3.15 42 38 PA5119.901NLT 0.90 0.90 14 4.60 28 25 PA5119.152NLT 1.50 1.50 12 6.00 21 20 PA5120 Series (17.8 x 14.4 x 6.9 mm Max) PA5120.481NLT 0.48 0.48 32 1.7 55 47 Heating Current6 (A TYP) 16 14 12 32 NOTES: 1. 2. 3. 4. 5. Inductance measured at 100kHz, 100mVrms. Inductance at Irated is the value of the inductance at 25°C at the listed rated current. The rated current as listed is either the saturation current (25°C or 125°C) or the heating current depending on which value is lower. The nominal DCR is measured from point ① to point ②, as shown below on the mechanical drawing. The saturation current is the typical current which causes the inductance to drop by 5% (for PA5119) and 2% (for PA5120) at the stated ambient temperatures (25°C, 125°C). This current is determined by placing the component in the specified ambient 6. 7. 8. environment and applying a short duration pulse current (to eliminate self-heating effects) to the component. The heating current is the DC current which causes the part temperature to increase by approximately 40°C when used in a typical application. Parts with the HLT suffix are sold in tape and reel packaging. Pulse complies to industry standard tape and reel specification EIA-481. The temperature of the component (ambient plus temperature rise) must be within the stated operating temperature range. Schematic Mechanical PA5119.XXXHLT/PA5120.XXXHLT 4 3.7 5.4 7.2 2.4 2.7 5.4 9.0 2.0 2.0 2.9 3.0 Weight: PA5119 - 3.5grms PA5120 - 6.7grms Tape & Reel: PA5119 - 650 reel PA5120 - 300 reel Dimensions: mm Unless otherwise specified , all tolerances are ± 0.25 1 Power.PulseElectronics.com P894.A (04/20) SMT Power Inductors Power Beads - PA5119.XXXNLT & PA5120.XXXNLT Series POWER PRODUCTS PA5119.421NLT, LvsI, 25C and 125C 0.45 0.40 Inductance (uH) 0.35 0.30 0.25 0.20 0.15 0.10 0.05 0.00 0 10 20 30 40 50 60 70 Current (A) .421NLT_25C .421NLT_125C PA5119.901NLT, LvsI, 25C and 125C 1.00 0.90 Inductance (uH) 0.80 0.70 0.60 0.50 0.40 0.30 0.20 0.10 0.00 0 5 10 15 20 25 30 35 40 Current (A) .901NLT_25C 2 Power.PulseElectronics.com .901NLT_125C P894.A (04/20) SMT Power Inductors Power Beads - PA5119.XXXNLT & PA5120.XXXNLT Series POWER PRODUCTS PA5119.152NLT, LvsI, 25C and 125C 1.60 1.40 Inductance (uH) 1.20 1.00 0.80 0.60 0.40 0.20 0.00 0 5 10 15 20 25 30 35 Current (A) .152NLT_25C .152NLT_125C PA5120.481NLT, LvsI, 25C and 125C 0.60 Inductance (uH) 0.50 0.40 0.30 0.20 0.10 0.00 0 10 20 30 40 50 60 70 80 90 100 Current (A) .481NLT_25C 3 Power.PulseElectronics.com .481NLT_125C P894.A (04/20) SMT Power Inductors Power Beads - PA5119.XXXNLT & PA5120.XXXNLT Series TAPE & REEL INFO PA5119.XXXNLT PA5120.XXXNLT For More Information: Americas - prodinfo_power@pulseelectronics.com | Europe - power-apps-europe@pulseelectronics.com | Asia - power-apps-asia@pulseelectronics.com Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may be trademarks or registered trademarks of their respective owners. © Copyright, 2020. Pulse Electronics, Inc. All rights reserved. 4 Power.PulseElectronics.com P894.A (04/20) POWER PRODUCTS
