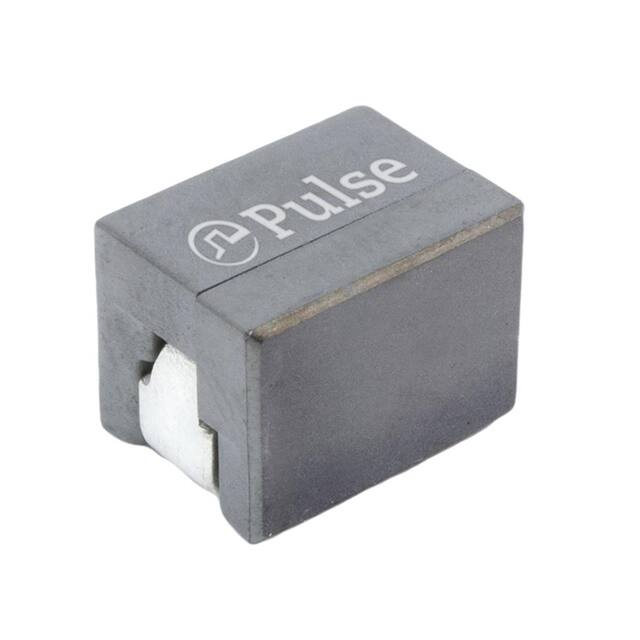

SMT Power Inductors Power Beads - PA5187.XXXHLT Series POWER PRODUCTS Current Rating: Up to 100Apk Inductance Range: 100nH to 180nH Height: 8.2mm Max Footprint: 10.8mm x 8.2mm Max Electrical Specifications @ 25°C — Operating Temperature - 40°C to +130°C 7 Saturation Current5 Inductance 3 4 Inductance2 Irated DCR (A TYP) @ 0ADC @Irated (ADC) (mΩ Max) (nH +/- 10%) (nH TYP) 25°C 100°C 100 100 67 100 84 120 120 67 92 78 0.12 150 112 65 75 65 180 144 48 55 48 1 Part Number PA5187.101HLT PA5187.121HLT PA5187.151HLT PA5187.181HLT Heating Current6 (A TYP) 67 NOTES: 1. 2. 3. 4. 5. 6. Inductance measured at 100kHz, 100mVrms. Inductance at Irated is the value of the inductance at 25°C at the listed rated current. The rated current as listed is either the saturation current (25°C or 100°C) or the heating current depending on which value is lower. The nominal DCR is measured at point 2. , as shown below on the mechanical drawing. The saturation current is the typical current which causes the inductance to drop by 20% at the stated ambient temperatures (25°C, 100°C ). This current is determined by placing the component in the specified ambient environment and applying a short duration pulse current (to eliminate self-heating effects) to the component. The heating current is the DC current which causes the part temperature to increase by approximately 40°C when used in a typical application. PA5187.XXXHLT 7. 8. 9. In high volt*time applications, additional heating in the component can occur due to core losses in the inductor which may neccessitate derating the current in order to limit the temperature rise of the component. To determine the approximate total losses (or temperature rise) for a given application, the coreloss and temperature rise curves can be used. Parts with the HLT suffix are sold in tape and reel packaging. Pulse complies to industry standard tape and reel specification EIA-481. The tape and reel for this product has a width (W=24mm), pitch (Po=16mm) and depth (Ko=8.7mm). Samples of these parts can be ordered by removing the HLT suffix and replacing with HL. The temperature of the component (ambient plus temperature rise) must be within the stated operating temperature range. Schematic Mechanical Weight: ....... 3.28grms Tape & Reel: ....... 400/ Reel Dimensions: mm Unless otherwise specified , all tolerances are ± 0.25 1 Power.PulseElectronics.com P891. A (07/20) SMT Power Inductors Power Beads - PA5187.XXXHLT Series POWER PRODUCTS 2 Power.PulseElectronics.com P891. A (07/20) SMT Power Inductors Power Beads - PA5187.XXXHLT Series PA5187.XXXHLT CoreLoss (W) PA5187.XXXHLT Temp Rise vs Power Dissipation 3 Power.PulseElectronics.com P891. A (07/20) POWER PRODUCTS
