PA5300.121HLT

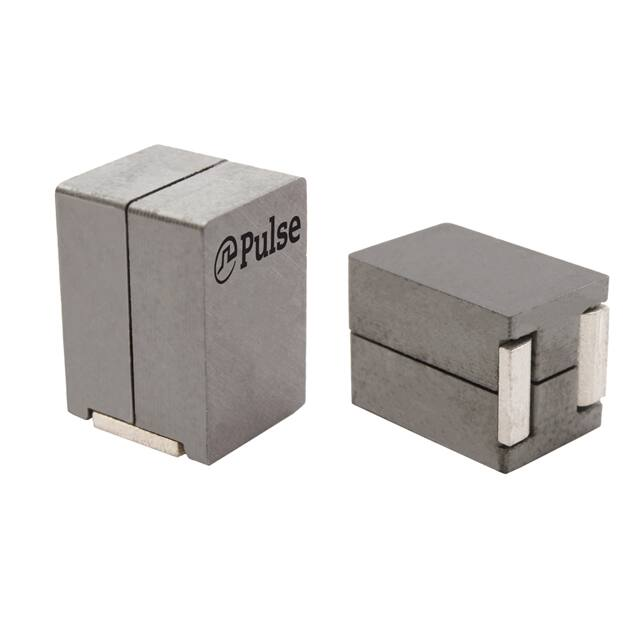

SMT Power Inductors Power Beads - PA5300.XXXHLT Series Current Rating: Over 66Apk Inductance Range: 120nH to 220nH Height: 15.5mm Max Footprint: 11mm x 10mm Max Part Number PA5300.121HLT PA5300.221HLT Electrical Specifications @ 25°C — Operating Temperature -40°C to +130°C 7 Saturation Current5 Inductance1 4 3 Inductance2 DCR Irated (A TYP) @ 0ADC @Irated (MAX) (ADC) (nH +/- 15%) (nH TYP) 25°C 100°C 120 114 115 144 120 0.10 220 159 80 80 66 Heating Current6 (A TYP) 115 NOTES: 1. 2. 3. 4. 5. 6. Inductance measured at 100kHz, 100mVrms. Inductance at Irated is the value of the inductance at 25°C at the listed rated current. The rated current as listed is either the saturation current (25°C or 100°C) or the heating current depending on which value is lower. The nominal DCR is measured at point 2. , as shown below on the mechanical drawing. The saturation current is the typical current which causes the inductance to drop by 20% at the stated ambient temperatures (25°C, 100°C ). This current is determined by placing the component in the specified ambient environment and applying a short duration pulse current (to eliminate self-heating effects) to the component. The heating current is the DC current which causes the part temperature to increase by approximately 40°C when used in a typical application. 7. 8. 9. In high volt*time applications, additional heating in the component can occur due to core losses in the inductor which may neccessitate derating the current in order to limit the temperature rise of the component. To determine the approximate total losses (or temperature rise) for a given application, the coreloss and temperature rise curves can be used. Parts with the HLT suffix are sold in tape and reel packaging. Pulse complies to industry standard tape and reel specification EIA-481. The tape and reel for this product has a width (W=24mm), pitch (Po=16mm) and depth (Ko=10.5mm). Samples of these parts can be ordered by removing the HLT suffix and replacing with HL. The temperature of the component (ambient plus temperature rise) must be within the stated operating temperature range. Schematic Mechanical PA5300.XXXHLT 11 MAX PA5300.XXXHL D/C CTRY 10 MAX 1 15.5 MAX d 0.10 2. 2.2.74grms Tape & Reel: 150/Reel Dimensions: mm 10.70 (6.5) 7.00 (2.6) 1 Weight: Unless otherwise specified, all tolerances are ± 0.25 2 SURFACES (4.3) 2 PulseElectronics.com 3.45 P907.A (04/21) SMT Power Inductors Power Beads - PA5300.XXXHLT Series TAPE & REEL INFO A CIRCULAR HOLES F PA5300.XXXHL D/C CTRY W 1 K0 P1 A SURFACE MOUNTING TYPE, REEL/TAPE LIST REEL SIZE (mm) TYPE W ± 0.30 PA5300.XXXHLT 2 PulseElectronics.com 32.0 K0 ± 0.1 P1 ± 0.1 15.4 20.0 TAPE SIZE (mm) QTY ± 0.1 PCS/REEL 14.2 150 P907.A (04/21) SMT Power Inductors Power Beads - PA5300.XXXHLT Series PA5300.121HLT, L vs I, Curve PA5300.221HLT, L vs I, Curve 3 PulseElectronics.com P907.A (04/21) SMT Power Inductors Power Beads - PA5300.XXXHLT Series PA5300.XXHLT CoreLoss (W) PA5300.XXXHLT Temp Rise vs Power Dissipation For More Information: Americas - prodinfo_power@pulseelectronics.com | Europe - power-apps-europe@pulseelectronics.com | Asia - power-apps-asia@pulseelectronics.com Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may be trademarks or registered trademarks of their respective owners. © Copyright, 2021. Pulse Electronics, Inc. All rights reserved. 4 PulseElectronics.com P907.A (04/21)
