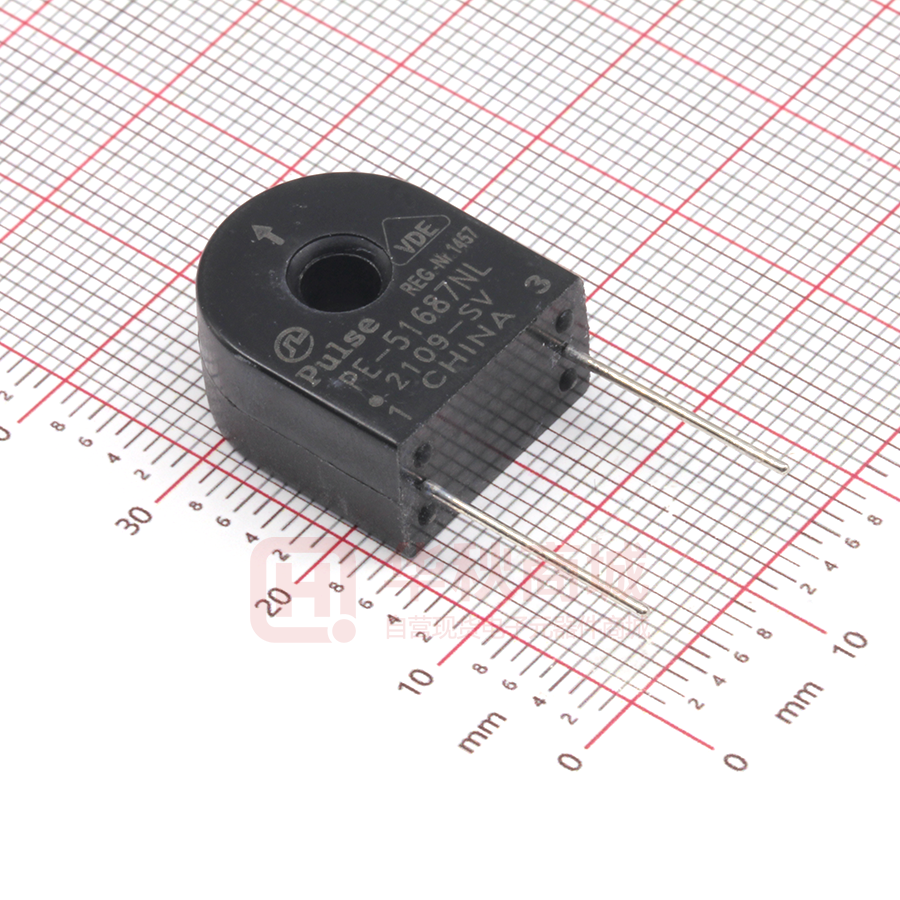

PE-51687NL

THT Current Sense Transformers & Inductors REG.-Nr. 1457 VDE Approved Designed for switching power supply applications Transformer meets EN62368-1 insulation requirements Frequency range from 20kHz to 200kHz Electrical Specifications @ 25°C - Operating Temperature -40°C to +125°C Part Number Transformer with 2-1 T Primaries Schem. Figure Part Number Transformer with 1T Primary Schem. Figure Part Number Inductor without Primary Schem. Figure Turns Ns 1C PE-63586NL 1A PE-51686NL 2A 50 5.0 PE-64487NL 1C PE-63587NL 1A PE-51687NL 2A 100 PE-64488NL 1C PE-63588NL 1A PE-51688NL 2A PE-64517NL 1D PE-51717NL PE-64518NL 1D PE-63618NL 1B PE-64519NL 1D PE-63619NL 1B PE-63691NL 1B Primary Primary Unipolar Bipolar Amp µ Sec. Amp µ Sec. Rating (MAX) Rating (MAX) RS (Ω MAX) RT (Ω MAX) 0.5 0.7 50 150 300 2.0 1.0 1.40 100 300 600 200 80.0 2.0 4.50 200 600 1200 2B 50CT 5.0 0.5 0.7 50 150 300 PE-51718NL 2B 100CT 20.0 1.0 1.40 100 300 600 PE-51719NL 2B 200CT 80.0 2.0 4.50 200 600 1200 300CT 180.0 3.0 11.0 300 900 1800 Notes: 1. Maximum ratings specified with rated secondary terminating resistance and 1 turn primary. 2. Amp-microsend (AµSec.) rating of primary equalts volt microsend (VµSec.) rating of secondary when secondary is terminated in rated resistance. (Amp microsends is equal to the product of a square pulse of current in amps, times the current pulse width in microseconds. 3. Maximum operating temperature 105°C (ambient plus rise). 1 Secondary Secondary Inductance Inductance MH Test Voltage (MIN) (15.75 KHz) power.pulseelectronics.com 4. When terminated with rated terminating resistance, the inductor scale factor is Vout = 1 volt per amp. for center tapped units terminating resistance for each half of winding is listed value divided by two. 5. 1 turn primary peak sense current is 20 amps for all parts listed above. P578.E (09/19) http://www.power.pulseelectronics.com/contact THT Current Sense Transformers & Inductors Mechanicals PE-XXXXX 1 6 3 PE-XXXXX 4 0.700 MAX 17,78 DATE CODE 2 7 5 0.900 MAX 22,86 V DE 0.700 MAX 17,78 1441 .500 MIN 12,70 .010 MIN 0,25 .200 5,08 .051 .003 4X1,30 ±,076 (Leads: 1,2,6,7) 0.700 17,78 .250 6,35 .030 .002 2X0,76 ±,051 (Leads: 3,5) .500 12,70 Schematic 1B 1A 1 3 1 3 4 5 2 5 2 1D 1 2 6 7 2B 1 1 4 6 7 3 5 2A 3 1 2 1C 2 3 5 3 For More Information Pulse Worldwide Headquarters 15255 Innovation Drive Ste 100 San Diego, CA 92128 U.S.A. Pulse Europe Pulse Electronics GmbH Am Rottland 12 58540 Meinerzhagen Germany Pulse China Headquarters Pulse Electronics (ShenZhen) CO., LTD D708, Shenzhen Academy of Aerospace Technology, The 10th Keji South Road, Nanshan District, Shenzhen, P.R. China 518057 Pulse North China Room 2704/2705 Super Ocean Finance Ctr. 2067 Yan An Road West Shanghai 200336 China Pulse South Asia 3 Fraser Street 0428 DUO Tower Singapore 189352 Pulse North Asia 1F, No.111 Xiyuan Road Zhongli District Taoyuan City 32057 Taiwan (R.O.C) Tel: 858 674 8100 Fax: 858 674 8262 Tel: 49 2354 777 100 Fax: 49 2354 777 168 Tel: 86 755 33966678 Fax: 86 755 33966700 Tel: 86 21 62787060 Fax: 86 2162786973 Tel: 65 6287 8998 Fax: 65 6280 0080 Tel: 886 3 4356768 Fax: 886 3 4356820 Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may be trademarks or registered trademarks of their respective owners. © Copyright, 2019. Pulse Electronics, Inc. All rights reserved. 2 power.pulseelectronics.com http://www.power.pulseelectronics.com/contact Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Pulse: PE-64488 PE-64487 PE-63588 PE-63587 PE-63586 PE-63691 PE-63619 PE-63618 PE-64518 PE-64519 PE64517 PE-51687NL PE-51718NL PE-51717NL PE-63588NL PE-64487NL PE-51718 PE-51719 PE-51687 PE51688NL PE-63587NL PE-51719NL PE-51686NL PE-51717 PE-51686 PE-64519NL PE-64488NL PE-63586NL PE-64518NL PE-63619NL
