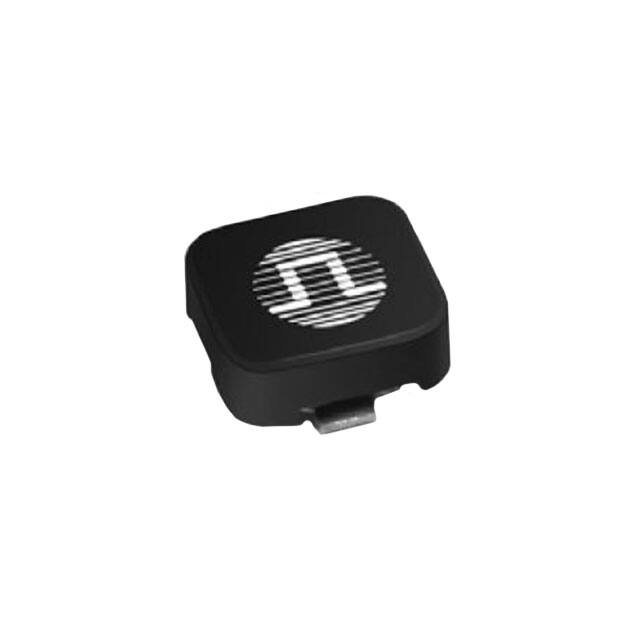

PF0601.334NLT

SMT Power Inductors Shielded Drum Core - PF0601NL Series Height: 3mm Max Footprint: 6.9mm x 6.5mm Max Current Rating: up to 2A Inductance Range: 2.9µH to 330µH 260°C reflow peak temperature qualified Electrical Specifications @ 25°C - Operating Temperature -40°C to +130°C Part2,3 Number Inductance @ 0ADC (µH ±20%) Inductance @ Irated (µH TYP) Irated5 (A) DCR (mΩ) MAX Saturation6 Current -20% (A) Heating7 Current IDC +45°C (A) Core Loss8 Factor (K2) SRF (MHz) PF0601.292NL 2.9 2.6 2.0 55 2.0 3.3 1500 >40 PF0601.402NL 4.0 3.5 1.63 69 1.63 3.0 1700 >40 PF0601.552NL 5.5 4.8 1.5 75 1.5 2.6 2000 >40 PF0601.103NL 10 8.8 1.1 135 1.1 2.1 2700 31 PF0601.123NL 12 11 1.0 140 1.0 2.0 3100 30 PF0601.153NL 15 13 0.9 155 0.9 1.7 3300 26 PF0601.183NL * 18 16 0.8 210 0.8 1.6 3700 23 PF0601.223NL 22 19 0.74 230 0.74 1.5 4000 20 PF0601.273NL * 27 24 0.66 305 0.66 1.4 4600 19 PF0601.333NL 33 29 0.59 345 0.59 1.3 4900 17 PF0601.393NL 39 34 0.54 445 0.54 1.2 5500 16 PF0601.473NL 47 41 0.5 515 0.5 1.0 5900 14 PF0601.563NL 56 49 0.46 575 0.46 0.9 6400 13 PF0601.683NL 68 60 0.42 765 0.42 0.85 7200 12 PF0601.823NL 82 72 0.38 840 0.38 0.80 7800 11 PF0601.104NL 100 88 0.34 1120 0.34 0.67 8700 9.0 PF0601.124NL 120 106 0.31 1250 0.31 0.62 9400 8.0 PF0601.154NL 150 132 0.28 1440 0.28 0.60 11000 7.0 PF0601.184NL * 180 158 0.26 1920 0.26 0.52 12000 6.5 PF0601.224NL 220 194 0.23 2200 0.23 0.45 13000 6.1 PF0601.274NL * 270 238 0.22 3000 0.22 0.40 14000 5.8 PF0601.334NL 330 290 0.19 3300 0.19 0.30 16000 5.1 1 power.pulseelectronics.com SPM2007_20 (02/19) http://www.power.pulseelectronics.com/contact SMT Power Inductors Shielded Drum Core - PF0601NL Series Mechanical Schematic P1166.XXXNL Weight ..................0.35 grams Tape & Reel ..............1200/reel Inches Dimensions: mm Unless otherwise specified, all tolerances are ± .004 0,10 Inductance vs Current Characteristics Notes: 1. Unless otherwise specified, all testing is made at 100kHz, 0.1VAC. 2. Optional Tape & Reel packaging can be ordered by adding a “T” suffix to the part number (i.e P1166.102NL becomes P1166.102NLT). Pulse complies with industry standard Tape and Tape & Reel specification EIA481. 3. The “NL” suffix indicates an RoHS-compliant part numer. Non-NL suffixed parts are not necessarily RoHS compliant, but are electrically and mechanically equivalent to NL versions. If a part number does not have the “NL” version, but an RoHS compliant version is required, please contact Pulse for availability. 4. Temperature of the component (ambient plus temperature rise) must be within specified operating temperature range. 5. The rated current (Irated) as listed is either the saturation current or the heating current depending on which value is lower. 6. The saturation current, Isat, is the current at which the component inductance drops by the indicated percentage (typical) at an ambient temperature of 25C. This current is determined by placing the component in the specified ambient environment and applying a short duration pulse current (to eliminate self-heating effects) to the component. 7. The heating current, Idc, is the DC current required to raise the component temperature by the indicated delta (approximately). The heating current isdetermined by mounting the component on a typical PCB and applying current for 30 minutes. The temperature is measured by placing the thermocouple on top of the unit under test. 2 power.pulseelectronics.com 8. In high volt*time (Et) or ripple current applications, additional heating in the component can occur due to core losses in the inductor which may necessitate derating the current in order to limit the temperature rise of the component. In order to determine the approximate total loss (or temperature rise) for a given application, both copper losses and core losses should be taken into account. Estimated Temperature Rise: Trise = [Total loss (mW) / K0].833(°C) Total Loss = Copper loss + Core loss (mW) Copper loss = IRMS2 x DCR (Typical) (mW) Irms = [IDC2 + ΔI2 /12]1/2 (A) Core loss = K1 x f (kHz)1.23 x Bac (Ga)2.38 (mW) Bac (peak to peak flux density) = K2 x ΔI (Ga) [= K2/L (µH) x Et (V-µSec) (Ga)] where f varies between 25kHz and 1MHz, and Bac is less than 2500 Gauss. K2 is a core size and winding dependent value and is given for each p/n in the proceeding datasheets. K0 & K1 are platform and material dependant constants and are given in the table below for each platform. * Contact Pulse for availability SPM2007_20 (02/19) http://www.power.pulseelectronics.com/contact SMT Power Inductors Shielded Drum Core - PF0601NL Series Part No. Trise Factor (KO) Core Loss Factor (K1) PG0085/86 2.3 5.29E-10 PG0087 5.8 15.2E-10 PG0040/41 0.8 2.80E-10 P1174 0.8 6.47E-10 PF0601 4.6 14.0E-10 PF0464 3.6 24.7E-10 PF0465 3.6 33.4E-10 P1166 1.9 29.6E-10 P1167 2.1 42.2E-10 PF0560NL 5.5 136E-10 P1168/69 4.8 184E-10 P1170/71 4.3 201E-10 P1172/73 5.6 411E-10 PF0552NL 8.3 201E-10 PF0553NL 7.1 411E-10 Take note that the component’s temperature rise varies depending on the system condition. It is suggested that the component be tested at the system level, to verify the temperature rise of the component during system operation. For More Information Pulse Worldwide Headquarters 15255 Innovation Drive Ste 100 San Diego, CA 92128 U.S.A. Tel: 858 674 8100 Fax: 858 674 8262 Pulse Europe Pulse Electronics GmbH Am Rottland 12 58540 Meinerzhagen Germany Pulse China Headquarters Pulse Electronics (ShenZhen) CO., LTD D708, Shenzhen Academy of Aerospace Technology, The 10th Keji South Road, Nanshan District, Shenzhen, P.R. China 518057 Pulse North China Room 2704/2705 Super Ocean Finance Ctr. 2067 Yan An Road West Shanghai 200336 China Pulse South Asia 3 Fraser Street 0428 DUO Tower Singapore 189352 Pulse North Asia 1F., No.111 Xiyuan Road Zhongli District Taoyuan City 32057 Taiwan (R.O.C) Tel: 49 2354 777 100 Fax: 49 2354 777 168 Tel: 86 755 33966678 Fax: 86 755 33966700 Tel: 86 21 62787060 Fax: 86 2162786973 Tel: 65 6287 8998 Fax: 65 6280 0080 Tel: 886 3 4356768 Fax: 886 3 4356820 Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may be trademarks or registered trademarks of their respective owners. © Copyright, 2019. Pulse Electronics, Inc. All rights reserved. 3 power.pulseelectronics.com SPM2007_20 (02/19) http://www.power.pulseelectronics.com/contact
