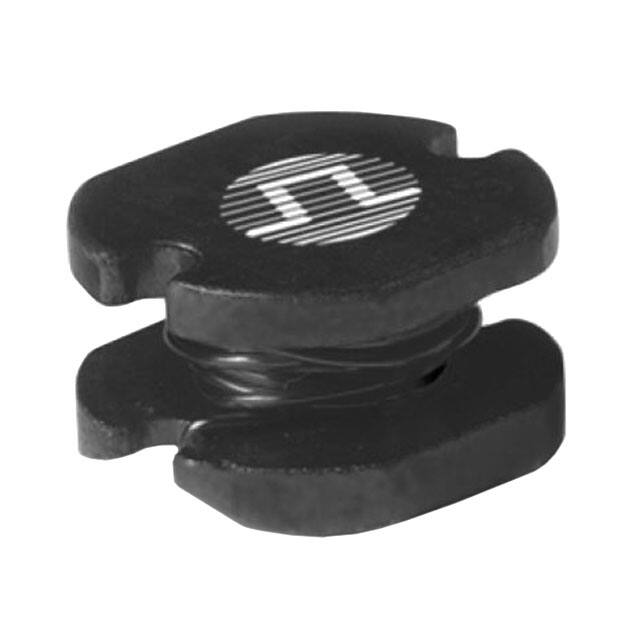

PG0015.563NLT

SMT Power Inductors Unshielded Drum Core - PG0015NL Series Height: 5.55mm Max Footprint: 10.15mm x 9.15mm Max Current Rating: up to 2.6A Inductance Range: 10µH to 820µH 260°C reflow peak temperature qualified Electrical Specifications @ 25°C - Operating Temperature -40°C to +125°C 5 Part 4 Number Inductance @ 0Adc (µH ±20%) Irated 1 (A) DCR (MAX) (mΩ MAX) Saturation 2 Current Isat (A) Heating 3 Current IDC (A) SRF (MHz TYP) PG0015.103NL 10 2.6 60 2.6 4.8 20 PG0015.123NL 12 2.45 70 2.45 4.5 19 PG0015.153NL 15 2.27 80 2.27 4.3 18 PG0015.183NL 18 2.15 90 2.15 4.1 16 PG0015.223NL 22 1.95 100 1.95 4.0 14 PG0015.273NL 27 1.76 110 1.76 3.7 12 PG0015.333NL 33 1.50 120 1.50 3.4 12 PG0015.393NL * 39 1.37 140 1.37 3.2 10 PG0015.473NL 47 1.28 170 1.28 3.1 9.0 PG0015.563NL 56 1.17 190 1.17 3.0 8.1 PG0015.683NL 68 1.11 220 1.11 2.7 7.6 PF0015.823NL 82 1.00 250 1.00 2.4 6.8 PF0015.104NL 100 0.97 350 0.97 2.2 6.2 PF0015.124NL * 120 0.89 400 0.89 1.9 5.0 PF0015.154NL 150 0.78 470 0.78 1.8 4.5 PF0015.184NL * 180 0.72 630 0.72 1.5 4.5 PF0015.224NL 220 0.66 730 0.66 1.3 4.0 PF0015.274NL * 270 0.57 970 0.57 1.2 3.6 PF0015.334NL 330 0.52 1150 0.52 1.1 3.1 PF0015.394NL * 390 0.48 1300 0.48 1.1 2.8 PF0015.474NL 470 0.42 1480 0.42 1.0 2.6 PF0015.564NL * 560 0.32 1900 0.32 0.9 2.2 PG0015.684NL 680 0.28 2250 0.28 0.9 2.2 PG0015.824NL 820 0.24 2550 0.24 0.5 2.0 1 power.pulseelectronics.com SPM2007_05 (02/19) http://www.power.pulseelectronics.com/contact SMT Power Inductors Unshielded Drum Core - PG0015NL Series Mechanical Schematic PG0015.XXXNL Weight .....................1.5 grams Tape & Reel ................600/reel Inches Dimensions: mm Unless otherwise specified, all tolerances are ± .004 0,10 Notes from Tables: 1. The rated current listed is the lower of the saturation current @ 25°C or the heating current, depending on which value is lower. 2. The saturation current, Isat, is the current which causes the inductance to drop by 10% Max at an ambient temperature of 25°C. This current is determined by placing the component in the specified ambient environment and applying a short duration pulse current (to eliminate self-heating effects) to the component. 3. The heating current, IDC, is the DC current which causes the temperature rise of the part to increase approximately 40°C. This current is determined by mounting the component on a typical PCB and applying the current to the device for 30 minutes. 4. Optional Tape & Reel packaging can be ordered by adding a “T” suffix to the part number (i.e. PG0015.103NL becomes PG0015.103NLT). Pulse complies to industry standard tape and reel specification EIA481. 5. The temperature of the component (ambient plus temperature rise) must be within the stated operating temperature range. * Contact Pulse for availability Typical Inductance vs Current Characteristics 2 power.pulseelectronics.com SPM2007_05 (02/19) http://www.power.pulseelectronics.com/contact SMT Power Inductors Unshielded Drum Core - PG0015NL Series For More Information Pulse Worldwide Headquarters 15255 Innovation Drive Ste 100 San Diego, CA 92128 U.S.A. Tel: 858 674 8100 Fax: 858 674 8262 Pulse Europe Pulse Electronics GmbH Am Rottland 12 58540 Meinerzhagen Germany Pulse China Headquarters Pulse Electronics (ShenZhen) CO., LTD D708, Shenzhen Academy of Aerospace Technology, The 10th Keji South Road, Nanshan District, Shenzhen, P.R. China 518057 Pulse North China Room 2704/2705 Super Ocean Finance Ctr. 2067 Yan An Road West Shanghai 200336 China Pulse South Asia 3 Fraser Street 0428 DUO Tower Singapore 189352 Pulse North Asia 1F., No.111 Xiyuan Road Zhongli District Taoyuan City 32057 Taiwan (R.O.C) Tel: 49 2354 777 100 Fax: 49 2354 777 168 Tel: 86 755 33966678 Fax: 86 755 33966700 Tel: 86 21 62787060 Fax: 86 2162786973 Tel: 65 6287 8998 Fax: 65 6280 0080 Tel: 886 3 4356768 Fax: 886 3 4356820 Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may be trademarks or registered trademarks of their respective owners. © Copyright, 2019. Pulse Electronics, Inc. All rights reserved. 3 power.pulseelectronics.com SPM2007_05 (02/19) http://www.power.pulseelectronics.com/contact
