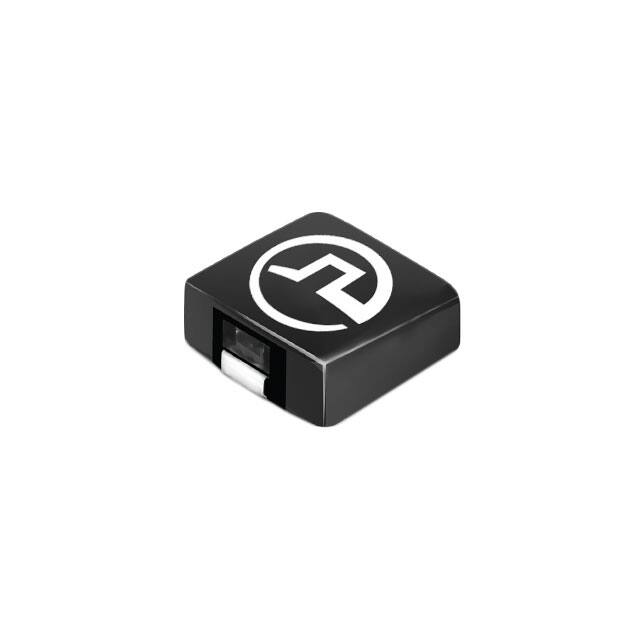

PG0255.201NLT

SMT Power Inductors Flat Coils - PG0255NL Series Height: 4.0mm Max Footprint: 11.5mm x 10.3mm Max Heating Current Rating: up to 51A Inductance Range: 0.17µH to 2.1µH Electrical Specifications @ 25°C - Operating Temperature -40°C to +125°C Controlled Electrical Specifications Inductance2 @ Irated (TYP) Irated3 (A) PG0255.201NL 0.17 PG0255.401NL Part Number Heating6 Current IDC (A) K1 K2 TYP MAX Inductance @ 0ADC (µH ±15%) 30 0.45 0.55 0.20 0.18 @ 21Adc 30 51 6.20e-10 47 0.34 29 1.05 1.15 0.40 0.36 @ 17Adc 29 34 6.20e-10 56 PG0255.601NL 0.51 27 1.70 1.87 0.60 0.56 @ 15Adc 28 27 6.20e-10 60 PG0255.102NL 0.90 21 2.80 3.20 1.00 0.87 @ 26Adc 27 21 6.20e-10 78 PG0255.152NL 1.35 16 4.50 5.00 1.50 1.20 @ 17Adc 22 16 6.20e-10 95 PG0255.182NL 1.57 16 4.50 5.00 1.80 1.57 @ 16Adc 21 16 6.20e-10 115 PG0255.222NL 2.10 13 6.60 7.00 2.20 1.80 @ 20Adc 20 13 6.20e-10 118 DCR (mΩ) Inductance4 @ Bias (µH ±20%) Core Loss Factor7 Saturation5 Current ISAT (A) Notes: 1. 2. 3. 4. 5. 6. The temperature of the component (ambient plus temperature rise) must be within the specified operating temperature range. Inductance at Irated is a typical inductance value for the component taken at rated current. The rated current listed is the lower of the saturation current @ 25°C or the heating current. The inductance at Bias is the controlled inductance value measured after subjecting the part to the listed dc bias current. The saturation current, ISAT, is the current at which the component inductance drops by 20% (typical) at an ambient temperature of 25°C. This current is determined by placing the component in the specified ambient environment and applying a short duration pulse current (to eliminate self-heating effects) to the component. The heating current, IDC, is the DC current required to raise the component temperature by approximately 40°C. The heating current is determined by mounting the component on a typical PCB and applying current for 30 minutes. The temperature is measured by placing the thermocouple on top of the unit under test. Take note that the component’s performance varies depending on the system condition. It is suggested that the component be tested at the system level, to verify the temperature rise of the component during system operation. 1 power.pulseelectronics.com 7. 8. 9. Core loss approximation is based on published core data: Core Loss = K1 * (f)1.48 * (K2ΔI)1.97 Where: Core Loss = in Watts f = switching frequency in kHz K1 & K2 = core loss factors ΔI = delta I across the component in Ampere K2ΔI = one half of the peak to peak flux density across the component in Gauss Unless otherwise specified, all testing is made at 100kHz, 0.1VAC. Optional Tape & Reel packaging can be ordered by adding a “T” suffix to the part number (i.e. PG0255.601NL becomes PG0255.601NLT). Pulse complies to industry standard tape and reel specification EIA481. SPM2007_34 (02/19) http://www.power.pulseelectronics.com/contact SMT Power Inductors Flat Coils - PG0255NL Series Schematic Mechanical PG0255.XXXNL Weight ...............................1.8grams Tape & Reel .......................850/reel Dimensions: .Inches mm Unless otherwise specified, .010 all tolerances are: ±.0,25 Typical Inductance vs DC Bias H H H H H H H For More Information Pulse Worldwide Headquarters 15255 Innovation Drive Ste 100 San Diego, CA 92128 U.S.A. Tel: 858 674 8100 Fax: 858 674 8262 Pulse Europe Pulse Electronics GmbH Am Rottland 12 58540 Meinerzhagen Germany Pulse China Headquarters Pulse Electronics (ShenZhen) CO., LTD D708, Shenzhen Academy of Aerospace Technology, The 10th Keji South Road, Nanshan District, Shenzhen, P.R. China 518057 Pulse North China Room 2704/2705 Super Ocean Finance Ctr. 2067 Yan An Road West Shanghai 200336 China Pulse South Asia 3 Fraser Street 0428 DUO Tower Singapore 189352 Pulse North Asia 1F., No.111 Xiyuan Road Zhongli District Taoyuan City 32057 Taiwan (R.O.C) Tel: 49 2354 777 100 Fax: 49 2354 777 168 Tel: 86 755 33966678 Fax: 86 755 33966700 Tel: 86 21 62787060 Fax: 86 2162786973 Tel: 65 6287 8998 Fax: 65 6280 0080 Tel: 886 3 4356768 Fax: 886 3 4356820 Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may be trademarks or registered trademarks of their respective owners. © Copyright, 2019. Pulse Electronics, Inc. All rights reserved. 2 power.pulseelectronics.com SPM2007_34 (02/19) http://www.power.pulseelectronics.com/contact
