PG2110.181HLT

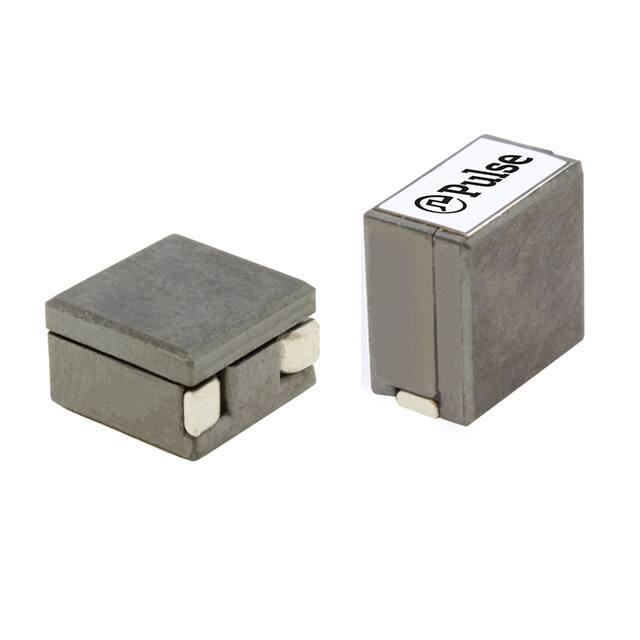

SMT Power Inductors Power Beads - PG2110.XXXHLT Series Current Rating: Over 75Apk Inductance Range: 100nH to 180nH Height: 8mm Max Footprint: 8mm x 5mm Max Part Number PG2110.101HLT PG2110.121HLT PG2110.151HLT PG2110.181HLT Electrical Specifications @ 25°C — Operating Temperature -40°C to +130°C 7 Saturation Current5 Inductance1 4 3 Inductance2 DCR Irated (A TYP) @ 0ADC @Irated (mΩ ± 10%) (ADC) (nH +/- 15%) (nH TYP) 25°C 100°C 100 53 75 60 120 53 61 49 0.22 150 105 50 50 40 180 126 41 41 32 Heating Current6 (A TYP) 53 NOTES: 1. 2. 3. 4. 5. 6. Inductance measured at 100kHz, 100mVrms. Inductance at Irated is the value of the inductance at 25°C at the listed rated current. The rated current as listed is either the saturation current (25°C or 100°C) or the heating current depending on which value is lower. The nominal DCR is measured at point 2. , as shown below on the mechanical drawing. The saturation current is the typical current which causes the inductance to drop by 20% at the stated ambient temperatures (25°C, 100°C ). This current is determined by placing the component in the specified ambient environment and applying a short duration pulse current (to eliminate self-heating effects) to the component. The heating current is the DC current which causes the part temperature to increase by approximately 40°C when used in a typical application. 7. 8. 9. In high volt*time applications, additional heating in the component can occur due to core losses in the inductor which may neccessitate derating the current in order to limit the temperature rise of the component. To determine the approximate total losses (or temperature rise) for a given application, the coreloss and temperature rise curves can be used. Parts with the HLT suffix are sold in tape and reel packaging. Pulse complies to industry standard tape and reel specification EIA-481. The tape and reel for this product has a width (W=24mm), pitch (Po=12mm) and depth (Ko=8.1mm). Samples of these parts can be ordered by removing the HLT suffix and replacing with HL. The temperature of the component (ambient plus temperature rise) must be within the stated operating temperature range. Schematic Mechanical PG2110.XXXHLT 8.5 2.5 2.5 SUGGESTED LAND PATTERN 8.0 MAX 5.0 MAX 1 2 PG2110.XXXHL DATE CODE Co.O 8.0 MAX Weight: 2.74grms Tape & Reel: 500/Reel Dimensions: mm Unless otherwise specified, all tolerances are ± 0.25 d 0.10 2 SURFACES 2.0 REF 3.4 REF FINAL OUTLINE 1 PulseElectronics.com P908.A (04/21) SMT Power Inductors Power Beads - PG2110.XXXHLT Series TAPE & REEL INFO SURFACE MOUNTING TYPE, REEL/TAPE LIST REEL SIZE (mm) TYPE W ± 0.30 PG2110.XXXHLT 2 PulseElectronics.com 24.0 A0 ± 0.1 B0 ± 0.1 5.1 8.1 TAPE SIZE (mm) QTY K0± 0.1 PCS/REEL 8.1 500 P908.A (04/21) SMT Power Inductors Power Beads - PG2110.XXXHLT Series PG2110.XXXHLT, L vs I, Curve 25C PG2110.XXXHLT, L vs I, Curve 100C 3 PulseElectronics.com P908.A (04/21) SMT Power Inductors Power Beads - PG2110.XXXHLT Series PG2110.XXHLT CoreLoss (W) PG2110.XXXHLT Temp Rise vs Power Dissipation For More Information: Americas - prodinfo_power@pulseelectronics.com | Europe - power-apps-europe@pulseelectronics.com | Asia - power-apps-asia@pulseelectronics.com Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may be trademarks or registered trademarks of their respective owners. © Copyright, 2021. Pulse Electronics, Inc. All rights reserved. 4 PulseElectronics.com P908.A (04/21)
