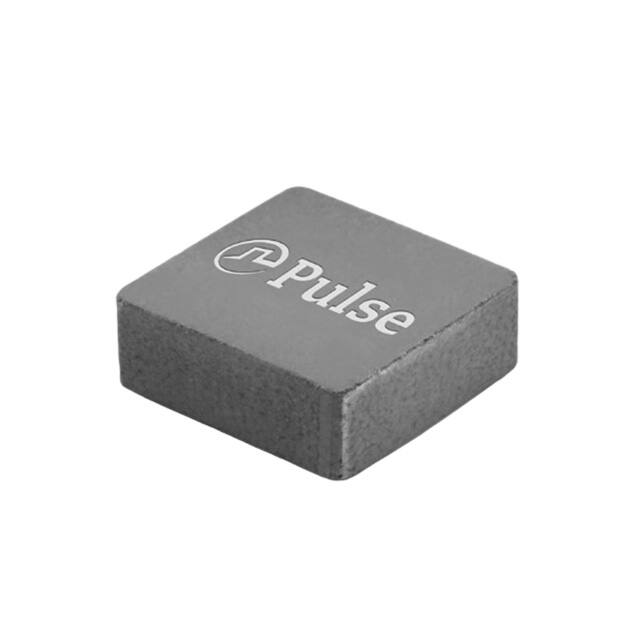

PM2205.102NLT

SMT Power Inductors High Current Composite Inductor - PA5005.XXXNLT and PM2205.XXXNLT POWER PRODUCTS IA T F 16 Height: 5.0mm Max Footprint: 6.8mm x 6.6mm Max Current Rating: up to 24Apk Inductance Range: 0.82uH to 8.2uH High current, low DCR, and high efficiency High reliability Minimized acoustic noise and minimized leakage flux noise Available in Commercial (PA5005) and Automotive (PM2205) grades 949 Electrical Specifications @ 25°C, Operating Temperature Range -55°C to +155°C Part Number Commerical Automotive6 DC Resistance Inductance 100KHz, 0.1V Rated3 Current TYP. MAX. Saturation2 Current (25°C) uH±20% A mΩ mΩ A K Factor for Core Loss Mechanical D ±0.3 PA5005.821NLT PM2205.821NLT 0.82 21 3.8 4.18 20 132.2 5.3 PA5005.102NLT PM2205.102NLT 1.0 20 4.1 4.52 18 132.2 5.3 PA5005.122NLT PM2205.122NLT 1.2 18 5.3 5.83 16 109.2 5.3 PA5005.152NLT PA5005.182NLT PA5005.222NLT PA5005.332NLT PA5005.432NLT PA5005.472NLT PA5005.562NLT PA5005.682NLT PA5005.822NLT PM2205.152NLT PM2205.182NLT PM2205.222NLT PM2205.332NLT PM2205.432NLT PM2205.472NLT PM2205.562NLT PM2205.682NLT PM2205.822NLT 1.5 1.8 2.2 3.3 4.3 4.7 5.6 6.8 8.2 17 16 13 11 9 8.5 7.0 6.6 6.2 5.7 6.4 7.7 11.2 15.1 16.7 20.0 23.1 28.6 6.3 7.1 8.5 12.5 16.2 18.4 22.0 25.4 31.5 14.5 13.5 12 10 8.5 8 8.3 7 6.8 93 93 81 64.4 53.4 49.2 5.3 5.3 5.2 5.2 5.2 5.2 5.2 5.2 5.2 Notes: 1. 2. 3. 4. Actual temperature of the component during system operation (ambient plus temperature rise) must be within the standard operating range. The saturation current is the current at which the initial inductance is guaranteed to drop by no more than 40%. The typical inductance at a specified current can be found on the typical performance curves. The rated current is the DC current required to raise the component temperature by approximately 40�C. Take note that the components’ performanc varies depending on the system condition. It is suggested that the component be tested at the system level, to verify the temperature rise of the component during system operation. The part temperature (ambient+temp rise) should not exceed 155�C under worst case operating conditions. Circuit design, PCB trace size and thickness, airflow and 1 Power.PulseElectronics.com 5. 6. 7. other cooling provisions all affect the part temperature. Part temperature should be verified in the end application. The PM2205.XXXNLT part numbers are AEC-Q200 and IATF16949 certified. The mechanical dimensions are 100% tested in production but do not necessarily meet a product capability index (Cpk) >1.33 and therefore may not strictly conform to PPAP. Parts shown in bold are standard catalog parts and are available through sample stock and distribution. Parts in lighter font are available but are not necessarily held in sample stock or distribution and lead times may be longer. Please contact Pulse for availability. Special Characteristics P809. D (07/20) SMT Power Inductors High Current Composite Inductor - PA5005.XXXNLT and PM2205.XXXNLT POWER PRODUCTS Mechanical PA5005.XXXNLT and PM2205.XXXNLT A D C L F G E 　XXX 1R2 1602 D/C B H FINAL LAYOUT SUGGESTED PAD LAYOUT Series A B C D E F L G H PA5005/PM2205 6.6±0.2 6.4±0.2 4.8±0.2 SEE SPEC TABLE 1.4±0.2 2.6±0.25 5.6 (REF) 2.5 (REF) 5.6 (REF) All Dimensions in mm. TAPE & REEL INFO Chip cavity Blank portions A W Blank portions K0 P1 200mm or more 400mm or more G Direction of tape SURFACE MOUNTING TYPE, REEL/TAPE LIST REEL SIZE (mm) PA5005/PM2205 2 TAPE SIZE (mm) QTY A G P1 W K0 PCS/REEL Ø330 16.4 12 16 5.3 800 Power.PulseElectronics.com P809. D (07/20) SMT Power Inductors High Current Composite Inductor - PA5005.XXXNLT and PM2205.XXXNLT POWER PRODUCTS Typical Performance Curves 100 1.00 80 1.2 80 0.75 60 0.9 60 0.50 40 0.6 40 0.25 20 0.3 20 0 0.0 2.0 100 2.0 100 1.6 80 1.6 80 1.2 60 1.2 60 0.8 40 0.8 40 0.4 20 0.4 20 6 12 18 DC CURRENT (A) 24 30 0 5 10 15 DC CURRENT (A) 20 25 Inductance （uH） TEMP. RISE (℃) Inductance （uH） 6 0.0 0 0 5 182NLT 24 30 0 10 15 DC CURRENT (A) 20 25 0 222NLT 100 3.0 100 2.00 80 2.4 80 1.50 60 1.8 60 1.00 40 1.2 40 0.50 20 0.6 20 0.00 0 5 3 10 15 DC CURRENT (A) 20 25 0 Power.PulseElectronics.com Inductance （uH） 2.50 TEMP. RISE (℃) Inductance （uH） 12 18 DC CURRENT (A) 152NLT 122NLT 0.0 0 TEMP. RISE (℃) 0 0.0 0 4 8 12 DC CURRENT (A) 16 20 TEMP. RISE (℃) 0.00 Inductance （uH） 1.5 TEMP. RISE (℃) 102NLT 100 TEMP. RISE (℃) Inductance （uH） 821NLT 1.25 0 P809. D (07/20) SMT Power Inductors High Current Composite Inductor - PA5005.XXXNLT and PM2205.XXXNLT POWER PRODUCTS 432NLT 100 3.6 80 5 80 2.7 60 4 60 1.8 40 2 40 0.9 20 1 20 0.0 0 0 6 9 DC CURRENT (A) 12 15 6 9 DC CURRENT (A) 100 4.8 80 3.6 60 2.4 40 1.2 0.0 0.0 2.5 5.0 7.5 DC CURRENT (A) 10.0 12.5 0 562NLT 5.6 80 4.2 60 2.8 40 20 1.4 20 0 0.0 Inductance （uH） 100 0.0 2.5 5.0 7.5 DC CURRENT (A) 10.0 12.5 0 822NLT 682NLT 100 10.0 100 7.2 80 8.0 80 5.4 60 6.0 60 3.6 40 4.0 40 1.8 20 2.0 20 0 0.0 0.0 0 2 4 6 DC CURRENT (A) 4 8 10 Power.PulseElectronics.com Inductance （uH） 9.0 TEMP. RISE (℃) Inductance （uH） 15 7.0 TEMP. RISE (℃) Inductance （uH） 472NLT 6.0 12 TEMP. RISE (℃) 3 3 0 2 4 6 DC CURRENT (A) 8 10 TEMP. RISE (℃) 0 0 TEMP. RISE (℃) 6 Inductance （uH） 100 TEMP. RISE (℃) Inductance （uH） 332NLT 4.5 0 P809. D (07/20) SMT Power Inductor High Current Composite Inductor - PA5005.XXXNLT and PM2205.XXXNLT CORE LOSS vs FLUX DENSITY 2.0 200KHz 1.8 400KHz 600KHz 1.6 800KHz 1000KHz 1.4 Core Loss (W) 1400KHz 1.2 1800KHz 1.0 0.8 0.6 0.4 0.2 0.0 1 611 2-111 2-611 3-111 3-611 Bp-p (Gauss) Cq.q!>!L!+M)vI*!+efmub!J)B* For More Information: Americas - prodinfo_power@pulseelectronics.com | Europe - power-apps-europe@pulseelectronics.com | Asia - power-apps-asia@pulseelectronics.com Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may be trademarks or registered trademarks of their respective owners. © Copyright, 2020. Pulse Electronics, Inc. All rights reserved. 5 Power.PulseElectronics.com P809. D (0/20) POWER PRODUCTS
