915 ± 50mm
4
4
1
2
CN1
3.3 ± 0.3
3.3 ± 0.3
3
CN2

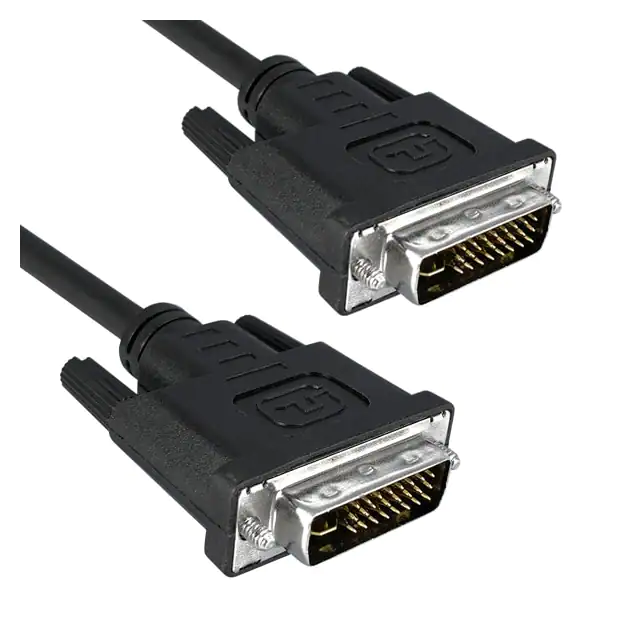

P /N: 1321009 - 03
DVI(24+5) P /M- DVI(24+5) P /M
Length: 3 F T
C olor: B lac k
NOTES:
1. CABLE: UL20276
(28AWG*1PR+EAM)*7+(28AWG*1PR+SAM)*3+28AWG*1PR
+28AWG*5C+AEB(AL) 65%
PVC OUTER JACKET: BLACK, OD: 9.5 ± 0.3mm
2. CONNECTOR: DVI 24+5 MALE
INSULATOR: BLACK
PIN G/F
NICKEL PLATED SHELL
THUMB SCREW: E4*28.5mm #4-40UNC
3. CONNECTOR: DVI 24+5 MALE
INSULATOR: BLACK
PIN G/F
NICKEL PLATED SHELL
THUMB SCREW: E4*28.5mm #4-40UNC
4. PVC MOLDED: COLOR V398 45P BLACK
5. ELECTRICAL TEST:
.100% OPEN SHORT & MISS WIRE TEST
. INSULATION RESISTANCE: AC300V DC400V 10M ohm MIN.
. CONDUCTOR RESISTANCE: 3 ohm MAX.
6. PACKING: 1PC/POLYBAG
Dim
range
(mm)
Tolerance
+/(mm)
0-1
0.15
1-6
0.20
6-18
0.30
18-50
0.50
CONTROLLED
Qualtek Electronics Corp.
WCI DIVISION
1321009-03
Part Number:
Description:
DVI (24+5)P/M - DVI (24+5)P/M
UNIT: mm
REV. C
50-120
0.70
Drawn / Date
Checked / Date
Approved / Date
120-250
0.90
250-500
1.20
B. Grubb
01-12-07
01-12-07
JJH / 01-12-07
