1321013-06

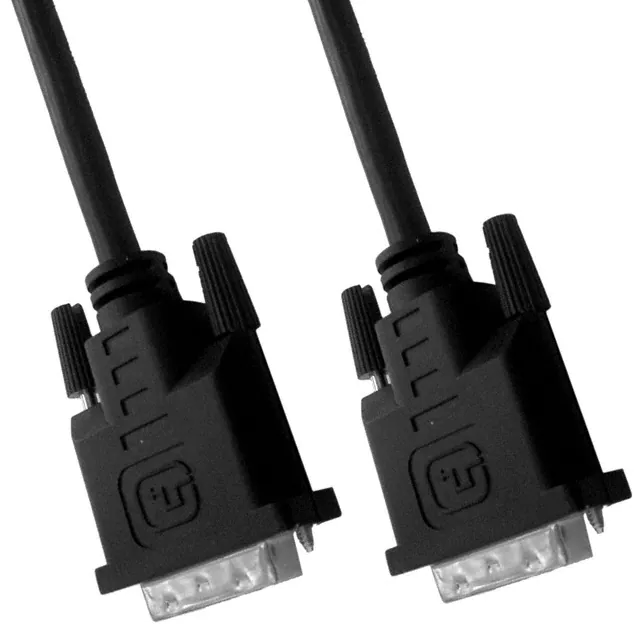

THESE DRAWINGS ARE THE PROPERTY OF QUALTEK ELECTRONICS AND NOT TO BE REPRODUCED FOR OR COMMUNICATED TO A THIRD PARTY WITHOUT THE EXPRESS WRITTEN PERMISSION OF AN OFFICER OF QUALTEK ELECTRONICS. REV. B REVISION DESCRIPTION Updated Pin Out, Notes and Graphics DATE 10-30-14 APPROVED LY 1830 ± 50mm 4 2 CN1 4 1 3 3.8 ± 0.3 3.8 ± 0.3 CN2 P /N: 1321013 - 06 DVI(18+1) P /M- DVI(18+1) P /M Length: 6 F T C olor: B lac k NOTES: 1. CABLE: UL20276 (28AWG*1PR+EAM)*4+28AWG*1PR+28AWG*3C+AEB(AL) 65% OUTER JACKET: BLACK, OD: 7.0 ± 0.2mm 2. CONNECTOR: DVI 18+1 MALE INSULATOR: BLACK PIN G/F NICKEL PLATED SHELL THUMB SCREW: 2.8*32.5 4-40UNC 3. CONNECTOR: DVI 18+1 MALE INSULATOR: BLACK PIN G/F NICKEL PLATED SHELL THUMB SCREW: 2.8*32.5 4-40UNC 4. PVC MOLDED: COLOR V398 30P BLACK 5. ELECTRICAL TEST: .100% OPEN SHORT & MISS WIRE TEST . INSULATION RESISTANCE: AC300V DC400V 10M ohm MIN. . CONDUCTOR RESISTANCE: 3 ohm MAX. 6. PACKING: 1PC/POLYBAG Dim range (mm) Tolerance +/(mm) 0-1 0.15 1-6 0.20 6-18 0.30 18-50 0.50 CONTROLLED Qualtek Electronics Corp. WCI DIVISION 1321013-06 Part Number: Description: DVI (18+1)P/M - DVI (18+1)P/M UNIT: mm REV. B 50-120 0.70 Drawn / Date Checked / Date Approved / Date 120-250 0.90 250-500 1.20 B. Grubb 12-20-06 12-20-06 JJH / 12-20-06
