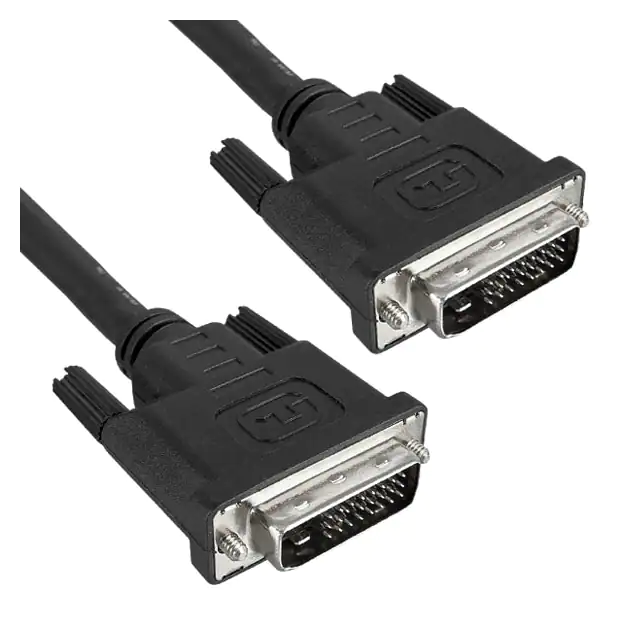

1321027-10

THESE DRAWINGS ARE THE PROPERTY OF QUALTEK ELECTRONICS AND NOT TO BE REPRODUCED FOR OR COMMUNICATED TO A THIRD PARTY WITHOUT THE EXPRESS WRITTEN PERMISSION OF AN OFFICER OF QUALTEK ELECTRONICS. REV. B REVISION DESCRIPTION Updated Notes and Graphics DATE 11-18-15 APPROVED LY 3050 ± 80mm 4 4 1 2 CN1 3 3.8 ± 0.5 3.8 ± 0.5 P /N: 1321027- 10 DVI(24+1) P /M- DVI(24+1) P /M Length: 10F T C olor: B lac k CN2 P /N: 1321027- 10 D VI( 24+1) P /M- DVI( 24+1) P /M Length: 10F T C olor: B lac k NOTES: 1. CABLE: UL20276 (28AWG*1PR+EAM)*7+28AWG*1PR+28AWG*3C+AEB(AL) 65% OUTER JACKET: BLACK, OD: 8.5 ± 0.2mm 2. CONNECTOR: DVI 24+1 MALE INSULATOR: BLACK PIN G/F NICKEL PLATED SHELL THUMB SCREW: 2.8*32.5mm 4-40UNC 3. CONNECTOR: DVI 24+1 MALE INSULATOR: BLACK PIN G/F NICKEL PLATED SHELL THUMB SCREW: 2.8*32.5mm 4-40UNC 4. PVC MOLDED: COLOR V398 30P BLACK 5. ELECTRICAL TEST: .100% OPEN SHORT & MISS WIRE TEST . INSULATION RESISTANCE: AC300V DC400V 10M ohm MIN. . CONDUCTOR RESISTANCE: 3 ohm MAX. 6. PACKING: 1PC/POLYBAG Dim range (mm) Tolerance +/(mm) 0-1 0.15 1-6 0.20 6-18 0.30 18-50 0.50 CONTROLLED Qualtek Electronics Corp. WCI DIVISION 1321027-10 Part Number: Description: DVI (24+1)P/M - DVI (24+1)P/M UNIT: mm REV. B 50-120 0.70 Drawn / Date Checked / Date Approved / Date 120-250 0.90 250-500 1.20 B. Grubb 01-25-07 01-25-07 JJH / 01-25-07
