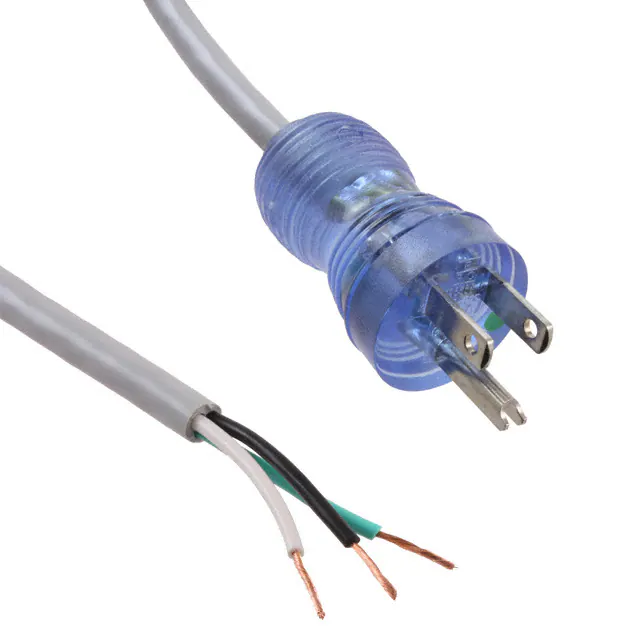

232002-06

THESE DRAWINGS ARE THE PROPERTY OF QUALTEK ELECTRONICS AND NOT TO BE REPRODUCED FOR OR COMMUNICATED TO A THIRD PARTY WITHOUT THE EXPRESS WRITTEN PERMISSION OF AN OFFICER OF QUALTEK ELECTRONICS. REV. B REVISION DESCRIPTION RoHS Compliancy DATE 06-01-06 APPROVED D.P. 96” ± 2” 0” 3 CAUTION GROUNDING RELIABILITY CAN ONLY BE ACHIEVED WHEN THE EQUIPMENT IS CONNECTED TO AN EQUIVALENT RECEPTACLE MARKED HOSPITAL ONLY OR HOSPITAL GRADE 1 5/8” 2” 2 NOTES: 1. CORDAGE: SJT, 18AWG / 3C, UNSHIELDED, NA COLOR CODE, TEMP. RATING 60°C, RATING: 125V 10A, JACKET: COLOR GRAY PLUG: NEMA 5-15P HOSPITAL GRADE (CLEAR) OTHER END: ROJ 2” STRIP 5/8” , APPROVALS: UL, CSA ROHS COMPLIANT CAUTION LABEL Dim range (mm) 0-1 1-6 6-18 18-50 50-120 120-250 250-500 Tolerance +/(mm) 0.15 0.20 0.30 0.50 0.70 0.90 1.20 CONTROLLED Qualtek Electronics Corp. Part Number: Description: PPC DIVISION 232002-06 2. 3. 4. 5. 6. HOSPITAL GRADE POWER CORD UNIT: in REV. B Approved / Date JJH / 01-21-04 Drawn / Date B. ZHANG 01-21-04 Checked / Date 01-21-04
