233058-01

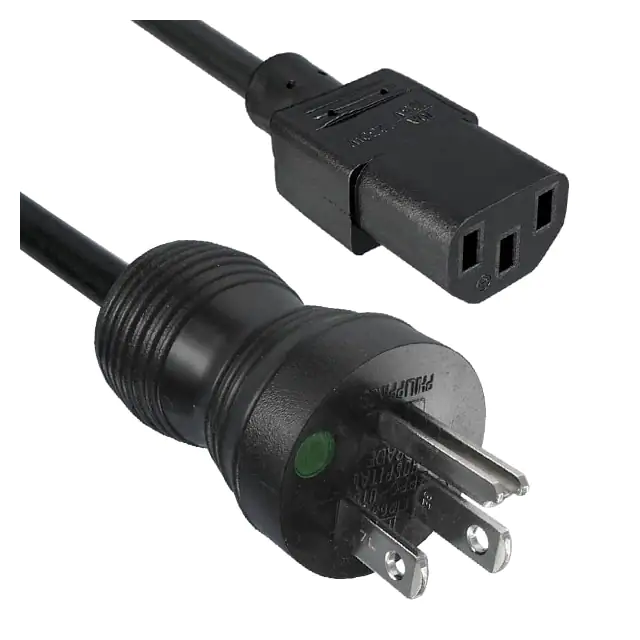

REVISION THESE DRAWINGS ARE THE PROPERTY OF QUALTEK ELECTRONICS AND NOT TO BE REPRODUCED FOR OR COMMUNICATED TO A THIRD PARTY WITHOUT THE EXPRESS WRITTEN PERMISSION OF AN OFFICER OF QUALTEK ELECTRONICS. REV. 120” ± DESCRIPTION DATE APPROVED 2” 0” 3 1 2 NOTES: 1. 2. 3. 4. 5. CORDAGE: SJT, 16AWG / 3C , UNSHIELDED, NA COLOR CODE, TEMP. RATING 60°C, RATING: 125V, 13A, JACKET COLOR: BLACK PLUG: NEMA 5-15P HOSPITAL GRADE (BLACK) CONNECTOR: IEC 60320 C13 APPROVALS: UL, CSA ROHS COMPLIANT CONTROLLED Qualtek Electronics Corp. Dim range (mm) Tolerance +/(mm) Part Number: 0-1 0.15 Description: 1-6 0.20 6-18 0.30 18-50 0.50 PPC DIVISION 233058-01 POWER CORD HOSPITAL GRADE UNIT: in 50-120 0.70 Drawn / Date Checked / Date Approved / Date 120-250 0.90 250-500 1.20 R.Nuti 10-23-07 10-23-07 JJH / 10-23-07
