243003-06

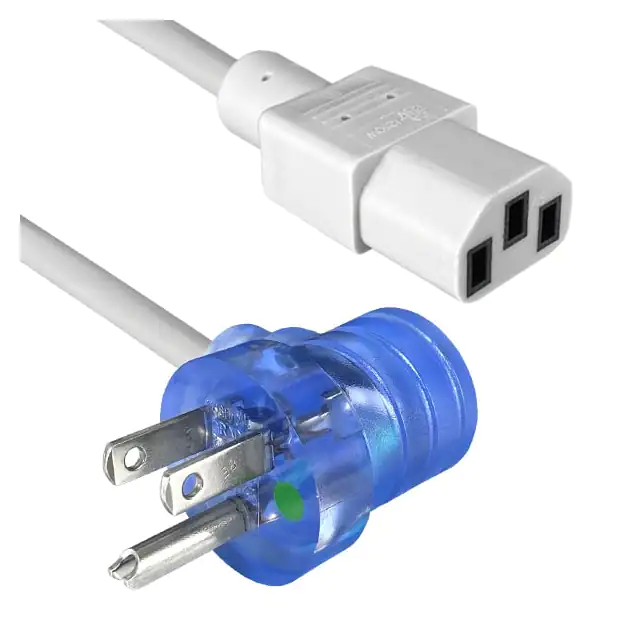

REVISION THESE DRAWINGS ARE THE PROPERTY OF QUALTEK ELECTRONICS AND NOT TO BE REPRODUCED FOR OR COMMUNICATED TO A THIRD PARTY WITHOUT THE EXPRESS WRITTEN PERMISSION OF AN OFFICER OF QUALTEK ELECTRONICS. REV. B C DESCRIPTION Correct Projection of left plug, take out detail dims RoHS Compliancy DATE 01-13-04 06-01-06 APPROVED LG DP 2” 120” ± 0” CAUTION GROUNDING RELIABILITY CAN ONLY BE ACHIEVED WHEN THE EQUIPMENT IS CONNECTED TO AN EQUIVALENT RECEPTACLE MARKED HOSPITAL ONLY OR HOSPITAL GRADE 3 1 2 NOTES: 1. 2. 3. 4. 5. 6. CORDAGE: SJT, 18AWG / 3C, UNSHIELDED, NA COLOR CODE, TEMP. RATING 60°C, RATING: 125V 10A, JACKET COLOR: GRAY PLUG: NEMA 5-15P HOSPITAL GRADE (CLEAR) CONNECTOR: IEC 60320 C13 APPROVALS: UL, CSA ROHS COMPLIANT CAUTION LABEL Dim range (mm) Tolerance +/(mm) 0-1 0.15 1-6 0.20 6-18 0.30 18-50 0.50 CONTROLLED Qualtek Electronics Corp. PPC DIVISION 243003-06 Part Number: Description: HOSTPITAL GRADE POWER CORD UNIT: in REV. C 50-120 0.70 Drawn / Date Checked / Date Approved / Date 120-250 0.90 250-500 1.20 B. Zhang 11-11-04 11-11-04 JJH / 11-11-04
