3021023-16

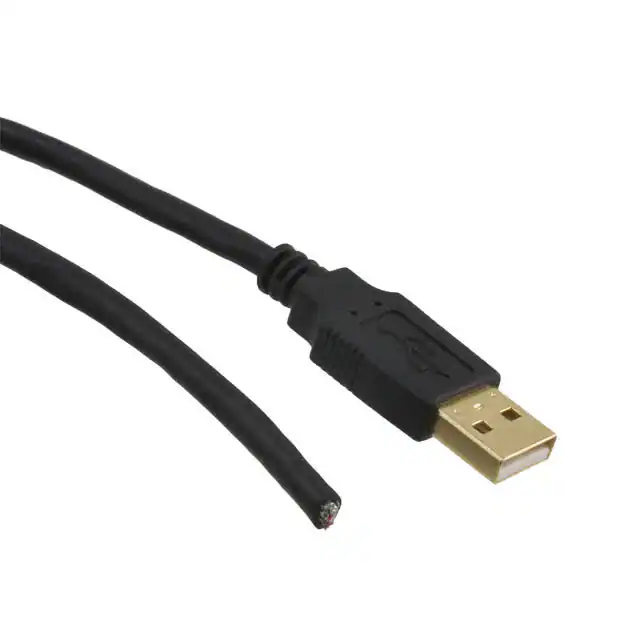

THESE DRAWINGS ARE THE PROPERTY OF QUALTEK ELECTRONICS AND NOT TO BE REPRODUCED FOR OR COMMUNICATED TO A THIRD PARTY WITHOUT THE EXPRESS WRITTEN PERMISSION OF AN OFFICER OF QUALTEK ELECTRONICS. REV. B REVISION DESCRIPTION Updated Specifications DATE 02-09-12 APPROVED LY 4880 ± 10mm 4 CN1 2 CN2 1 3 11.75MIN LABEL MINI TIE x2 NOTES: 1. CABLE: UL2725 24/26AWG 26AWGx1P+24AWGx2C+ AEB(AL) 65% OUTER JACKET: BLACK, OD: 4.5 ± 0.2mm 2. CONNECTOR: USB A TYPE MALE INSULATOR: WHITE PBT PIN G/F GOLD PLATED SHELL 3. BLUNT CUT 4. PVC MOLDED: COLOR V398 45P BLACK 5. ELECTRICAL TEST: .100% OPEN SHORT & MISS WIRE TEST . INSULATION RESISTANCE: DC400V 10M ohm MIN. . CONDUCTOR RESISTANCE: 3 ohm MAX. 6. PACKING: 1PC/POLYBAG W/ LABEL Dim range (mm) Tolerance +/(mm) 0-1 0.15 1-6 0.20 6-18 0.30 18-50 0.50 CONTROLLED Qualtek Electronics Corp. Part Number: Description: WCI DIVISION 3021023-16 USB 4P(A)/M - BLUNT CUT UNIT: mm REV. B 50-120 0.70 Drawn / Date Checked / Date Approved / Date 120-250 0.90 250-500 1.20 B. Grubb 01-26-07 01-26-07 JJH / 01-26-07
