79” ± 3”
5/8”
3 1 2
2”
NOTES: 1. CORDAGE: SJT, 14AWG / 3C, UNSHIELDED, CEE COLOR CODE, TEMP. RATING: 60°C, RATING: 125V 15A, JACKET COLOR: BLACK PLUG: NEMA 5-15P OTHER END: ROJ 2” STRIP 5/8” , APPROVALS: UL, CSA ROHS COMPLIANT
Dim range (mm) 0-1 1-6 6-18 18-50 50-120 120-250 250-500 Tolerance +/(mm) 0.15 0.20 0.30 0.50 0.70 0.90 1.20
CONTROLLED Qualtek Electronics Corp.
Part Number: Description:
PPC DIVISION 311024-01

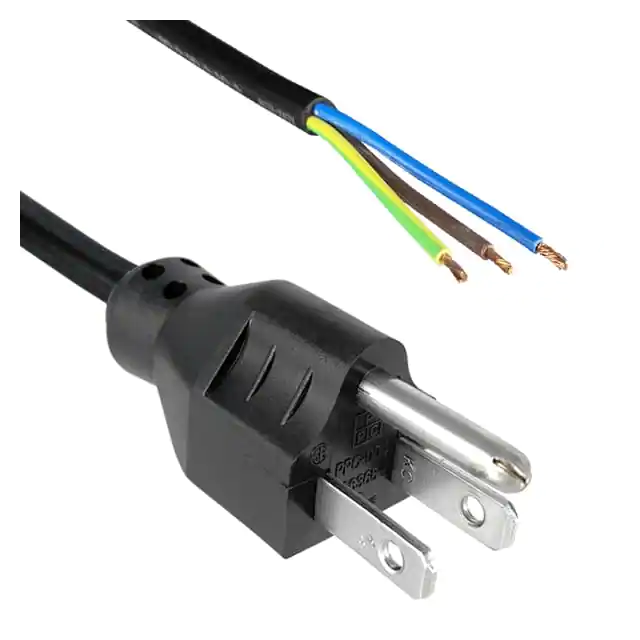

POWER CORD
UNIT: in
2. 3. 4. 5.
REV. B
Approved / Date JJH / 04-19-02
Drawn / Date B. Zhang 04-19-02
Checked / Date 04-19-02
